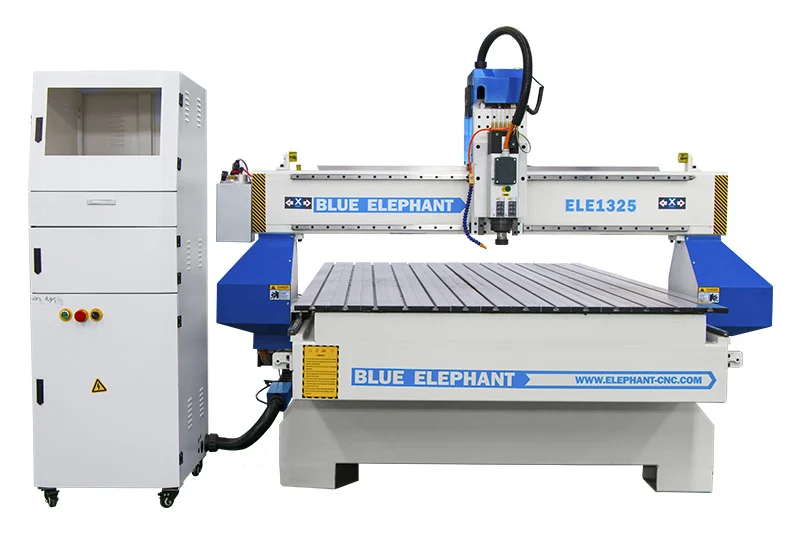

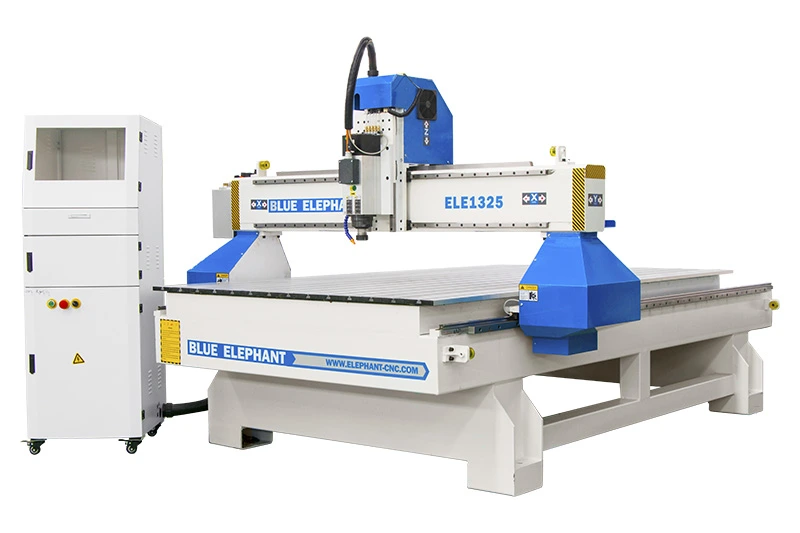

ELE1325 Wood Engraving CNC Router machine CNC801

Home/CNC Routers/3 Axis CNC Wood Router/ELE1325 Wood Engraving CNC Router machine
ELE1325 Wood Engraving CNC Router machine 2018-01-03T16:28:03+00:00

Project Description

Features:

  • 10-12mm industrial class square tube strong bed. You can use our elephant cnc router more than 10 years.
  • T-slot working table, pvc protection. T-slot table surface is generally designed for acrylic, aluminum, pvc, pcb etc plastic or metal cutting, milling carving.
  • We can also design vacuum and t-slot table for you, if you also need wood carving.
  • DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.
  • Italy HSD 7KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service
  • Stepper motor. Big power supply. Servo motor for your option

Parameters:

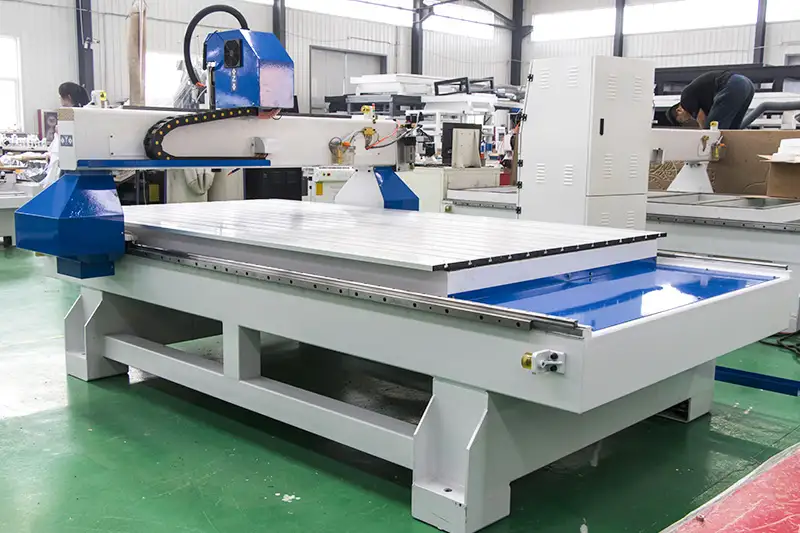

  • 1300*2500*200mm effective working area
  • Original Italy HSD 7KW Air cooling spindle, 24000RPM
  • Taiwan DELTA 7.5KW inverter;
  • FL118 bigger stepper motor and YAKO2811 drivers;
  • RichAuto DSPA11 handle controller with USB port;
  • Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel,
  • All axis Sweden SKF group ABBA linear guide and rails, 20#;
  • T-slot working table
  • 1.5KW Double bags dust collector with CE Certificate
  • French Schneider electric parts
  • Independent control box;
  • Artcam 2012 software for free
  • Working voltage: 380V/50HZ/3PH
  • hsd air cooling spindle 7000w of 1325 wood working cnc machinery with 7kw hsd spindle
    Italy HSD Spindle
    7kw HSD air cooling spindle, 0-18000rpm/min. Top brand in the world.
  • hsd spindle 7kw of 1325 wood working cnc machinery with 7kw hsd spindle
    Air Cooling Spindle
    Air-cooled, easy to operate..
  • dsp control system of 1325 wood working cnc machinery with 7kw hsd spindle
    DSP Control System
    DSP controller for cnc router,USB connect,can be use without computer.
    Suitable for 3 axis.
  • automatic lubrication system of 1325 wood working cnc machinery with 7kw hsd spindle
    Automaitc Lubrication System
    Lubricate the linear rail and extend the rail life.
  • linear rail of 1325 wood working cnc machinery with 7kw hsd spindle
    TBI Ball Screw
    ABBA linear rail of 1325 wood working cnc machinery with 7kw hsd spindle.
  • rack and gear of 1325 wood working cnc machinery with 7kw hsd spindle
    Gear and Rack
    High precision Helical gear and rack , Left helical and right helical gear rack, gear and rack length 1400mm/pc
  • fl118 stepper motor of 1325 wood working cnc machinery with 7kw hsd spindle
    Stepper Motor
    FL118 stepper motor, big power.
  • taiwan delta inverter 7.5kw of 1325 wood working cnc machinery with 7kw hsd spindle
    7.5Kw Taiwan Delta Inverter
    It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
  • yako 2811 driver of 1325 wood working cnc machinery with 7kw hsd spindle
    YAKO 2811 Stepper Driver
    Owe to bipolar constant current chopper control of the driver circuit, the motor can run smoothly and hardly has any noise.
  • 6 kw Italy HSD air cooling spindle —————- 1 piece
  • 7.5 kw Taiwan Delta inverter ——————– 1 piece
  • NCstudio 53B control system ——————- 1 set
  • Japan YASKAWA servo motor —————— 4 pieces
  • Japan YASKAWA servo driver —————— 4 pieces
  • T-slot &vacuum table ————————— 1 set
  • Manual Oil Lubrication system —————— 1 set
  • France Schneider safety switch —————— 1 piece
  • Separate control box —————————- 1 set

Tool Box Parts:

  • Clamp————————8 pieces
  • Collets————————4 pieces
  • Tool, bit, cutter, mill——–21 pieces
  • Spanner———————-4 pieces
  • Software CD—————–1 piece
  • fuse core———————-2 pieces
  • Tool box———————-1 piece
  • Adjusting screw ————– 4 pieces

Applications:

Furniture: wooden doors, chairs,cabinets, stairs,computer tables, sewing machine, musical instruments

Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board,

epoxy, resin, ABS, PP, PE, and other carbon mixture

Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal

plate engraving and milling cutting.
