- 3 axis with dust proof.

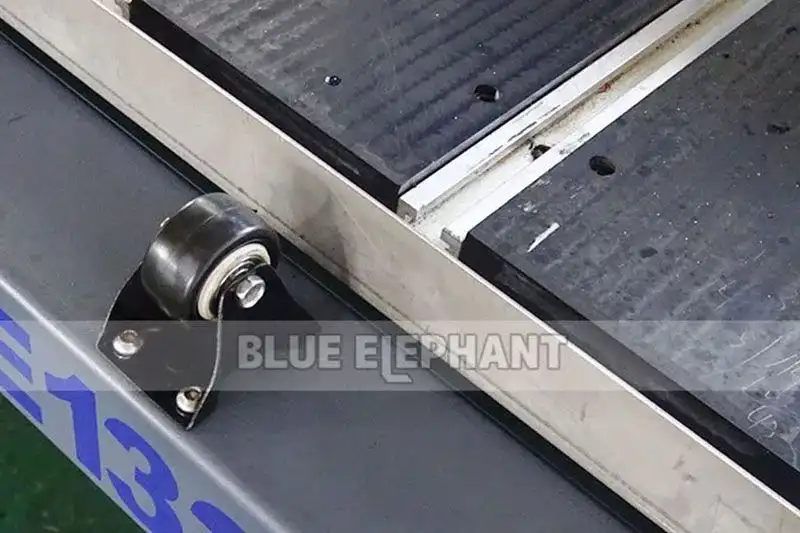

- with wheels in front for easy put on material.
- #25 HIWIN Linear guidepan.
- SS water tank with mist cooling sprayer.
- Working area(mm): 1300*2500*200mm
- Table Structure1.5 mm stainless steel T-slot table

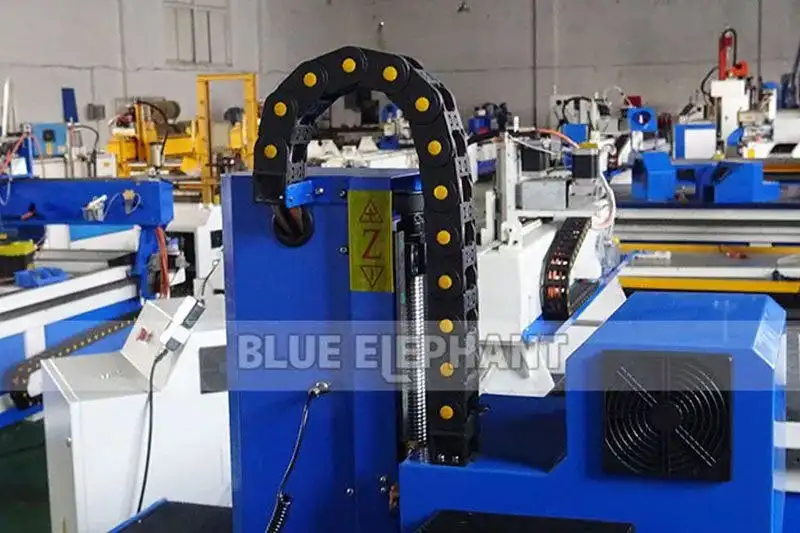

- Transmission system: X,Y axis Gear Rack from Taiwan, z axis Ballscrew from Taiwan but with German technology
- Lead rail system: Linear round guide rail
- Spindle power: 3 kw Water-cooling ,3.175/4/6/12.7mm
- spindle speed: 0-24000 rpm
- Motor: stepper(Panasonic/Yaskawa optional)
- Drive: YAKO 2811
- Dust collector system: For your option
- Tool sensor: Option
- Software environmant: Windows 98/2000/XP
- Control System: Ncstudio control system [DSP is optional]
- Compatible file formats: G code ; *.u00 ; *.mmg ; *.plt .
- Compatible Softwares: Ucancam V8 / Artcam
- Working Voltage: AC380V,3ph, 50Hz
- Precision: 0.005mm
- Max speed: 26.0m/min
- Max engraving speed: 18.0m/min
- Max feeding height: 200mm
- Work-holding devices: by fixture
- Interface type: USB
- Warranty guarantee: One-year after-sale services

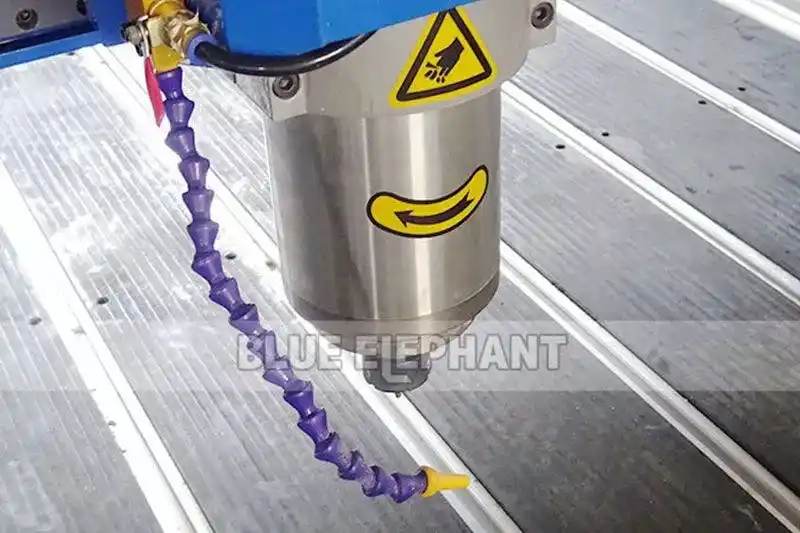

3kw Water Cooling Spindle
Water cooled spindle speed: 24000RPM, with low noise.
The grinding process can improve the concentricity of the motor and prolong the service life.

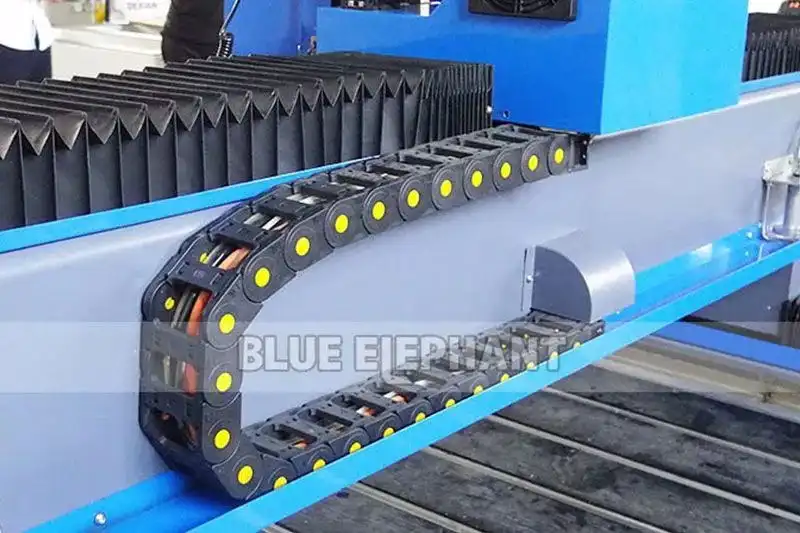

Regular lines, protection of wires.
Taiwan HINWIN Linear Rail
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.
Gear and Rack
High precision Helical gear and rack , Left helical and right helical gear rack, gear and rack length 1400mm/pc
Yako 2811 Big Driver
Owe to bipolar constant current chopper control of the driver circuit, the motor can run smoothly and hardly has any noise.Rising the voltage can greatly improve high speed performance and output torque of the motor.
A11 Control System
DSP controller for cnc router,USB connect,can be use without computer.
Suitable for 3 axis.
- Dust proof ————————————– 1 piece
- 3 kw Water-cooling spindle ——————— 1 piece
- stepper motor ———————————- 4 pieces
- YAKO 2811 driver —————————— 4 pieces
- Ncstudio control system ———————— 1 set
Tool Box Parts:
- Tool box ——————————- 1 piece
- Adjusting screw ———————— 4 pieces
- Clamp ———————————- 8 pieces
- Collets ——————————– 4 pieces
- Tool, bit, cutter, mill —————- 21 pieces
- Spanner ——————————– 4 pieces
- Software CD —————————- 1 piece
- Fuse core —————————— 2 pieces
Marble,granite,standstone,glass,artificialstone,headstone,tablet,such as ceramic engraving and cutting materical.
