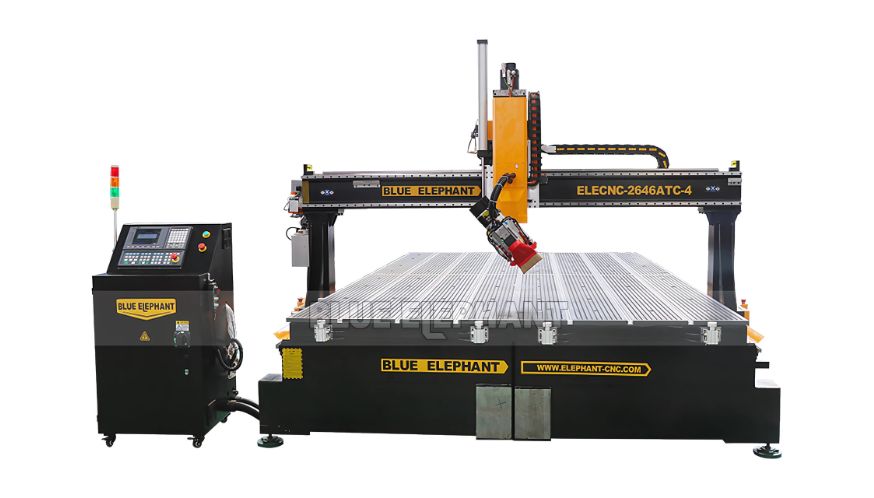

ELE 1330 4 Axis Atc CNC Router machine for wood carving CNC782

Home/4 Axis CNC Router, ATC CNC Router, CNC Routers/ELE 1330 4 Axis Atc CNC Router machine for wood carving
ELE 1330 4 Axis Atc CNC Router machine for wood carving 2017-11-04T17:00:00+00:00

Project Description

Parameters:

  • X,Y,Z Working Area: 1300x3000x400mm
  • Table Size: 1300×3000mm
  • X,Y,Z Traveling Positioning Accuracy: ±0.03/300mm
  • X,Y,Z Repositioning Accuracy: ±0.03mm
  • Table Surface: Vacuum and T-slot working table
  • Frame: Welded Structure
  • X, Y Structure: Rack and Pinion Drive, Hiwin Rail Linear Bearings
  • Z Structure: Hiwin Rail Linear Bearings and TBI Ball Screw
  • Max. Power Consumption: (Without Spindle) 3.2Kw
  • Max. Rapid Travel Rate: 33000mm/min
  • Max. Working Speed: 25000mm/min
  • Spindle Power: 9kw Italy HSD ATC air cooling spindle
  • Spindle Speed: 0-24000RPM
  • Drive Motors: 850W Japan YASKAWA servo motor
  • Working Voltage: 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
  • Command Language: G Code
  • Operating System: Taiwan SYNTEC 4 axis control System
  • Computer Interface: USB
  • Optional: Japan shimpo reducer,Becker vacuum pump,dust collector
  • Collet: ISO30
  • X,Y Resolution: <0.01mm
  • Software Compatibility: Type3/UcancameV9 Software, (Option: Artcam Software)
  • Running Environment Temperature: 0 – 45 Centigrade
  • Relative Humidity: 30% – 75%
  • 9kw hsd air cooling spindle
    9kw HSD Air Cooling Spindle
    The spindle can rotated ±90°. Italy HSD spindle, Top brand of the world.
  • linear tool magazine
    Linear Tool Magazine
    Linear tool magazine with 8 tools.
  • syntec 6mb controller
    Syntec 6MB Controller
    Basic 6 Series controller, designed for 2 to 4 axis lathe applications, can take a variety of panel configurations.
  • vacuum working table
    T-slot and Vacuum Working Table
    Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
  • YASKAWA-servo-motor (2)
    Japan YASKAWA Servo Motor and Driver
    Imported from Japan. Super high power rate, Instantaneous peak torque. Maximum speed: 6,000 min-1
  • 11kw Delta inverter
    11kw DELTA Inverter
    It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
  • 1.4m SYNTEC control box ———————- 1 set
  • SYNTEC control handle ——————- 1 piece
  • 9kw HSD spindle ————————– 1 piece
  • 11kw DELTA inverter ———————— 1 piece
  • YASKAWA servo motor —————— 5 piece
  • YASKAWA servo motor —————— 5 piece
  • Tool magazine —————————- 8 pieces
  • Automatic lubrication system ———– 1 piece
  • Automatic tool sensor calibration —— 1 piece
  • 4kw Becker pump ——————– 1 sets
  • 1.5kw New type dust collector ———- 1 piece
  • ISO30 tool holder ————————- 8 pieces
  • Simpo Reducer ————————— 2 pieces

Tool Box Parts:

  • Tool box ——————————- 1 piece
  • Adjusting screw ———————— 4 pieces
  • Clamp ———————————- 8 pieces
  • Collets (ISO30) ———————- 2 pieces
  • Tool, bit, cutter, mill —————- 21 pieces
  • Spanner ——————————– 4 pieces
  • Software CD —————————- 1 piece
  • Fuse core (20A) ———————— 2 pieces
  • Tool holder —————————- 4 pieces
  • Fork wrench (ER32) ——————— 1 piece
  • Open spanner (41-46) ——————- 1 piece
  • Box key ——————————– 1 piece
  • Instructions ————————— 1 piece

Applicantions:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving.

5.Cylindrical object.
