Project Description

Features:

  • Air cooling spindle—-9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
  • Taiwan SYNTEC 4 axis control system—-Easy operation. Support offline operation,more table.
  • 850w Japan YASKAWA servo motor—-High-performance drive motor to ensure that the machines high speed and accuracy.
  • HIWIN linear rail 25# from Taiwan —-Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
  • Vacuum & T-slot combined worktable—-Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
  • Helical rack transmission—-Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.

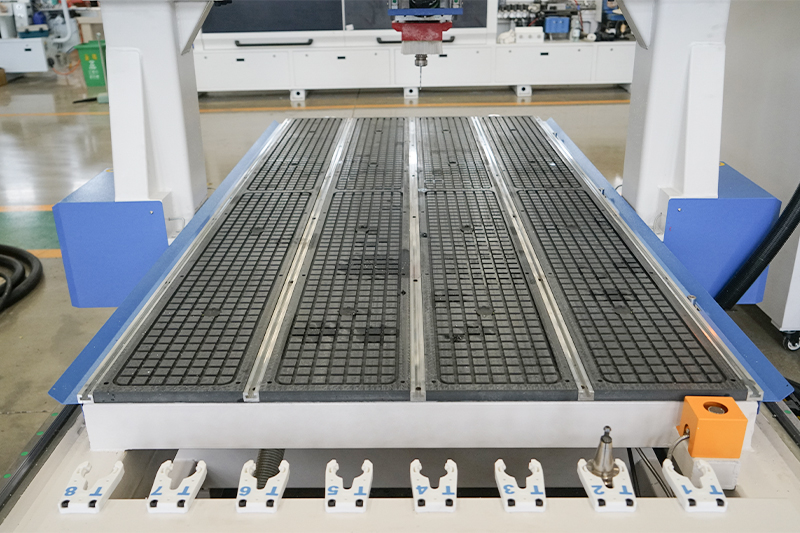

  • Carrousel Tool Magazine—- With 12 ISO30 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
  • Y axis is with dustproof, Protect the machine cleaner and easy to clean up.

Parameters:

  • Working Size:  2000*5000*600mm(Can be customized)
  • Traveling Positioning Accuracy:  ±0.03/300mm
  • Repositioning Accuracy:  ±0.03mm
  • Spindle Power:  9KW Italy HSD ATC air cooling spindle
  • Spindle Speed:  24000RPM
  • X, Y axis:  Helical rack, Hiwin 25# Rail Linear Bearing
  • Z axis:  Hiwin Rail 25# Linear Bearing & TBI Ball Screw
  • Max. Rapid Travel Rate:  40000mm/min
  • Max. Working Speed:  25000mm/min
  • Servo motor:  850w YASKAWA
  • Control System:  Taiwan SYNTEC 4 axis control system
  • Table surface:  T-slot & vacuum Table
  • Frame:  Welded Structure
  • Servo driver:  850w YASKAWA
  • Collet:  ISO30
  • X,Y Resolution:  <0.01mm
  • Software Compatibility:  Type3/UcancameV9/Artcam Software
  • Running Environment Temperature:  0 – 45 Centigrade
  • Relative Humidity:  30% – 75%
  • Optional parts:  7.5kw Tongyou vacuum pump, 1.5kw new type dust colleator, Reducer(Japan shimpo or Germany Eisele)
  • 9kw spindle

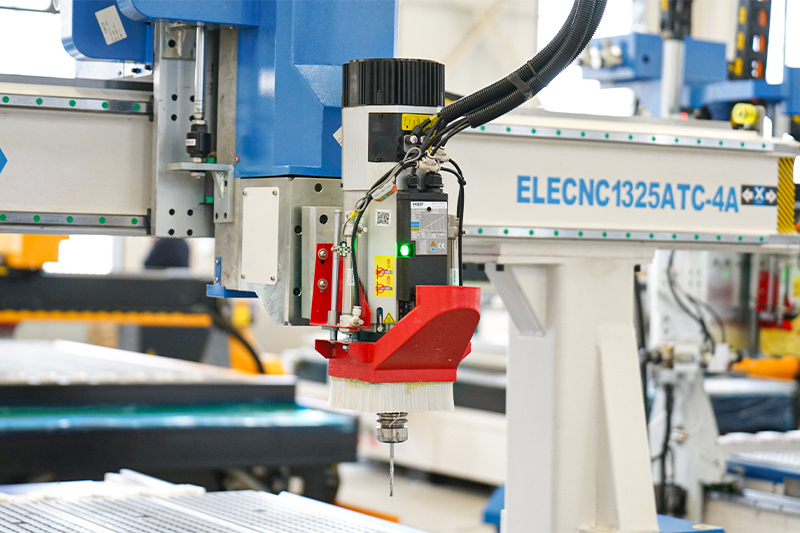

    9kw Italy HSD Air Cooling ATC Spindle
    HSD spindle is the top brand of the world.
  • caousel tool box
    Caousel Tool Magazine
    Caousel tool magazine with 12 tools.
  • vacuum valves
    Vacuum Valves
    Each control valve corresponds to the respective adsorption table.
  • syntec control

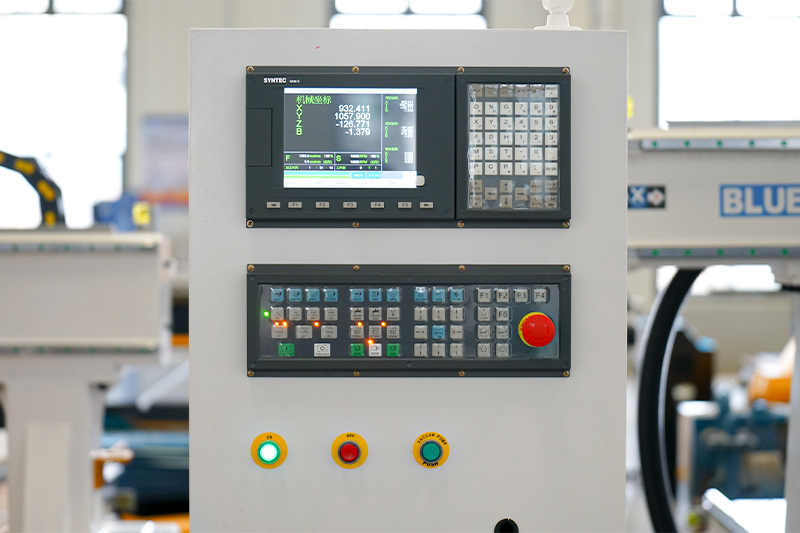

    Taiwan SYNTEC Control System
    Basic 6 Series controller, designed for 2 to 4 axis lathe applications, can take a variety of panel configurations.
  • tool sensor calibration
    Automatic Tool Sensor Calibration
    Find the origin of the process to help beginners to operate cnc machine.
  • YASKAWA-servo-motor (2)
    Japan YASKAWA Servo Motor and Driver
    Imported from Japan. Super high power rate, Instantaneous peak torque. Maximum speed: 6,000 min-1
  • SYNTEC control box ———————- 1 set
  • SYNTEC control handle ——————- 1 piece
  • 9kw HSD spindle ————————– 1 piece
  • DELTA inverter —————————- 1 piece
  • YASKAWA servo motor —————— 5 pieces
  • YASKAWA servo driver —————— 5 pieces
  • Tool magazine —————————- 12 pieces
  • Vacuum Zone —————————– 10 pieces
  • Automatic mist cooling sprayer ——– 1 piece
  • Automatic lubrication system ———– 1 piece
  • Automatic tool sensor calibration —— 1 piece
  • 7.5kw Tongyou pump ——————– 2 sets
  • 1.5kw New type dust collector ———- 1 piece
  • ISO30 tool holder ————————- 12 pieces
  • Edge finder ——————————– 1 piece
  • Reducer ———————————— 4 pieces

Tool Box Parts:

  • Tool box ——————————- 1 piece
  • Adjusting screw ———————— 4 pieces
  • Clamp ———————————- 8 pieces
  • Collets ——————————– 2 pieces
  • Tool, bit, cutter, mill —————- 21 pieces
  • Spanner ——————————– 4 pieces
  • Software CD —————————- 1 piece
  • Fuse core ———————— 2 pieces
  • Tool holder —————————- 4 pieces
  • Fork wrench (ER32) ——————— 1 piece
  • Open spanner (41-46) ——————- 1 piece
  • Box key ——————————– 1 piece
  • Instructions ————————— 1 piece

Applicable industies: Furniture,wood door,cabinet, mdf, Arts & Crafts,wood sculptures, 3D relief Business Signs,aluminum,and so on.4 axis cnc process chair legs ,wood stairs ,cylinder objects.with Carousel Atc tool magazine,can improve work efficiency.
