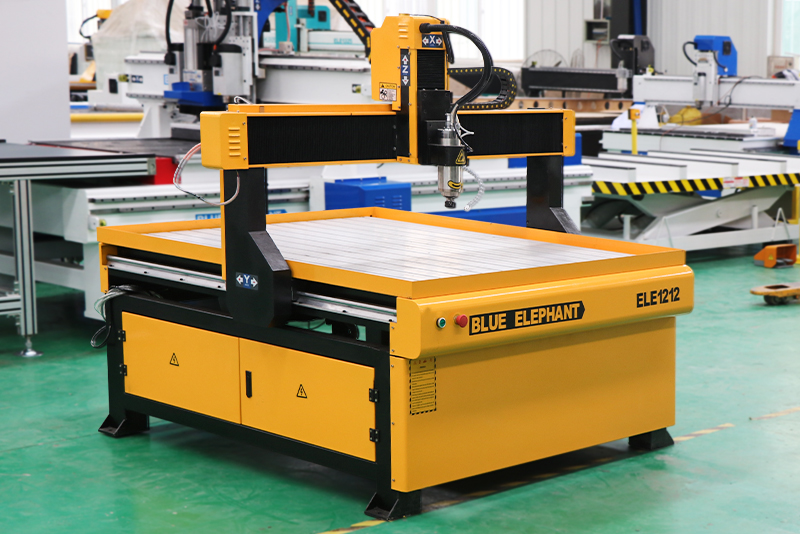

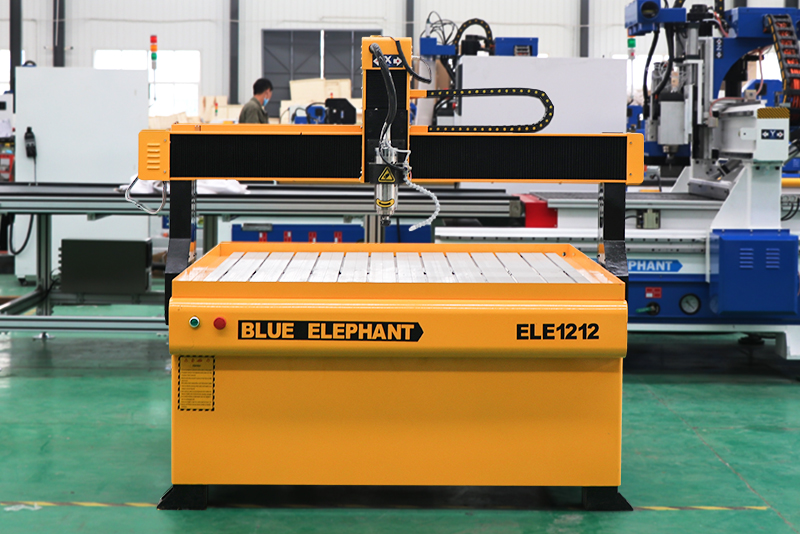

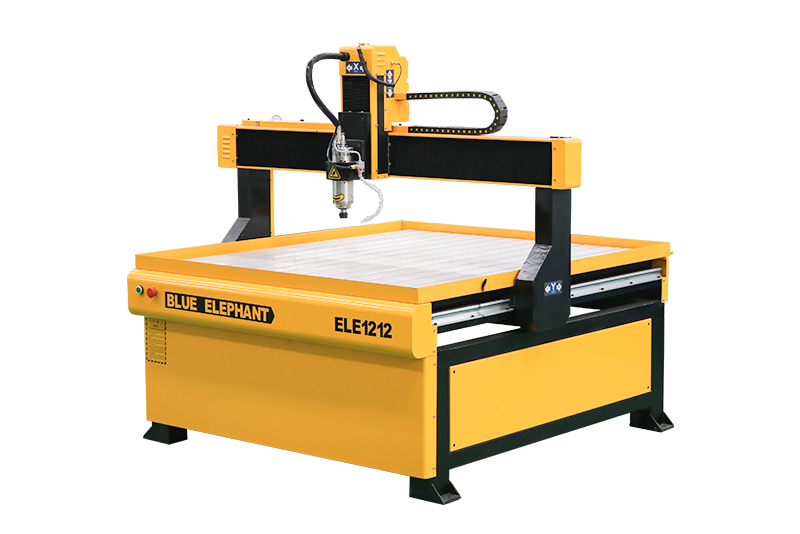

ELECNC-1212 Advertising CNC Router 02

Parameters

Features:

  • Integral cast iron frame,more durability.
  • Compare with another kinds of 4*4 CNC Router Machine, there have some differences between them.
  • The effective working area is much larger, which is distinct from 6090 Mini CNC Router.
  • Like 6060 Table Moving Advertising CNC Router, the machine was made with water cooling spindle: High precision and less noise;
  • With Fuling Inverter: More stable Performance and easy to operation;
  • Taiwan TBI ball screw for Z axis, high precision, smooth transmission;
  • Manual Lubrication system of all machine, just one press, easy to operation.

Applications:

  • Wooden areas: The machine can beused in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving and some others;
  • Advertising: the machine can be used in producing all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and others.

Parameters:

Working area 1200*1200mm*300mm

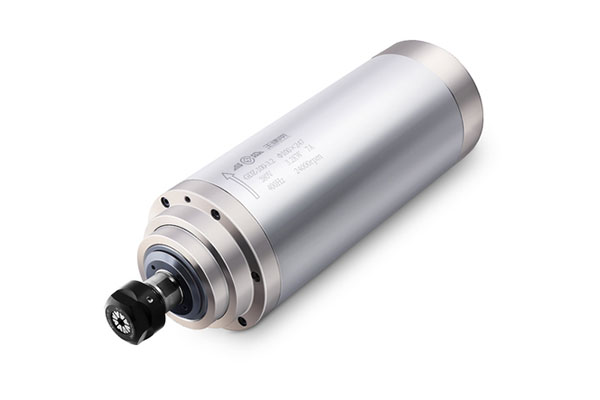

Spindle 2.2KW water cooling spindle
Spindle rotating speed 24000RPM

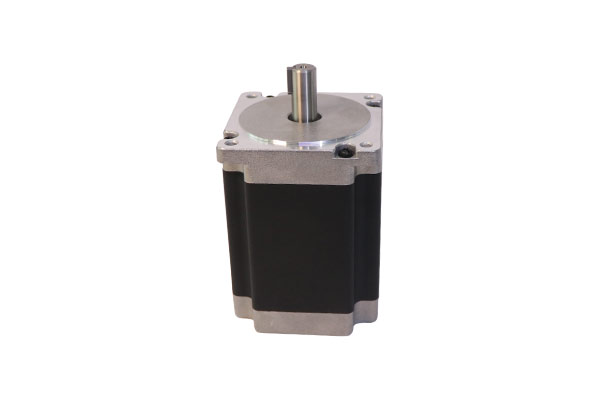

Motor Stepper
Inverter FULING

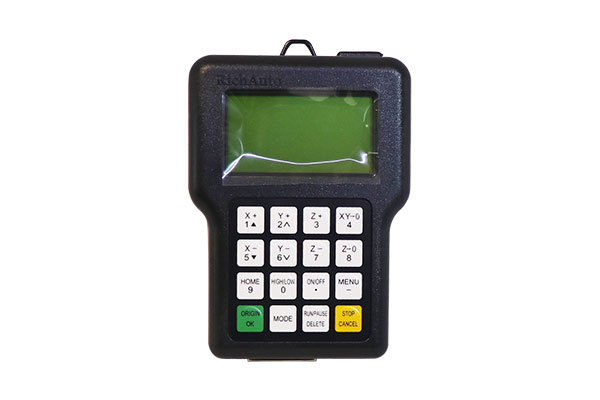

Control system Mach3
Table surface T-slot working table with water tank
Max. motion speed 8,000mm/min
Compatible software ArtCAM
Working supply 220V/110V
option rotary device, mist sprayer
Application Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures.

Close-up Pictures:

ELECNC-1212 Advertising CNC Router088888

ELECNC-1212 Advertising CNC Router (7)

ELECNC-1212 Advertising CNC Router (1)
