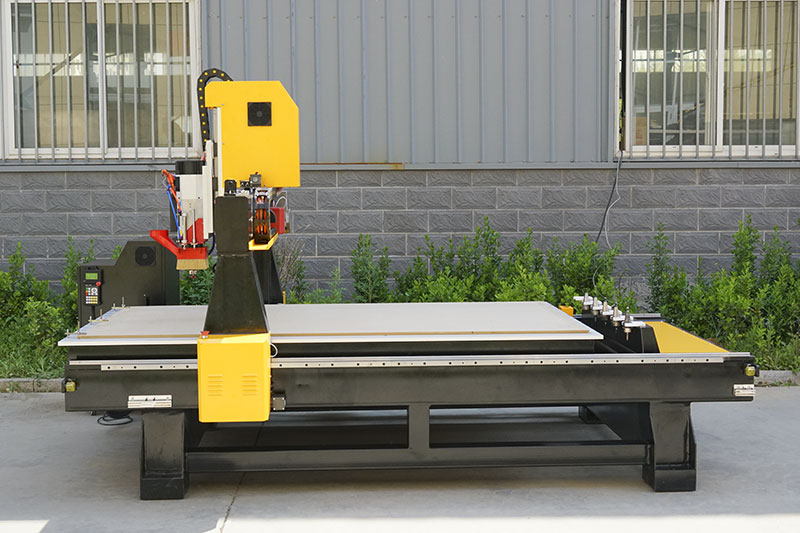

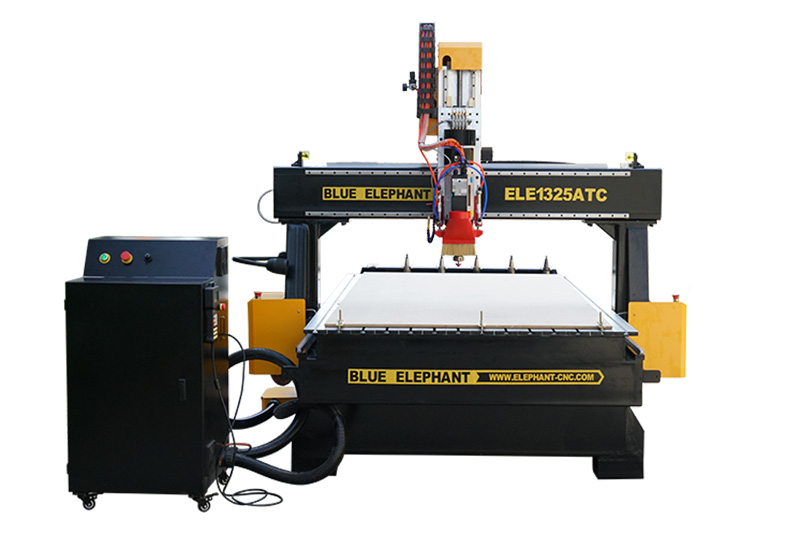

1325 Linear Tool Changer Automatic Woodworking Carving Machine

Parameters

Features:

  • High power spindle can make machine working with high precision and long time service and stable movement.
  • Big power and high precision servo motor and driver.
  • Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.
  • Air cooling spindle with imported bearing,long working life, low noise, strong cutting ability to ensure the long time working.
  • Linear Automatic Tool Changer-12Tools moving with beams, high efficiency and low cost

Parameters:

Model ELE1325ATC+ Loading and Unloading
X,Y,Z Working Area 1300x2500x200mm (customized)
Main equipment requirements Loading and Unloading+Linear Automatic Tool Changer – 12Tools(under the crossbeam)
Working Voltage AC380V/50Hz,3PH
Operating System BAOYUAN 2200
Spindle Power 9KW HQD air cooling spindle
Inverter 11KW Inverter
Drive Motors Leadshine stepper motor and drive
Reducer Newgear Reducer
Table Surface Vacuum and T-slot Combined
Computer box Rittal
Linear guide HIWIN Square Linear guide
Limit switch Omron
Lubrication Semi-auto lubrication system

PS:All the working area and specifications can be customized according to your requests.

Close-up Pictures:

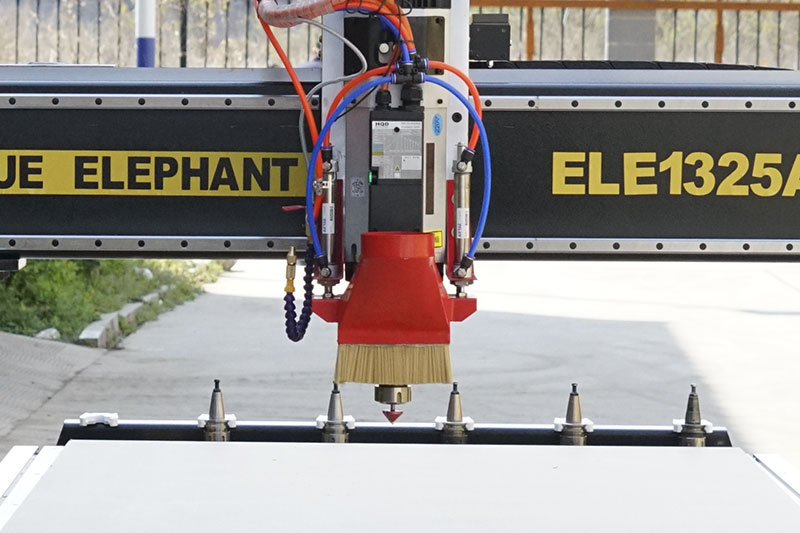

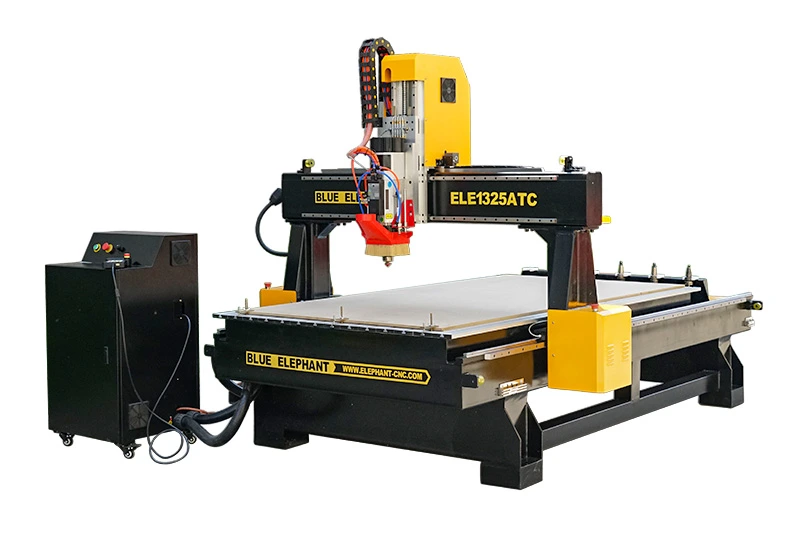

1325 Linear Tool Changer Automatic Woodworking Carving Machine (2)

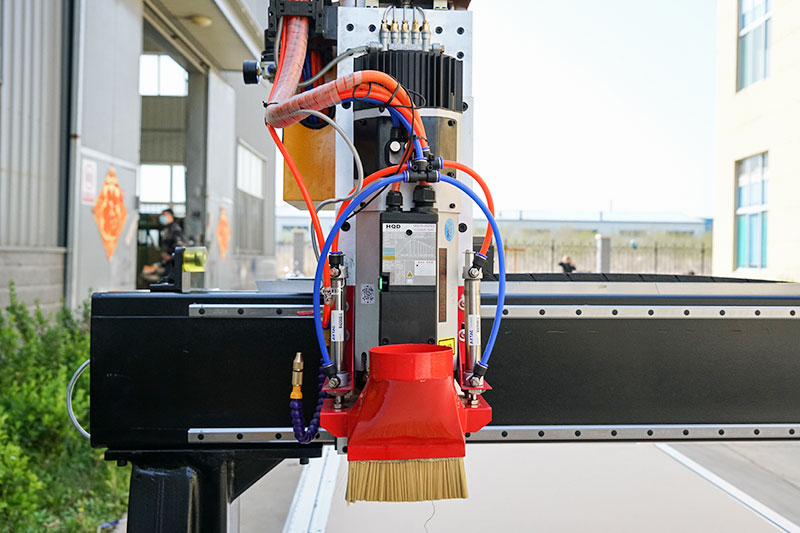

1325 Linear Tool Changer Automatic Woodworking Carving Machine2

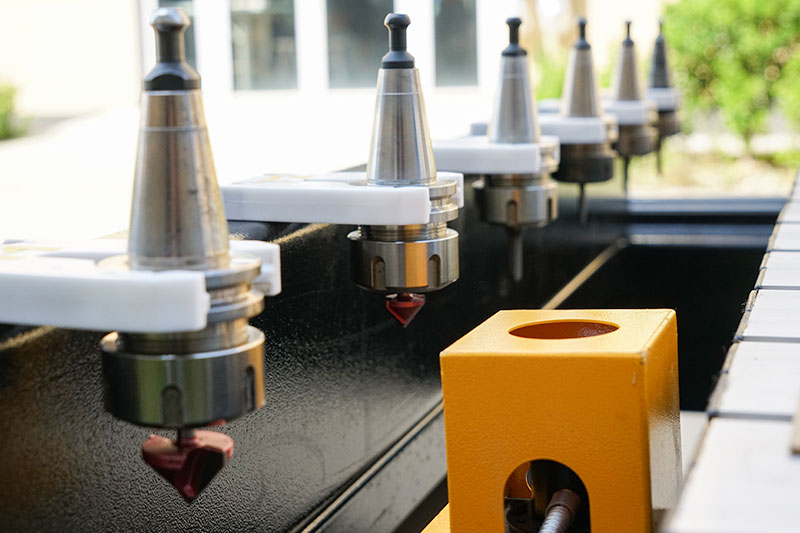

Linear tool magazine of 1325 Linear Tool Changer Automatic Woodworking Carving Machine

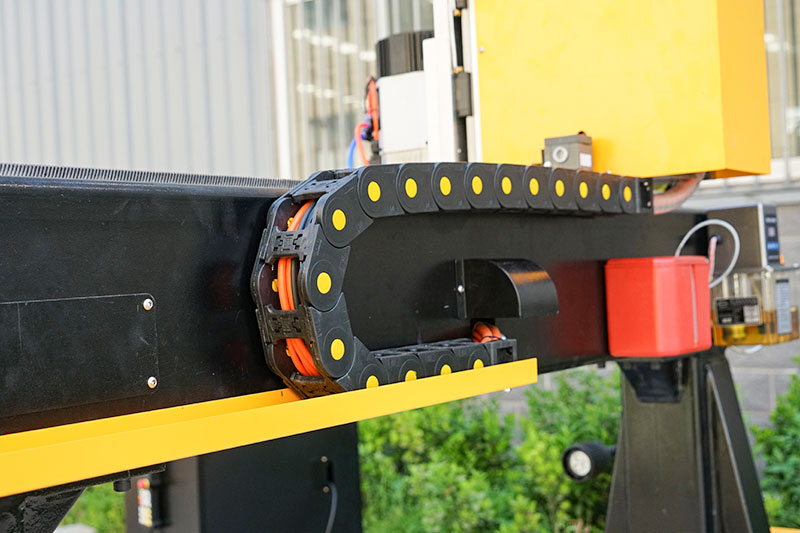

Towline of 1325 Linear Tool Changer Automatic Woodworking Carving Machine
