5.0 based on 28 ratings and reviews
Brand : Blue Elephant CNC
Model :1530AFL
Category : Fiber Laser Cutting Machine
Price : $20000 / Set
Price Range : $20000 to $50000 / Set based on the configuration
Payment: TT, Visa, Mastercard, Credit Cards, Paypal
Supply Ability : 200 Sets In Stock / Month
Policy : Shopping, Return, Refund Policy

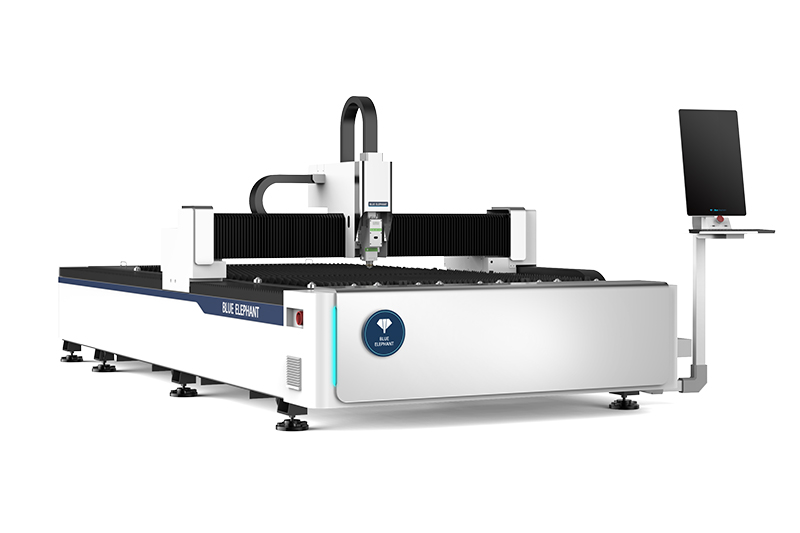

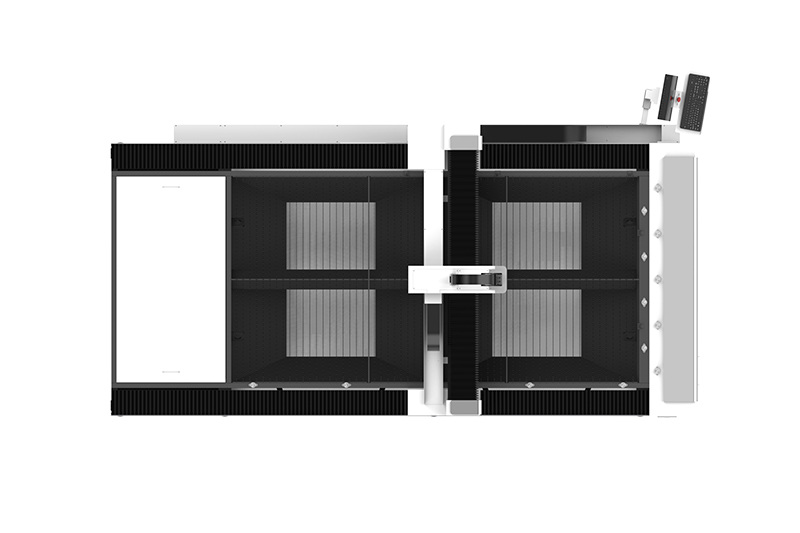

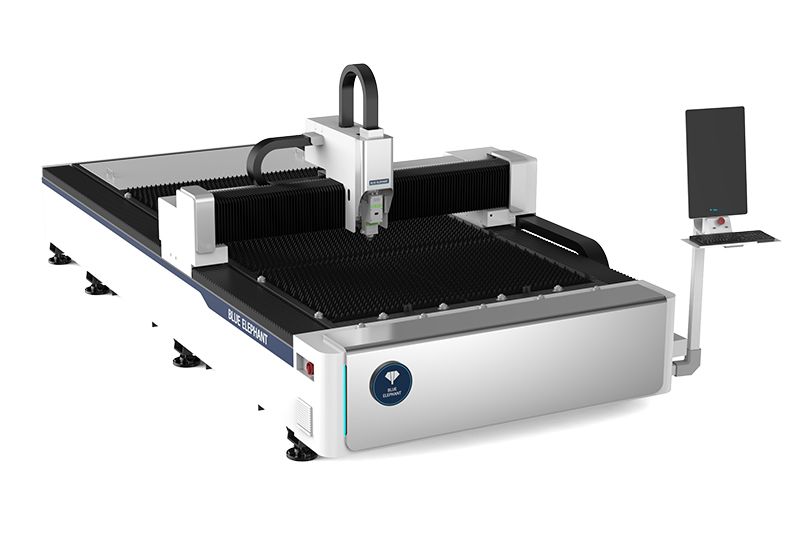

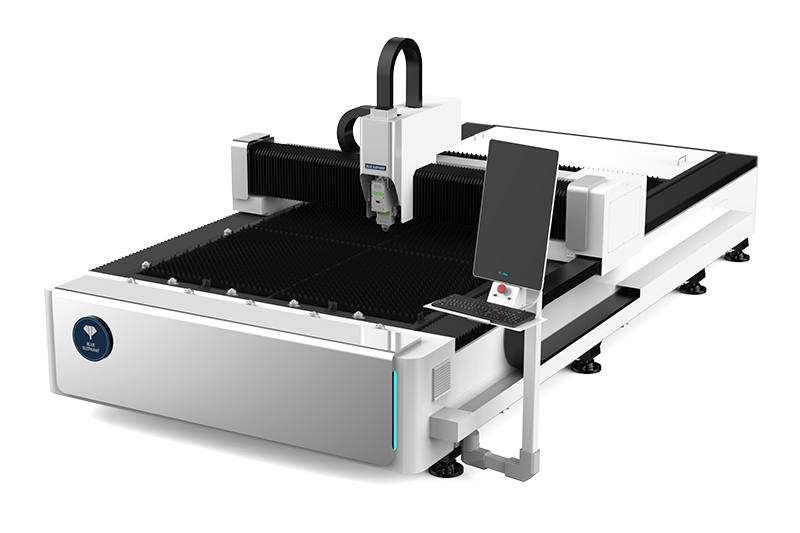

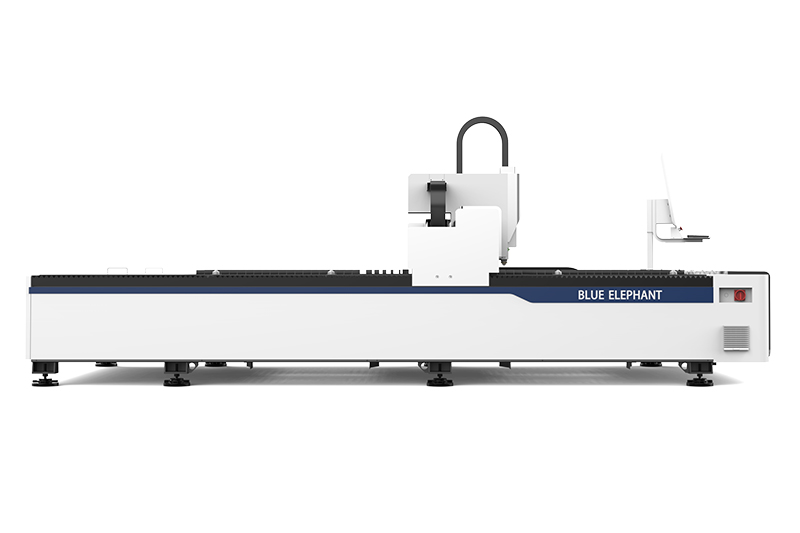

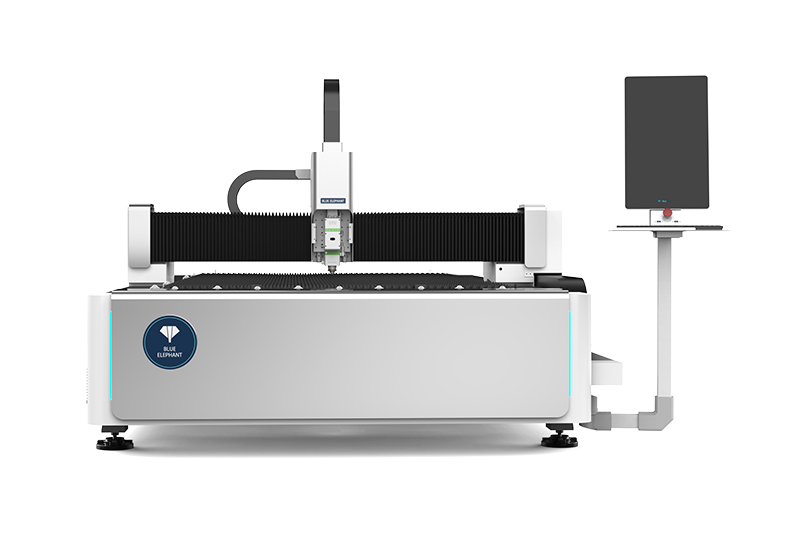

1530AFL fiber laser cutting machine is designed for the advertising industry and specialized for cutting thin metals like carbon steel and stainless steel. Its upgraded design features a built-in control cabinet, saving space and making it ideal for small to medium-sized businesses. Standard power ranges from 1–3kW, with 6kW available upon request.
1. This fiber laser cutting machine features an optimized structure, compact and occupying only 12㎡ of floor space.
2. It offers an upgraded configuration with a working area of 1550mm × 3050mm.
3. It uses a high-rigidity welded machine bed, stress-relieved to prevent deformation, with a max load of 1000kg for stable performance.
4. It features an optimized exhausting system with German technology, using a front-large, back-small air outlet design to ensure consistent ventilation and improved performance.
5. It includes all-round smart automatic lubrication, extending service life by up to 20% compared to 8-point systems.
Model | 1530AFL（1-3KW） | 1530AFL（6KW） |
Machine size | 4616*2231*1950 mm | 4616*2231*1950 mm |
Total weight of equipment | 1.6T | 2T |
Processing area | 1550×3050 mm | 1550×3050 mm |
Table load | 1000kg | 1000kg |
Maximum linear speed | 60m/min | 100m/min |
Maximum linkage speed | 85m/min | 140m/min |
Maximum linear acceleration | 0.8G | 0.8G |
Maximum linkage acceleration | 1.1G | 1.1G |
Positioning accuracy | ±0.03 | ±0.03 |
Repeat positioning accuracy | ±0.02 | ±0.02 |
Focusing method | Auto | Auto |
For the machine, we have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you. After we have got your payment. We will send the machine to you.
