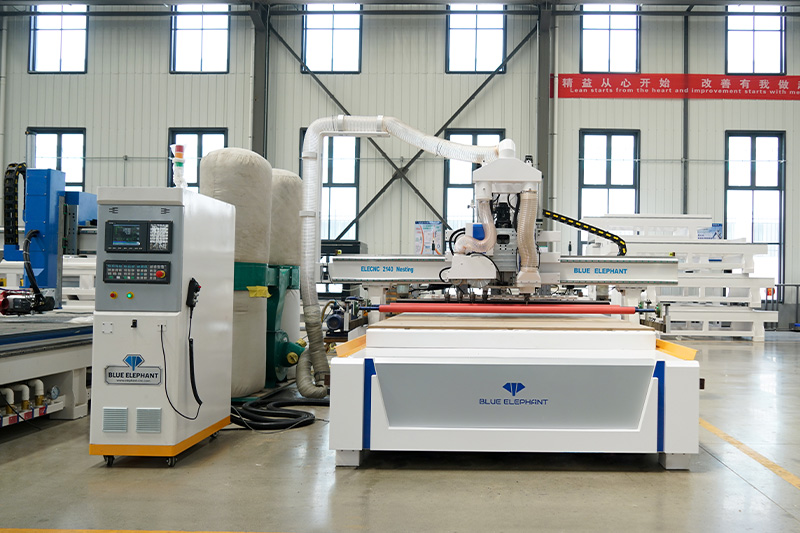

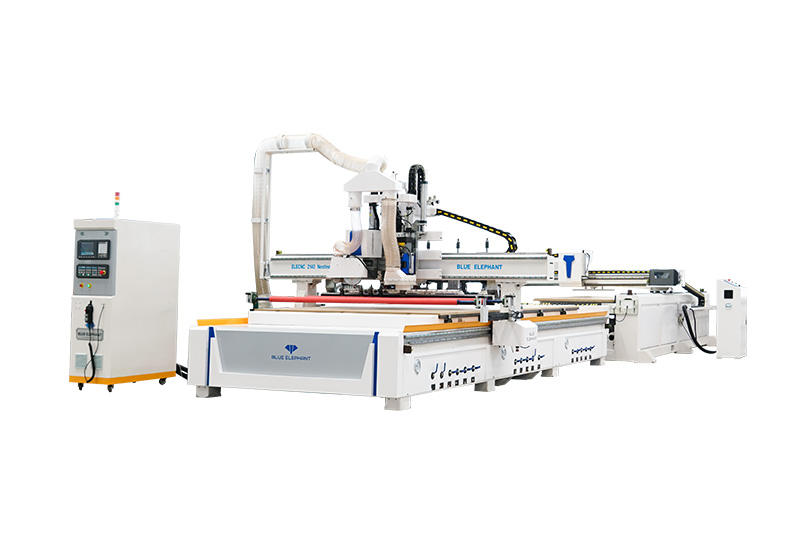

2140 ATC Nesting CNC with Two Saws and Labeling Machine

2140 ATC Nesting CNC with Two Saws and Labeling Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC-2140ATC

Category : Nesting CNC Machine

Price Range : $20000 to $25000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

2140 ATC nesting CNC with two saws and labeling machine is ideal for customized panel furniture production. It features fast saw blade cutting and integrates automatic labeling, loading, and unloading in one process, reducing manual errors and improving efficiency.

Features

1. The nesting CNC machine is equipped with double saw blades to prevent edge chipping.
2. It supports automatic positioning for multiple sizes.

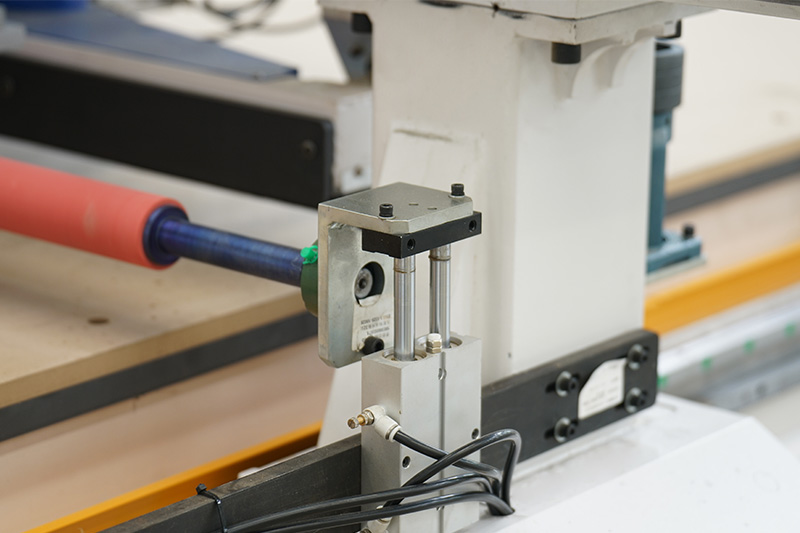

3. Pressure rollers hold small panels in place to prevent shifting.

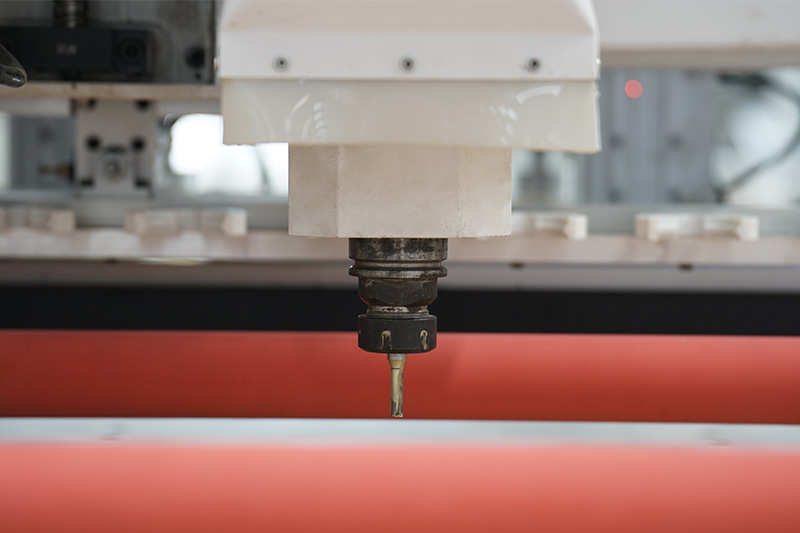

4. It has 9.5 kw Italy Hiteco ATC air-cooling spindle, 24,000 RPM.
5. Fast tool changes with linear ATC under the gantry.

Parameters

Model	2140 ATC
X, Y, Z axis travel	20704100200mm
Tool magazine	12 pieces linear type ATC
Servo	SYNTEC
Linear guide	Taiwan SHAC, Y-30,XZ-25

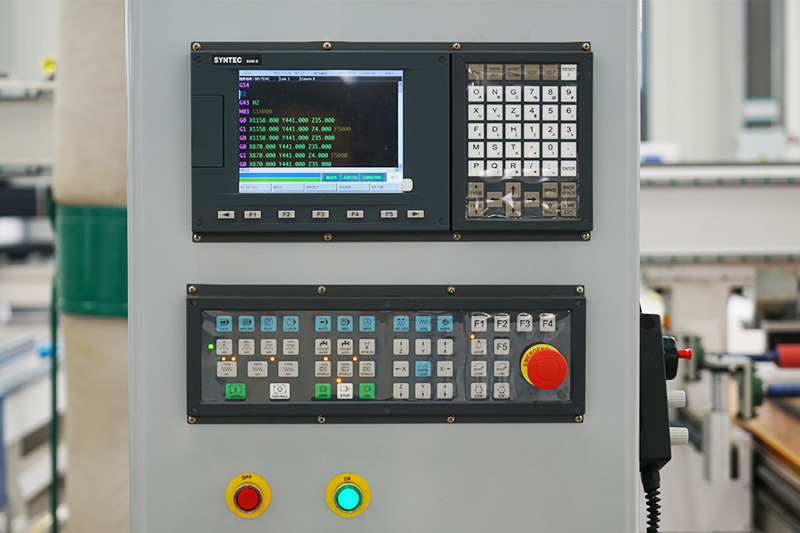

Control system	Taiwan Syntec 60WE
Voltage/frequency	380V,3PH,50HZ
Spindle type	9.5KW Hiteco ATC air-cooling tool changer, 24,000 rpm; Double saw 5.5kw+1.5kw
Inverter	11kw Delta inverter + 5.5kw+2.2kw Delta inverter
Driver and motor	850w Yaskawa servo + 1000w drive absolute value, bus board
Reducer	Shimpo
Table structure	Whole plate adsorption table, 16 divisions
Chassis	Rittal
Transmission	JT 2M
Lubrication	1.5L Auto lubrication system
Vacuum pump	7.5kw Tong you pump ZBW 160, 380V,3PH,50HZ
Vacuum cleaner	5.5kw double bag old style vacuum cleaner, 380V, 3PH, 50HZ

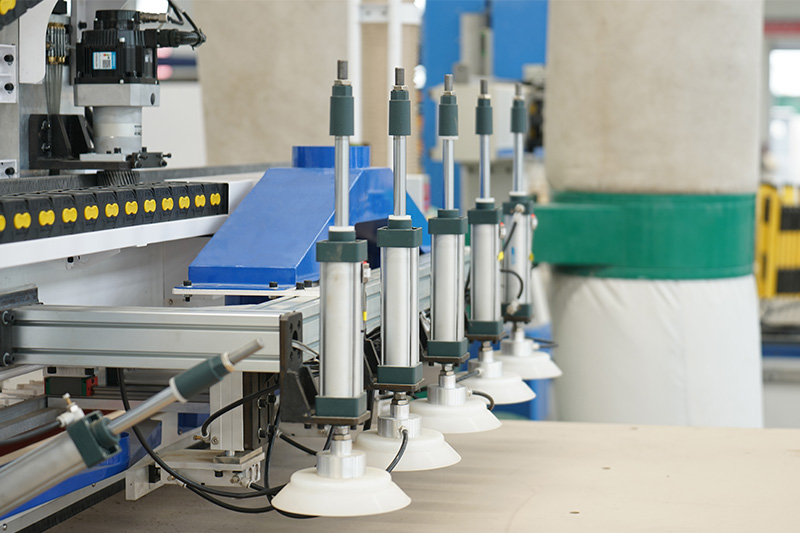

Positioning cylinder	7, X-3,Y-5

Nesting CNC Machine Optional Parts

Application

It is mainly used in panel furniture industry, decoration industry, advertising industry and other wood products processing. It can realize the production and processing of customized cabinets and wardrobes, as well as the shaping and processing of blister door panels.

Review

All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.

I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.

We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.

So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.
