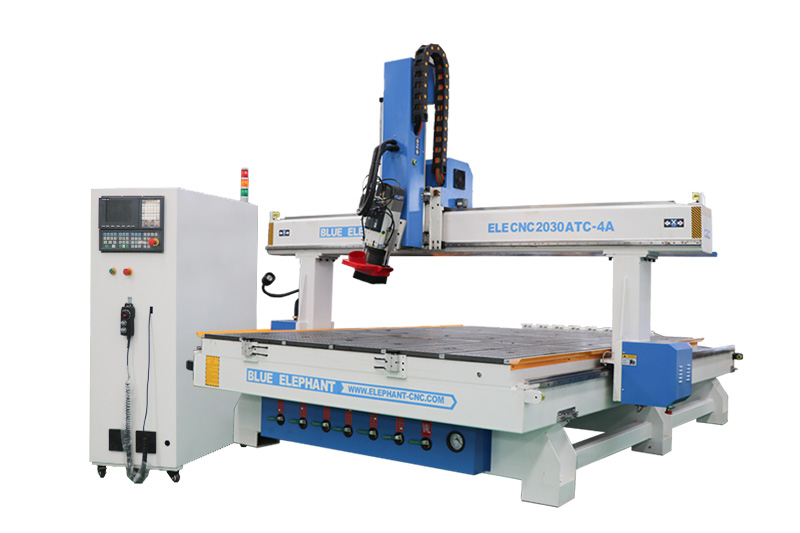

ELECNC-2030 4 Axis Linear ATC CNC Wood Cutting Machine (12)

Parameters

Advantages:

  • Promote working efficiency. Designed with Linear type tool magazine, 8 types of tools can be changed automatically according to the various of materials in the engraving process. While that’s different from Multi-Spindle CNC Machine.

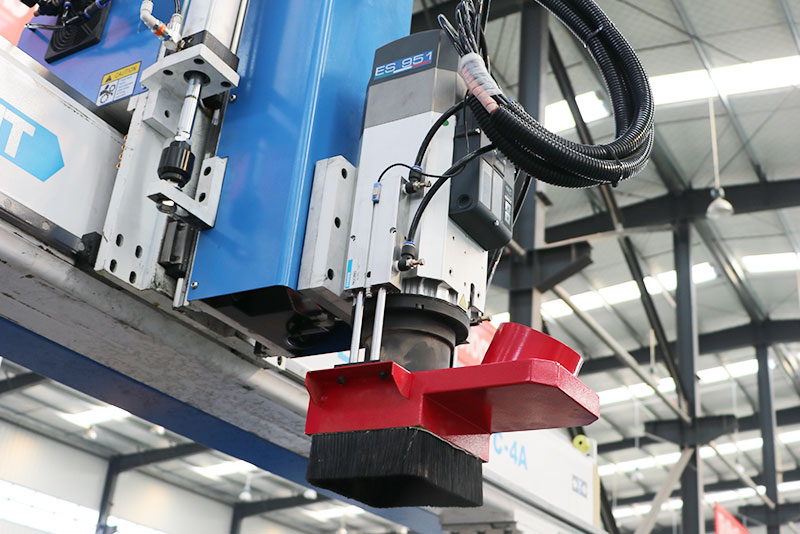

  • Multi-function: The spindle can swing 180 degree to do three-dimensional processing, realizing multi functions, which is different from 3 Axis CNC Machines . And this is also one of the advantages of 1530 4 Axis Woodworking CNC Engraver Machine.

Features:

  • Distinct from 5*10 ATC Woodworking Machine, the machine was designed with Italy HSD air cooling spindle.
  • Like another type of  4 Axis ATC machine, the machine is suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables, chairs and some others.
  • Produced with Positioning cylinder to fix of processing materials. As for this point,  Carousel Tool Changer CNC Machine also can bring some ideas to you.
  • Support customized design. If you want to do rotary work, the machine can be made with rotary device. Just like ELECNC-2070 Carousel ATC CNC Router Machine . And as for improving working size or working efficiency, ELECNC-3015 Linear ATC CNC Router can be provided for your reference.
  • Please notice that all the specifications and other items can be designed according to  your own actual requirements.

Parameters:

Description Parameter
Model ELECNC-2030ATC-4A
X,Y,Z Working Area 2060*3000*400mm
Control system Taiwan SYNTEC control system
Working Voltage 380V 3phase, 50Hz(Option)
Spindle 9kw Italy HSD air cooling spindle

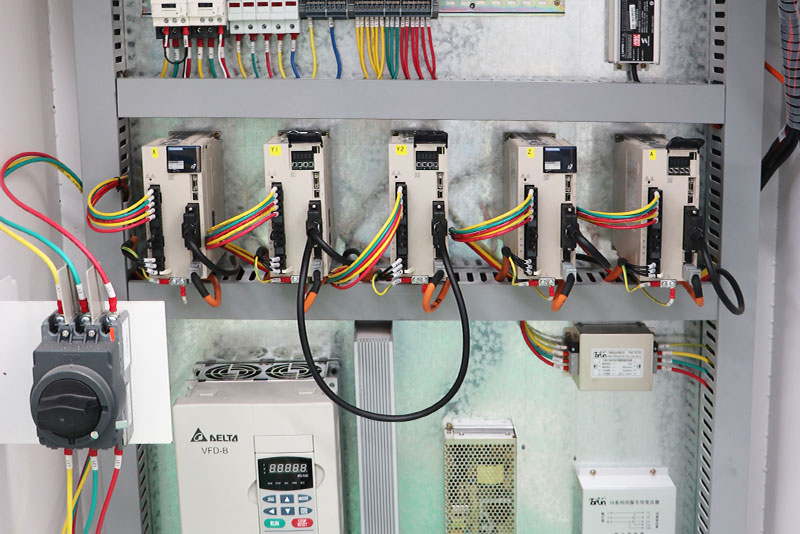

Inverter 11kw Taiwan DELTA inverter
Motor and driver 850W YASKAWA servo motor and 1kw  YASKAWA driver, SHIMPO reducer
Gantry Structure Gantry moving
Table Surface T-slot & vacuum working Table
Table structure New type thicker and bigger heavy duty welded frame and gantry
X, Y, Z Transmission Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis
X,Y, Z Rail Japan THK #25 linear guide
Lubrication system Automatic lubrication system
Vacuum pump 5.5KW German BECKER Pump, 380v, 3ph, 50hz
Positioning cylinder 5 cylinders in total; with 2 on X axis, 3 on Y axis

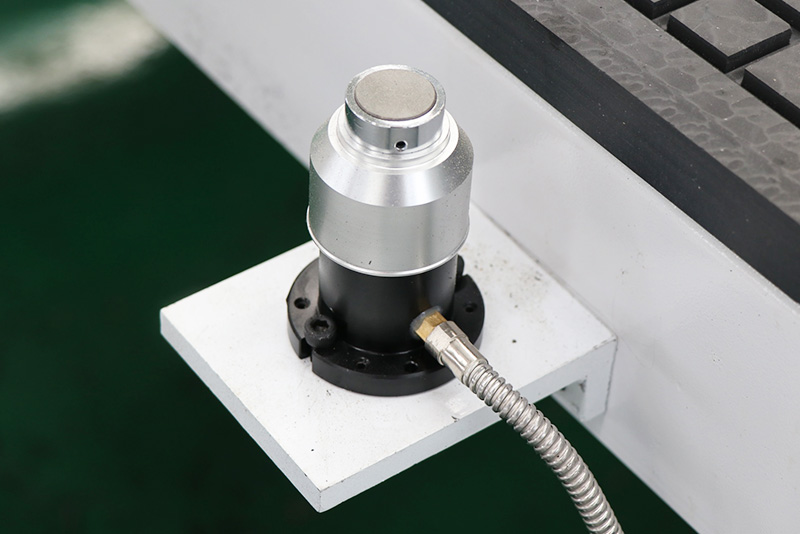

Tool Sensor Auto tool sensor calibration
Wire High soft shield with copper wire to protect against static electricity
