5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ELECNC-1325
Category : Nesting CNC Machine
Price Range : $13,000 to $28,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

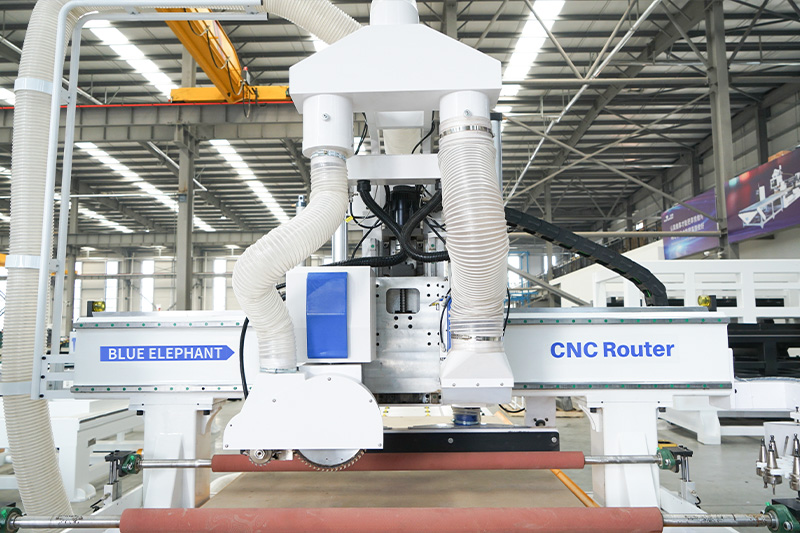

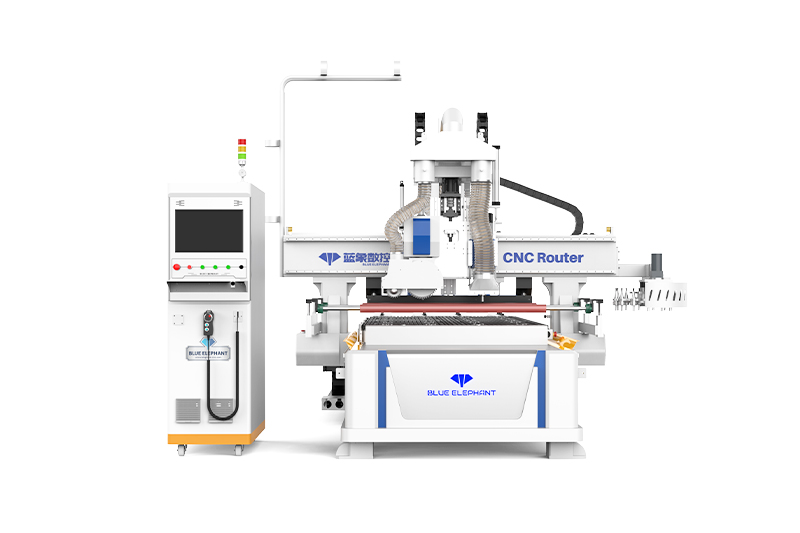

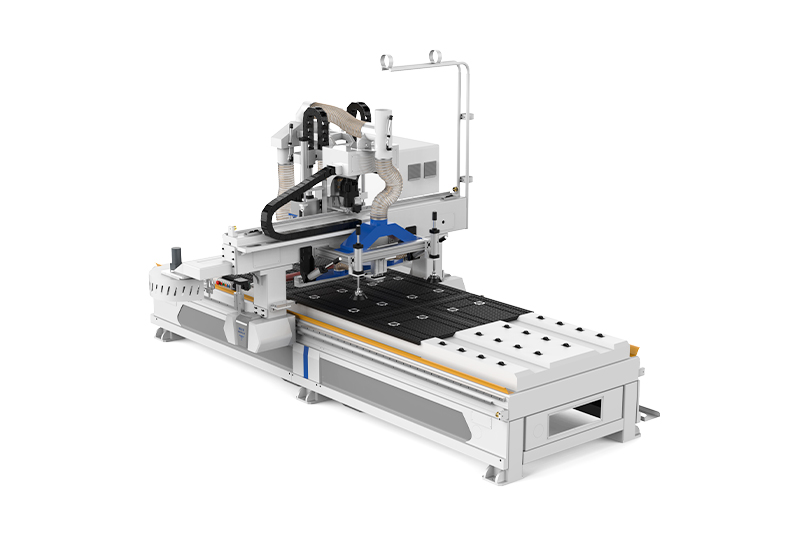

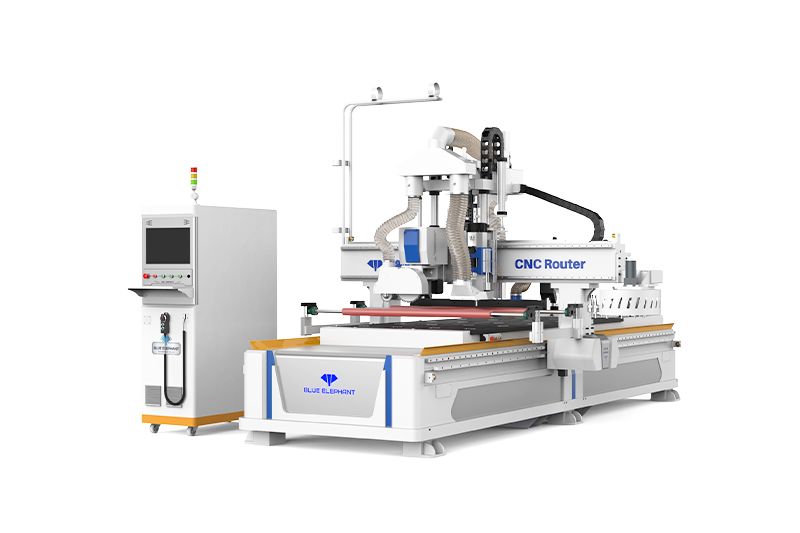

1325 ATC nesting CNC router with 2 saws is an ATC CNC Router with an auto tool changer, Italy CNC boring head with the function of drilling and saw cutting. This Furniture making machine is also has additional function for loading, feeding, and unloading working. So this is a big improvement for automatic woodworking and furniture processing plants.

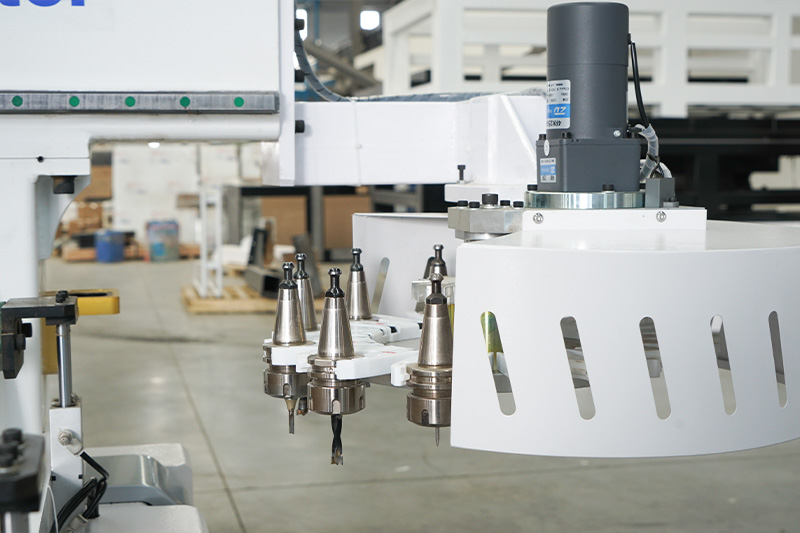

1. Carousel automatic tool changer for quick tool management;
2. CNC boring head with vertical and horizontal drilling heads and saw, it can meet your various processing needs of drilling, punching holes, and woodcutting;
3. Additional equipment for loading, feeding, and unloading working;

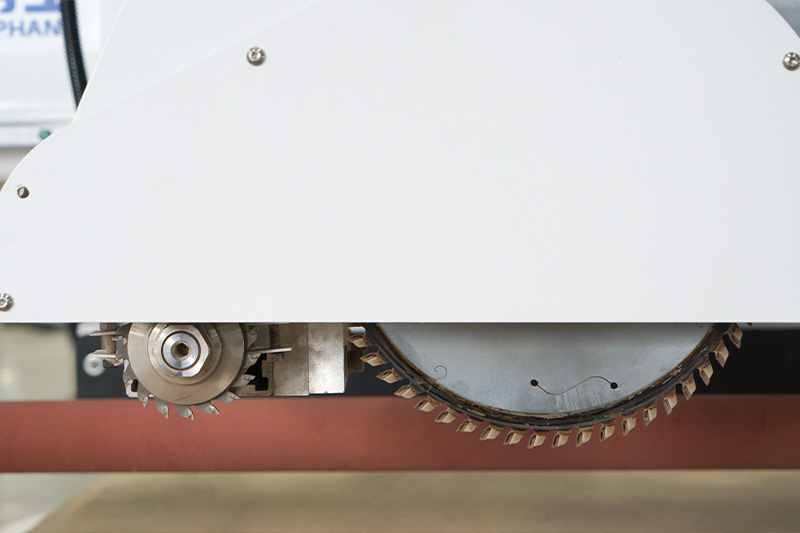

4. Equipped with 2 saws, and it is suitable for cutting heavy plates with a fast cutting speed.
| Model | ELECNC13254x8 Auto Feeding Furniture making machine with 2 Saws |
| X,Y axis travel | 1300x2500mm,option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm |
| Spindle type | HQD9.0KWATC air cooling spindles Cutting saws Two spindles + two Saws, Small saw for 3-5mm cut, big saw can cut max 55mm thick panel; The cutting directions are opposite |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | 12 pieces Linear type auto tool changer Option: Carrousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet:φ4,φ6,1/8,1/2 |

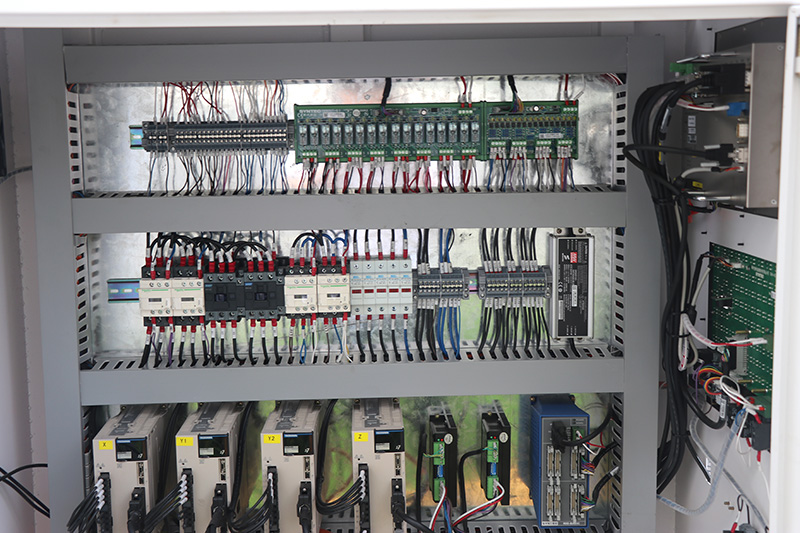

| Control system | Taiwan Syntec 60CBcontrol system |
| Driving system | Taiwan Syntec 1000W servo motor and drivers, total 5 sets |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavydutywelded steel frame |
| Work table | Full-page vacuum working table |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L Auto lubrication system |
| Tool calibration | Auto tool sensor |
| Cables | Germany Igus cables with CE,UL certificate |
| Compatible software | Artcam, Hisoon, etc |
| Command language | GCode |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Working area | 1300*2500*200 |
| Spindle | HQD 9KW air cooling spindle |
| Spindle speed | 24000RPM |
| Motor and drive | 1KW Taiwan SYNTEC servo motor and driver |
| Control system | Taiwan SYNTEC 6CB |
| Inverter | 11kw Hpmont invert |
| Table structure | heavy duty T-structure |
| Reducer | Japan Shimpo reducer |
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
Any software which can produce G code can work with our machines. We can offer Artcam and Aspire for free, which can support 3 axis and 4 axis CNC routers.
These is a USB port on the controller, so you can transfer files through the USB port.
The size of the machine can be customized according to your requirements. 2100*4000mm size is no problem.
