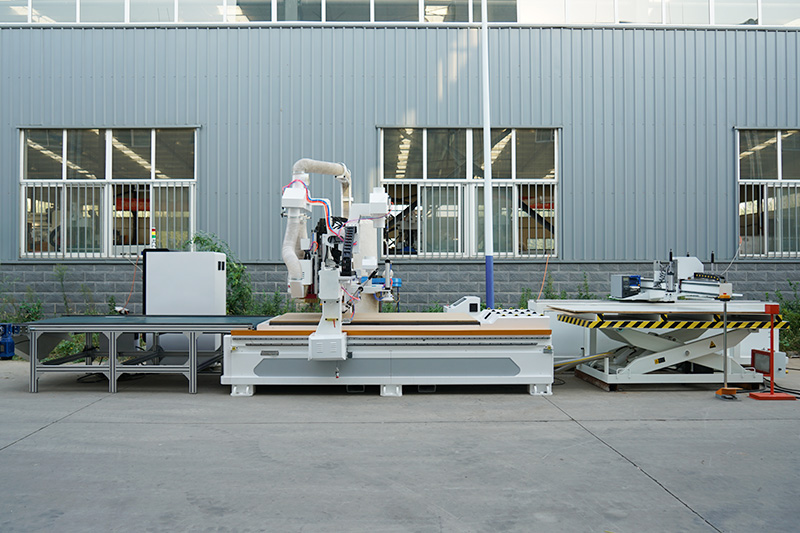

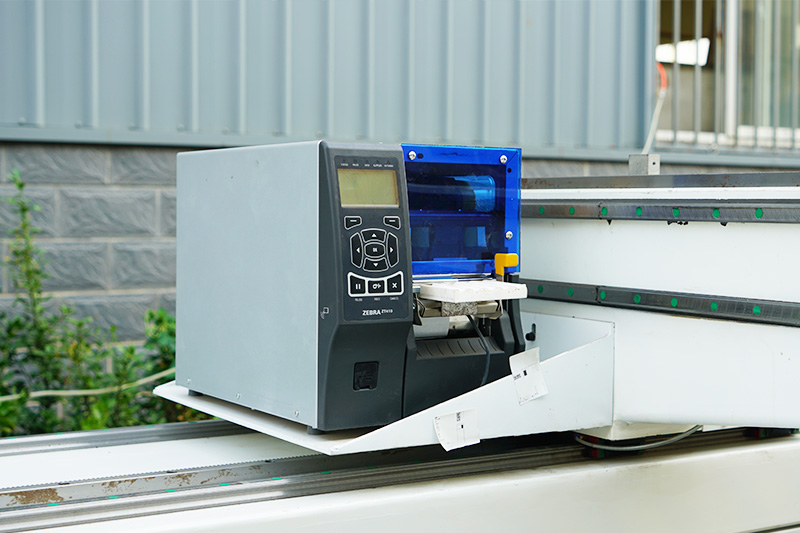

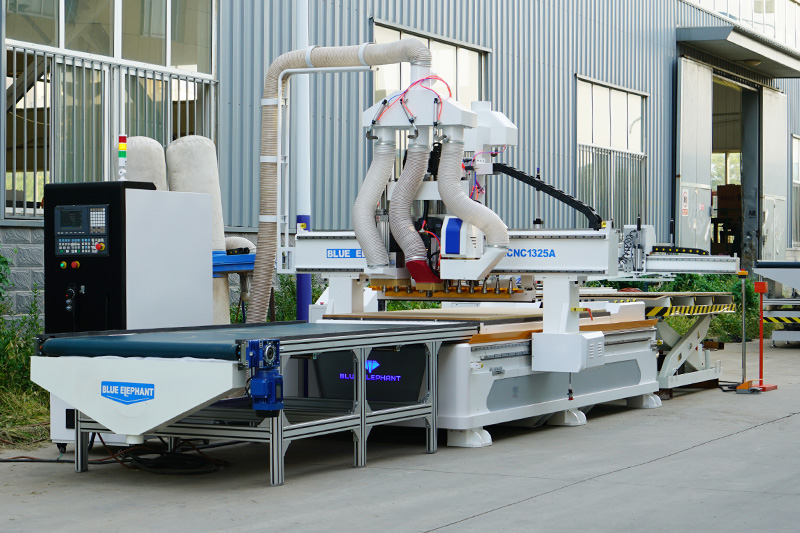

This 4×8 nesting CNC Machine is mainly used for door, cabinet making. And the automatic loading and unloading system and labeling function not only can save labor and time cost, but make your woodworking more efficient.

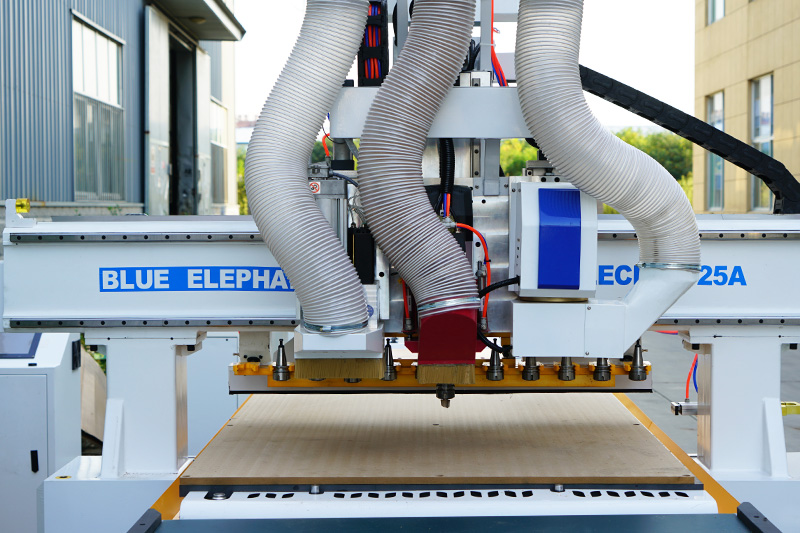

1. Adopting Original Italian HSD Spindle, it has the features of fast speed, the best quality, and big power.
2. Equipped with Italian HSD 9 Vertical(5 Vertical+4 Vertical) drilling head, and it can drill holes for cabinet with higher efficiency.
3. With 12 PCs tool storage under the machine gantry, it can change tools with faster and higher efficiency.

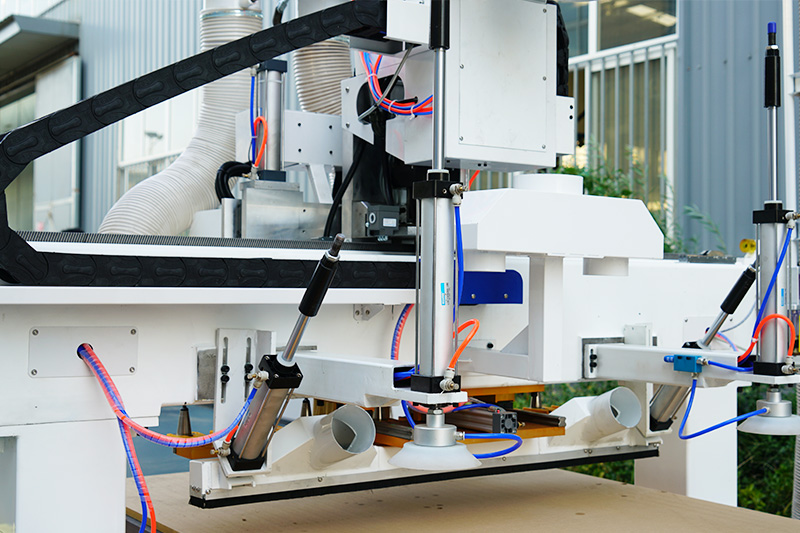

4. With auto loading and unloading working table, it can improve the production efficiency of cabinets and panel furniture.
| Model | ELECNC1325ATC with auto loading and unloading |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Delta |
| Drilling bank | Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer under the Gantry Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | 850W Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide 25mm |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Other | Automatic loading and unloading platforms |
| Vacuum pump |
|
| Dust collect system |
|
| Air Compressor | Pistonaircompressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30, HSK F63), etc |
This machine is very suitable for making cabinet.
It depends on spindle, motor, vacuum pump, and dust collector. Please contact us, we will calculate for you.
Normal production takes about 30 working days. If you are in a hurry, we can try to find a similar stock machine for you.
