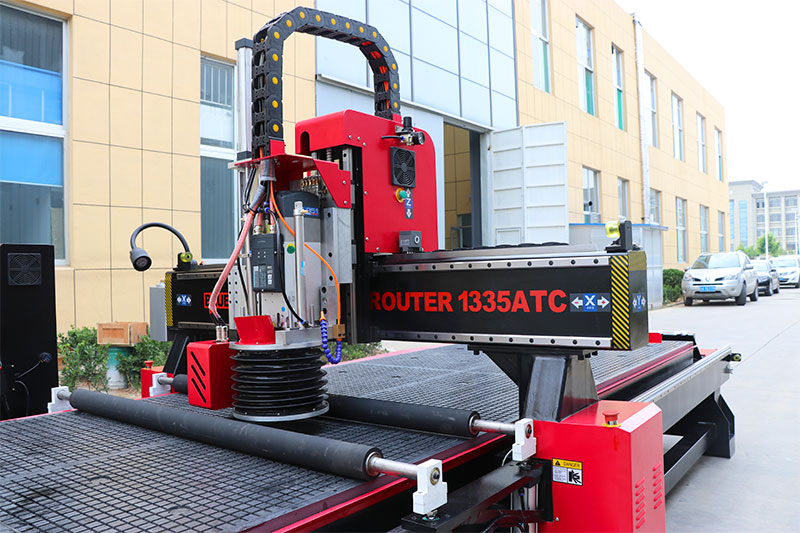

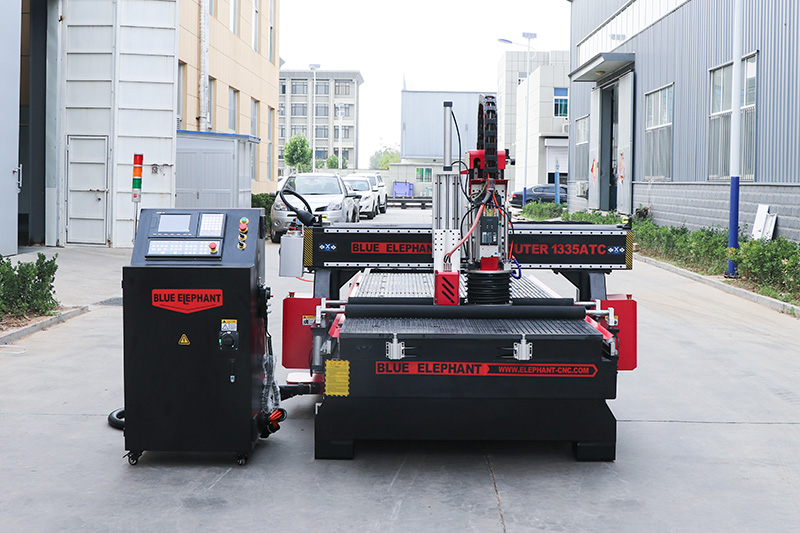

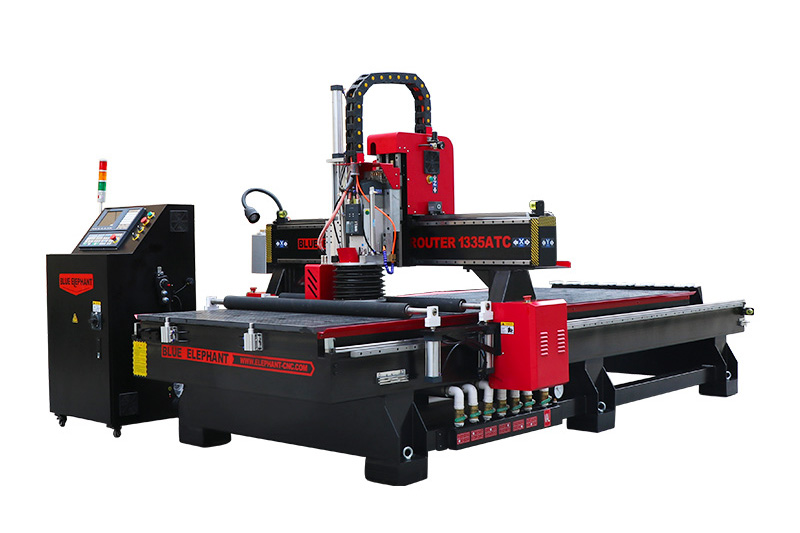

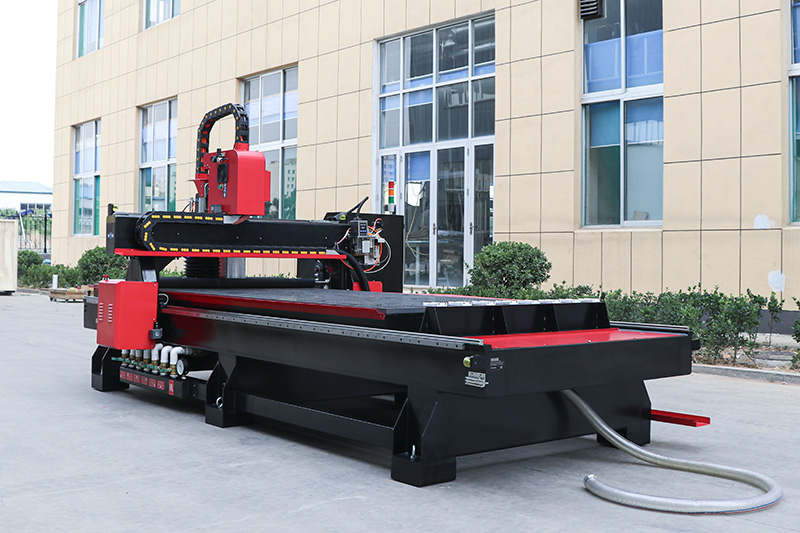

1335 ATC CNC Router with EOT-3 Oscillating Knife

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC-1335

Category : ATC CNC Router

Price Range : $18580 to $24600 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

1335 ATC CNC router with EOT-3 oscillating knife can do automatic tool changing without manual operation. It also has a powerful ability to cut leather, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, rorrugated box, foam due to the high efficiency oscillating knife.

Features

1. Equipped with the linear tool change function, 8 tools are automatically switched, saving time and improving efficiency.
2. Adopting international imported components like big power and high precision servo motor and driver, the machine has a more precise machining accuracy and more stable operation.
3. The high-power air cooling spindle has strong cutting capacity and excellent processing accuracy.
4. Equipped with a vacuum & T-slot working table, it can fix the materials stably and firmly.

Parameters

Model ELECNC1335ATC
X,Y axis travel1300x3500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel200mm, option: 300mm, 400mm, 500mm, 600mm,etc.
Spindle type9kw ATC air cooling spindle, ISO30, ER32
Inverter type11kw
Drilling bankOptional
Tool magazineLinear type auto tool changer
Option: Carousel type auto tool changer
Tool holder with colletISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control systemTaiwan SYNTEC /LNC controller, option: Ncstudio
Driving system1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
ReducerJapan SHIMPO reducer
Machine structureHeavy duty body with quenching treatment
Work tableVacuum work table

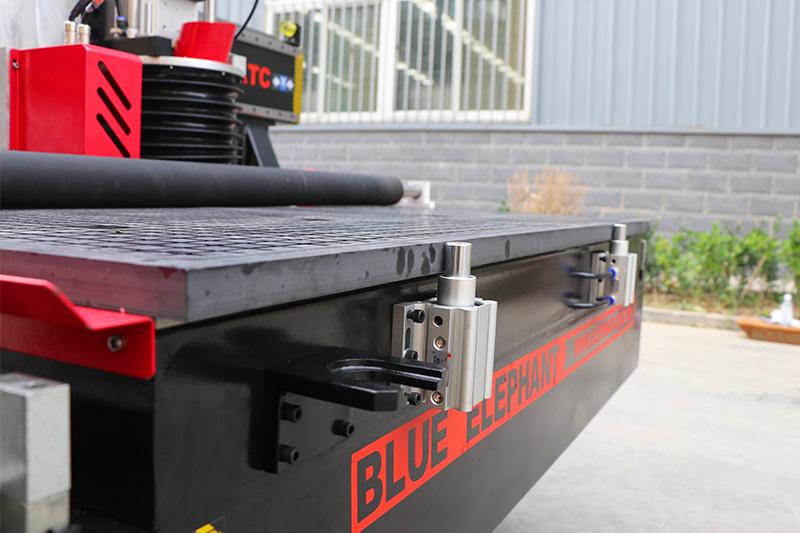

Positioning cylinder5 pieces (X2,Y3)
Linear guideTaiwan Linear guide with dust proof
TransmissionX, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw

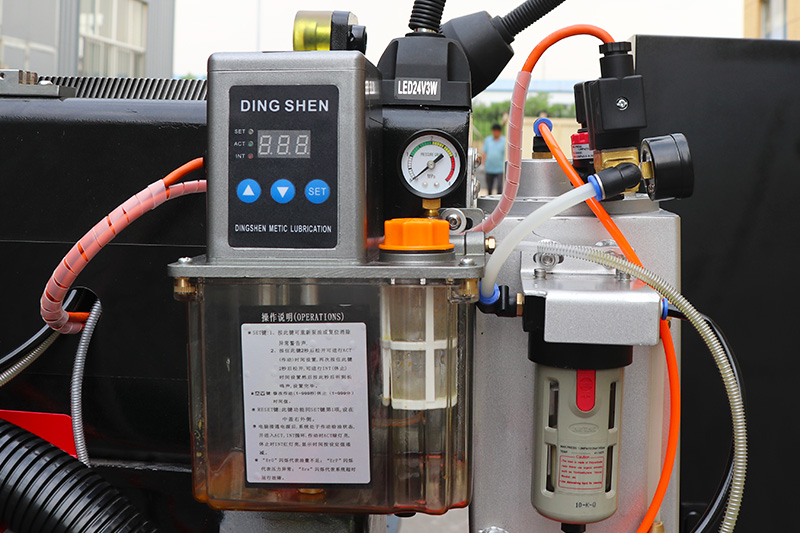

Lubrication system1.5L automatic lubrication system
Tool calibrationAutomatic tool sensor calibration
CablesGermany Igus cables with CE, cUL certificate
Compatible softwareArtcam, Alphcam,Type 3,Ucancam, Aspire, etc.
Command languageG Code & M Code
Traveling speed80m/min
Working speed0-25m/min
Re-positioning accuracy±0.03mm
System resolution±0.0025mm
Working accuracy±0.03mm
Working air pressure0.6MPa
Working voltage220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane,oil-free:
Tongyou,Taiwan Eurovac,Germany Becker
Dust collect system
  1. 3kw,5.5kw,7.5kw,etc,including dust hood, pipe, all full set
  2. New type
Air CompressorPiston air compressor, screw air compressor
Protection deviceLight curtain
Spindle type9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc.

Application

The 3 axis ATC CNC router is an entry-level 3 axis CNC router with the automatic tool change function. The spindle can move along the X, Y and Z axis.So it is suitable for plate material processing, such as wooden boards, acrylic sheets, melamine boards, etc. Its principal functions include cutting, engraving, grooving, milling, drilling, pocketing, routing and boring. The oscillating knife is good at cutting flexible materials, such as rubber, fabric, leather, paper, etc.

Review

Gonzalez Bensonfrom Kosovo - Oct 22, 2024
We are very happy with the quality of CNC. Thanks for being honest and professional. We hope to do more business with you in the future.
Albertofrom Panama - Oct 26, 2024
Machine is working very well. Very happy with the machine.Soon I will make a video in Spanish and English.
Michele from Italy - Oct 26, 2024
Machine arrived. I’m supper happy!!! My Blue Elephant has also arrived. I am very happy with the quality and assistance in purchasing. Great serious and reliable company!!
Radovanfrom Slovakia - Nov 02, 2024
Machine arrived yesterday. I tried some simple programs. Machine works great. I am satisfying. I use it every day for all types of work. I cut steel too.

FAQ

This machine is a combination of a CNC router and an oscillating knife. It can cut all the materials that these two types of machine can cut. For example, wood, MDF, plywood, plastic, acrylic, foam, paper, leather, acoustic panel, etc.

Yes, of course. All our configurations can be customized according to your needs.

Sorry, our oscillating knife can only go straight up and down, and keep cutting at the same height. So it’s can engrave 3D workpieces. Our 4-axis and rotary axis CNC router machine can perform 3D relief and 3D model processing.
