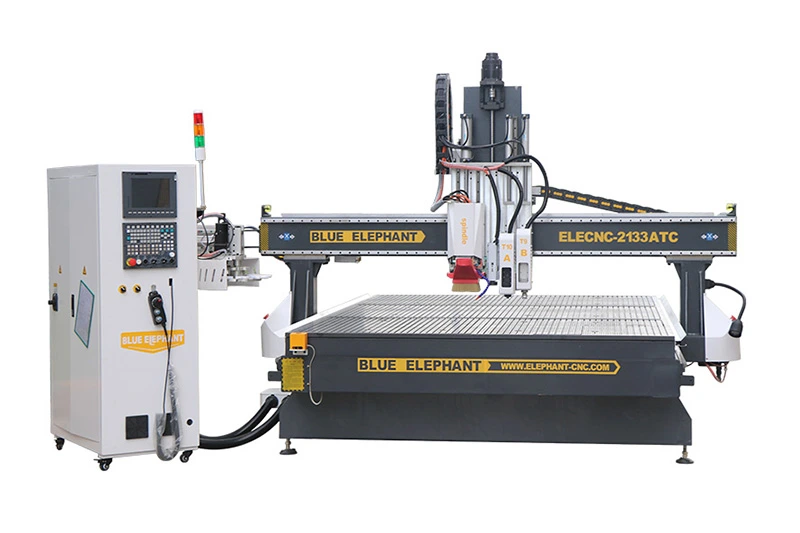

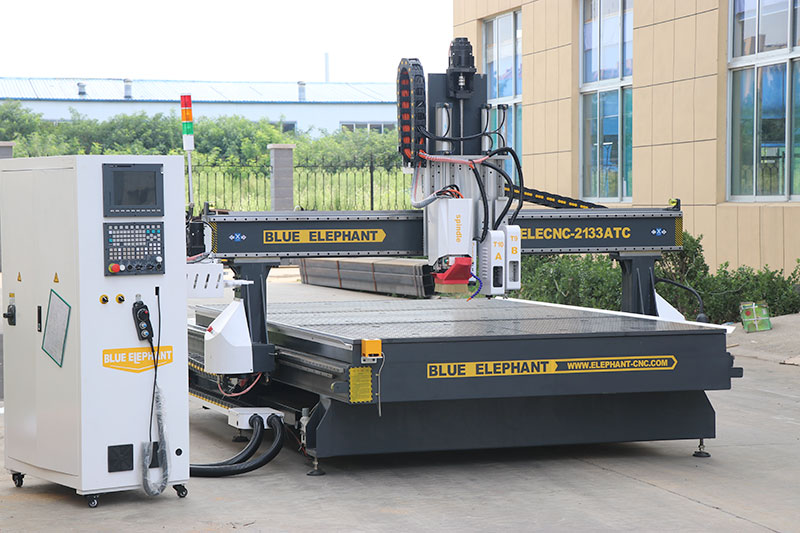

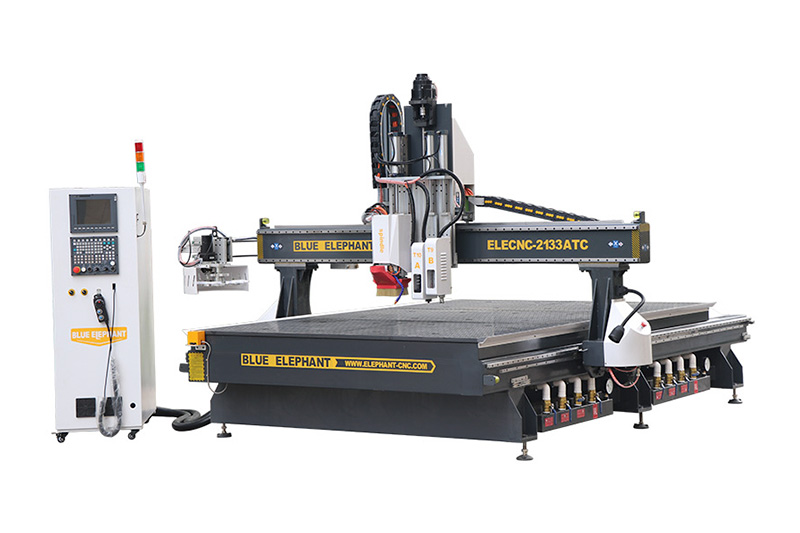

ATC CNC Router with oscillating knife adopts a carousel auto tool changer. And it has the characteristics of fast tool change speed and small guide rail wear. Equipped with oscillating knives, it can process soft materials such as PVC, KT, leather, and fabric. Therefore, with the advantages of multiple functions, cost-effective, it is suitable for a variety of processing needs of production.
1. Thicker square tube frame processed by heat treatment and vibration aging treatment eliminates the internal stress and guarantees stable operation.

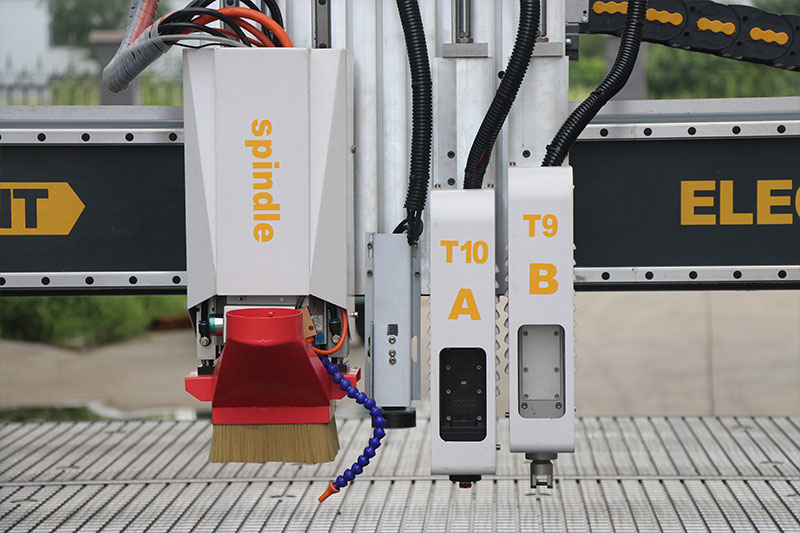

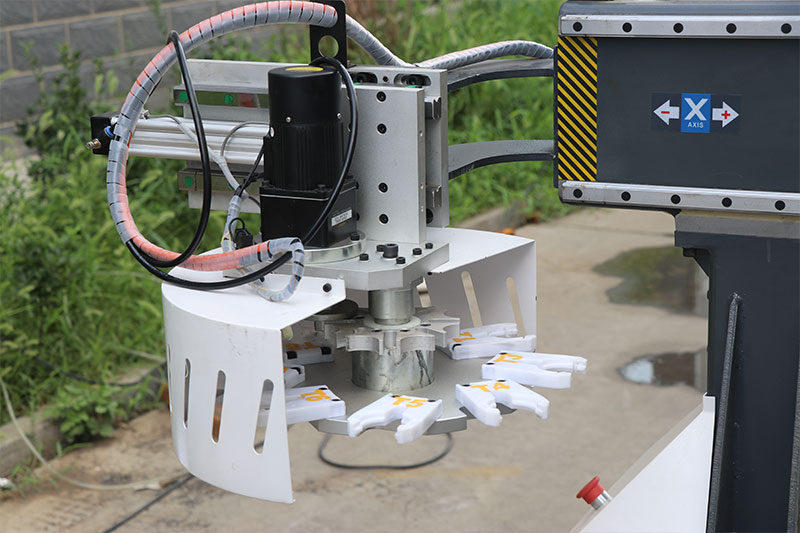

2. Italy ATC HSD spindle and carousel tool magazine with 8 tools realizes automatic tool changing, significantly reducing shutdown time and improving work efficiency.
3. The oscillating cutter is good at cutting soft materials, like PVC, KT, leather, paper, fabric, etc.

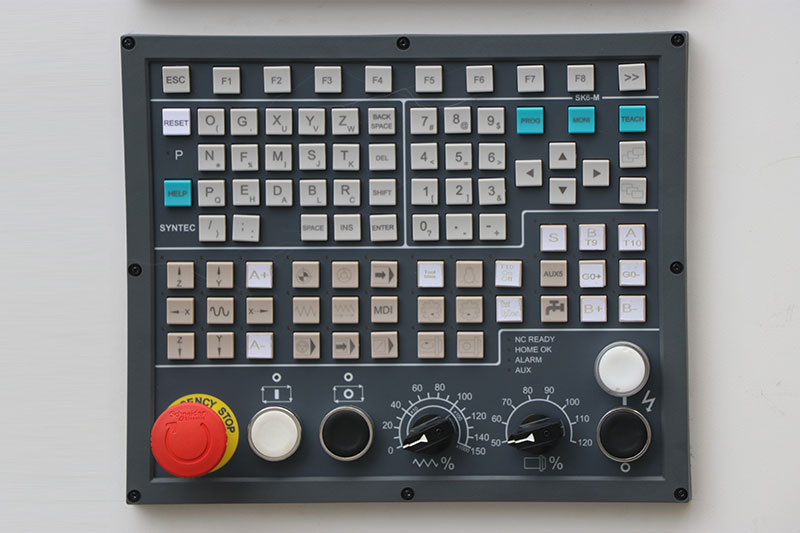

4. Operation handler of Syntec 11MB control system is easy to control and operate.
5. CNC parts aldopt global brands, such as Japan Yaskawa servo motor and driver, HSD spindle, German Becker pump, etc.
| Model | ELECNC2133ATC |
| X,Y axis travel | 2100x3300mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

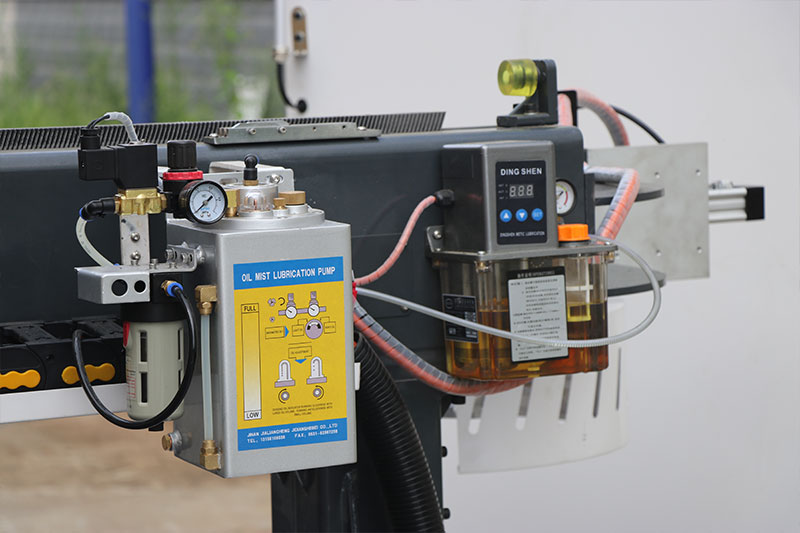

| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc. |
This machine is a combination of a CNC router and an oscillating knife. It can cut all the materials that these two types of machine can cut. For example, wood, MDF, plywood, plastic, acrylic, foam, paper, leather, acoustic panel, etc.
Yes, we will provide Artcam, Aspire software free of charge for this CNC route machine.
For the machine with working area of 2100*3300mm, we will dismount the gantry when packing and delivering to make sure the total width of the machine is less than 2.28m. So it is easily to be put into a container. At the same time, we will provide detailed installation instructions and videos for the gantry installation. So you can rest assured for the installation.
The 3 axis ATC CNC router is an entry-level 3 axis CNC router with the automatic tool change function. The spindle can move along the X, Y and Z axis.So it is suitable for plate material processing, such as wooden boards, acrylic sheets, melamine boards, etc. Its principal functions include cutting, engraving, grooving, milling, drilling, pocketing, routing and boring. The oscillating knife is good at cutting flexible materials, such as rubber, fabric, leather, paper, etc.
