5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ELECNC-380
Category : Panel Saw Machine
Price Range : $36000 to $38000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

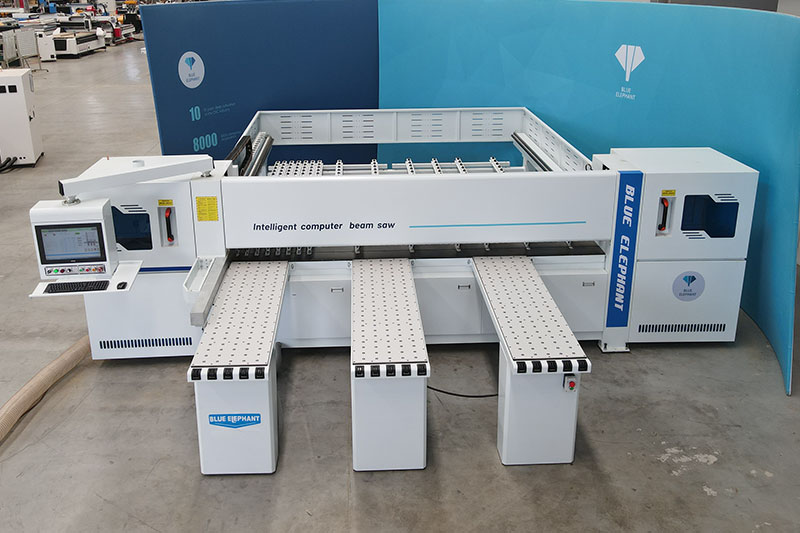

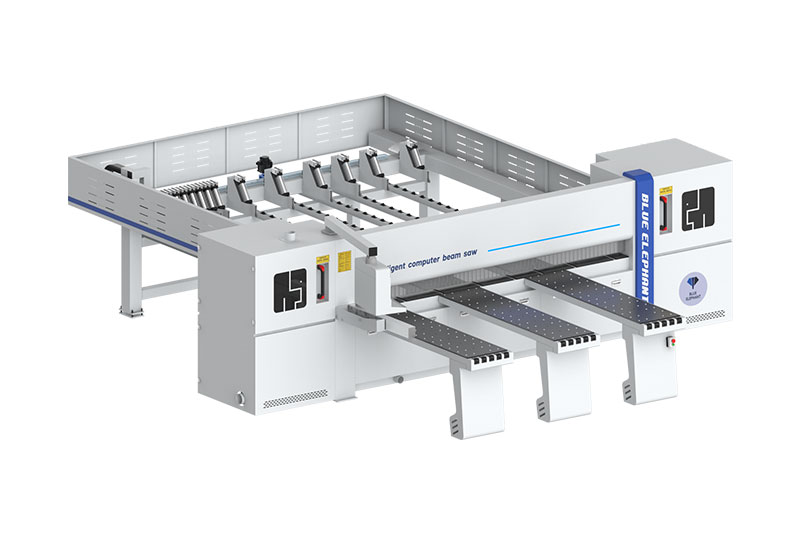

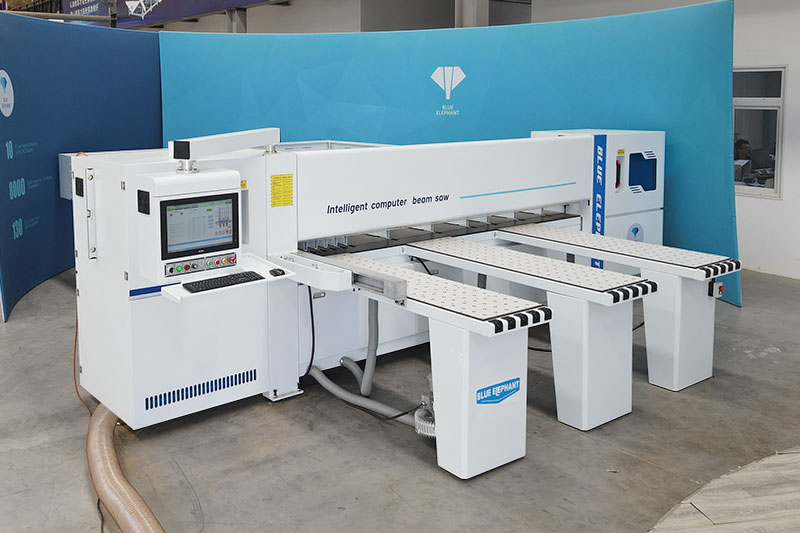

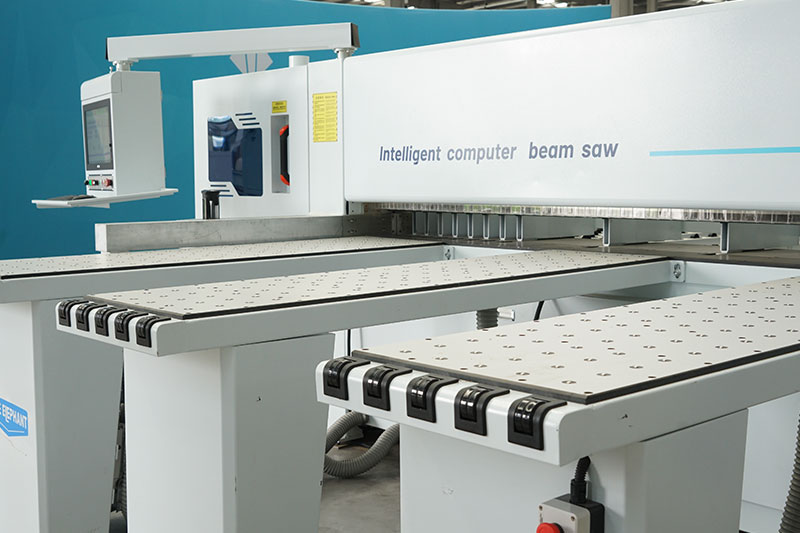

380 computer beam saw is capable of cutting wooden panels with a maximum length of 3700mm. It features intelligent high-speed cutting, excellent precision, high stability and easy operation. More and more panel furniture makers choose the computer beam saw for their automatic production line.
1. Equipped with a warning device, it will automatically shut down when a fault occurs and has the function of automatic fault detection to help you find the reason.

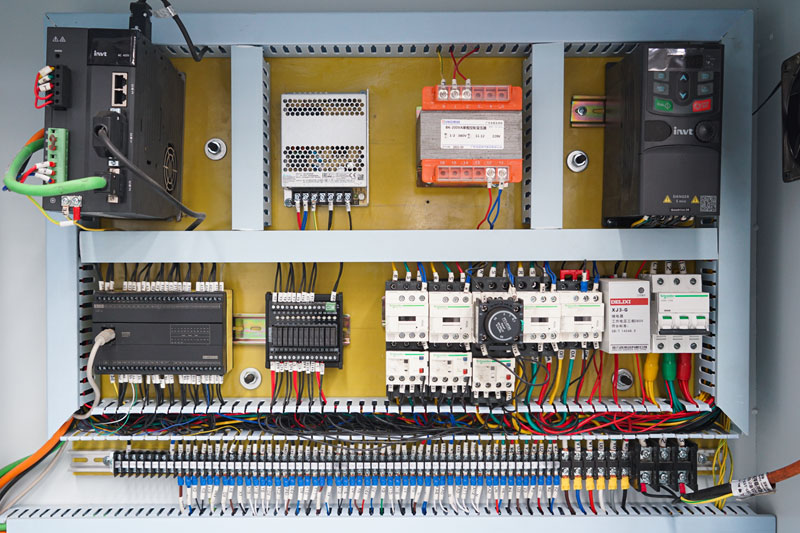

2. Use Fatek PLC, which has stable mass storage and high-speed processing ability.
3. Adopt INVT high-performance servo motor to run control demand fast and precisely to guarantee efficient cutting.
4. Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
5. Due to the intelligence system, the worker only takes 2 hours of training before using it.
| Model | ELECNC-380 |
| Overall dimension | 6400x6300x1800mm |
| Cutting length | 3700mm |
| Cutting thickness | 100mm |

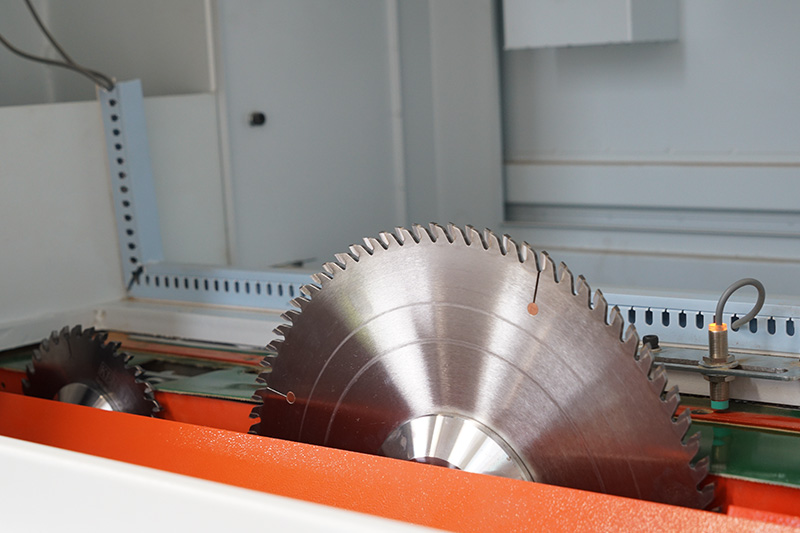

| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 16kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 1.5kW (AC, servo) |
| High-press ventilating motor | 2.2kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Fatek |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |

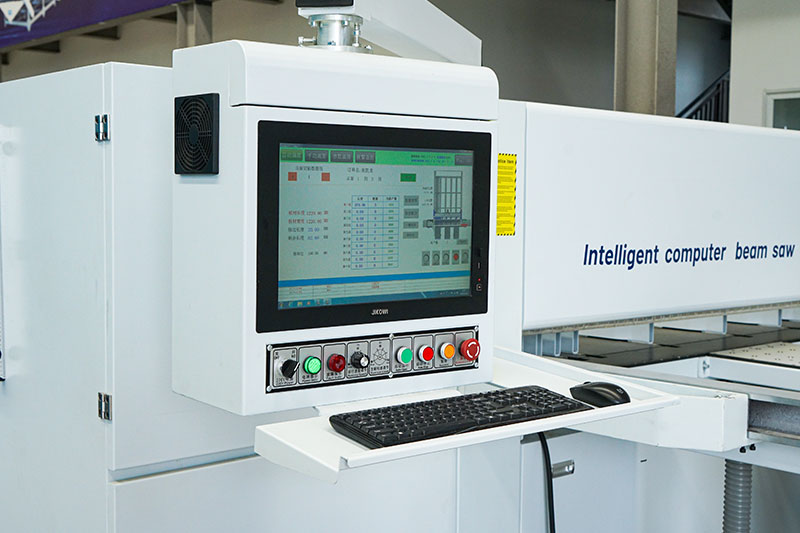

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
No. This computer can only cut straight shaped panels.
