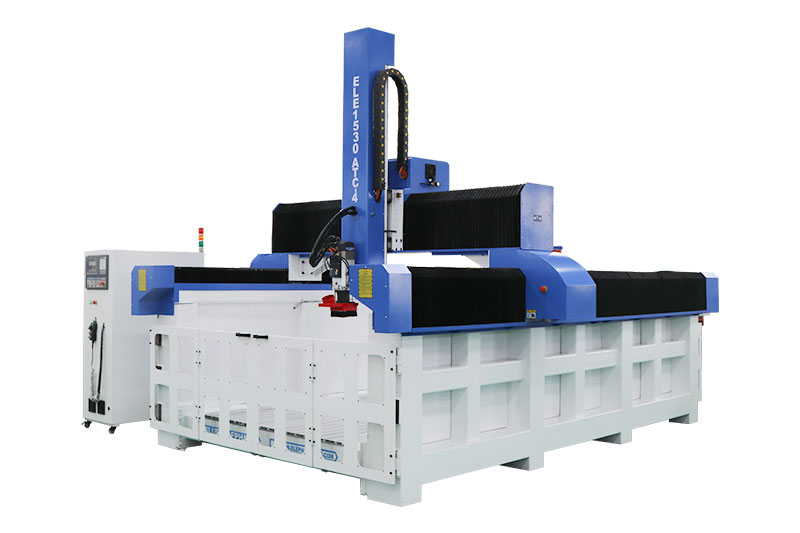

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (9)

Parameters

Features:

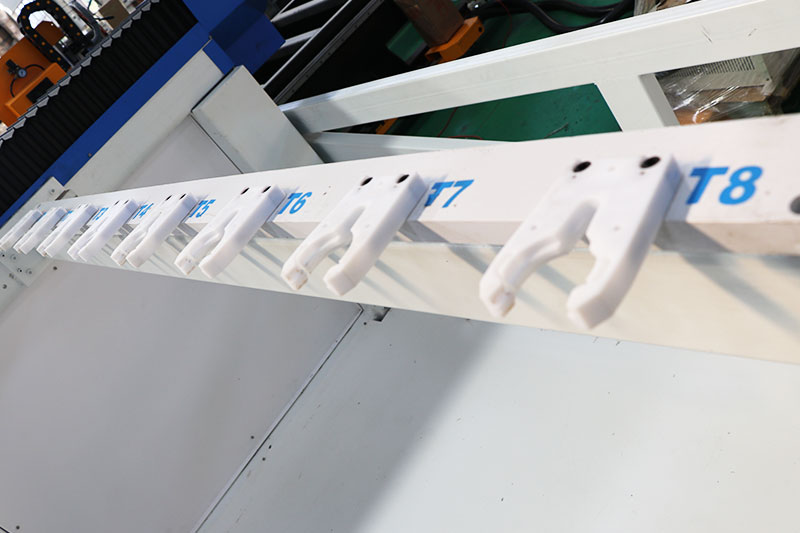

  • Improving working efficiency: Like ATC CNC Machine, this type of machine was designed with linear tool change magazine. Various of tools can be changed automatically in the engraving process, which means time saving.

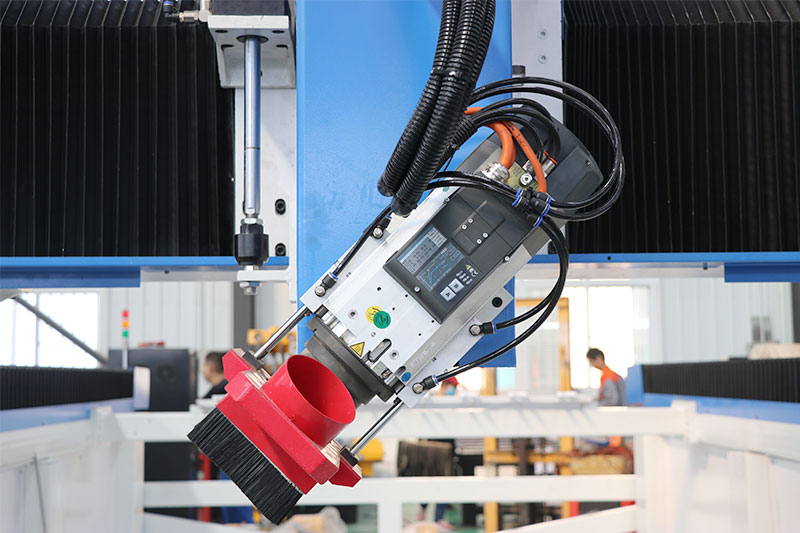

  • Multi-function: With a true four-axis (4 Axis CNC Machine), and the machine’s spindle can swing 180 degree to do three-dimensional processing, which is distinct from 1325 3D Foam Toys Engraving Machine.
  • Wide applicationsEPS Styrofoam CNC Machines has been widely applied for processing EPS, casting wood mold, automobile interior decoration, engineering plastics and other non-metal material mold.
  • Realizing customized services: The Z axis can be heighten, and the whole working size also can be customized. Taking ELECNC-3050 EPS Styrofoam CNC Router for instance.

Parameters:

Description Parameter
Model ELECNC-1530ATC-4 EPS
X,Y,Z Working Area 1500x3000x1100mm
Control system Taiwan SYNTEC control system
Working Voltage 380V, 3phase, 50Hz (Option)
Spindle 9kw Italy HSD air cooling spindle
Inverter 11kw Taiwan DELTA inverter
Motor and driver 850W YASKAWA servo motor and 1kw  YASKAWA driver, SHIMPO reducer
Gantry Structure Gantry moving
Table Surface T-slot working Table
Table structure EPS structure
X, Y, Z Transmission Helical rack on X, Y axis and Taiwan TBI ball screw on Z axis
X,Y, Z Rail Taiwan ABBA #30 linear guide
Lubrication system Automatic lubrication system
Tool Sensor Auto tool sensor calibration
Dust collection system 1.5kw new type double bag dust collection system
Wire High soft shield with copper wire to protect against static electricity

Detail images:

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (15)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (11)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (14)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (13)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (12)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (1)

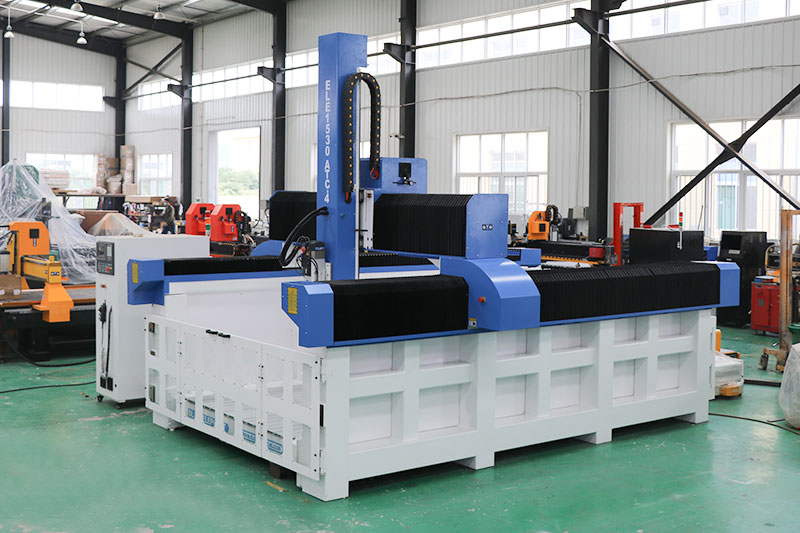

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (2)

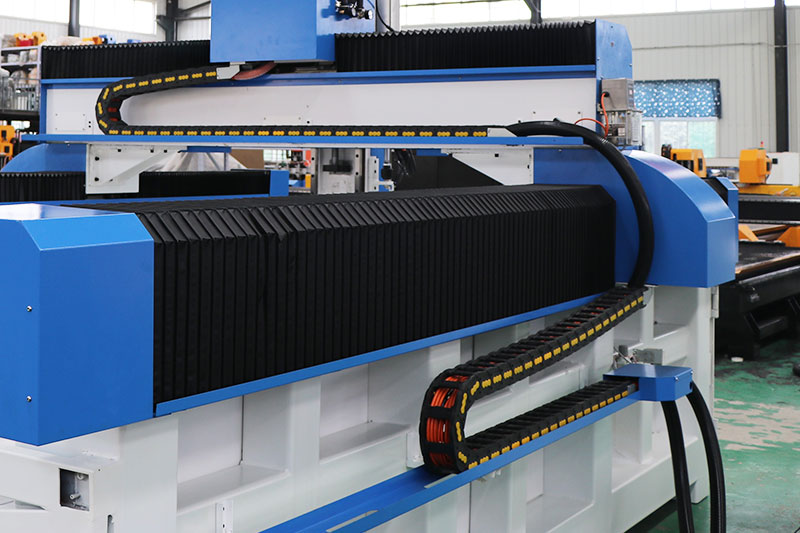

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (7)

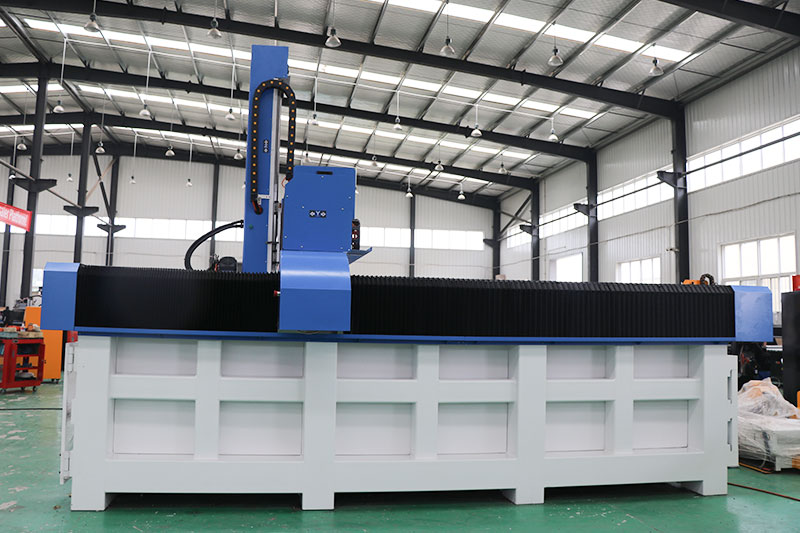

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (3)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (5)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (4)

ELECNC-1530 4D EPS Foam ATC CNC Engraving Machine for Wooden Aircraft Models (6)
