5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : E-70J
Category : Edge Banding Machine
Price Range : $25000 to $30000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

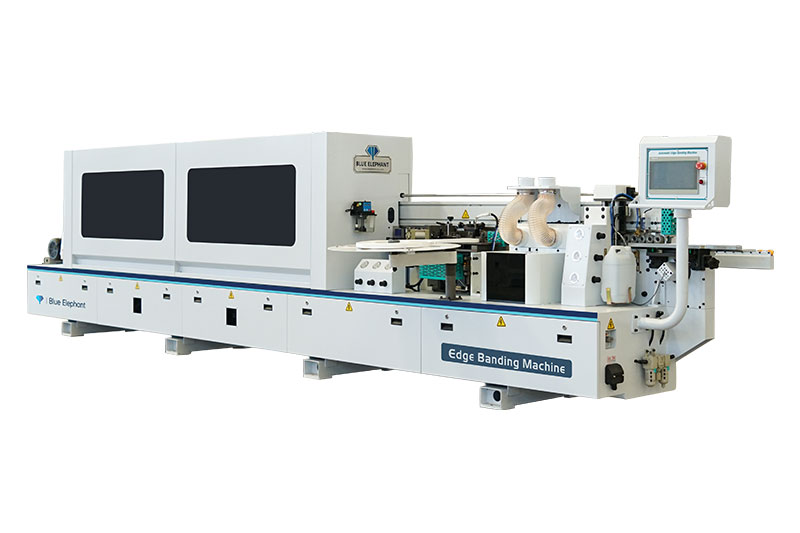

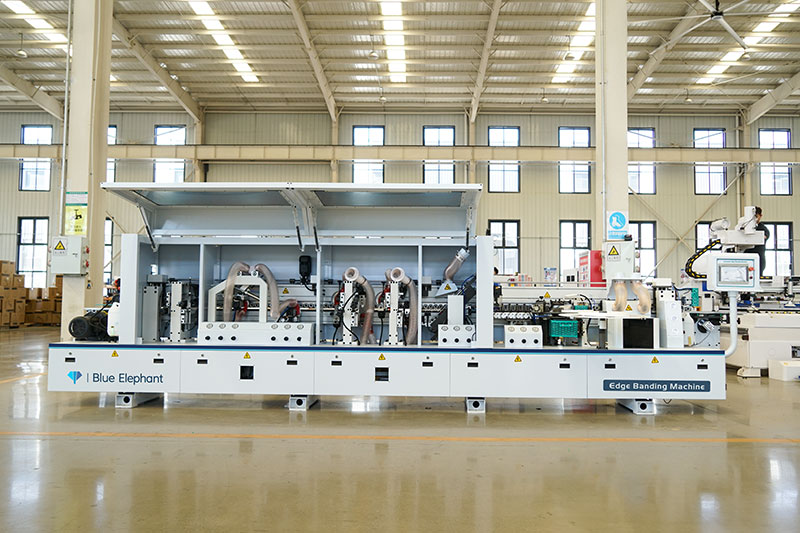

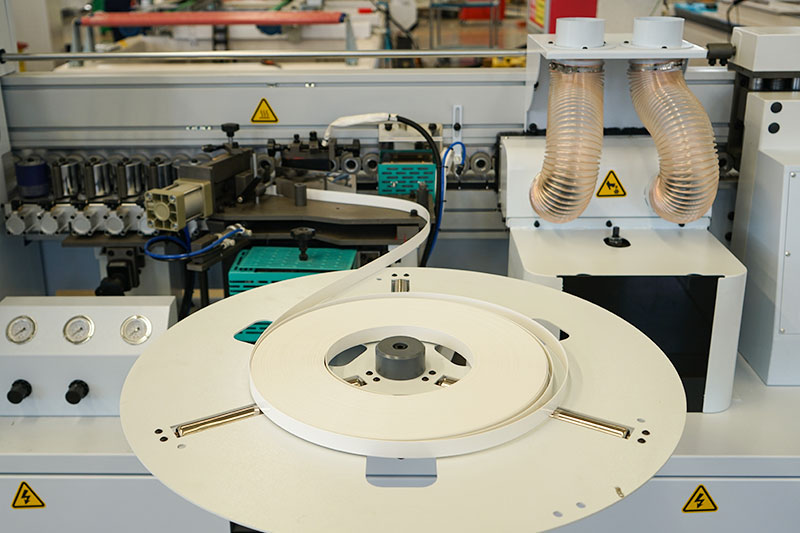

The E-70J edge banding machine automatically performs processes like pre-milling, gluing, edge banding, end trimming, rough trimming, fine trimming, tracking and rounding, scraping, polishing, and cleaning. It is widely used in the wood furniture industry, including panel furniture, custom furniture, cabinets, wardrobes, and office furniture. This edge bander machine can process MDF, eco-board, plywood, particleboard and solid wood panels.
1.Pre-milling smoothens the board edges and removes residue for even glue application and thinner glue lines.

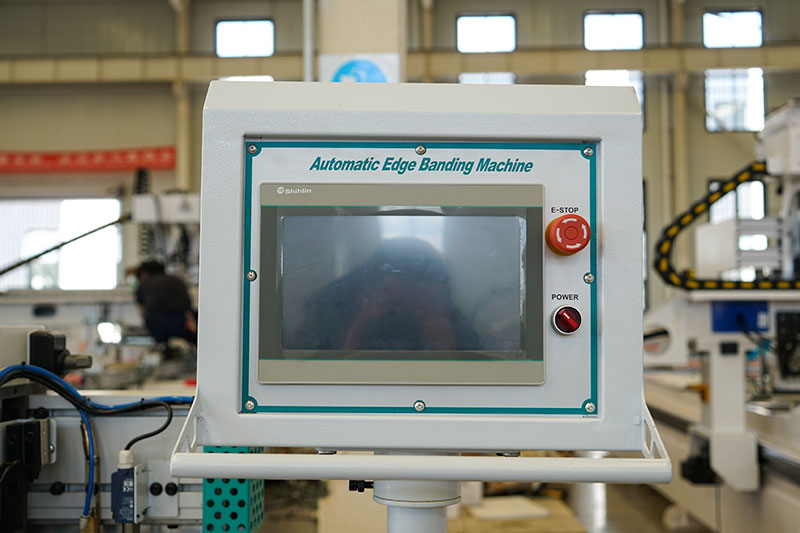

2.The touchscreen is clear and user-friendly, allowing quick switching with fast response.
3.The high-speed motor cuts quickly, cutting off and trimming the protruding edge banding strips at the front and back of the plate to ensure a smooth and flat cut surface.

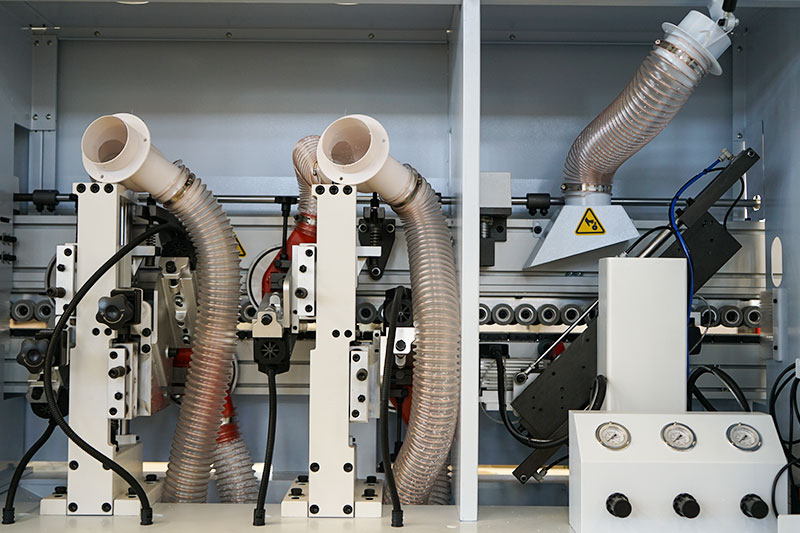

4.The machine is equipped with a high-speed motor, which can perform a variety of chamfering and trimming processes to achieve more beautiful arc trimming. The independently designed tracking motion and air path make the tracking and trimming process more stable.
5.The polishing wheel rotates at high speed to polish the residual glue and debris on the edge banding plate to ensure a smooth edge banding end surface.
| Model | E-70J |
| Machine weight | 2400kg |
| Overall size(Length×width×height) | 6720× 960× 1600mm |
| Total power | 17KW |
| Working pressure | 0.6Mpa |
| Feed speed | Low 16/Mid 18/High 23m/min |
| Panel width | ≥60mm |
| Panel thickness | 9mm-60mm |
| Panel length | ≥ 60mm(No milling) ≥ 200mm(Pre-milling) |
| Min. size(Width×length) | 60×60mm/150×200mm(Pre-milling) |
| Tape thickness | 0.4mm-3mm |
 |  |  |  | |
|---|---|---|---|---|

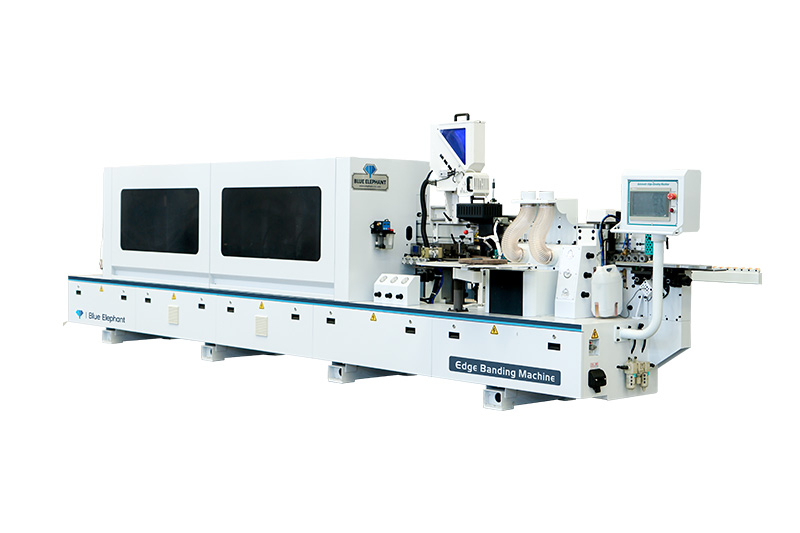

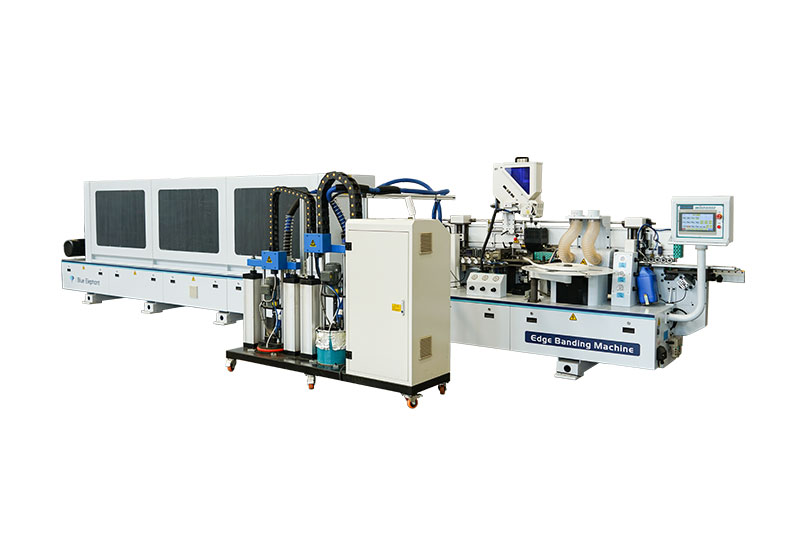

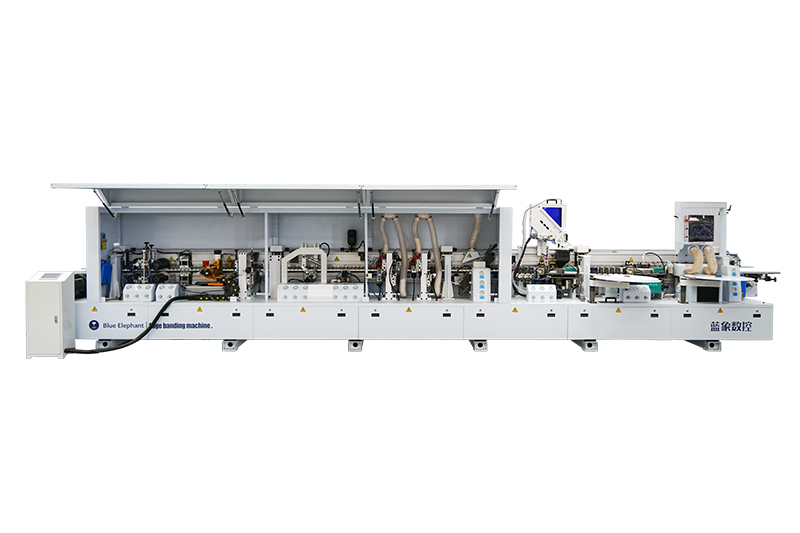

| Model | E70J | E70JR | E70JDSC | E70JDSR |
| Total power | 17KW | 16.5KW | 23kw | 22KW |
| Machine length*width | 6720*960mm | 6800x970mm | 9200*960mm | 8260*950mm |
| Machine height | 1600mm | 1800mm | 1700mm | 1650mm |
| Weight | 2400kg | 2600kg | 3200kg | 3450kg |
| Edge Banding Thickness | 0.4mm~3.0mm | 0.4mm~3.0mm | 0.4mm~3.0mm | 0.4mm~3.0mm |
| Plate Thickness | 9mm~60mm | 10mm~60mm | 9mm~60mm | 10mm~60mm |
| Plate length | ≥60mm(No milling) ; ≥200mm(Pre-milling) | ≥120mm | ≥60mm(No milling) ; ≥200mm(Pre-milling) | ≥150mm |
| Plate width | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
| Working Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Feed Speed | Low16 /Mid 18 / High 23m/min | 15-23m/min | Low16 /Mid 18 / High 23m/min | Low16 /Mid 18 / High 23m/min |
| Minimum plate size (Width×length) | 60×60mm / 150×200mm(Pre-milling) | 60×60mm / 150×200mm(Pre-milling) | 60×60mm / 150×200mm(Pre-milling) | 60×60mm / 150×200mm(Pre-milling) |
| Get a Quote | Get a Quote | Get a Quote | Get a Quote |
This machine can process materials such as Medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc.
The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient.
Yes.Its processing range is 9mm-60mm.
