ELECNC1325 ATC CNC Wood Engraving and Cutting Machine with a Laser Head for Sale

Position: Home > CNC Router > ATC CNC Router > Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head
  • Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head

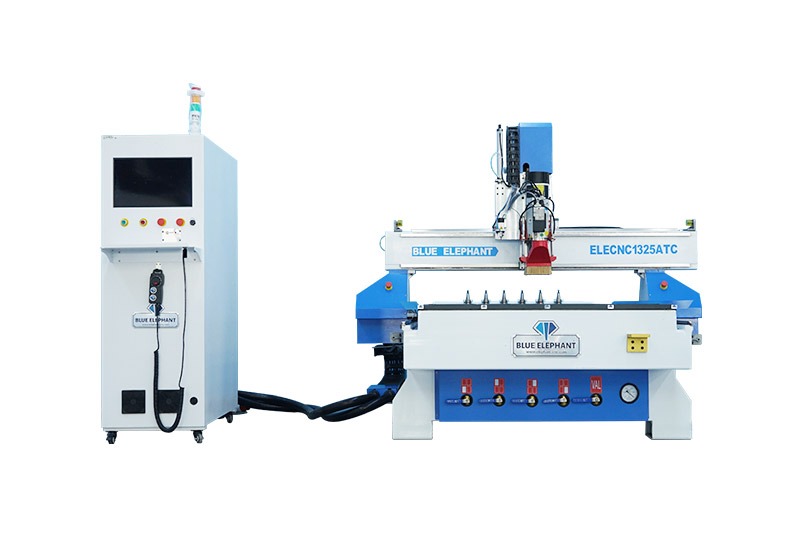

Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head
Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head
Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head

Latest 4×8 ATC CNC Machine 1325 CNC Router with Tool Changer & Laser Head

5.0 based on 28 ratings and reviews
  • Brand : Blue Elephant
  • Model : ELECNC1325ATC
  • Category : ATC CNC Router
  • Price Range : $11000 to $15000 / Set based on the configuration
  • Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
  • After-sale Service : Professional operation training service.
  • Supply Ability : 200 Sets per Month

1325 ATC CNC Router with Laser Head

1530 ATC CNC Router

Description

This CNC router is a combination of an ATC CNC wood cutting machine with a laser head. The laser head is used to leave various marks on multiple non-metal materials. Then, the spindle moves to cut out shapes according to the given paths. Besides, the CNC router can change among 6 tools automatically, which greatly improves work efficiency.

Features

1. The laser head can leave various marks on a wide range of non-metallic materials, and then the spindle can move to cut out shapes. These two steps can be controlled in one program.
2. 9KW air-cooled spindle has a powerful cutting ability and stable operation for long-term operation.
3. T-slot vacuum worktable helps to fix the workpieces firmly to ensure good cutting precision.
4. All components and parts adopt famous-brand products, ensuring smooth and reliable operation and long service life of the CNC router.

Parameters

Model  ELECNC1325ATC
X, Y axis travel 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, etc.
Spindle 9kw HQD ATC air cooling spindle, 24000rpm
Laser head Equipped with a laser head
Inverter type 11kw Fuling inverter
Tool magazine Linear tool magazine
Option: carousel type auto tool changer
Tool holder with collet BT30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system SYNTEC 60CA, option: Taiwan LNC controller
Driving system 850w Leadshine servo motor
Reducer Shimpo
Machine structure Heavy duty machine body
Work table T-slot & vacuum work table
Positioning cylinder Optional: 5 pieces (X2,Y3)
Linear guide HIWIN linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system Automatic lubrication system
Tool calibration Auto tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command language G Code & M Code
Traveling speed 40m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.07mm
Working air pressure 0.8MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Optional Items


Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane,oil-free:
Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system
  1. 3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set
  2. New type
Air compressor Piston air compressor, screw air compressor
Protection device Light curtain

Click for details

Frequent Asked Questions

What kind of software can be used on this machine?

Artcam/Aspire/Fusion 360/Alphacam/Ucancam,etc. As long as your software can generate G code, it can use on our CNC machine.

Can you add a rotary device on this machine?

Yes. The rotary device is used for carving cylindrical pieces, like table legs, chairs, etc. We have diameters of 100mm, 200mm, 300mm, and 400mm to choose from.

What are the wearing parts of the CNC router machine?

We will provide a tool box according to the machine, which contains all the wearing parts.


ATC CNC Router Details

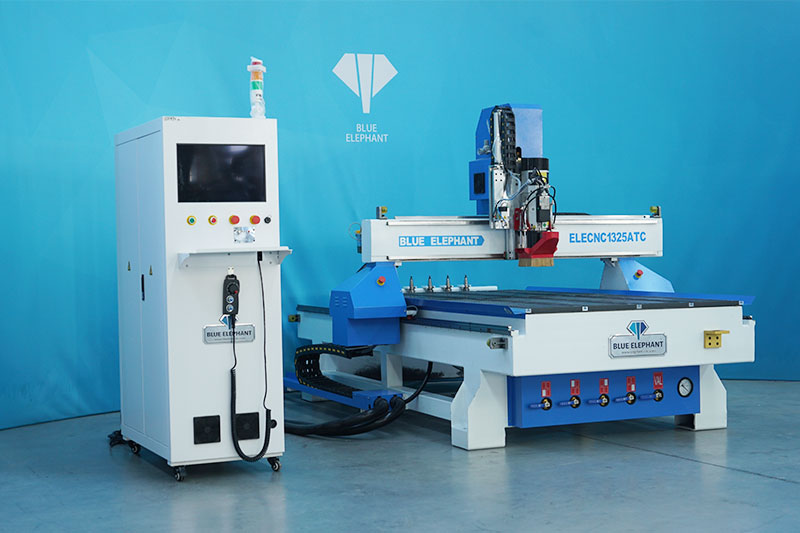

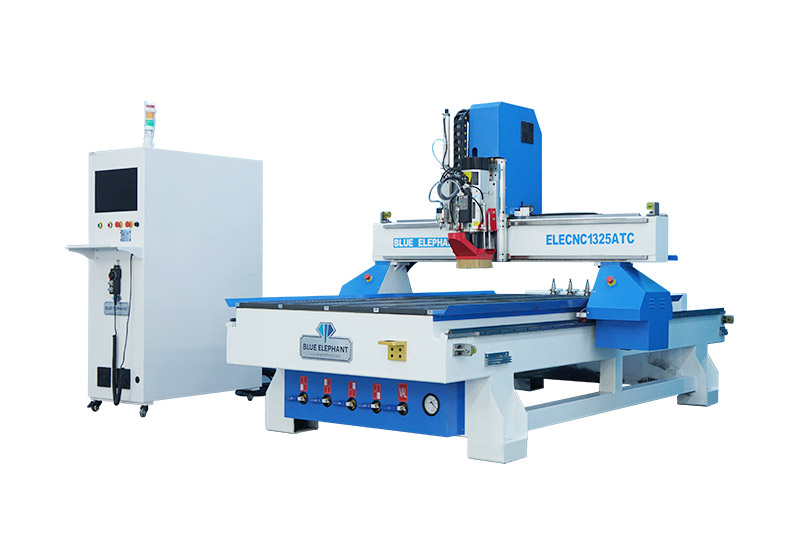

Apprearance

Apprearance

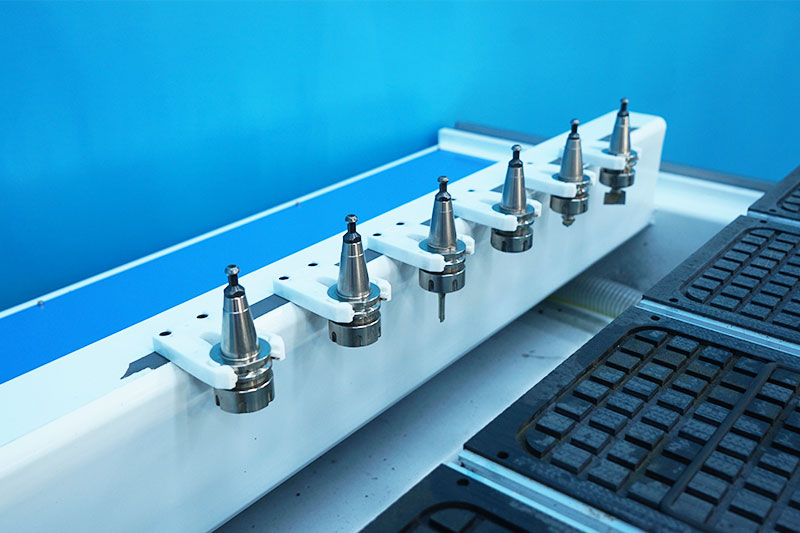

Tool magazine

Tool magazine

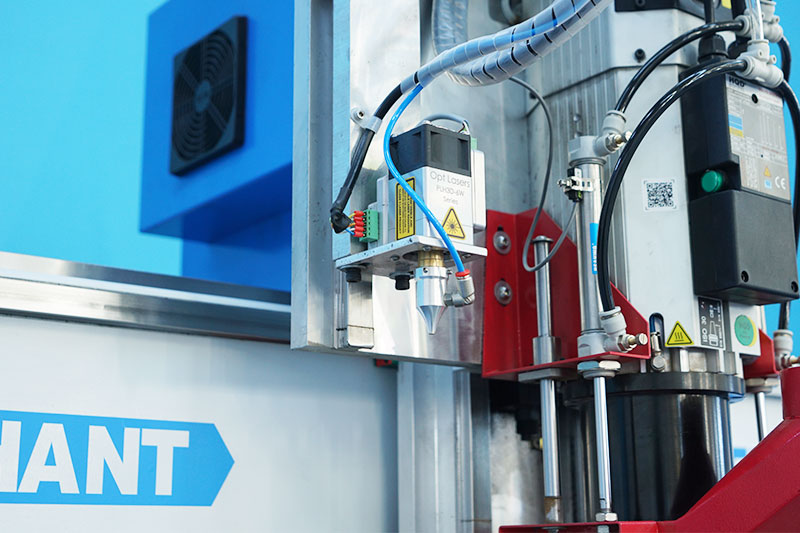

Laser head

Laser head

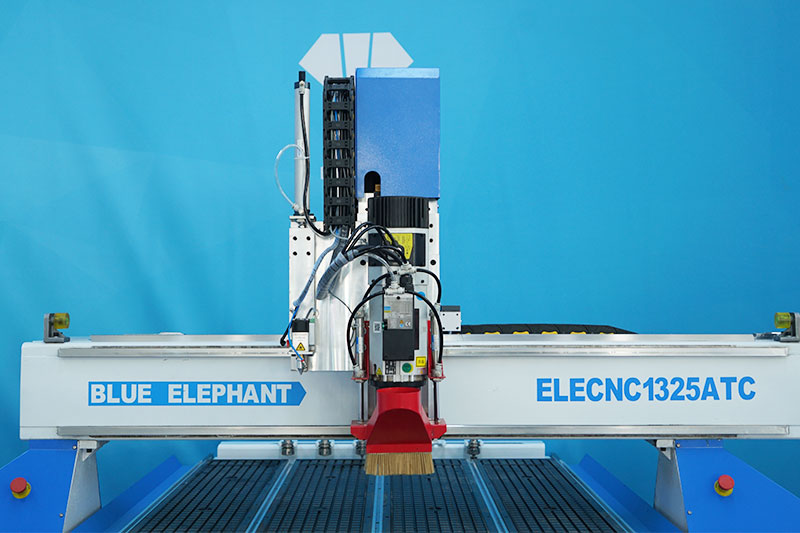

Z axis

Z axis

Application

ATC CNC routers have a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.


Samples

atc cnc router sample
atc cnc router sample
atc cnc router sample
atc cnc router sample
