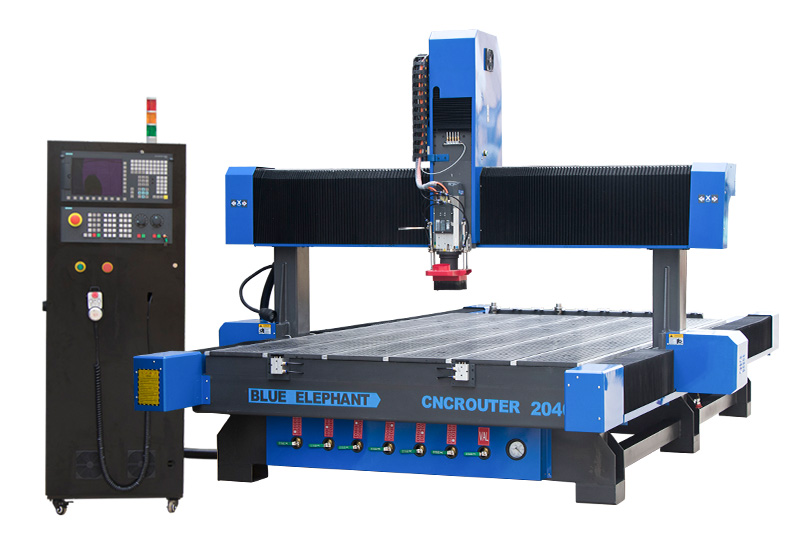

ELECNC-2040 Linear ATC Wood CNC Router Machine

Parameters

Features of ELECNC-2040 Linear ATC Wood CNC Router Machine

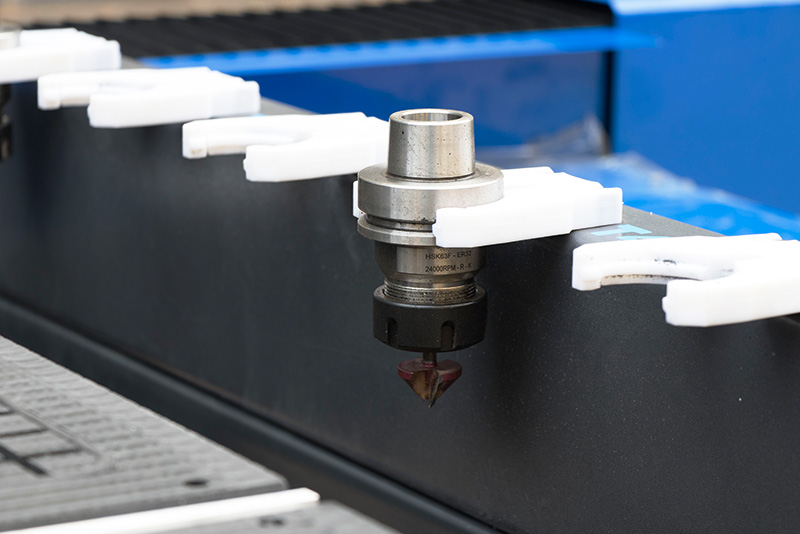

  1. Compare with 2040 Carousel ATC CNC Router Machine, this kind of machine was designed with linear type tool magazine;
  2. Different from 3 Axis CNC, different knife can be installed in tool holder. The tool can change automatically to process different patterns of objects; In that case, the working efficiency can be greatly improved;
  3. With Italy HSD air cooling spindle, and the working speed can reach to 24000RPM for per minutes;
  4. The machine is one of typical 3 Axis ATC CNC Machine. If you want to do 3D processing, 1530-4A Woodworking CNC Router Machine is more suitable. Because the rotary spindle can swing 180 degree;
  5. Compare with 4*8 CNC Router Machine, the working size and processing area are larger.  Also, the working efficiency can be greatly improved;

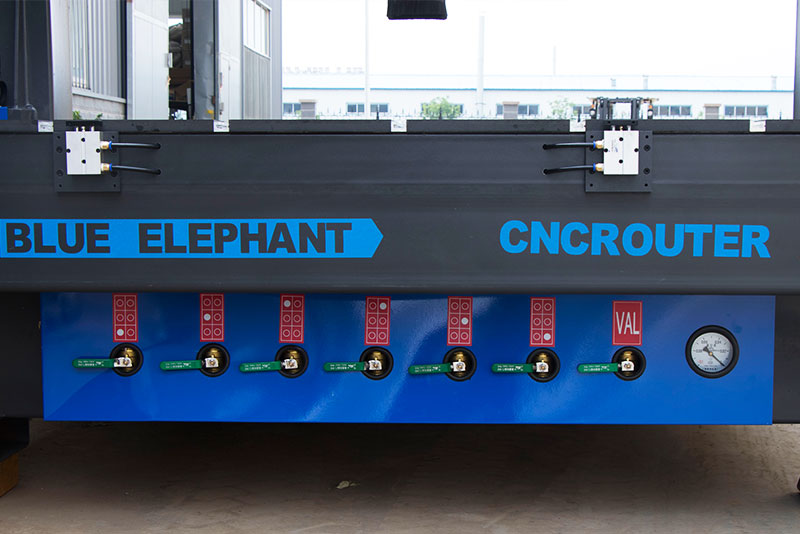

  6. With T-slot and vacuum working table; with 6 zones to help you to fix the material, and increase the utilization rate;
  7. With Siemens control system, and it is easy to operate;
  8. With Positioning cylinder 5 pcs to fix the material;
  9. Please notice that all specifications can be designed according to your special requirements.

Parameters of ELECNC-2040 Linear ATC Wood CNC Router Machine

Model ELECNC-2040ATC
X,Y,Z Working Area 2000*4000*500mm working area
Table Surface T-slot and vacuum working table, 6 zones
Frame Thicken steel Square Tube Heavy structure
X, Y Structure Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

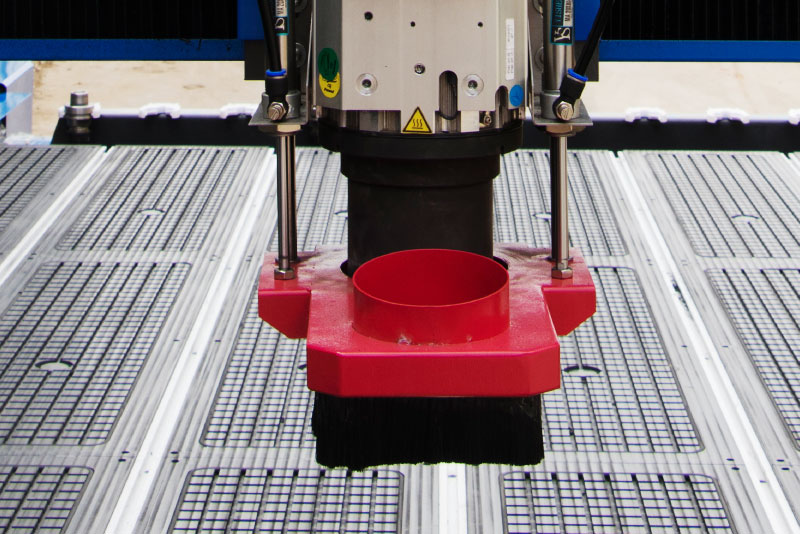

Spindle Power 12kw Italy HSD ATC air cooling spindle
Spindle Speed 0-24000RPM
Drive Motors 1.5kw Siemens servo motor and driver+LM reducer
Inverter 15kw Taiwan DELTA
Working Voltage 380V/3PH/50Hz(Can be customized to meet different country’s request)

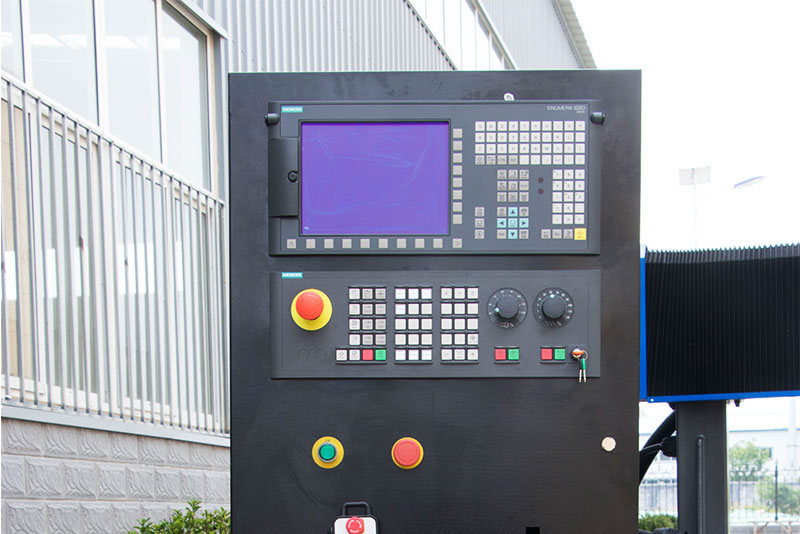

Control System Siemens Control System
Vacuum Pump 7.5kw
Positioning Cylinder 5 pieces
Machine color Grayish Blue

PS:All the working area and specifications can be customized according to your requests

Detail Images of  ELECNC-2040 Linear ATC Wood CNC Router Machine

ELECNC-2040 Linear ATC Wood CNC Router Machine (5)

ELECNC-2040 Linear ATC Wood CNC Router Machine (6)

ELECNC-2040 Linear ATC Wood CNC Router Machine (8)

ELECNC-2040 Linear ATC Wood CNC Router Machine (9)

ELECNC-2040 Linear ATC Wood CNC Router Machine (7)

ELECNC-2040 Linear ATC Wood CNC Router Machine (2)

ELECNC-2040 Linear ATC Wood CNC Router Machine

ELECNC-2040 Linear ATC Wood CNC Router Machine (4)

ELECNC-2040 Linear ATC Wood CNC Router Machine (10)

ELECNC-2040 Linear ATC Wood CNC Router Machine (3)

ELECNC-2040 Linear ATC Wood CNC Router Machine (11)
