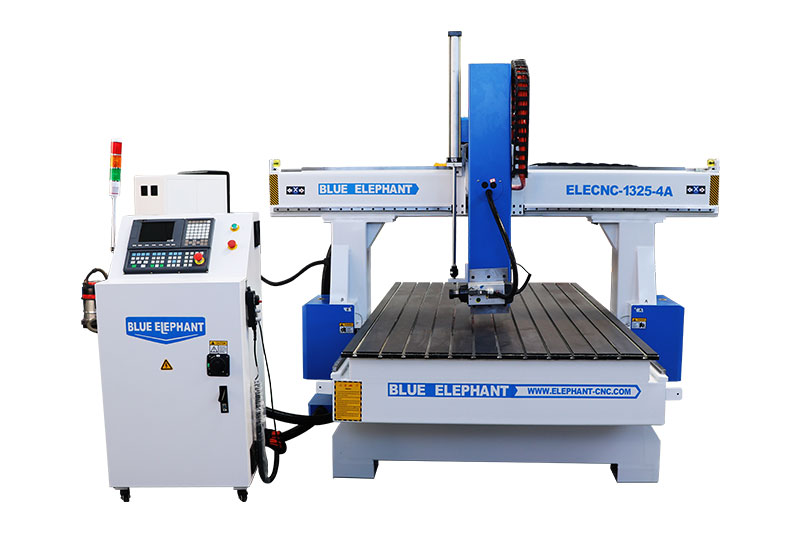

ELECNC1325 4×8 4-Axis CNC router 3D wood carving machine has a popular table size of 1300*2500mm (4x8ft). And IT is the one of the best selling 4 axis CNC woodworking machine for sale. 4 axis CNC machine is powerful and can do anything that basic 3 aixs CNC machine can do. If your need 3D carving, 4 axis CNC machine is your essential need.
1. Global Spare Parts: SYNTEC 6MB control system, HSD air cooling spindle, YASKAWA servo driver and servo motor.
2. T-slot aluminum table, High Z axis height, popular table size for most woodworking. And we can design new CNC machien on your request.
3. 4 axis wood carving machine is mainly used to process some more complex workpieces.
Model | ELECNC1325-4A |
X,Y axis travel | 1300*2500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
Z axis travel | 400mm, option: 500mm, 600mm, etc |
Spindle type | 6kw air cooling spindle |
Inverter type | 7.5kw |
The 4thaxis | cycloidal pin wheel precision reducer,with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
Control system | Taiwan SYNTEC controller |
Driving system | 1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot & vacuum work table |
Linear guide | Taiwan linear guide |
Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
Lubrication system | 1.5L automatic lubrication system |
Tool calibration | Automatic tool sensor calibration |
Cables | Germany Igus cables with CE, cUL certificate |
Compatible software | Powermill, UG, etc |
Command language | G Code & M Code |
Traveling speed | 80m/min |
Working speed | 0-25m/min |
Re-positioning accuracy | ±0.03mm |
System resolution | ±0.0025mm |
Working accuracy | ±0.03mm |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
Dust collect system |
|
Air compressor | Piston air compressor, screw air compressor |
Protection device | Light curtain |
Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30,HSK F63), etc |
Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Yes. Sure. The HSD air cooling spindle can swing 180 degree to realize a 3D models processing.
It is equipped with the best Italy HSD 4.5kw air cooling spindle.
CNC machine is very easy to be maintained. For example, you can use lubrication system to lubricate linear guide and ensure a smooth processing.
