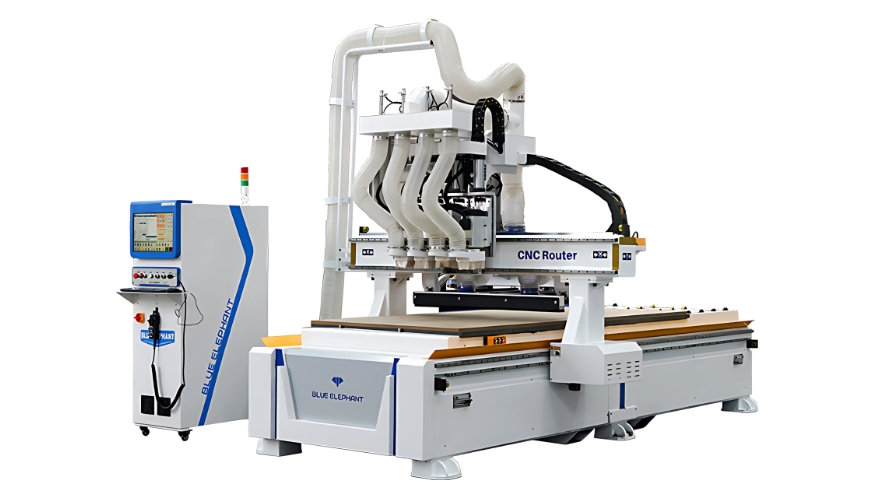

ELECNC-1325 Wood CNC Router with 4 Spindles

Parameters

Features:

Advantages:

  • The account of spindle and working area of this economical processing machine can be customized according your requirement.
  • The machine can be widely used for furniture( table legs, chair legs), stair handrails, sculptures, 3D relief and so on.

Parameters:

Descriptions Parameters
Model ELECNC-1325-4S
Working area 1300*2500*200mm
Control system Original Wei Hong PM95A control system
Spindle 2 sets 4.5kw and 2 sets 6kw China famous brand air cooling spindle
Spindle speed 0-24000RPM
Inverter 7.5kw Fuling Inverter
Motor and driver Leadshine 2206 Hybrid Servo and drive,Japan Shimpo reducer
Voltage 380V, 3ph, 50Hz (optional)
Table structure New type thicker and bigger heavy duty welded frame and gantry
Table surface Vacuum T-slot working table
X,Y axis transmission Helical rack and pinion drive for X,Y axis, Taiwan HINWIN 20# linear guide
Z axis transmission Taiwan HINWIN 20# linear guide, Taiwan TBI 2510 ball screw for z axis
Vacuum pump 7.5kw water type circulation vacuum pump
Lubrication system Manually
Tool Sensor Automatic tool sensor
Positioning Cylinder 6 sets
Dust Collector New type double bags dust collector 3.0kw

PS:All the working area and specifications can be customized according to your requests.

Detail Images:

1325 Wood CNC Router Machine with 4 Spindles (4)

1325 Wood CNC Router Machine with 4 Spindles (5)

1325 Wood CNC Router Machine with 4 Spindles (1)

1325 Wood CNC Router Machine with 4 Spindles (9)

1325 Wood CNC Router Machine with 4 Spindles (10)

1325 Wood CNC Router Machine with 4 Spindles (2)

1325 Wood CNC Router Machine with 4 Spindles (11)

1325 Wood CNC Router Machine with 4 Spindles (12)

1325 Wood CNC Router Machine with 4 Spindles (13)

1325 Wood CNC Router Machine with 4 Spindles (3)
