In 2024, stone deep processing equipment solutions have made significant progress in the field of stone cutting and engraving, especially in terms of accuracy, efficiency and automation. These advances meet the demand for high-quality stone processing in the construction, decoration, monument-making and other industries. Modern stone deep processing equipment includes CNC bridge cutting machines, stone engraving machines, quartz stone processing centers and other equipment. Below is a detailed analysis of these devices and their applications.

Ⅰ.About Blue Elephant’s Stone Deep Processing Production Solutions

Blue Elephant CNC Machinery Co., Ltd. is located in Building 1, Wanda Center, Lixia District, Jinan City, 15A03. The products in CNC processing involve various fields, including laser machines, engraving machines, stone processing equipment, mold series machines, wood processing equipment, etc. Among them, stone processing equipment includes 5-axis bridge cutting machine, 4-axis bridge cutting machine, stone CNC machining center, stone engraving machine, etc.

Our equipment can be used to process ceramic/ceramic dining tables, round tables, bathroom basins, cabinets, coffee tables, floor tiles, stair tiles, TV background walls and other products.

Suitable for tile processing plants, stone processing plants, decoration companies, construction sites, ceramic workshops, real estate projects, etc.

Our company integrates production-sales-installation-training-after-sales as a one-stop service enterprise, and has won the title of advanced sales unit in the industry for many consecutive years. I hope we can work together with you to promote your success with our excellent quality, professional and meticulous service, and create a better tomorrow together.

Ⅱ.5-axis CNC Bridge Saw Machine

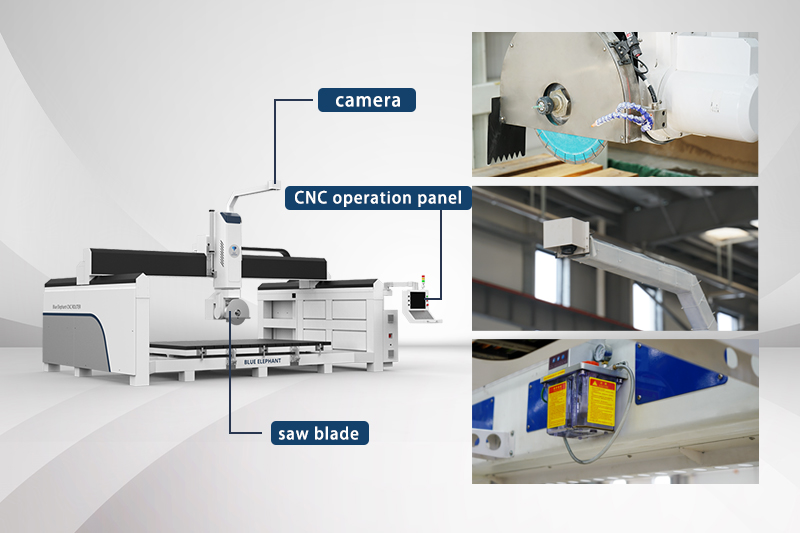

1.ES5 5 Axis CNC Stone Bridge Saw Machine Overview

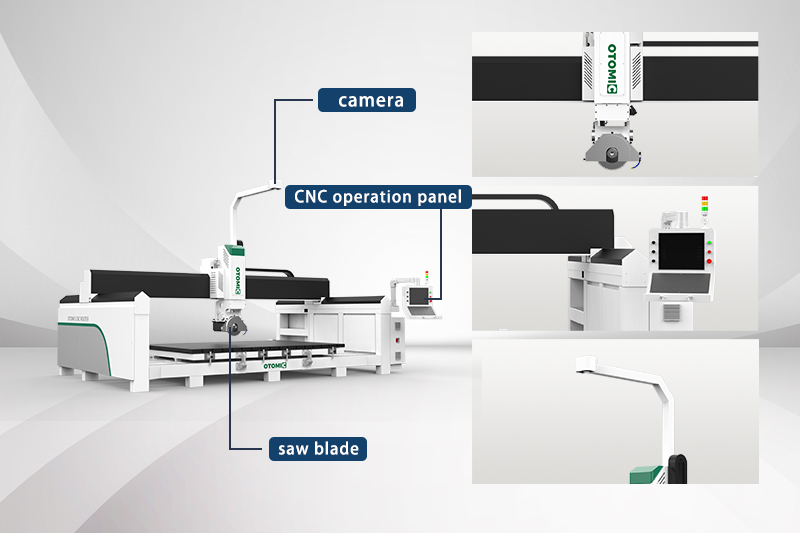

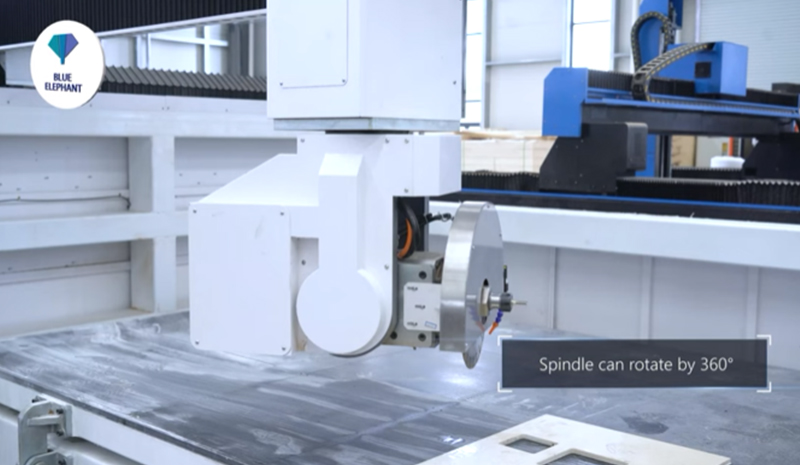

This is a new type of five-axis CNC bridge cutting machine for stone cutting. It has a camera, automatic plate positioning, and a 360° free swing of the machine head, which can realize cutting and processing of special-shaped, fan-shaped, circular, countertop basin holes, polygons, diamonds, straight lines, 45-degree chamfers and other cutting methods. It can cut and trim granite, marble, artificial stone, slate and other stones at any angle and in any shape.

The equipment is widely used in stone, rock slabs, tile cabinet countertops, dining tables, bathrooms, background walls, and stair processing plants. The machine is easy to program and supports CAM import function. The whole machine adopts international first-line linear guide brands and precision racks, which are high-speed and stable. It also occupies a small area and is easy to transport, install and debug.

Parameters

2.Machining Details

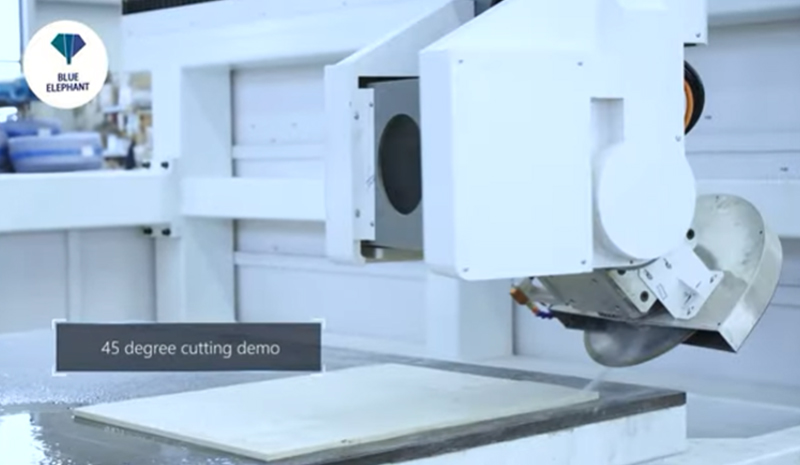

45 Degree Cutting

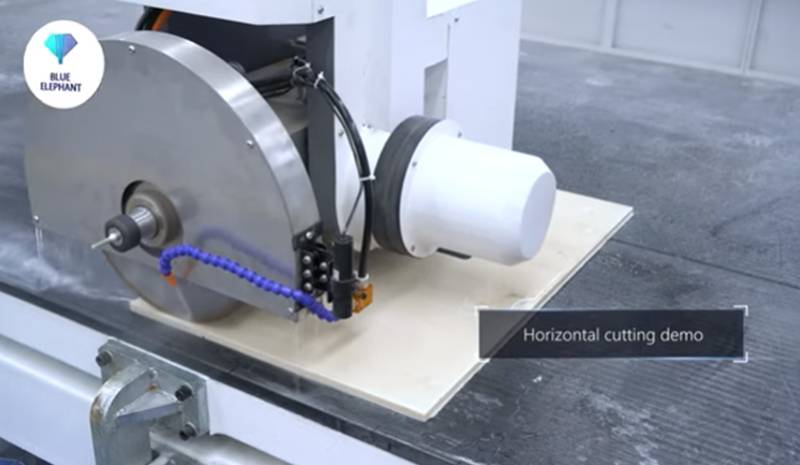

Horizontal Cutting

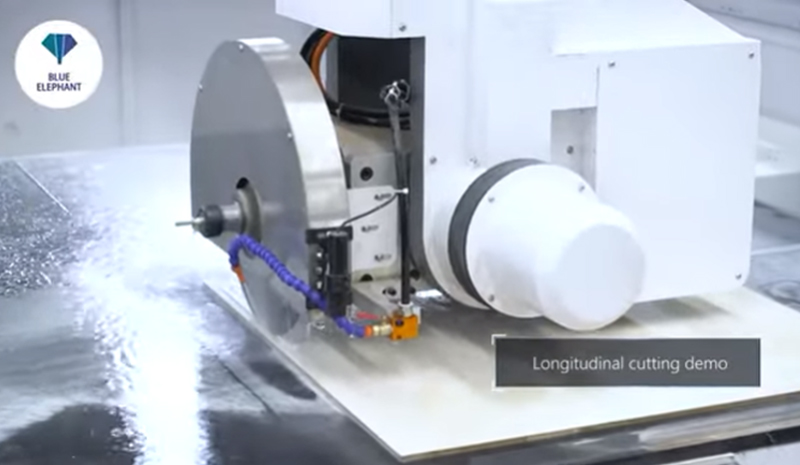

Longitudinal Cutting

Spindle

3.How it works

4.Machine Considerations

•Operation training: The five-axis bridge cutting machine is complex to operate. Operators must undergo professional training and be familiar with the various functions and operating procedures of the machine before they can operate the machine.

•Processing path simulation: Before actual cutting, the programmed path should be simulated in the software to ensure that there is no collision or other abnormal operation. This step can effectively reduce errors, especially when cutting complex workpieces.

•Axis motion range setting: The multi-axis linkage characteristics of the five-axis bridge cutting machine enable it to process complex angles, so it is necessary to ensure that the motion range of each axis is within the safety limit to avoid exceeding the equipment’s bearing capacity.

•Workpiece fixation: Before cutting, it is necessary to ensure that the stone workpiece is firmly fixed on the workbench to prevent the workpiece from moving or vibrating during the cutting process, thereby affecting the cutting accuracy or damaging the tool.

5.Sample Display

Ⅲ.4-axis CNC Bridge Saw Machine

1.ES4-3220 4 Axis CNC Granite Bridge Saw Machine Overview

The c-axis of this four-axis bridge saw machine can rotate 0 or 45 degrees. In addition, we can add cameras and infrared heads to this machine to improve positioning accuracy and precision. It is widely used in stone, rock slabs, tile cabinet countertops, dining tables, bathrooms, background walls, etc.

2.Features

1. The saw blade of the four-axis bridge saw can be tilted 45° to cut standard-sized plates and realize four-sided chamfering, flat grooving, basin holes, etc.
2. The bridge saw workbench can be flipped 85° to facilitate the loading and unloading of stones.

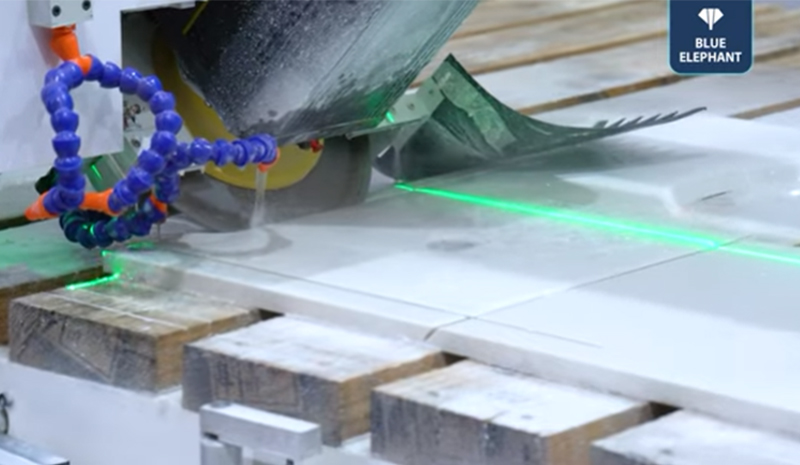

3. The infrared head can locate the cutting position, making the cutting faster and more accurate.
4. The automatic suction cup can move the plate to avoid saw cuts.

ES4-3220 4 Axis CNC Stone Bridge Saw Parameters

3.Machining Details

45 Degree Cutting

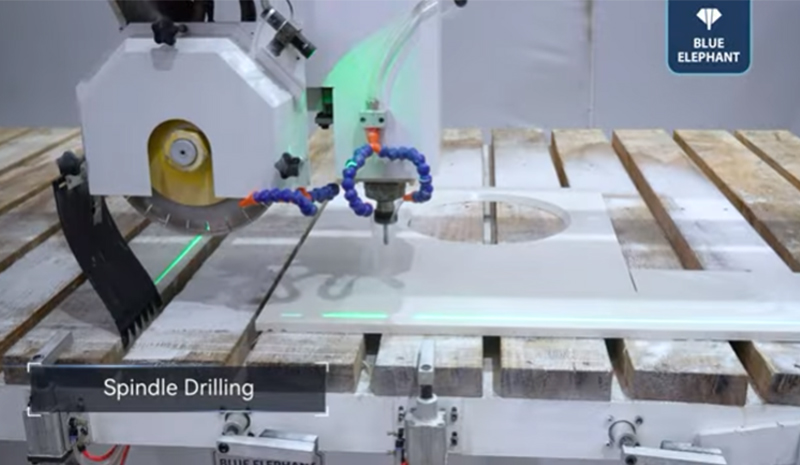

Spindle Drilling

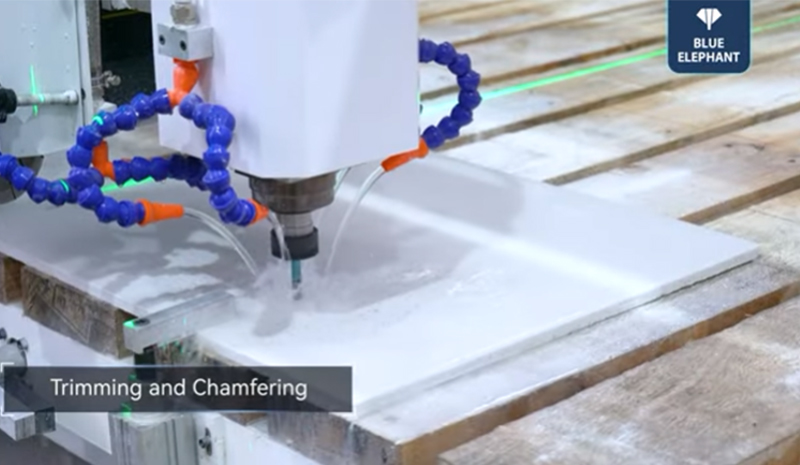

Trimming and Chamfering

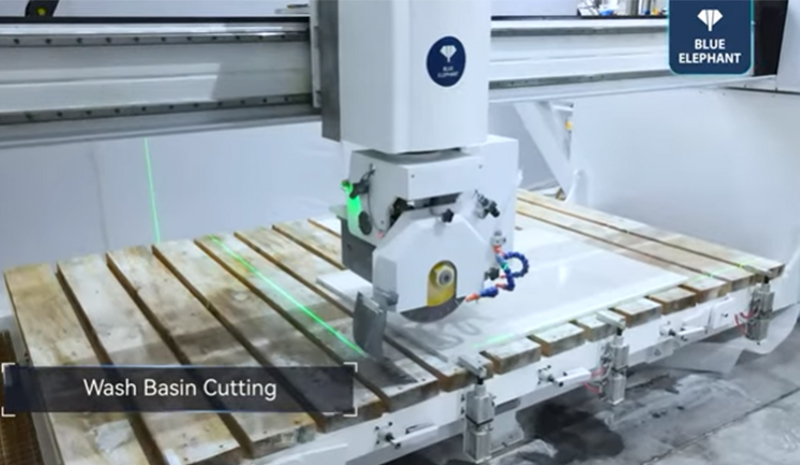

Wash Basin Cutting

4.Machine Considerations

• Wear protective equipment: Operators should wear protective glasses, gloves, dust masks and work clothes to prevent flying chips and dust from harming the body.

• Abnormal noise or vibration: Abnormal noise or vibration of the equipment usually indicates that there is a problem with a part of the equipment, which may be a guide rail, bearing or motor failure. The machine should be stopped immediately for inspection and contact professional maintenance personnel for processing.

• Control cutting speed: Maintain a uniform cutting speed, not too fast or too slow, to prevent the tool from overheating or damaging the material.

• Emergency button: Make sure the operator is familiar with the location of the machine’s emergency stop button and can quickly shut down the machine in an emergency.

5.Samples Display

Ⅳ.Stone CNC Machining Center for Marble, Quartz, Granite Cutting

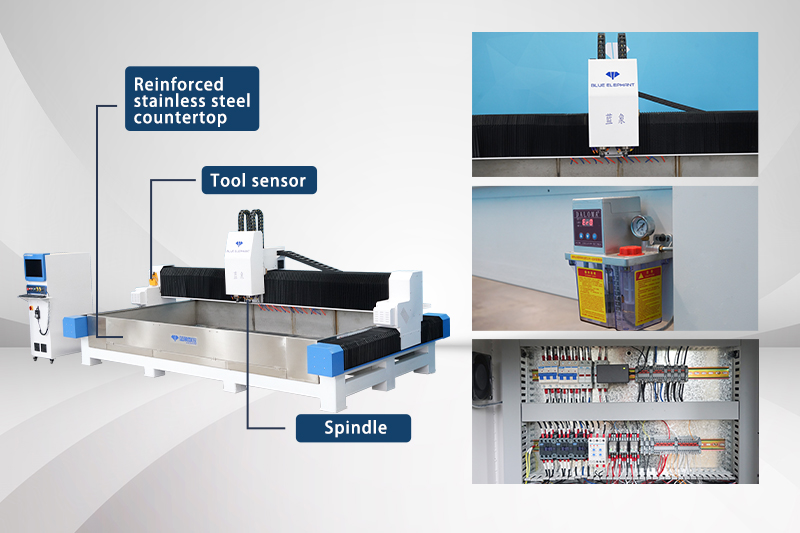

ES3-3015 Automatic Quartz Stone CNC Machining Center

1.ES3-3015 Automatic Quartz Stone CNC Machining Center Overview

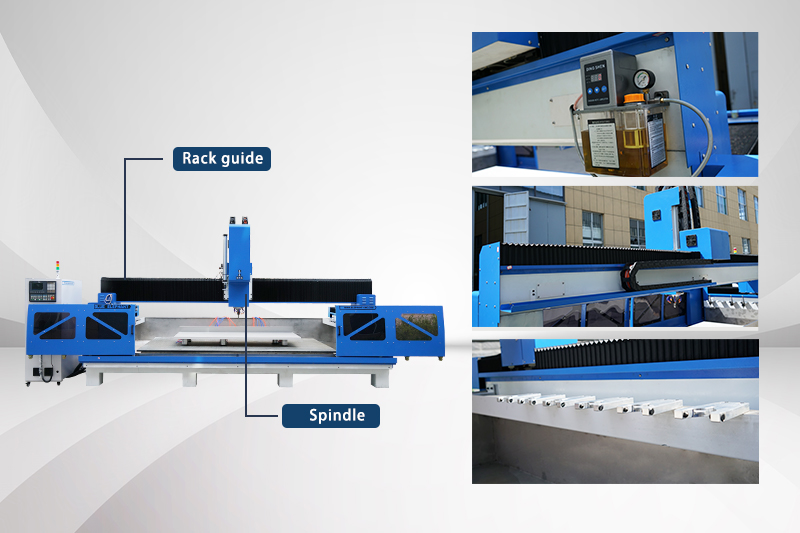

The stone CNC machining center is a high-tech and high-precision machining center that can process stone kitchen sinks, stone countertops, basins, etc. It integrates edge grinding, polishing, drilling, milling, and special-shaped cutting. It can complete conventional cutting, 45° bevel cutting, and multi-angle arbitrary cutting with one key.

2.Features

1. Grinding, polishing, drilling, milling and other actions are completed according to the preset instructions throughout the process to achieve seamless intelligent processing.

2. Widely used, it can be widely used in kitchen countertops, bathroom countertops, bar island countertops, coffee table countertops, stone tabletops and other processing.

3. Intelligent and environmentally friendly, fully automated environmentally friendly processing, creating a dust-free workshop and rejecting pneumoconiosis.

4. Easy to operate, ordinary workers can get started in one working day.

3.ES3-3015 Automatic Quartz Stone CNC Machining Center Parameters

4.Machining Details

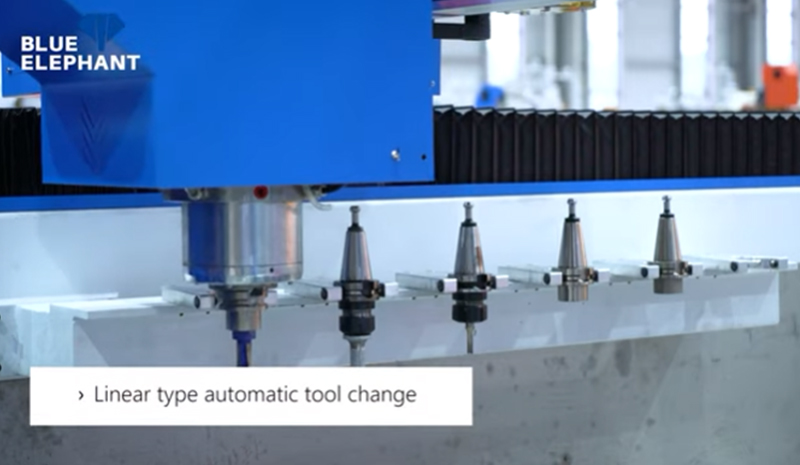

Linear Type Automatic Tool Change

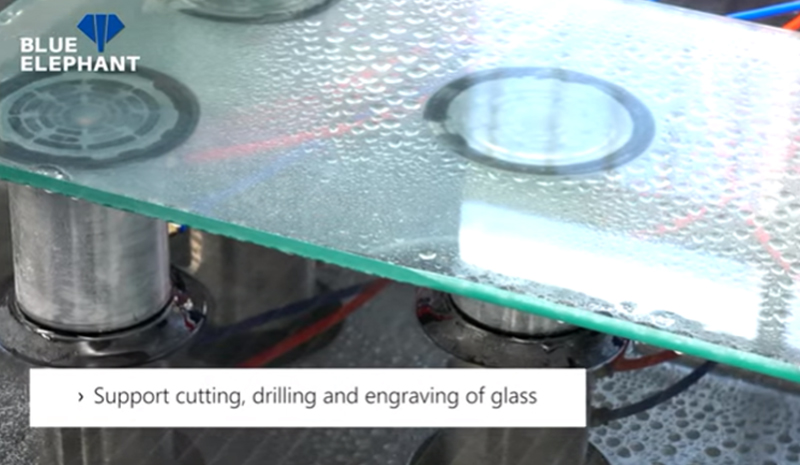

Support Cutting Drilling and Engraving of Glass

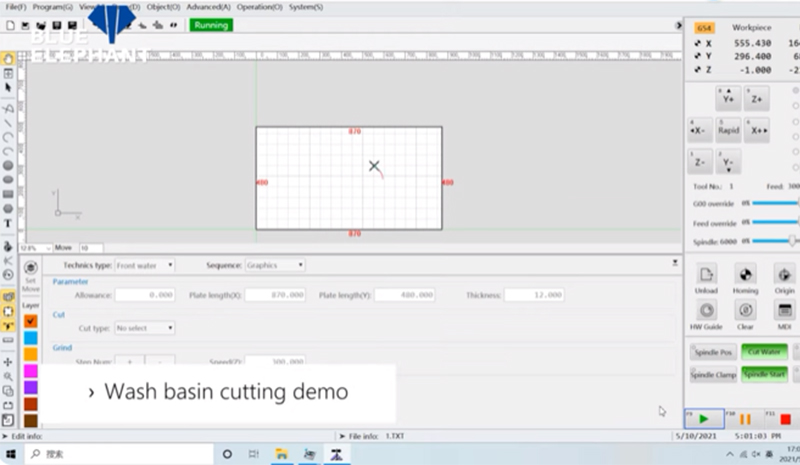

Wash Basin Cutting

5.How it works

6.Machine Considerations

Program error: If you find that the program is running wrong or the processing results are not as expected during the processing, you should check the CNC program to ensure that the code is correct and the path is reasonable.

Cutting accuracy decreases: If you find that the cutting accuracy decreases, it may be due to tool wear or unstable axis movement. Check the tool and replace it in time, and check whether the mechanical system of the equipment is loose.

Avoid overload operation: Although the stone processing center can handle complex cutting tasks, cutting operations should not be performed when the equipment load is overloaded. Overload operation will not only affect the processing quality, but may also cause equipment damage.

7.Samples Display

ELECNC-1530 Two-process Countertop CNC Stone Machining Center

1.ELECNC-1530 Two-process Countertop CNC Stone Machining Center Overview

The machining center is mainly used for edging, digging and polishing of quartz stone and rock slabs, with the fastest processing speed of 0-30 m/min. The water outlet spindle has good cooling, fast cutting speed, reduces tool loss, and can be customized with automatic tool change function, which can accommodate up to 12 knives. The stainless steel table is sturdy and durable. Using the advanced CNC operating system, you only need to enter simple values ​​and select the shape for cutting, which is convenient and fast.

2.Features

1. It realizes the edging and engraving functions of the table, one machine for multiple uses, and occupies a small area.
2. One-button operation can switch the edging and engraving functions of the table, which is easy to operate.
3. It realizes 3-second fast tool change, which is more powerful and has higher processing efficiency.
4. According to processing requirements, the two spindles can be switched automatically to reduce tool change time.
5. Slotting, punching, edging, polishing, cutting, milling, hollowing and other processes can be completed by one machine;
6. Various materials such as rock slabs, marble, quartz stone, glass, etc. can be cut.

3.Parameters

4.Machining Details

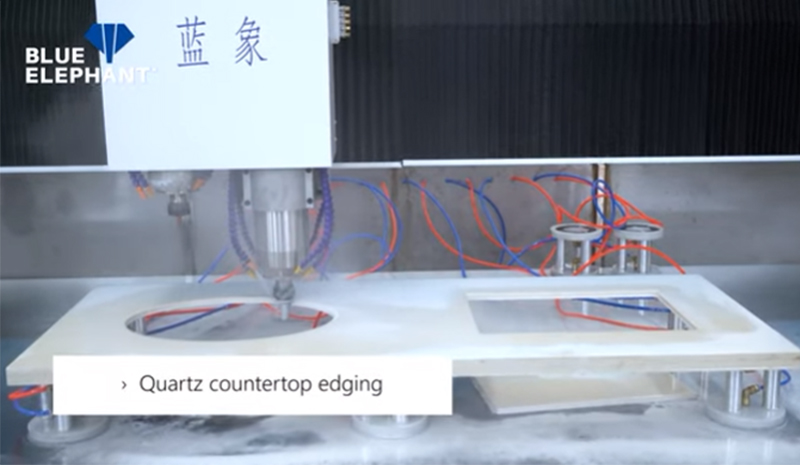

Quartz Counertop Edging

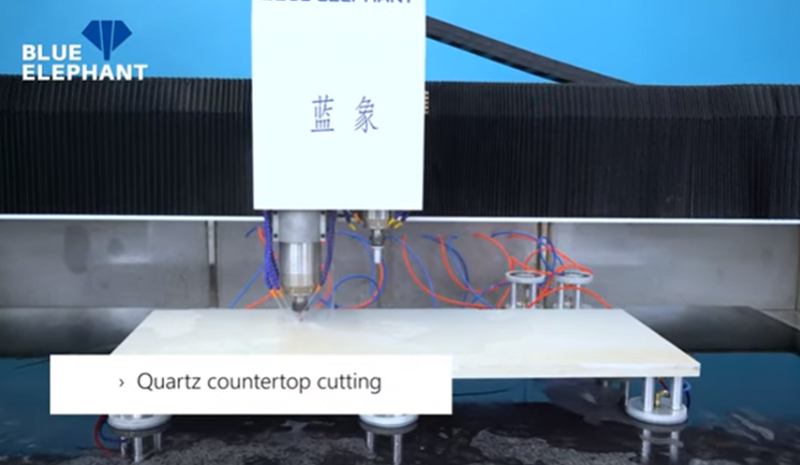

Quartz Countertop Cutting

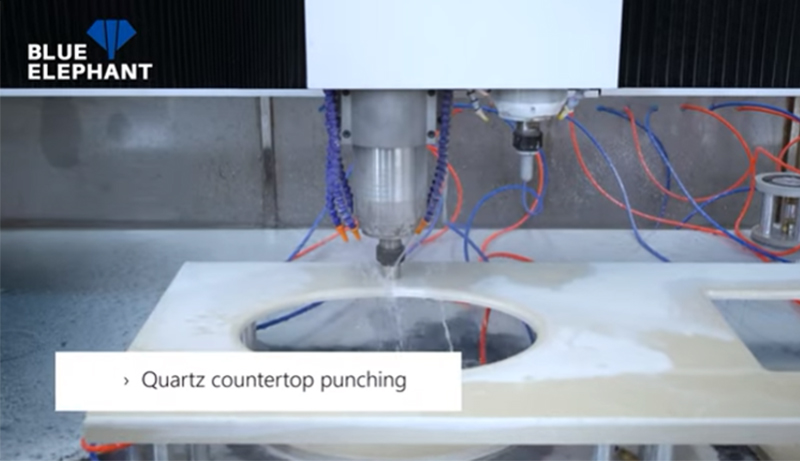

Quartz Countertop Punching

5.How it works

6.Machine Considerations

• Cutting depth adjustment: Set the appropriate cutting depth according to the thickness of the material to prevent cutting too deep or too shallow.

• Cooling system: Ensure it works properly to avoid overheating of the tool.

• Keep away from the blade: Keep your body away from the rotating blade when cutting, especially when changing the tool or maintenance, you should turn off the power and wait for the blade to stop completely.

• Real-time monitoring of the cutting process: During the operation of the equipment, the operator should monitor the cutting situation at any time. If there are abnormal sounds, excessive wear of the tool, cutting offset and other problems, the machine should be stopped immediately for inspection.

7.Processing Sample Display

Ⅴ.Stone Engraving Machine

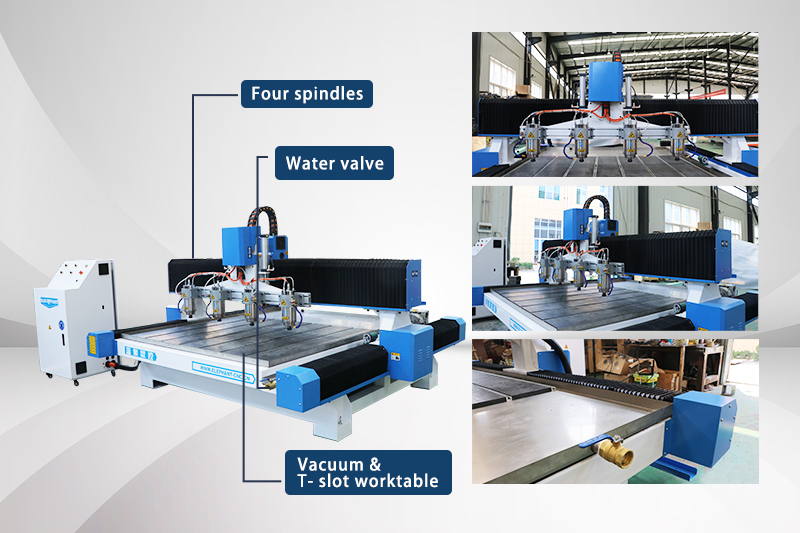

1.ELECNC-1815S Multi Head Stone CNC Machine 3D Stone Carving Machine Overview

Blue Elephant’s stone engraving machine is mainly divided into two types of machines: single-head and multi-head. This machine uses imported linear guides and high-precision helical gears. Load-bearing redundancy, smooth operation, high precision and long life. Enlarged crossbeams and large guide rail spacing ensure stable high-speed operation of the machine.

Dust-proof and anti-static sealed computer control cabinet. Double-layer steel frame structure body, good rigidity, less jitter, less deformation after long-term use, making the positioning accuracy more accurate, and the machine’s load-bearing capacity can reach more than six tons.

2.Features

1. Equipped with a sink countertop, it is more suitable for the stone industry and metal processing workpieces.
2. It has a water spray function, which can reduce the wear of the spindle during processing and extend the service life of the machine.
3. It can also be used to process materials such as hardwood.

3.ELECNC1815-4S Stone CNC Router Parameters

4.Machine Considerations

•Keep the environment clean: The working area should be kept clean and avoid oil or water stains on the ground to prevent operators from slipping.

•Tool replacement: When the tool is worn, it should be replaced in time. Do not use a blunt tool to continue cutting, so as not to affect the cutting effect and equipment life.

•Emergency button: Make sure the operator is familiar with the location of the machine’s emergency stop button and can quickly shut down the machine in an emergency.

5.Processing Sample Display

Ⅵ. Development Prospects of Stone Deep Processing Equipment

The future development prospects of stone deep processing equipment are broad. With the advancement of urbanization and the acceleration of infrastructure construction, the demand for stone in the global construction market continues to grow. The decorative, beautiful and durable properties of stone make it in high-end architectural decoration. Stone deep processing equipment is developing in the direction of high efficiency and intelligence. Therefore, the stone deep processing industry has broad development space and development potential.

Ⅶ.Conclusion

The above is the production plan of Blue Elephant stone deep processing equipment, which mainly includes five-axis bridge cutting machine, four-axis bridge cutting machine, stone processing center and stone engraving machine. Each machine has undergone strict quality control and has complete after-sales service. Friends can rest assured to cooperate with Blue Elephant. If you have any questions, please feel free to contact us:
