Common tool information and machining

Jack Zhang | Founder at Blue Elephant

Hi, I'm Jack Zhang, here to share my expertise in CNC Machines with you.

February 24, 2025

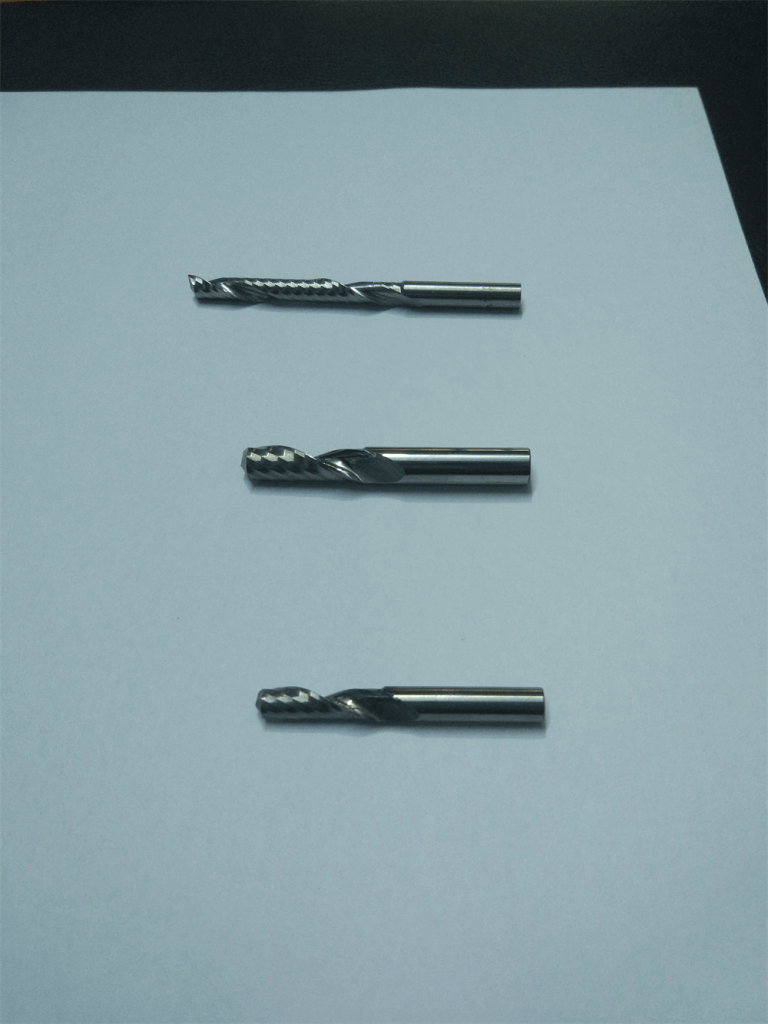

1.单刃刀。直径：6mm，8mm。刀刃长度：22mm，50mm，60mm
主要功能是切割或者铣槽。主要加工材料：木头，MDF，PVC。
Single-edged knife Diameter:6mm,8mm.Blade length:22mm,50mm, 60mm
Main function:cutting,milling.
Main processing materials:wood,MDF,PVC.

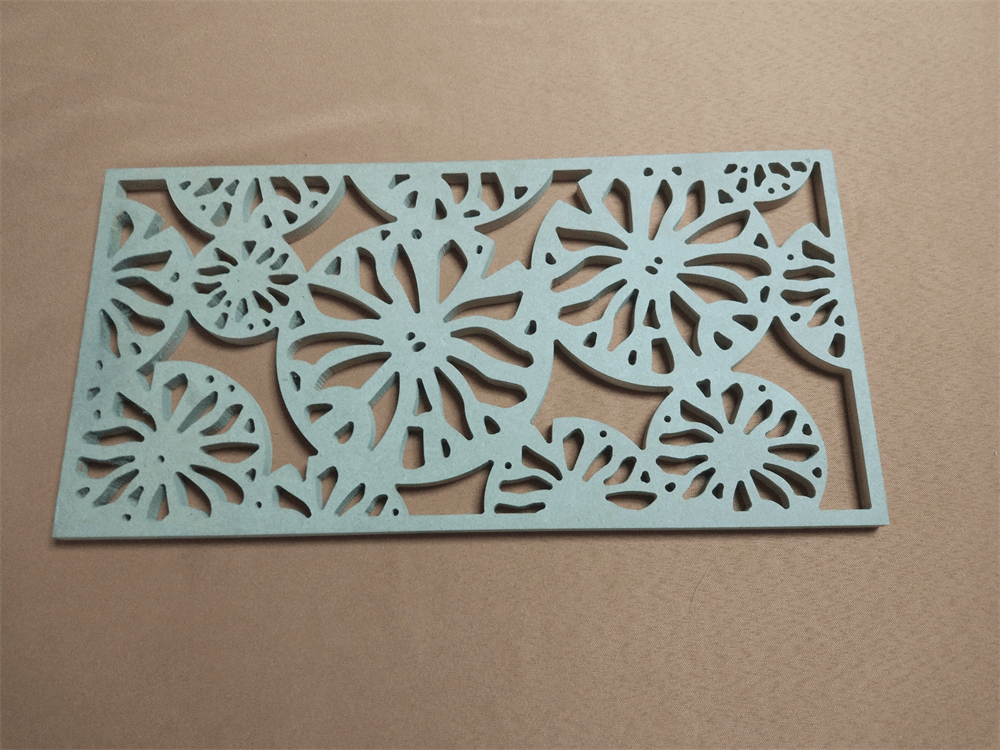

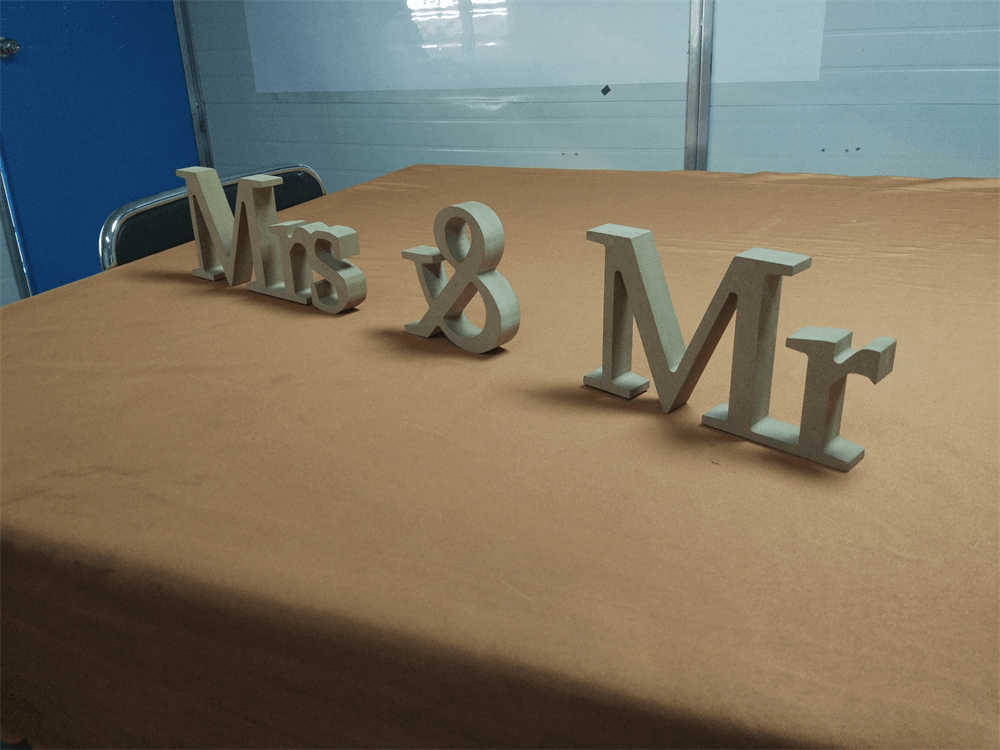

样品展示Sample show

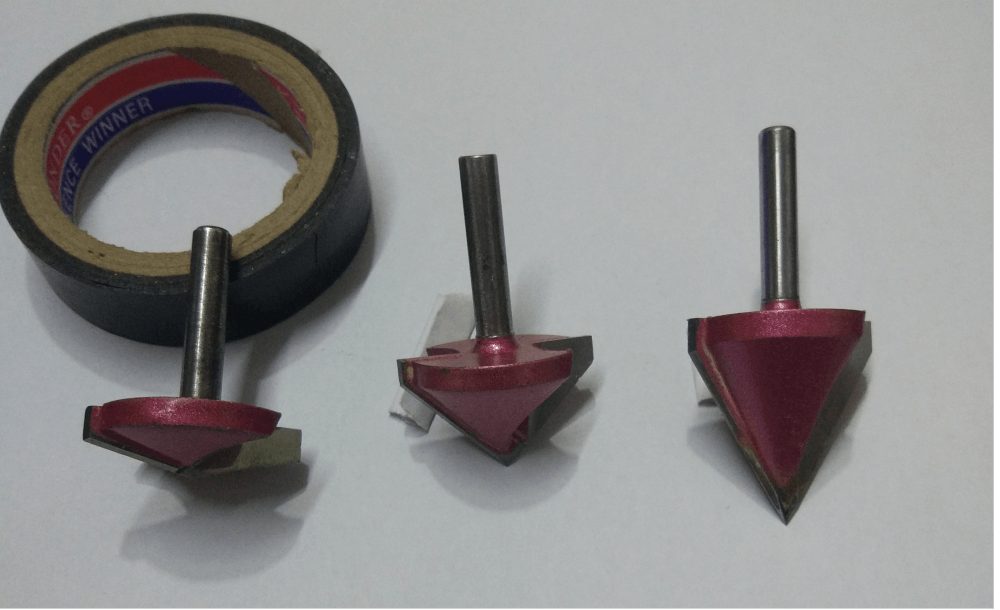

2.V型刀：60°,90°,120°.刀刃最大宽度：32mm。刀柄直径：6mm 或者12mm.主要加工材料:木头,MDF,铝塑板.
V-blade: 60°, 90°,120°.Maximum blade width: 32mm. Shank diameter:6mm or 12mm.Main processing materials:wood,MDF, Aluminum composite panel.

样品展示sample show

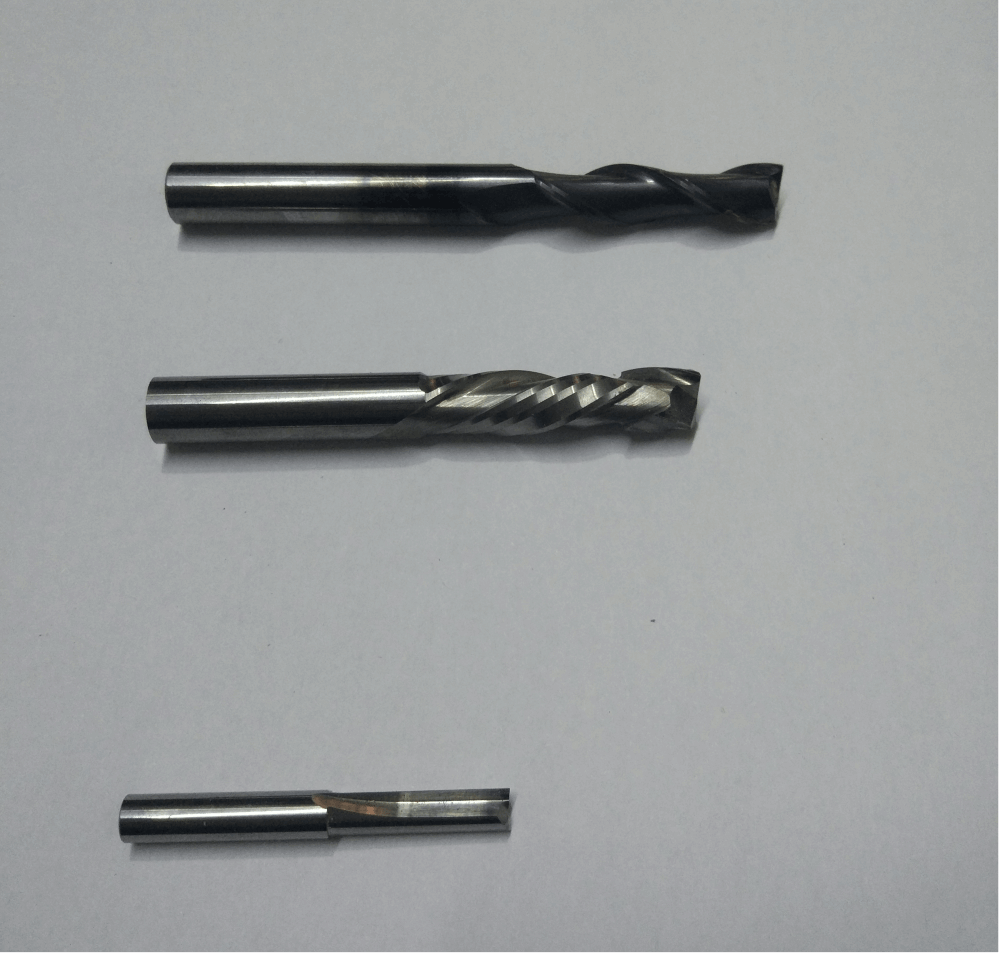

3 . 双刃铣刀直径6mm，8mm，10mm。刀刃长度：22mm，50mm，60mm，80mm。功能与单刃刀类似（Similar with 1）。

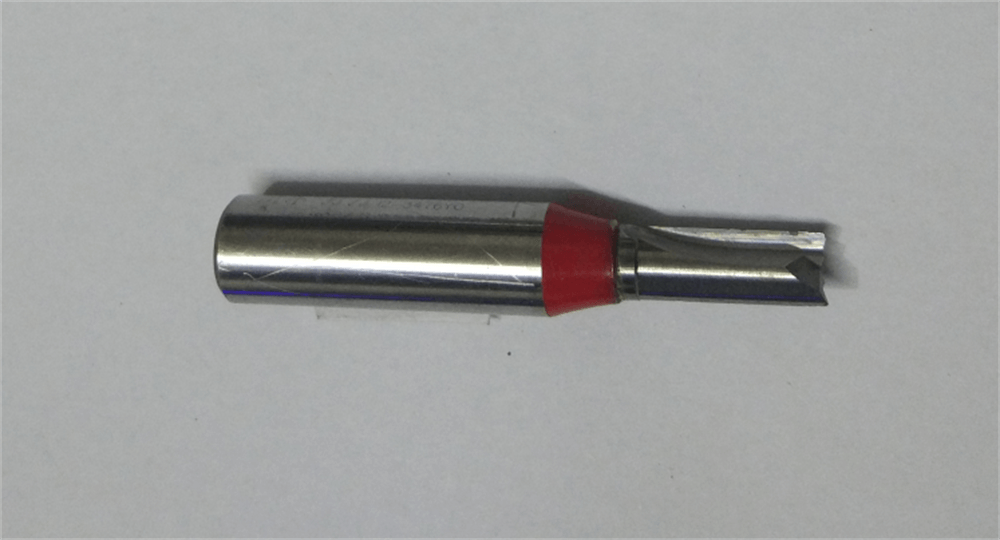

Double-edged milling cutters
Diameter:6mm, 8mm,10mm
Blade length:22mm,50mm,60mm,80mm
Functions similar to a single-edged knife (Similar with 1).

样品展示sample show

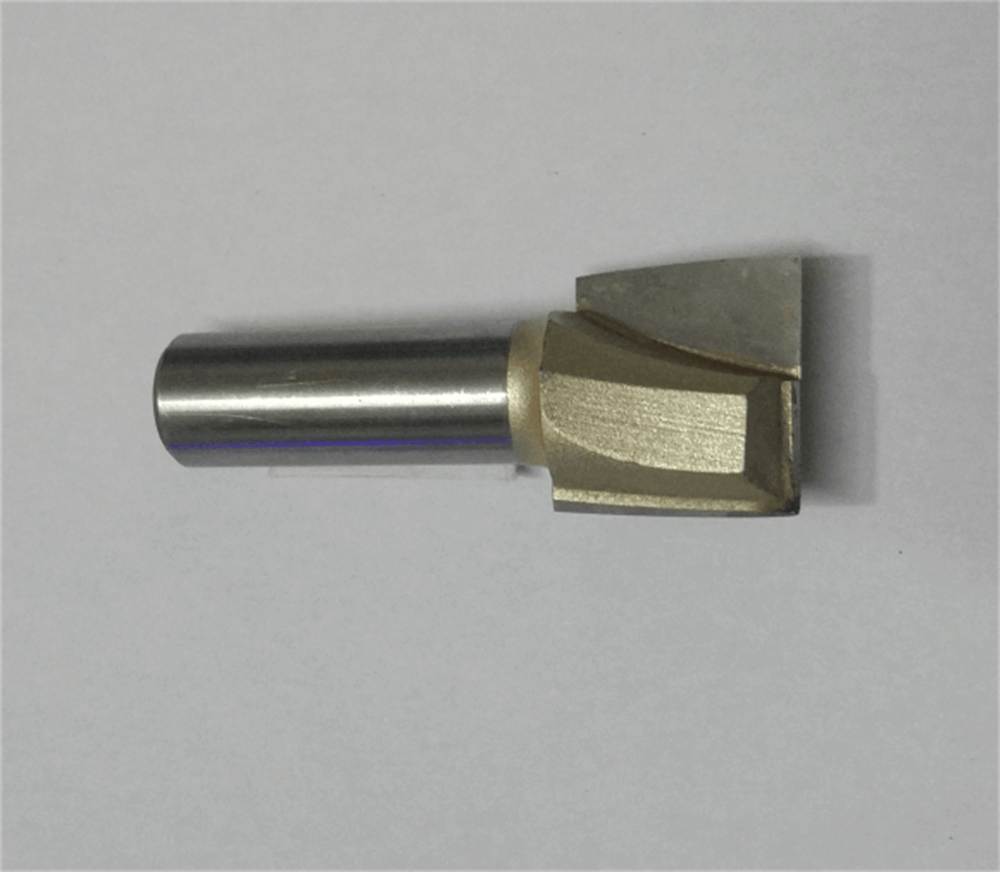

4 . 铣底刀：刀柄直径6mm，12mm。刀刃直径：20mm，32mm。
主要作用：将板子的表面快速清理平整。
主要加工材料：木头（wood），MDF，PVC。
Milling cutter
shank diameter 6mm, 12mm.
Blade diameter:20mm, 32mm.
Main function:quickly clean and level the surface of the board.
Main processing materials:wood,MDF,PVC.

Common tool information and machining 10

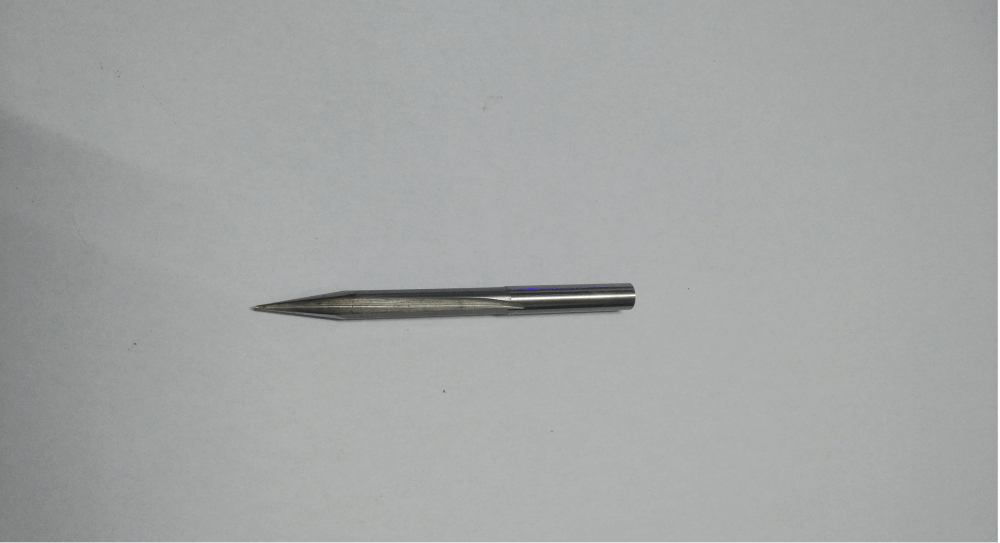

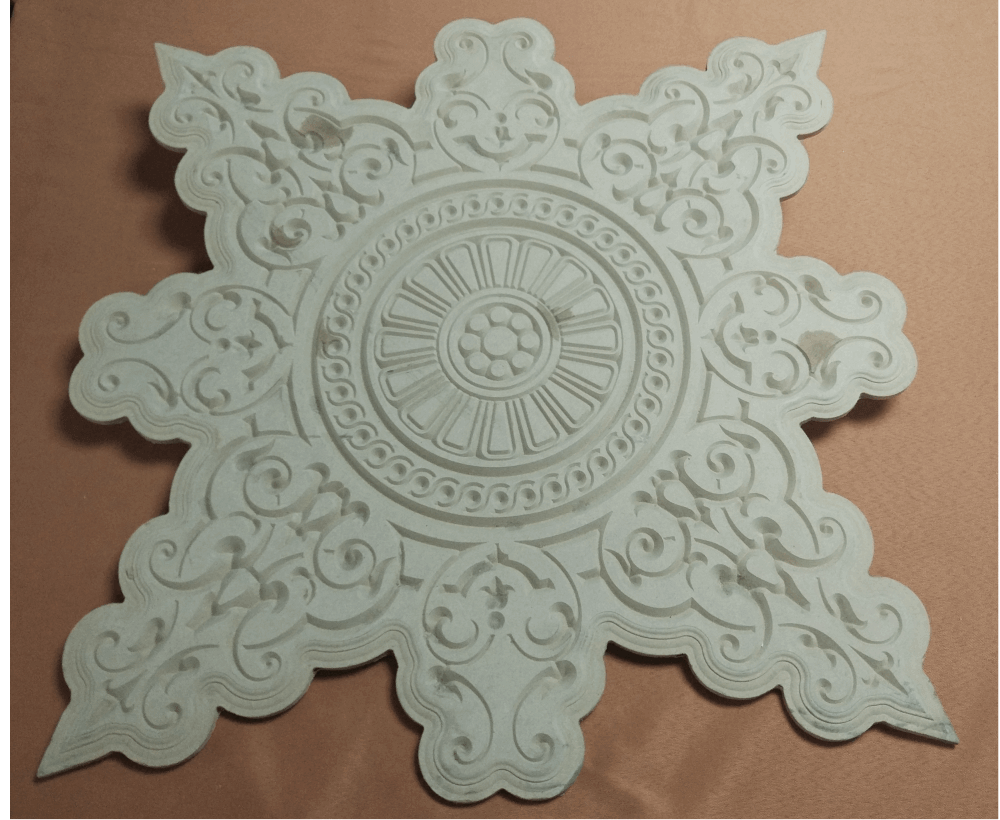

5.直槽双刃尖刀直径：6mm，8mm。刀刃长度：50mm，60mm，70mm。角度20°，30°。一般用来加工复杂的浮雕。雕刻深度大。
主要加工材料：木头（wood），MDF，PVC。
Straight groove double-edged sharp knife
Diameter:6mm,8mm
Blade length:50mm,60mm,70mm
The angle is 20°,30°
Generally used to process complex reliefs.Large carving depth.
Main processing materials:wood, MDF, PVC.

Common tool information and machining 11

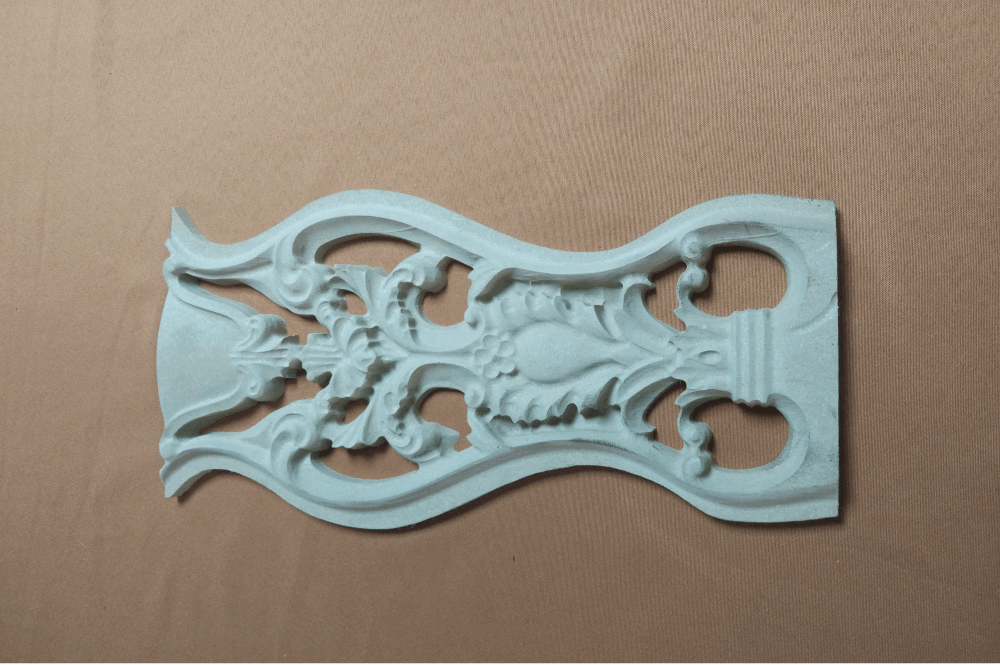

样品展示sample show

Common tool information and machining 12

Common tool information and machining 13

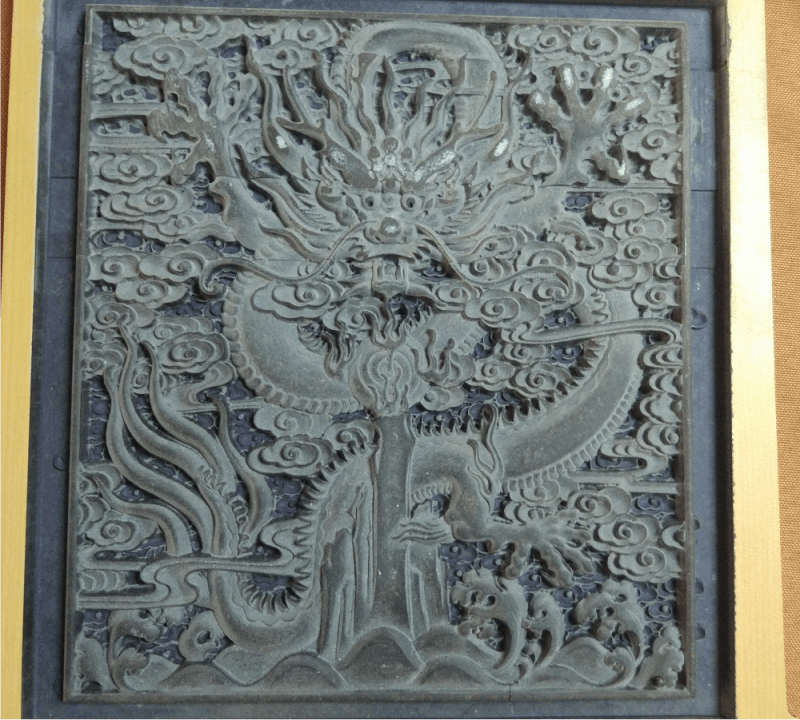

6.双刃球头刀直径：4mm，6mm，8mm，10mm。刀刃长度：22mm，50mm，60mm。一般用来加工大型的或者比较简单的浮雕。
主要加工材料：木头（wood），MDF，PVC

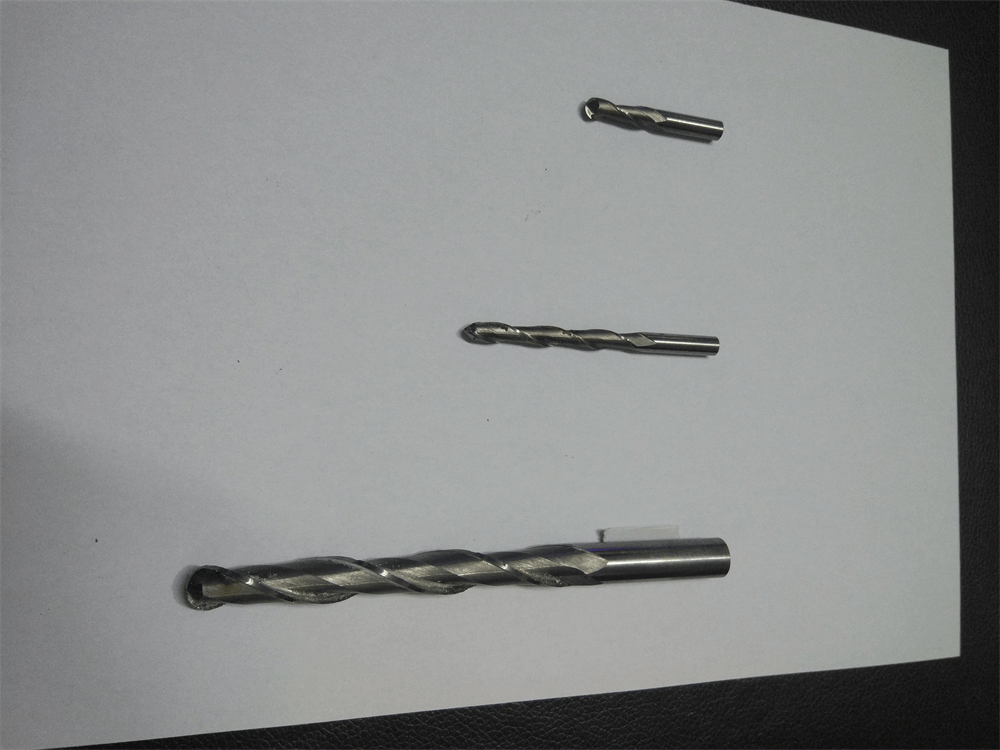

Double-bladed ball nose cutter Diameter:4mm,6mm,8mm,10mm
Blade length:22mm,50mm,60mm
Generally used to process large or relatively simple reliefs.
Main processing materials:wood,MDF,PVC

Common tool information and machining 14

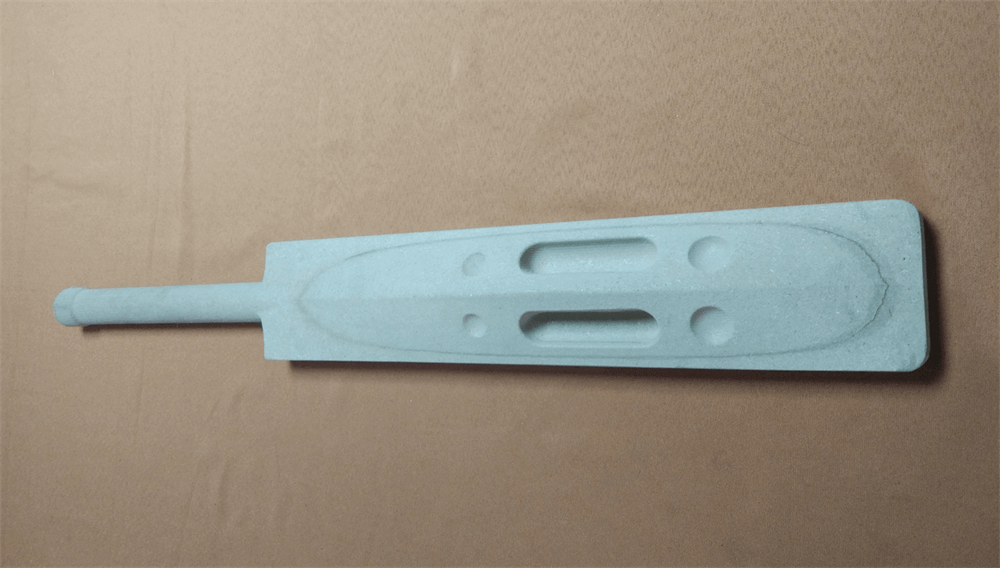

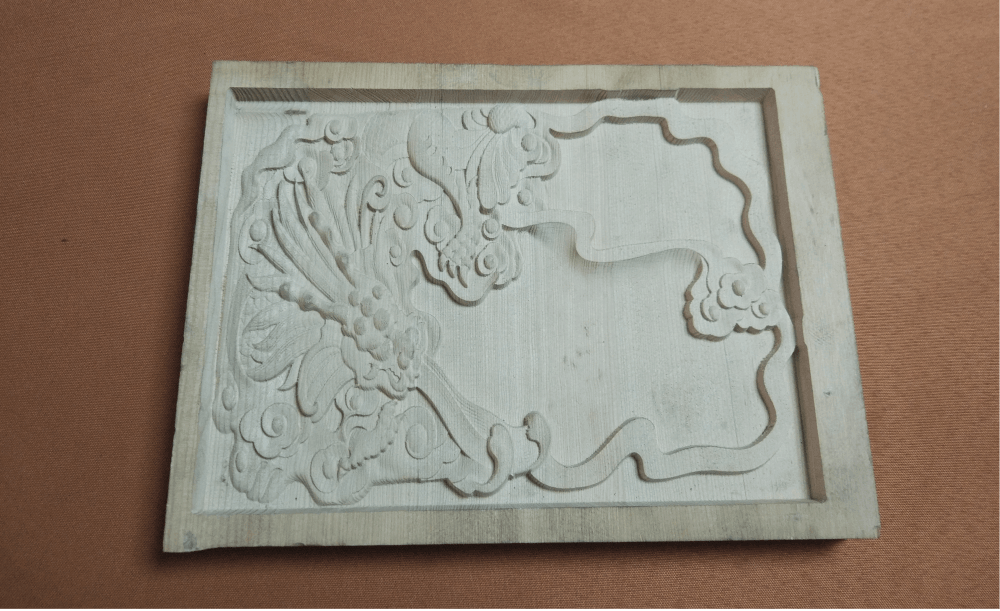

样品展示sample show

Common tool information and machining 15

Common tool information and machining 16

7.特殊刀：刀的形状比较复杂，可以根据实际的加工要求来选择。
Special knife:the shape of the knife is more complicated,and it can be selected according to the actual processing requirements

Common tool information and machining 17

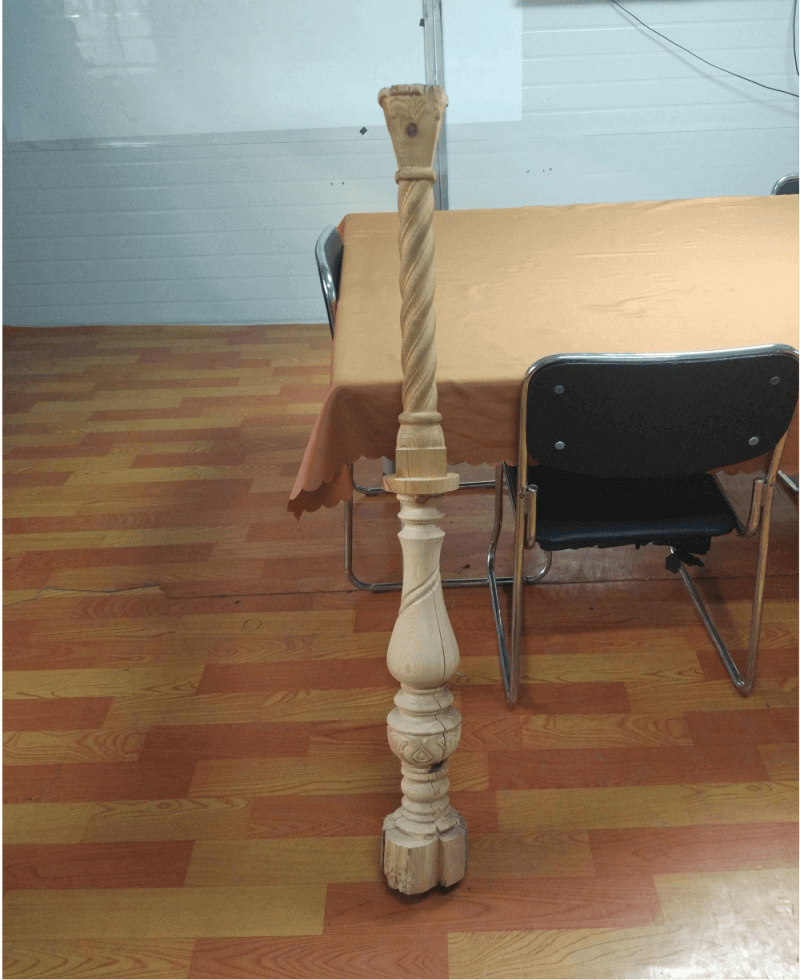

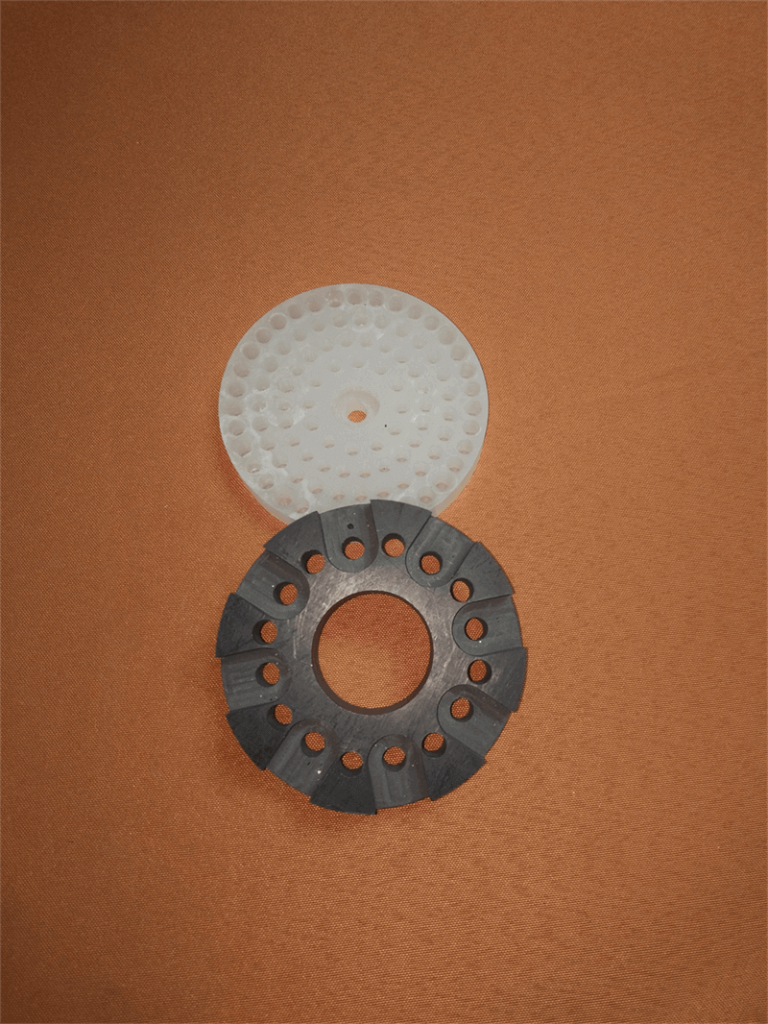

样品展示sample show

Common tool information and machining 18

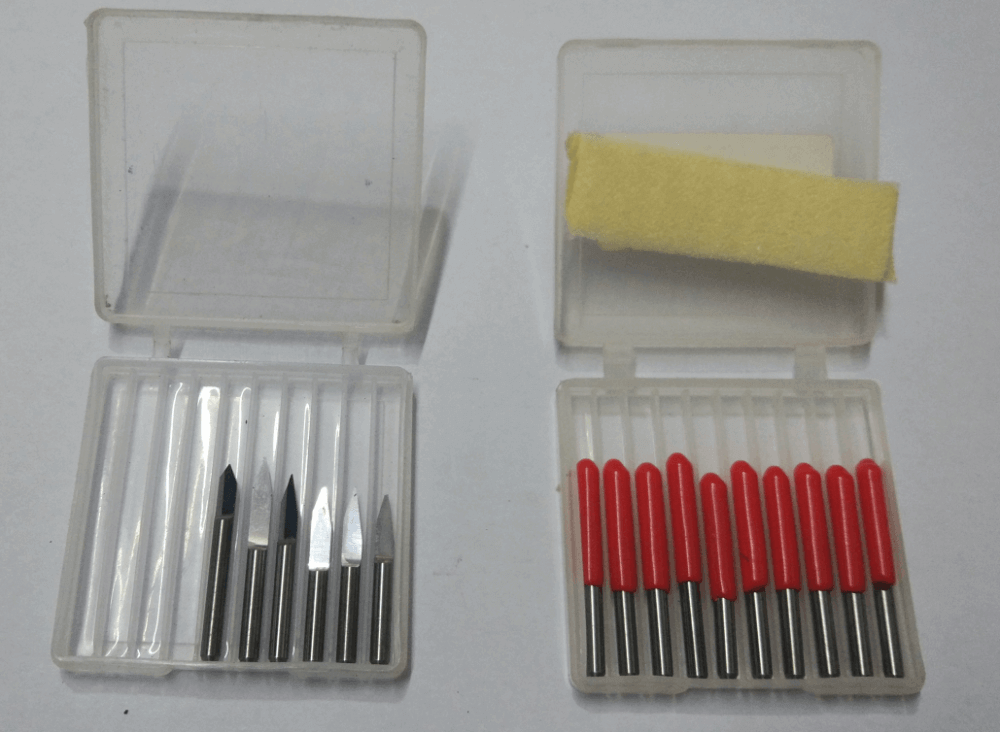

8.小尖刀。直径3mm。刀刃长度5mm~20mm。角度：20°，30°。
主要用于雕刻复杂的图形。雕刻深度比较浅。与双刃直槽尖刀类似。
Small pointed knife
3mm diameter
Blade length is 5mm ~ 20mm
Angle: 20°, 30°.
Mainly used for sculpting complex graphics.The carving depth is relatively shallow
Similar to a double-edged straight-groove pointed knife.

Common tool information and machining 19

样品展示sample show

Common tool information and machining 20

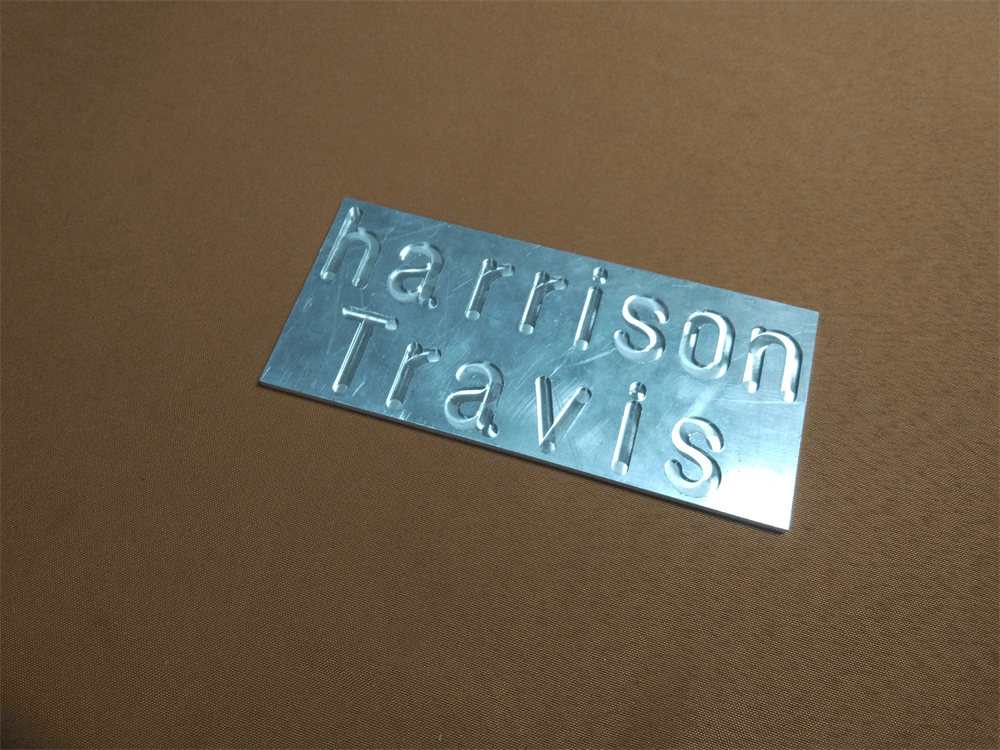

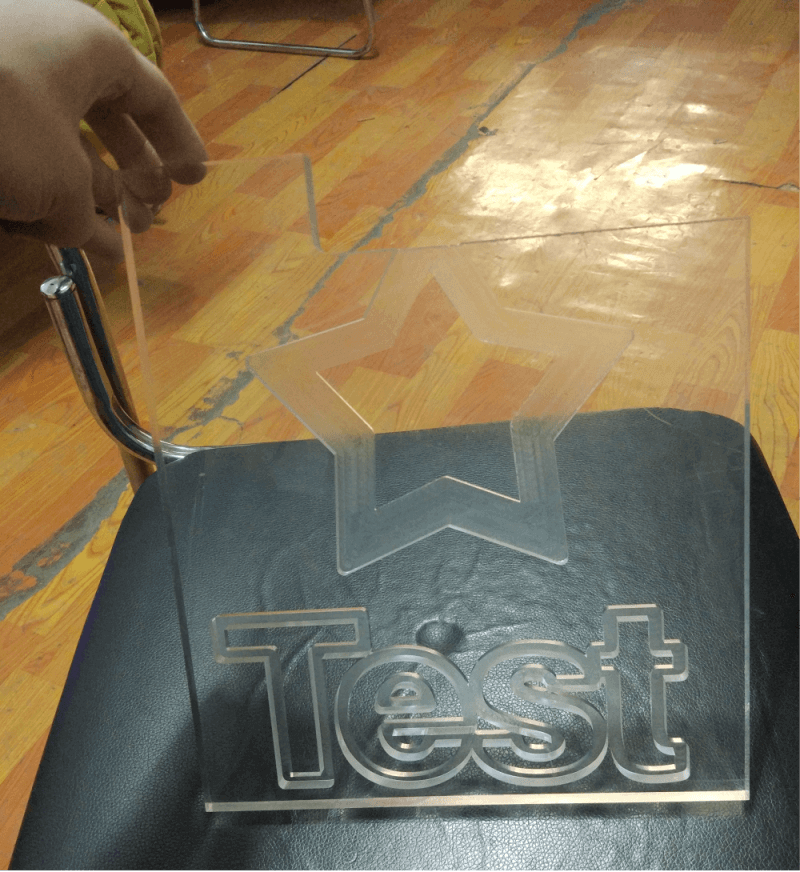

9.切铝刀直径6mm 。刀刃长度22mm。
形状与单刃刀类似。刀的材料不一样。
主要加工材料：亚克力，铝板，铝塑板

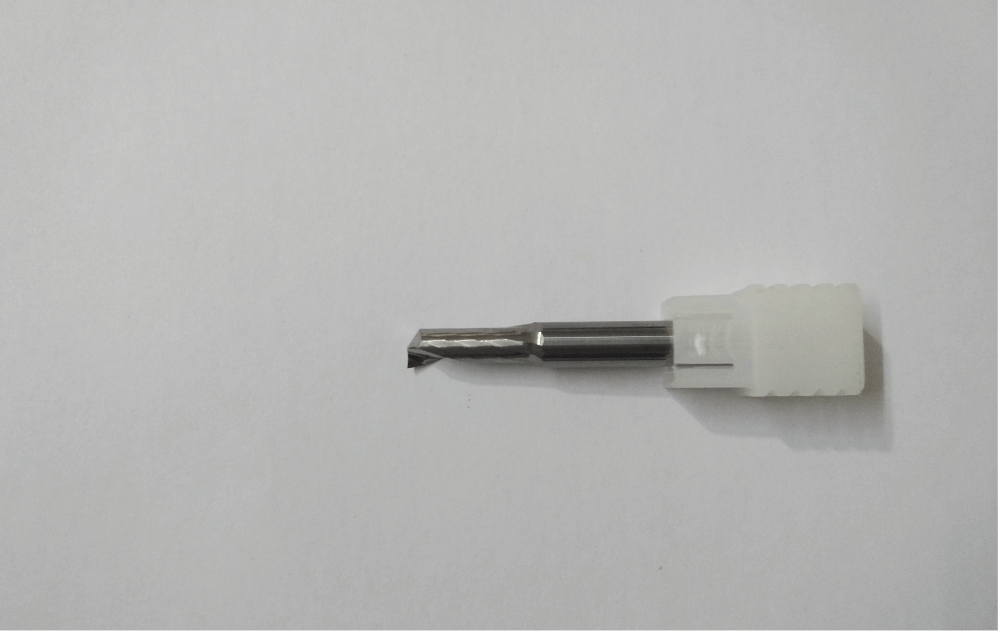

Cutting aluminum knife
diameter 6mm
The blade length is 22mm.
The shape is similar to a single-edged knife.The materials of the knives are different.
Main processing materials:Acrylic,Aluminum,Aluminum composite panel.
