CO2 Laser Machine Cut not the Real or Design Distance

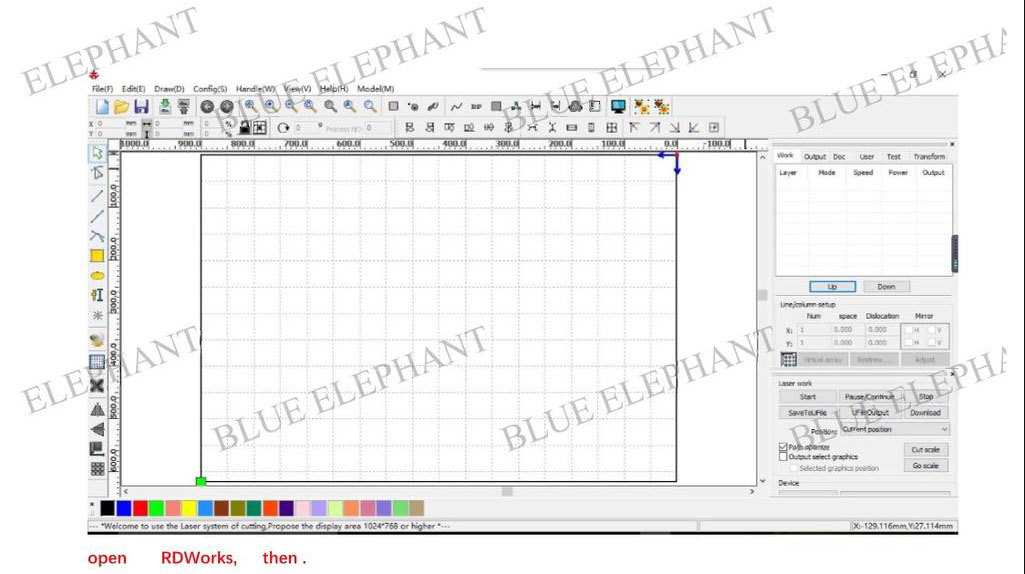

Open the RDworks software . User — read parameter.

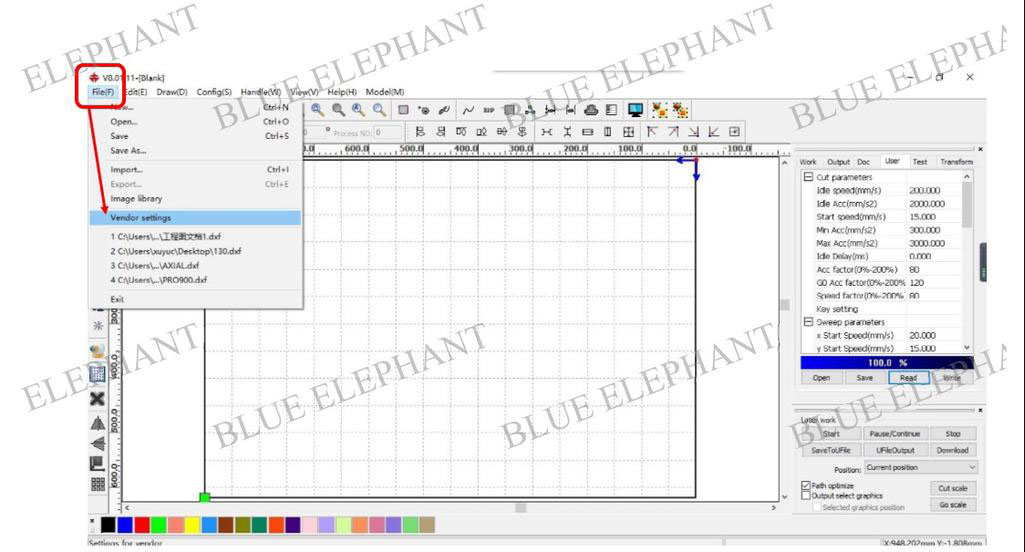

Then do like this . vendor setting. password: rd8888

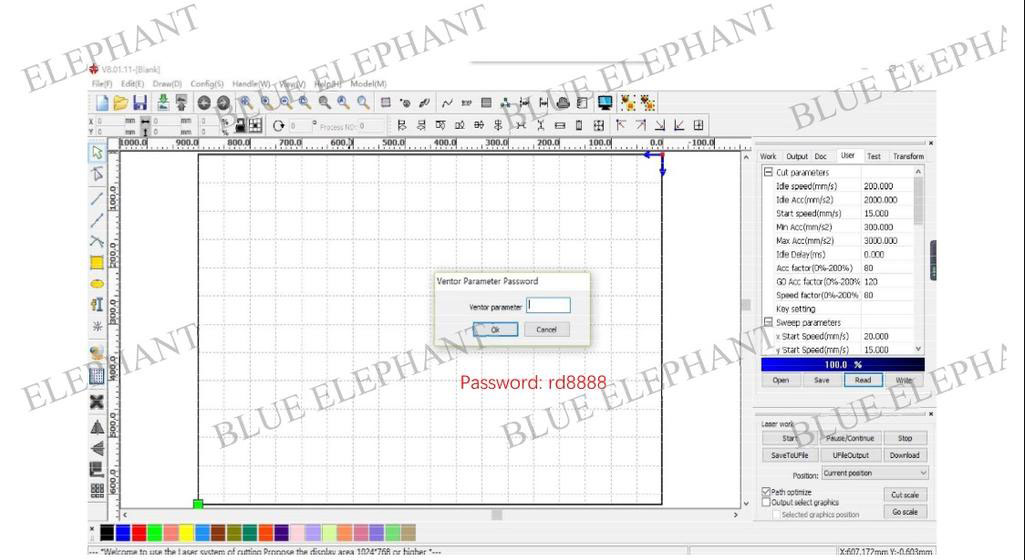

Password : rd8888

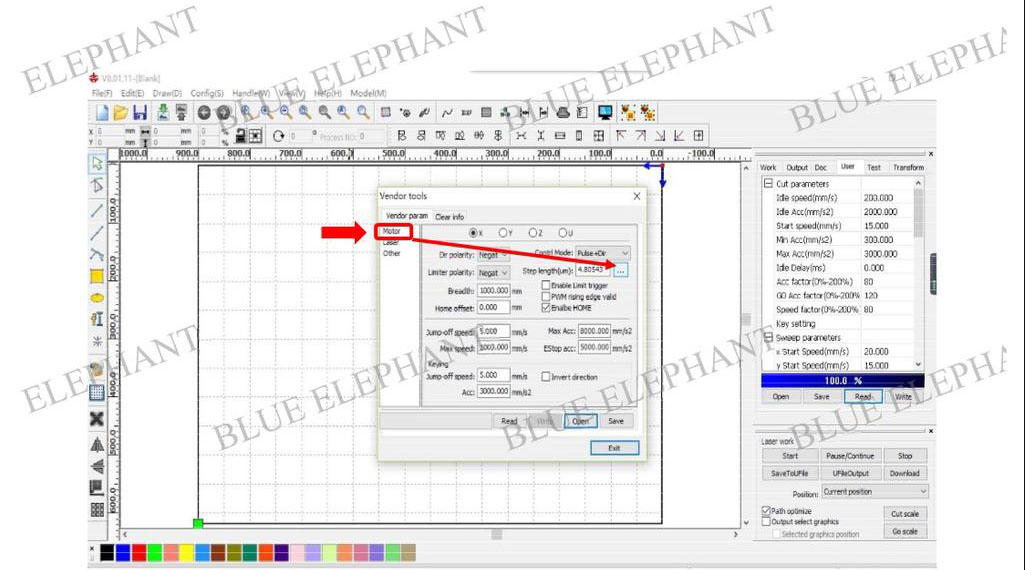

You will see like this.

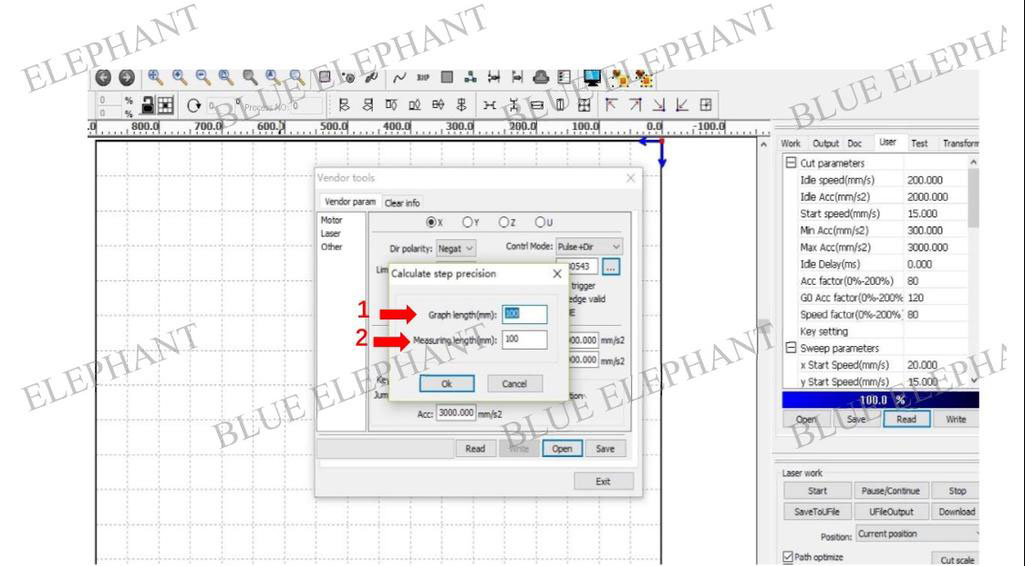

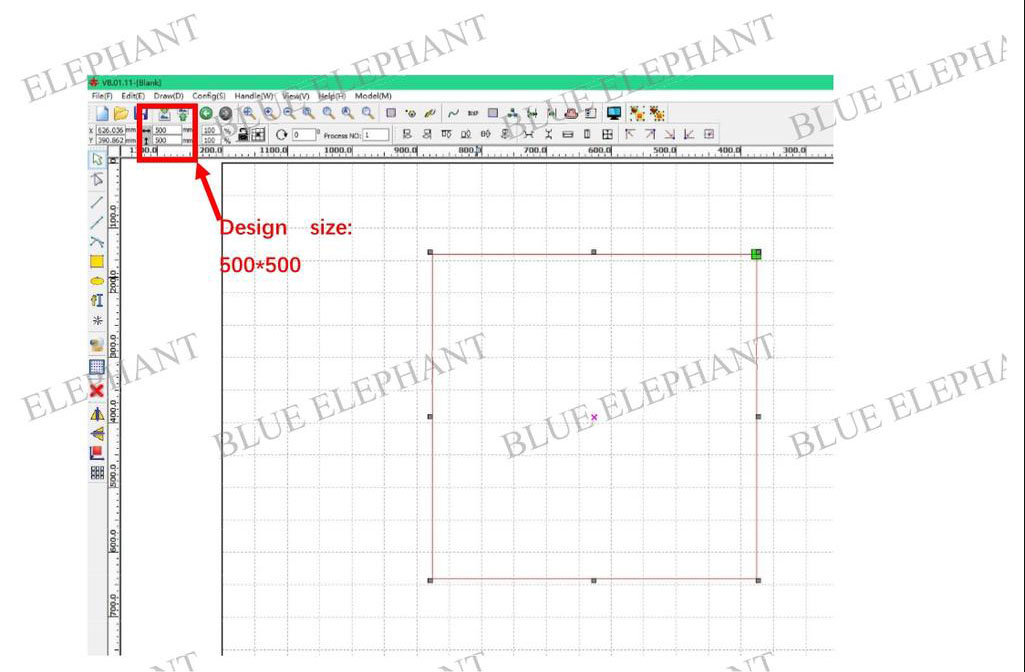

1 Graph length(mm): you design length.
2 Measuring length(mm): the real distance.

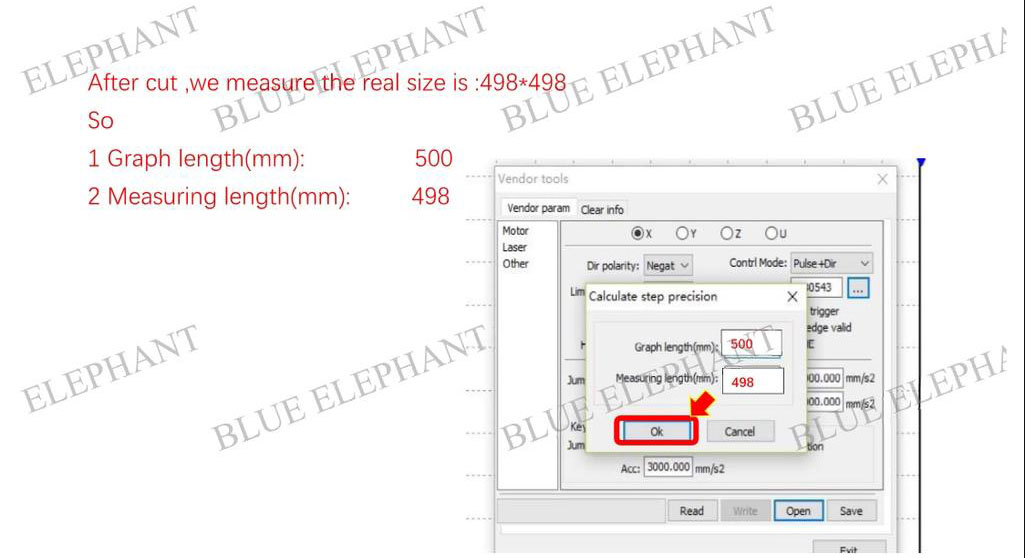

Here is an example:

After cut, you measured the real distance is 498*498
so you can dso like this:

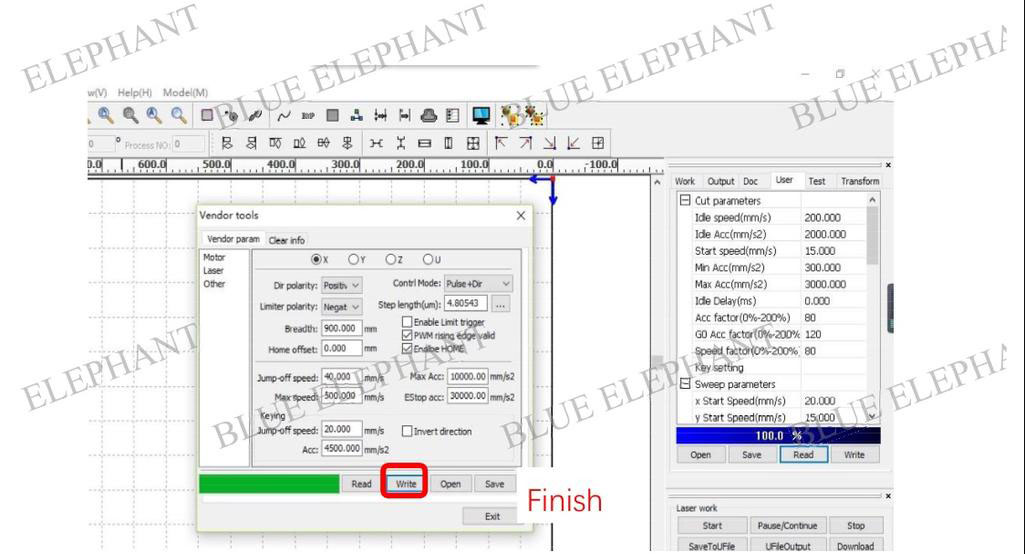

Then do not forget to write the parameter change to the machine memory .like the picture show.

Ok, finish, here the example for x axis, y / z the same steps to change.
