Carousel tool magazine Clockwise

Carousel tool magazine Anticlockwise

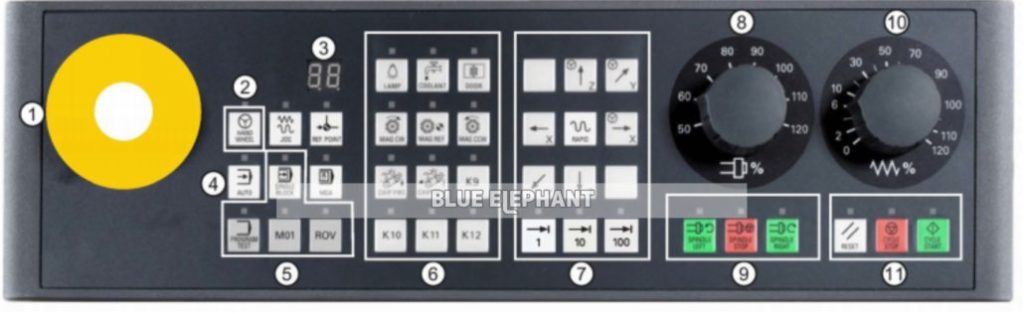

K7：Brush up and down

K8：Measure tool

K9：Oil-mist cooling

K8：Measure tool

How to change the tools of Carousel Tool Magazine.

HRER ARE THE STEPS .(An example .changeT1 to T 2.)

(Please pay attention to the spindle ,if the screen show now is T1,so the Carousel Tool Magazine T1 location must be space .)

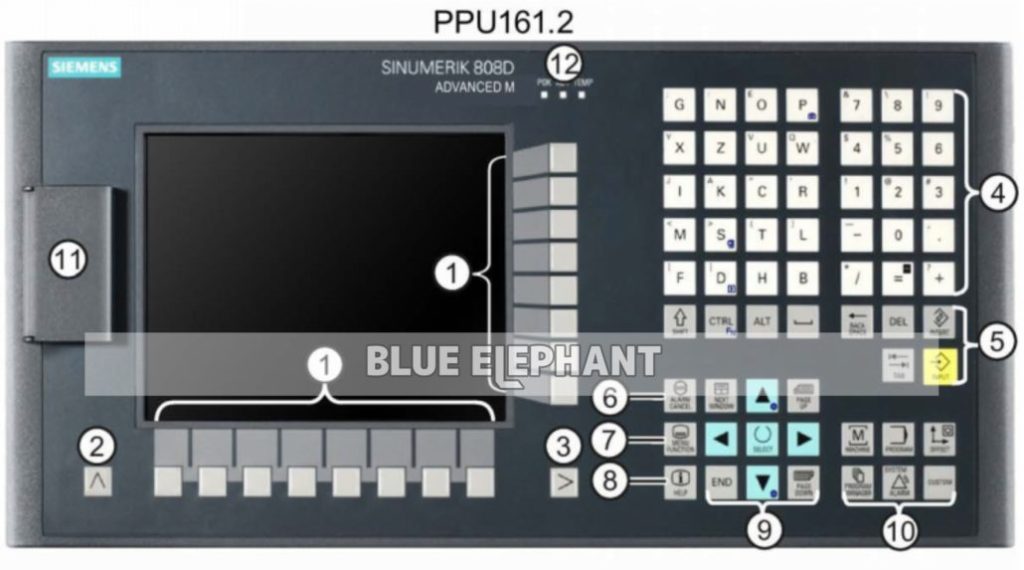

1, Press MACHINE.

2, Press MDA

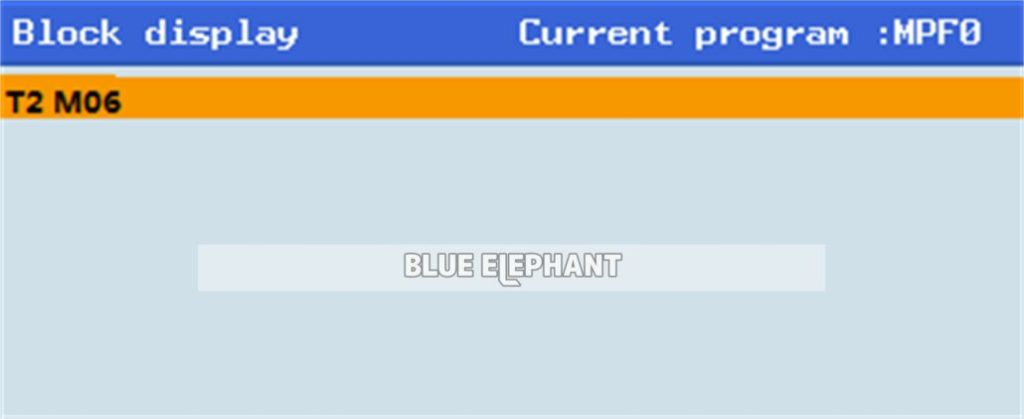

3, Input

4, Press Cyclestart

5, Then give the speed

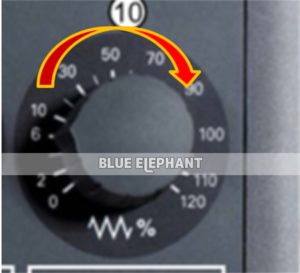

Clockwise : add the speed .

Ok now the machine will change the tool by auto .

Measure the tool length by Auto.

Here is an example ,measure tool length from T1 to t8.

1, Press MACHINE.

2, Press (k8: Measure tool)

3, Press MDA

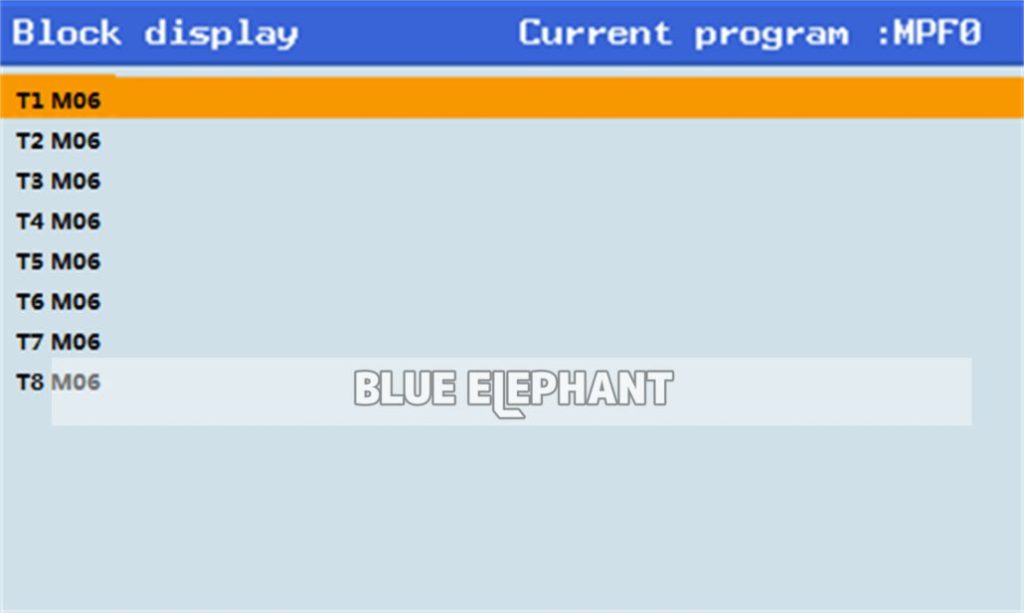

4, Input

5, Press Cyclestart

6, The machine will measure tool length by auto from T1 to T8.

7, Press the ke ,again .close measure tool ( it is important ,after measure the tool we must close it .).
