Thanks to our Spanish customer for choosing Blue Elephant after comparisons. We will always provide customer with the best service. We’ll think and solve problems from the customer’s point of view, ensuring each customer got the most suitable machine.

The machine is equipped with C-axis and right-angle head saw blade for cutting fast, which is suitable for batch processing and bevel and side punching. It meets all the needs of making furniture and is very popular in the furniture industry.

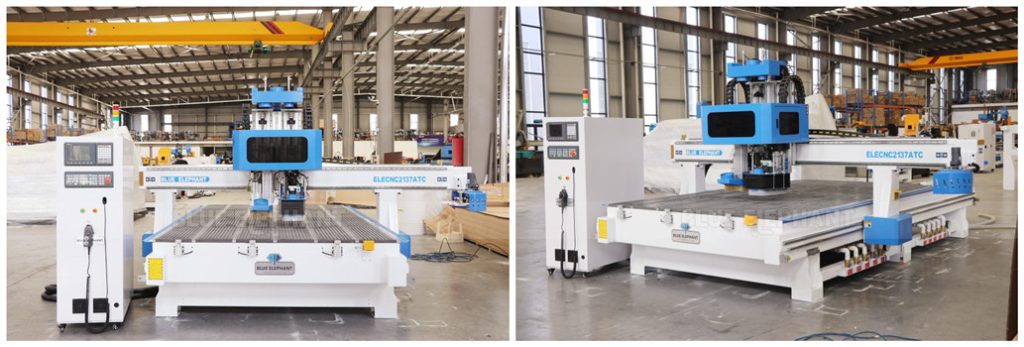

2137 Best ATC CNC Woodworking Machine Price in Spain

The machine size is large enough of 2100mmx3700mmx300mm, which can not only meet the requirements of processing large boards, but also complete the work of small boards. Thus, it is very suitable for making a variety of furniture products. In addition, the machine body is designed for heavy duty structure, which is strong and solid. And the original Taiwan square linear guide has long service life. Besides, the 1.5kw automatic lubrication and volumetric oil drain are controlled by the system, which has regular quantitative fixed-point lubrication guide and no oil overflow.

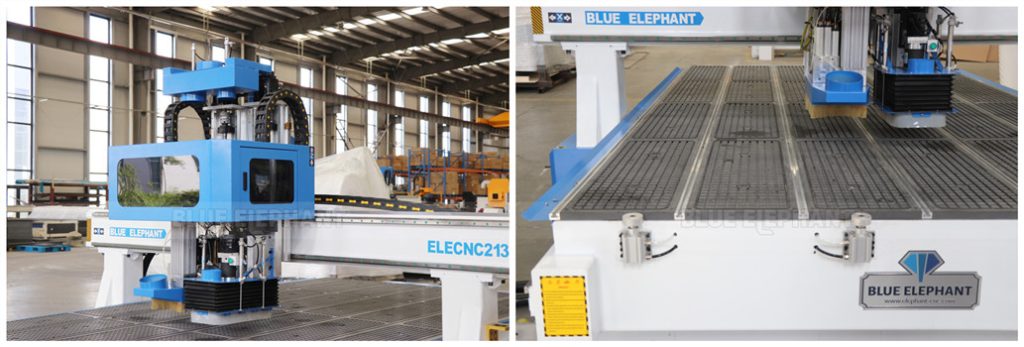

2137 ATC CNC Wood Cutting Machine Kits

Italian HSD ATC air cooling spindle ES951 is the latest model. ES951 has 2 types: 8kw S1 and 9.6kw S6. We supply the 9.6kw air cooling spindle, which is famous all over the world and has high quality and long service life. And 11kw Taiwan Delta inverter can adjust parameters to control the spindle speed.

The reduction ratio of Japan Shimpo reducer is 8:1, while of belt transmission is only 3:1. So the Japan Shimpo reducer can better improve the machine speed and precision. For the belt, if the machine works for one or years, you have to change it. But the Japan Planetary gearbox can work for 8-10 years.
