The customer is engaged in the woodworking industry. He mainly maks some simple handicrafts, such as photo frames, mobile phone brackets, etc. Now he is doing these products by hand. He has used a similar machine before and thinks it works very well, so he wants to buy one. The price of the local wood CNC machine is very expensive, so want to import from China. Then he consulted us through our official youtube channel.

Time-limited Discount for 6090 4×4 Hobby CNC Machine for Woodworking

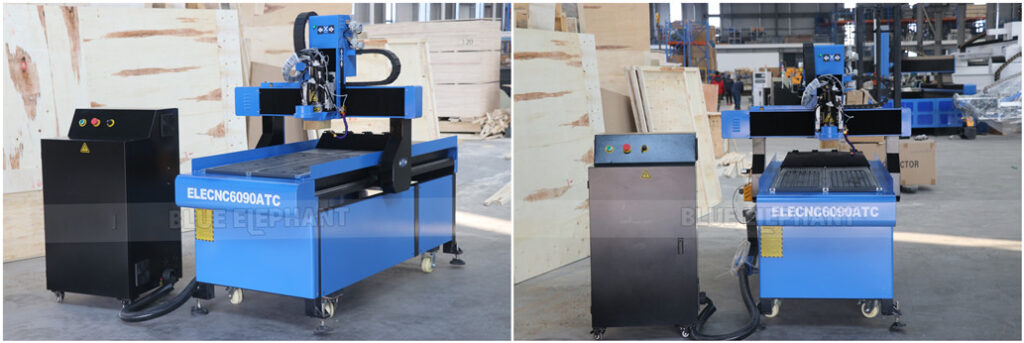

Here, I will introduce this mini 4×4 woodworking CNC machine in detail. Those who are interested in it or have similar processing needs can learn about it.

This machine has a working area of 600*900mm, which will save more space. In addition, it is equipped with a 2.2kw Chinese Xuchang automatic tool change spindle. And the ATC spindle is with 4 ISO20 holders and 4 ER20 collets, the maximum holder diameter is about 12.7mm. Besides, with four tool magazines, it can change four different tools and can realize wood cutting, engraving, drilling, and other work at one time. There is no need for manual tool change, which greatly improves processing efficiency and reduces processing errors.

Cheap mini 4×4 Wood CNC Router Machine Kits

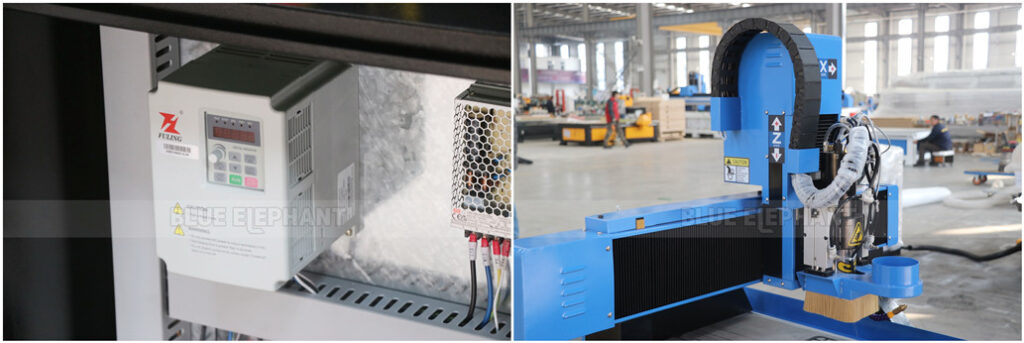

The X,Y,Z axes are all driven by Taiwan TBI ball screws and 20# Taiwan SHAC linear guide rail. And they are also added with 500W Leadshine hybrid servo motors drivers to ensure high machining accuracy. The control system adopts NK105 ATC manual control system. It has a USB interface on the handle, which can transfer files through U disk. This system is widely praised by customers for its fast reading of G code and stable work.

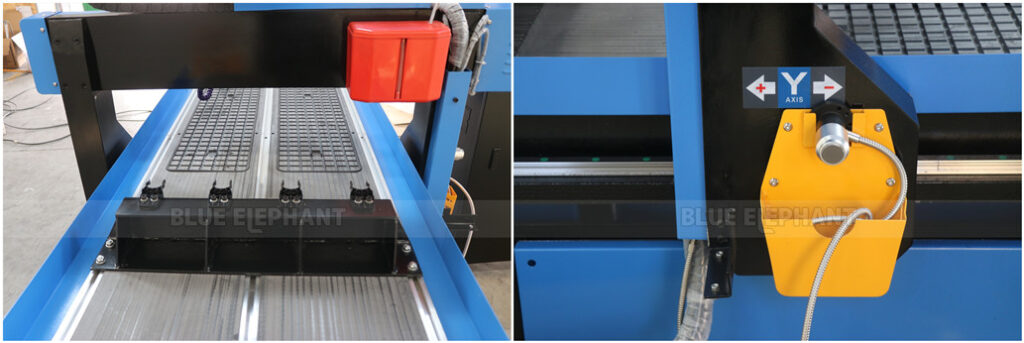

The machine is equipped with a vacuum working table and a vacuum pump. The workpiece can be fixed directly by the vacuum pump to extract the air pressure, or the workpiece can be directly fixed with clamps. The two methods can be selected arbitrarily.

High Efficiency 6090 Small Wood Engraving Machine Kits

At the same time, the machine has an automatic tool sensor to measure the tool length. And a spray cooling system can be turned on when the customer processes aluminum or other soft metals, which can better cool the spindle and prolong the working life of the spindle. In addition, the customer requires us to add 4 wheels to the machine for easy mobility.

Here is the working video of this 4×4 small hobby wood CNC router for woodworking.

If you are interested in this machine, welcome to contact us.
