The steps are as follows.

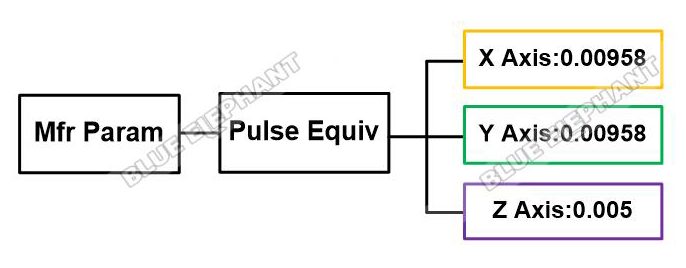

The first part is”Pulse Equiv”
Press menu button ,choose “Mfr Param”
Choose “Pulse Equiv”
“X Axis” is 0.00958,“Y Axis” is 0.00958,“Z Axis” is 0.005

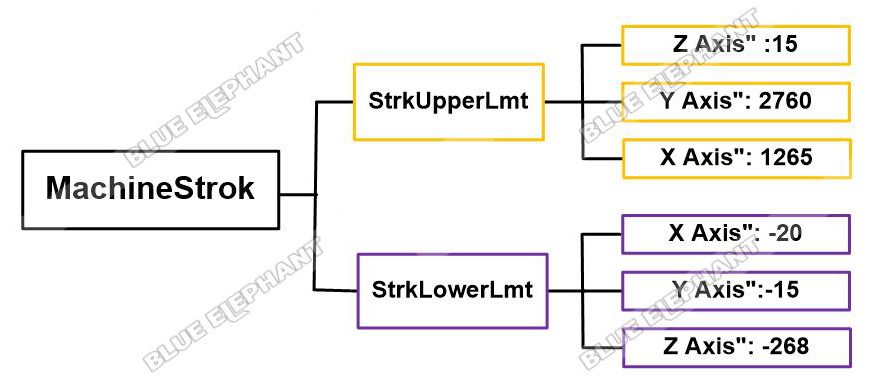

The second part is “MachineStrok”
Press “ESC” button back to menu list,choose “MachineStrok”
Set”StrkUpperLmt”
“Z Axis” is 15 ,“Y Axis” is 2760 ,“X Axis” is 1265
Press “ESC” button back to Machine Strok list
Set”StrkLowerLmt”
“X Axis” is -20,“Y Axis” is -15,“Z Axis” is -268
The video is as follow.
