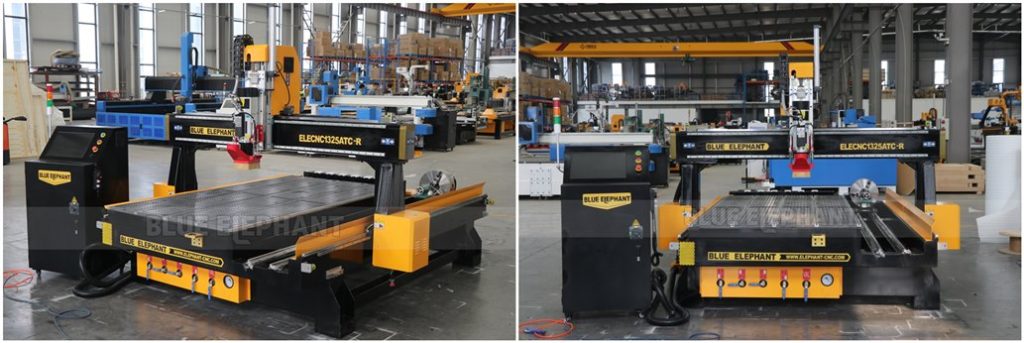

This 1325 ATC CNC router with a rotary device is one of the best-selling woodworking CNC machine. It is ordered by a customer from Kenya, and now it is ready to start its journey.
Customer demands
Our Kenyan customer has a greater demand for engraving 3D statues, so in addition to the 6-tool linear tool magazine, it also chooses a rotary device. The Z axis travel adopts 400mm, which is higher than the usual 300mm, making it suitable for engraving or carving cylindrical parts with large diameters.
This rotary axis CNC router is mainly used for relief carving, mold making, board cutting, and cylindrical items carving. So our customers can use it for both 2D and 3D engraving and carving work.
After multiple times of negotiation and discussion on line, our Kenyan customer has finally determined the detailed specifications and configurations of his favorable machine. The major parameters of the ELECNC 1325ATC-R are shown in the table below.
Major parameters of 1325ATC-R
| Model | ELECNC 1325ATC-R |
| Travel of 3 axes | 1200*2500*400mm |
| Color | Black and yellow |
| Voltage/frequency | 380V, 50Hz, 3P |
| Spindle power | 6KW HQD ATC air-cooled spindle, 18000rpm |
| Worktable | 4-zone vacuum table |
| Control system | LNC MW2000 4-axis control system |
| Motor | 750W Leadshine hybrid servo |
| Lubrication | 1.5L automatic lubrication |
| Guide rail | Square rails, #25 |
| Air compressor | 11KW, 380V, 50Hz, 3p |
| Rotary axis | Chunk diameter: 300mm Effective processing diameter:400mm |
| Rotary device motor & driver | FL118 stepper motor; Leadshine1182 driver 380V, 50Hz, 3P |
Features of this 1325ATC-R

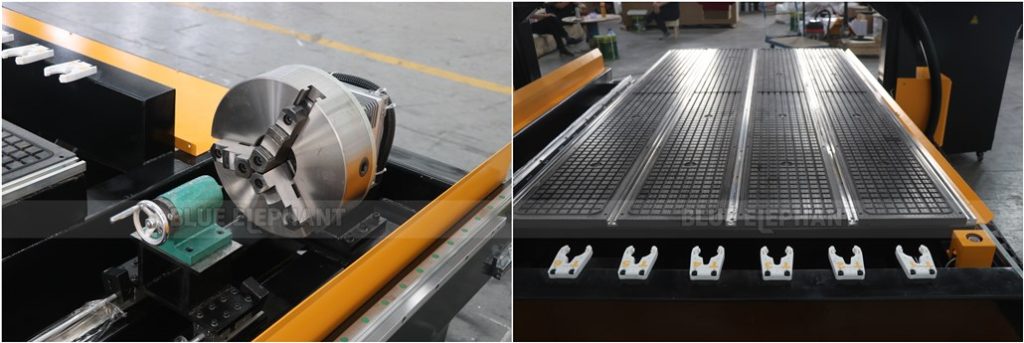

- The automatic tool change function greatly increases work efficiency. The linear tool magazine carries 6 different tools, so it can realize six processes in one operation.
- The Leadshine hybrid servo motor has the advantages of the servo motor, but the cost is lower. It is the best choice for customers who want a servo motor but is limited by budget.

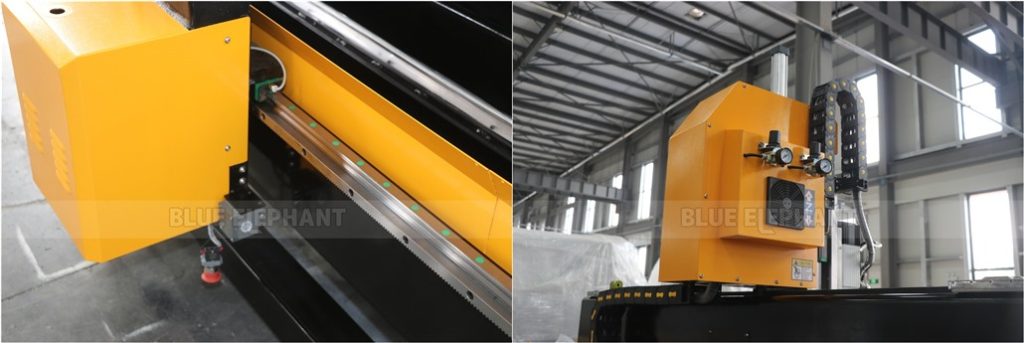

- Square rails from a Taiwan famous brand have higher precision, less wear and tear, which ensures good high working accuracy.
- It adopts a large steel tube welded bed, which can endure heavy-duty cutting and engraving work. Judging from hundred times of experiment and from our customer feedback, we can ensure that the machine bed and rotary axis won’t deform during their long-time operation.
- The 4-zone vacuum worktable can easily fix workpieces. Each of the 4 zones can be switched on independently, which helps save a lot of energy.
Except for the machine, our Kenyan customer also orders a transformer to help him regulate the voltage to fit the CNC router machine.
Packaging and loading

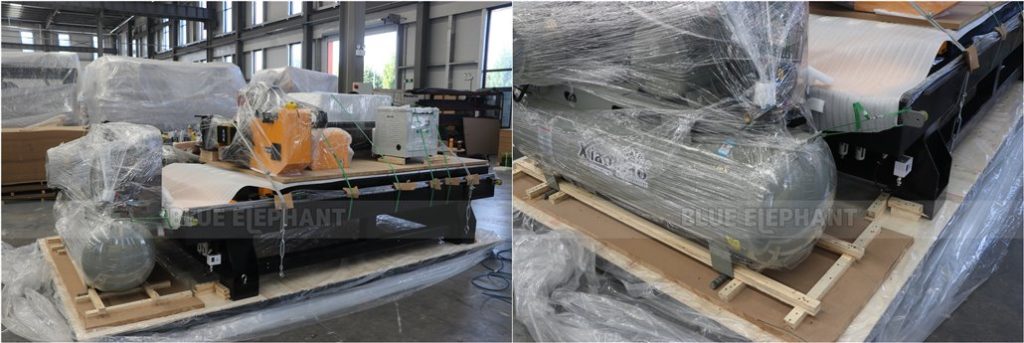

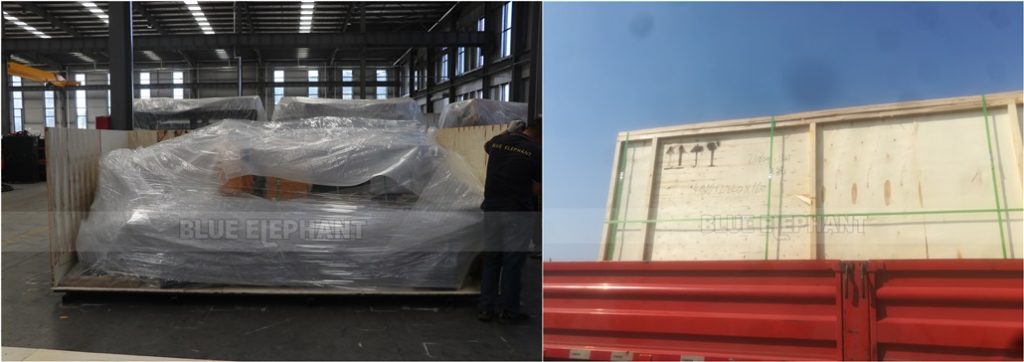

The 1325ATC-R CNC router has been well arranged, packed, and put in a wooden case of 2230*4080*1650mm. The “Made In China” mark that our customer asked for has also been marked on the case. Now it has started its sea journey to Kenya. We hope this CNC router machine can meet Kenya customer’s demands and bring plenty of benefits to him.
