Press the key OFFSET
,you will see the windows ,like the picture .
The mark. Press the key ④.
You will see the R variable.
R11-R18 : TOOL1-8 X LOCATION
R31-R38: TOOL1-8 Y LOCATION
R51-R58: TOOL1-8 Z LOCATION
Then how to get the number .here is an example .
T1.
HERE IS THE STEPS
1, the spindle must be have a tool .

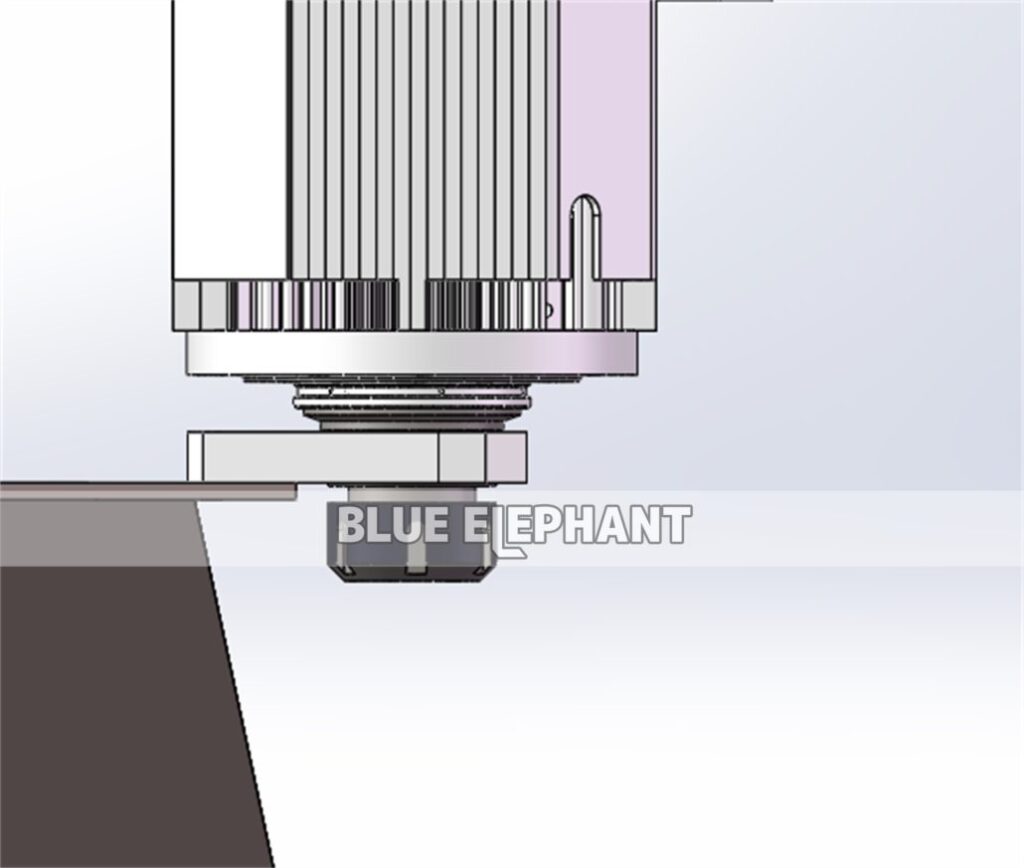

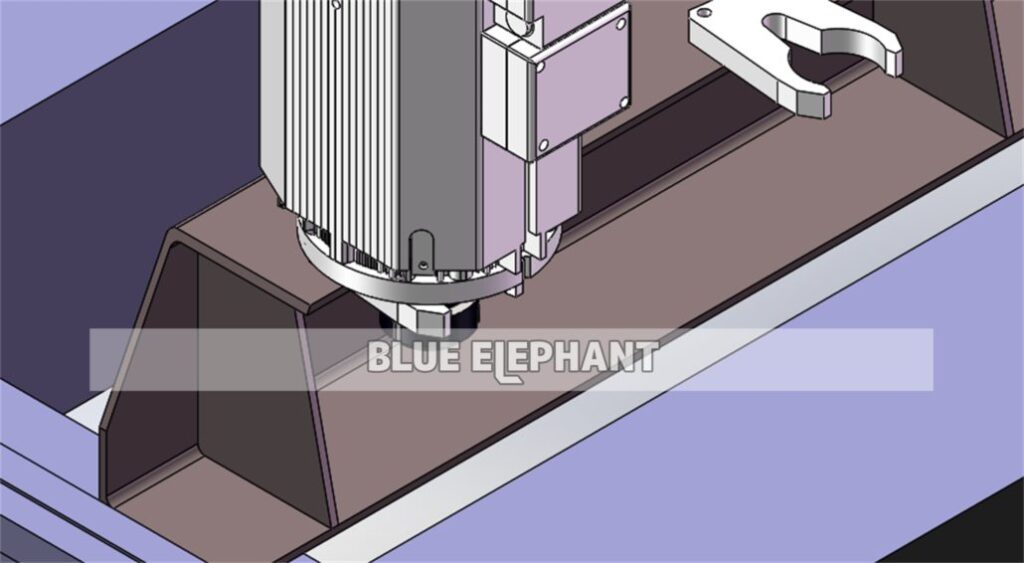

2 Use MPG move the tool to the T1 location.
Yes ,the location is the loose tool and catch tool location .
Then now we do not move the machine ,back to the screen .

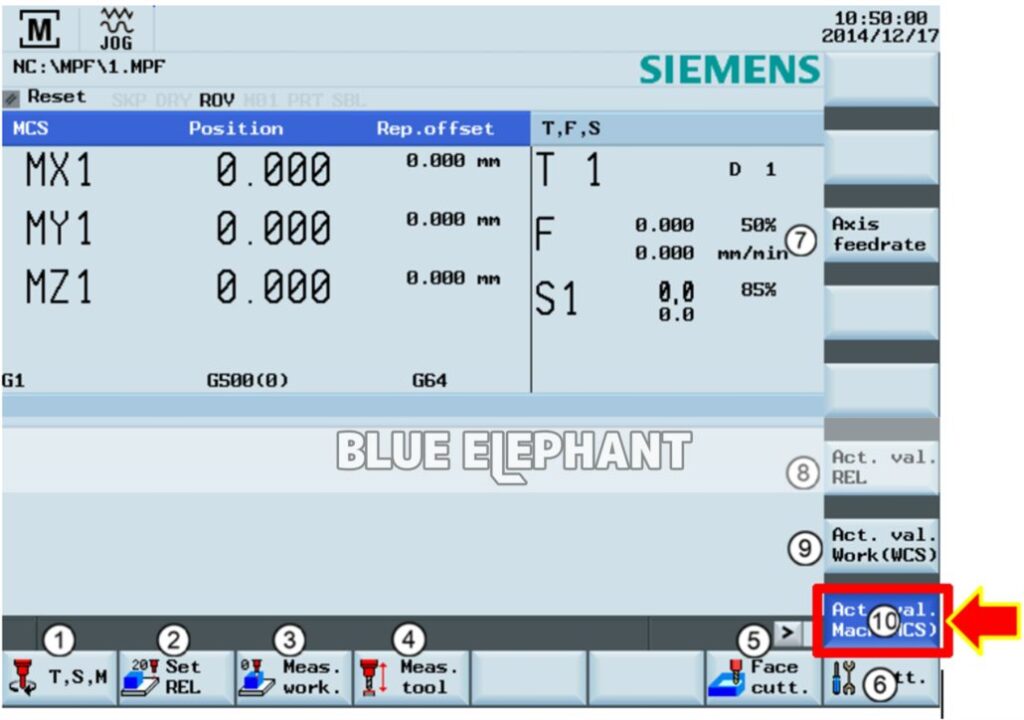

Check the Machine coordinate
Yes (here is an example, the number) .
X: 150.0
R11: 150.0
Y: 150.0 R31: 150.0
Z: -100.0 R51:-100.0

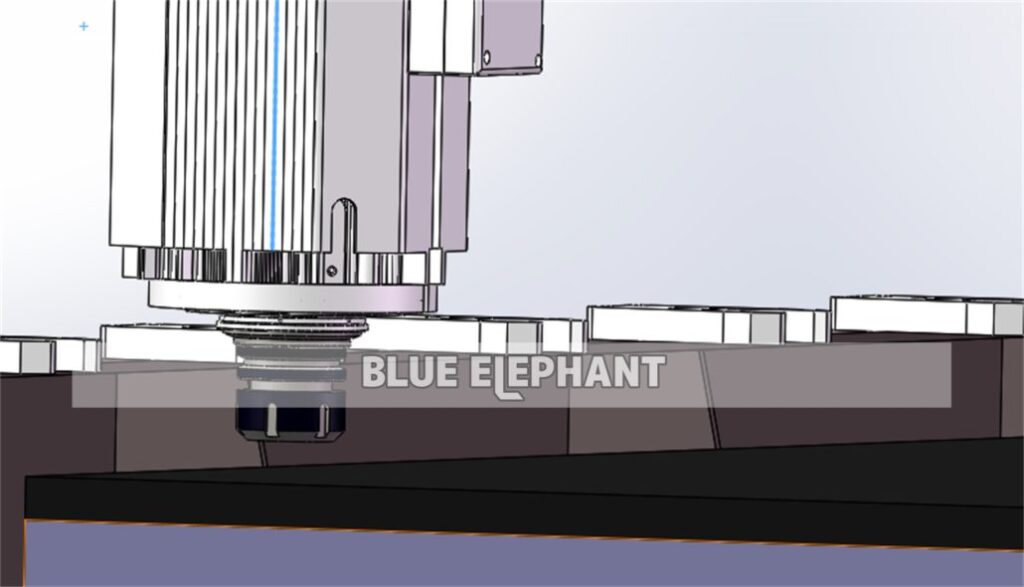

3 loose tool .then up .

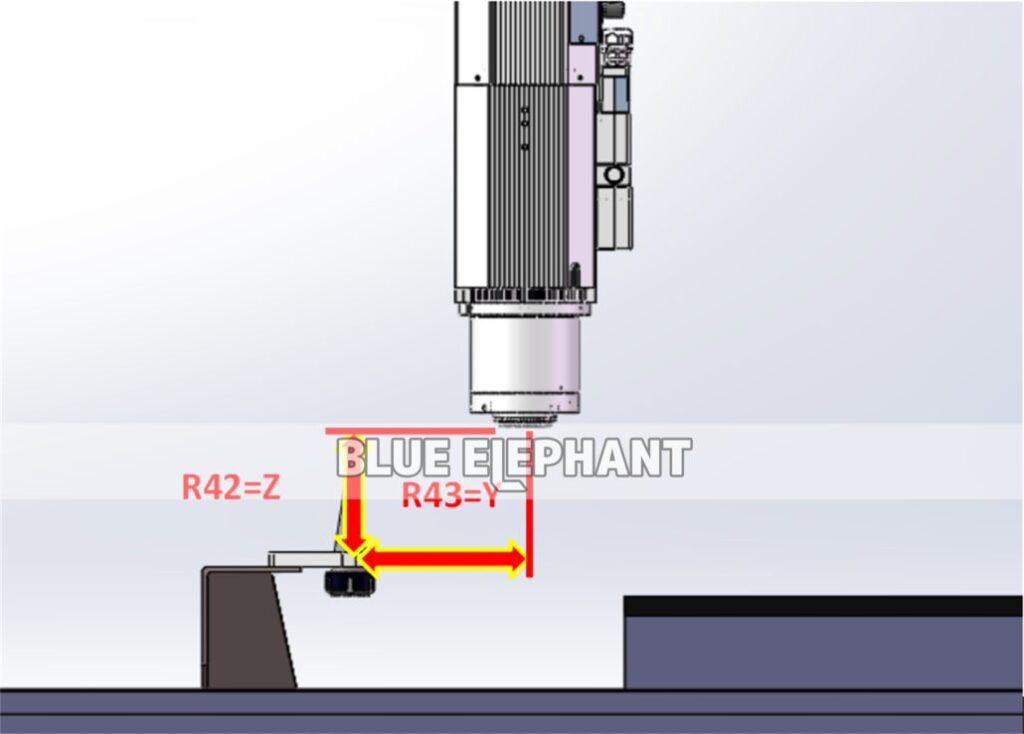

R42: after loose the tool the z axis will up to the point .
R43:after catch the tool the machine will move to this point .

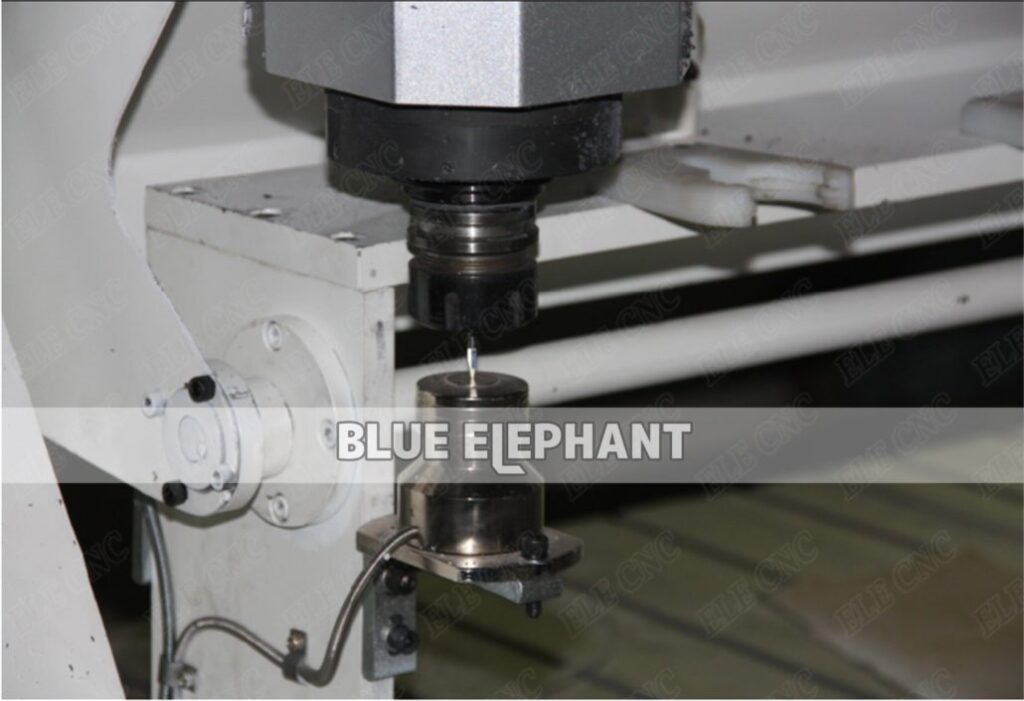

R30: the tool sensor Xcoordinate
R40: the tool sensor Ycoordinate
R41: The shortest tool can touch the sensor Z coordinate
All the number is coordinate number ,it is not the distanc.all the number is the Machine coordinate number .
R101 lifting knife
R102 Cutter
