In the manufacturing industry, every innovation represents a step forward for the sector. Recently, a customer from the UK embarked on a unique experiential journey to Blue Elephant, where he would personally explore the capabilities and performance of Blue Elephant’s 1325 Automatic Tool Change (ATC) CNC machine. This visit wasn’t just a mere tour but a testament to the innovation and enhancement of manufacturing processes.
Welcoming
As the customer stepped through the doors of Blue Elephant, he was warmly greeted by friendly staff. In an environment brimming with technological expertise, they engaged in deep discussions about CNC technology. This allowed the customer to gain insights into the proficiency and extensive experience of the Blue Elephant team, further clarifying his expectations for the 1325 ATC CNC machine.
Experiencing
Subsequently, the customer began his hands-on experience with the 1325 ATC CNC machine. He observed its stability and precision during operation, while also appreciating its efficient working mode. Through close collaboration with Blue Elephant’s technical personnel, the customer had the opportunity to operate the machine himself, experiencing its flexibility and user-friendliness firsthand.
Exploring
Throughout the experience, the customer had the chance to delve deeper into the various features and performance capabilities of the 1325 ATC CNC machine.
Parametals of ELECNC1325 ATC CNC Machine
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw ATC air cooling spindle,18000rpm, ER32 collets |
| Tool magazine | Linear/Carousel tool change magazine |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan LNC/Taiwan SYNTE controller |
| Driving system | 850w Leadshine AC/Yaskawa servo |
| Reducer | Optional |
| Machine structure | Heavy duty body |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Features of ELECNC1325 ATC CNC Machine
1. Automatic tool changer: It can be added with linear tool changing magazine or carousel tool changing magazine that can hold over 10 different tools to complete more complex processing. And the most important thing is its working spindle can swing 180°，which can easily make 3d workpieces and greatly improves the working efficiency.
2. The 4×8ft worktable can process most of panels. And if you want, you can also customize other smaller or larger sizes like 1200*1200mm, 600*900mm, 1500*3000mm, 2000*4000mm, etc.

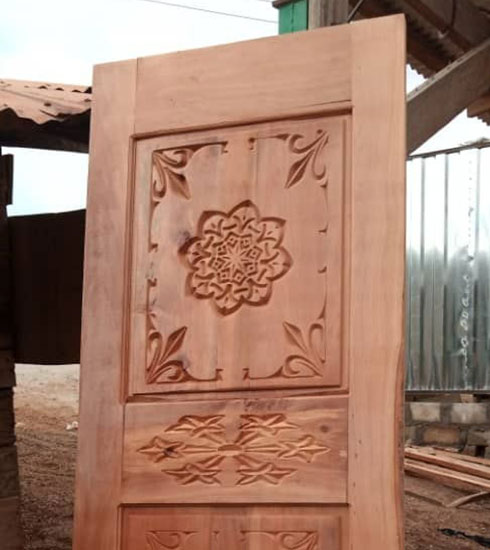

Samples of ELECNC1325 ATC CNC Machine
Videos of ELECNC1325 ATC CNC Machine
In the following video, you will see clearly how the 4×8 automatic tool change machine works on the wood panel.
Together with the Blue Elephant team, they explored how to maximize the machine’s potential to meet the specific requirements of his industry. This profound exchange not only broadened the customer’s horizons but also provided valuable feedback to Blue Elephant.
Inspiration
Through this experience, the customer was deeply impressed by the 1325 ATC CNC machine. He realized that it wasn’t just a simple machining tool but a technological innovation that could bring significant changes to his business. Determined to integrate this advanced technology into his production processes, he aims to improve production efficiency and product quality.
Conclusion
The UK customer’s experience with Blue Elephant’s 1325 ATC CNC machine was more than just a visit; it was an exploratory journey into manufacturing technology. Through hands-on experience and in-depth discussions, he gained a clearer understanding of the machine’s capabilities and performance, making crucial decisions for his future production plans. This experience not only strengthened the collaboration between the customer and Blue Elephant but also injected new momentum into the progress and development of the manufacturing industry.
