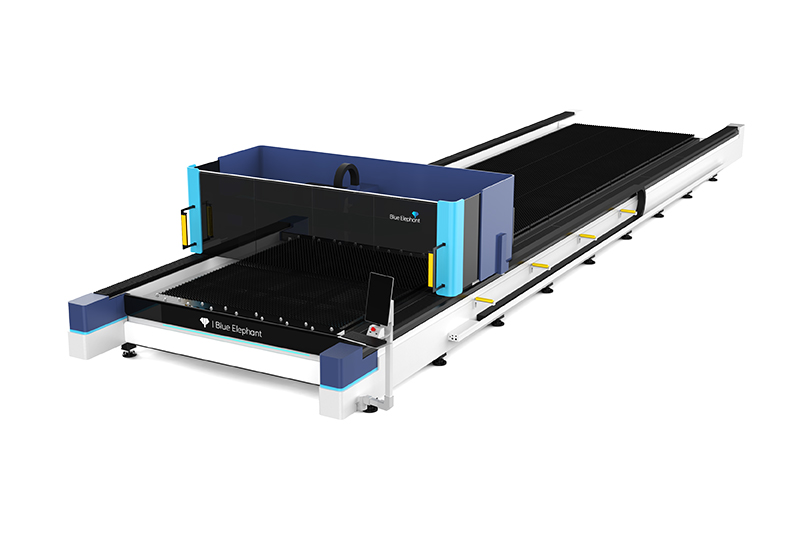

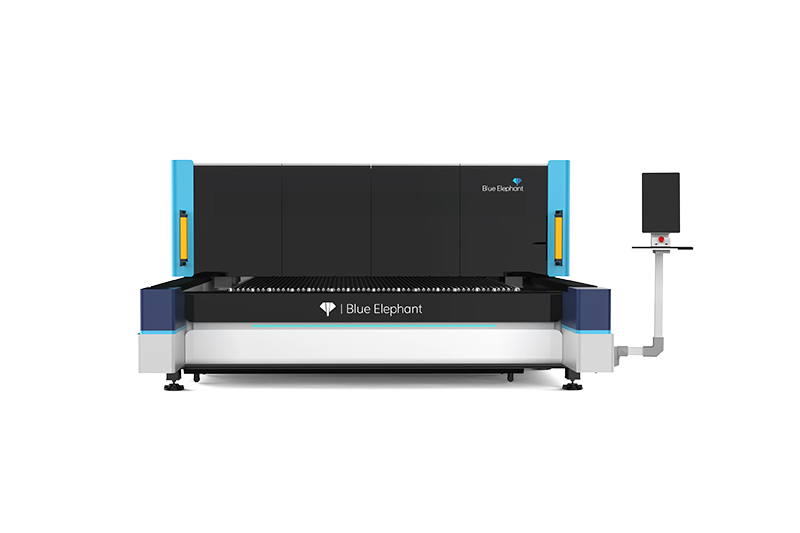

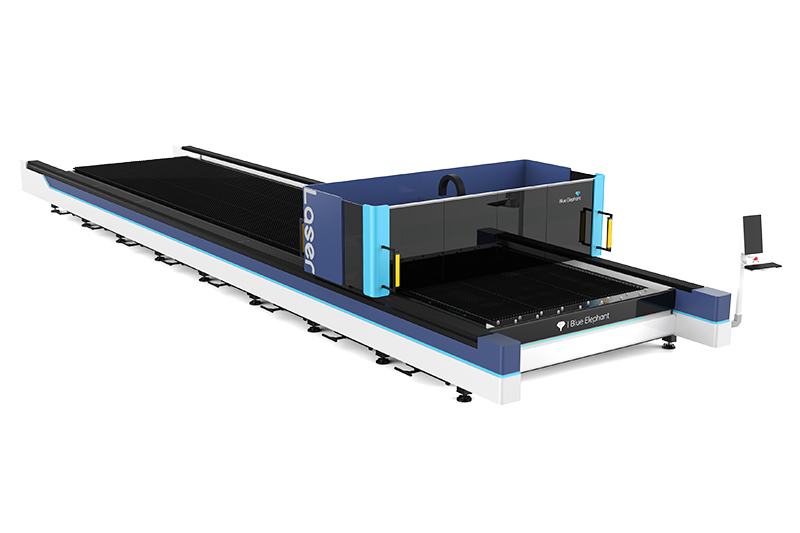

This 10kw large format metal laser cutting machine is a very high-power and high-performance metal laser cutting machine for sale. It is not only equipped with an exchange platform to quick change metal plates while cutting, but also with a very large format to handle larger metal workpieces in the automotive industry and aerospace engineering. And the large format is optional and customized of various sizes, such as 2000*4000mm, 2000*6000mm, 2500*6000mm, 2500*8000mm, etc.
1. The anti-burning carbon-based refractory plate of the 10000w fiber laser cutting machine will effectively prevent the impact of slag injection on the bed.
2. The double positioning pins at the front and rear of the exchange platform are convenient to display the entire exchange process on the PLC touch screen.
3. The 10kw metal fiber laser cutter is equipped with a smoke exhaust device, and it can automatically sense the laser cutting position.
4. The 10kw large fiber laser cutting machine for metal conforms to EU’s three Safety design norms and CE Certification.
| Model | 1530SG | 2040SG | 2060SG | 2560SG | 2580SG |
| Laser power | 6KW-20KW | ||||
| Working area (mm) | 1500mm*3000mm | 2000mm*4000mm | 2000mm*6000mm | 2500mm*6000mm | 2500mm*8000mm |
| Positioning accuracy of X / Y axis | ±0.03mm | ||||
| Repeated positioning precision of X / Y axis | ±0.02mm | ||||
| Maximum speed | 200M/min | ||||
| Maximum acceleration | 2.0G | ||||
A large format fiber laser cutter uses a high-power fiber laser beam to cut large metal plates with high speed and accuracy.
The maximum thickness a large format fiber laser cutter can cut depends on the machine’s power and specifications. Some machines can cut metals up to 30mm thick or more, while others are designed for thinner materials.
