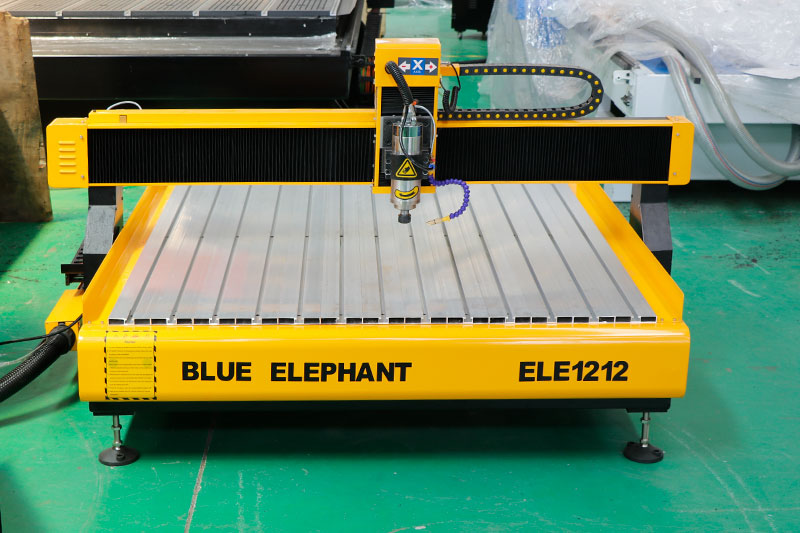

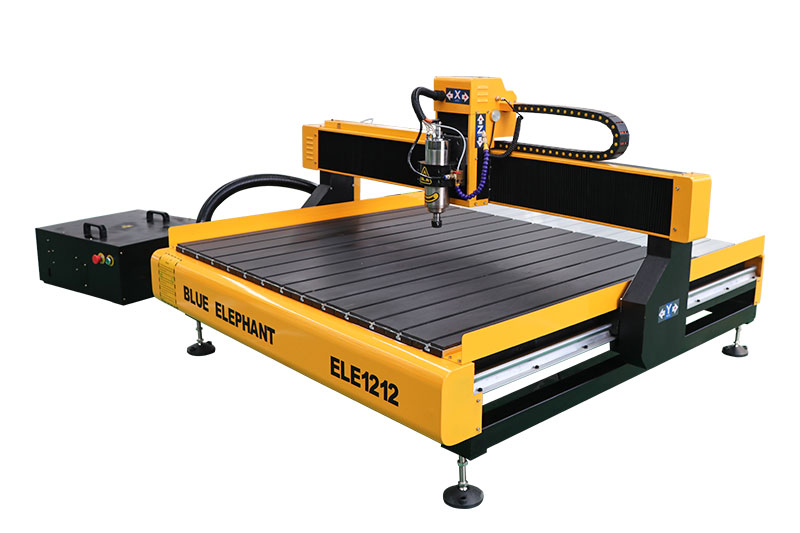

Best cheap hobby CNC machine is a desktop 1212 small CNC router for small shop or home hobby woodworkers. With the features of small working table and cost-effective kits, it is very popular in market, especially for processing small workpieces such as wood craft, decorative products, signs.
1. With the small working table, this Desktop CNC Router is widely used in advertising industry, also welcomed by hobbyist for low budget.

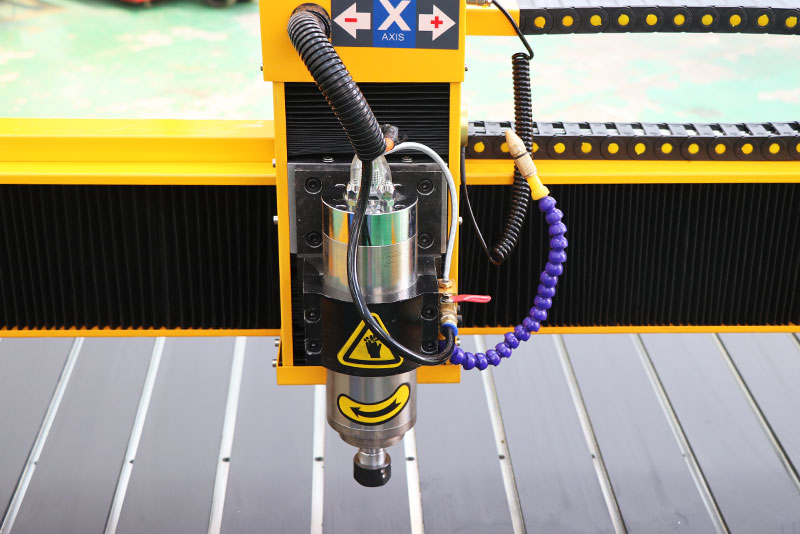

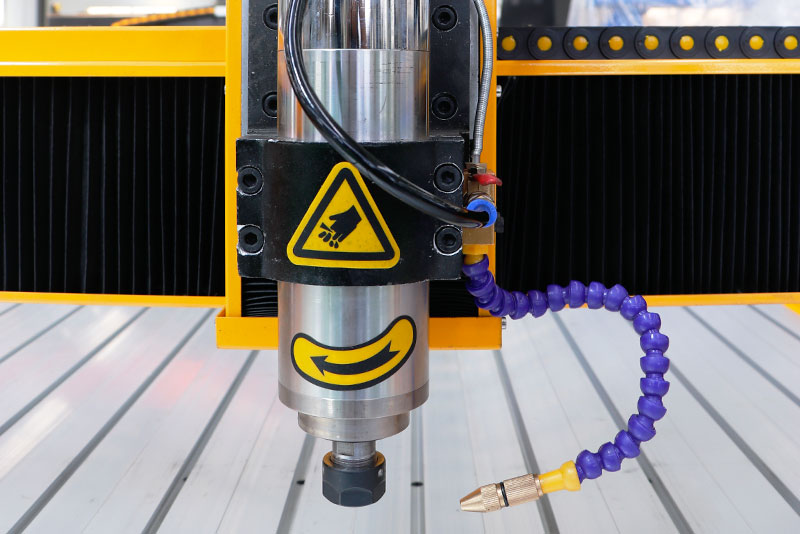

2. Designed with water cooling spindle, it has the features of low noise, vigorous cutting strength and long time mass processing.
3. Adopting Taiwan TBI ball screw for Z axis, it can assure the better precision of the machine.
4. All the specifications can be customized according to your requirements;
Note: Cheap CNC Machine always adopts ball screw transmission and low power spindle, if you need higher efficiency, we recommend the entry-level 4×8 CNC Router Machine.
| Model | ELECNC1212 |
| X,Y axis travel | 1200x1200mm, option: 600*900mm; 600*1500mm |
| Z axis travel | 160mm, option: 200mm |
| Spindle type | 2.2kw air cooling spindle, ER20 |
| Inverter type | 2.2kw |
| Tool magazine | No tool magazine Option: Linear type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3, option: DSP A11 |
| Driving system | Stepper motor 450A and Leadshine M542 |
| Machine structure | Special desktop type design |
| Work table | T-slot work table with PVC protection |
| Water misting spray | Include |
| Linear guide | #20 Taiwan Linear guide |
| Transmission | X, Y, Z axis: Taiwan TBI high precision ball screw |
| Tool calibration | Manual tool sensor calibration |

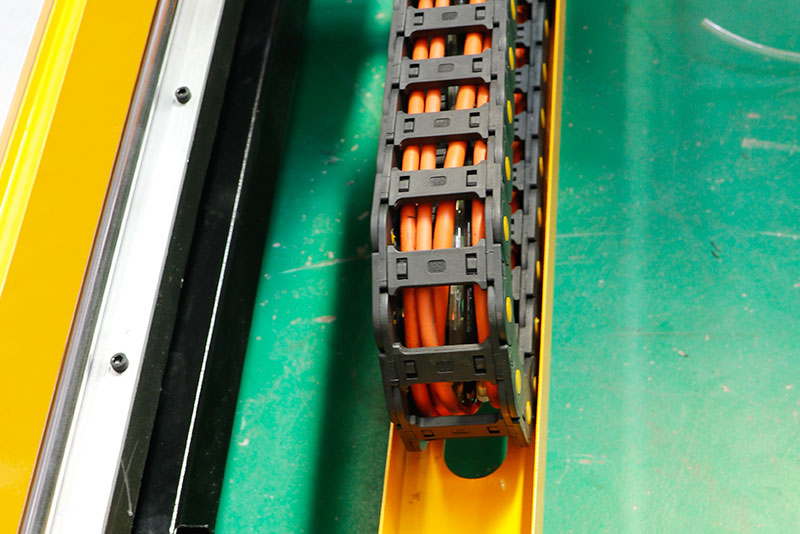

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.003mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ |
| Work table | Vacuum work table |
| Lubrication system | automatic lubrication system |
| Water tank | SS water tank |
| Spindle type | 3kw, ATC spindle, etc. |
| rotary | 80mm diameter, 100mm diameter |
Yes, it’s suitable for stone processing. Because it is already equipped with a water cooling misting system and a water tank to protect the tools.
Yes, no problem. But the rotary diameter must be within 200mm.
Yes, we can customize the machine according to your requirements.
