(4.9 based on 179 ratings and reviews)
$23,000 – $26,000

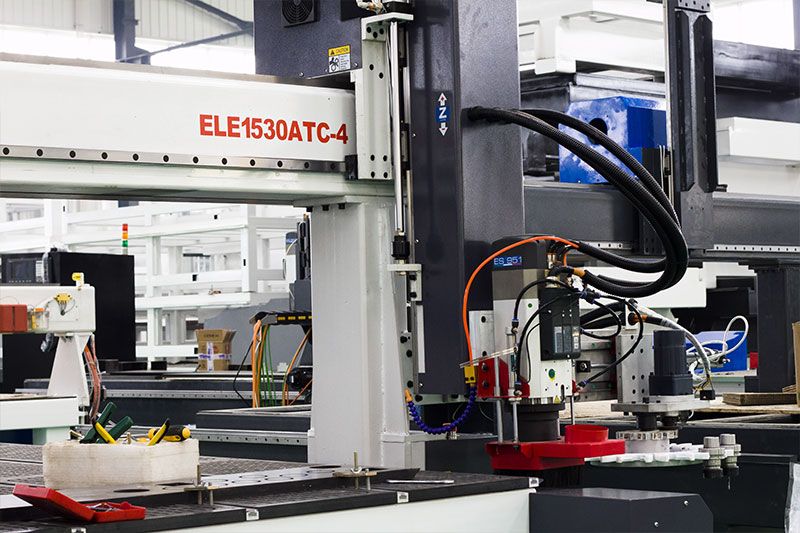

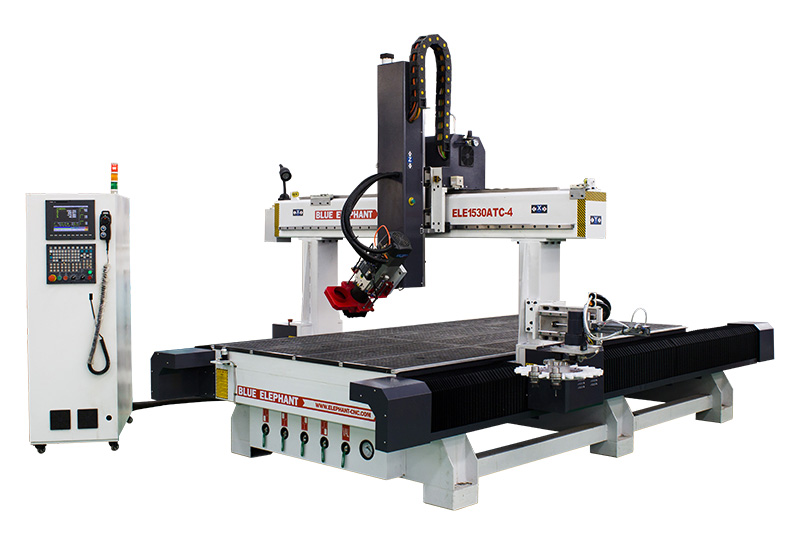

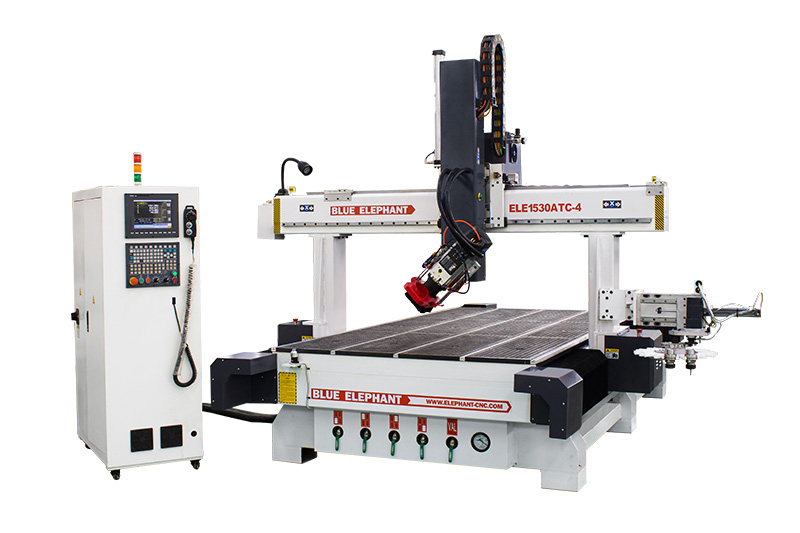

1530 4 axis CNC router is suitable for making sofa, doors, cabinet making. With side carousel auto tool magazine, it is fitful for 3D carving and engraving wood furniture. There are also dust covers for rail guide protection. And the vacuum table helps fix materials on the table.

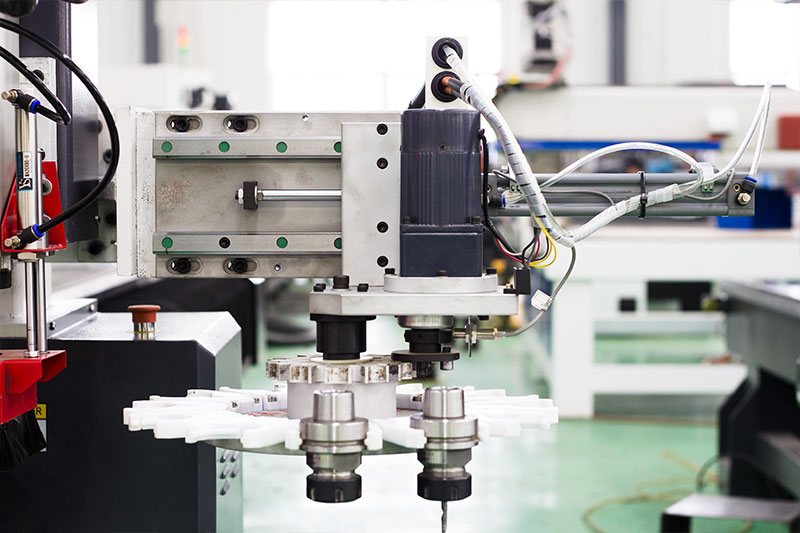

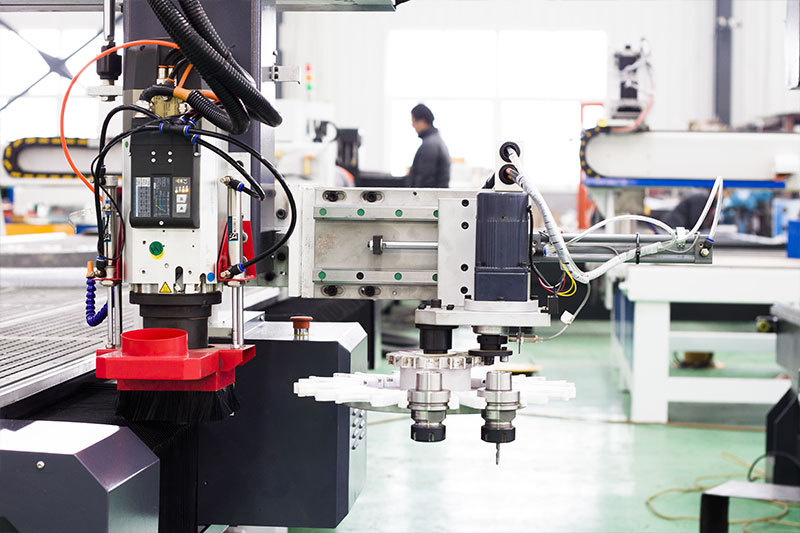

1. Carousel Auto tool magazine holds more tool bits and does a faster tool changing.
2. Heavy-duty frame and gantry, 8-10mm thickness, Japan YASKAWA servo motor, Rack and Pinion transmission.
3. Taiwan SYNTEC control system with computer panel, Italy HSD 4 Axis ATC air cooling spindle.
4. Quality CNC Parts, ISO30 Collet, YASKAWA servo motor, HSD 4 Axis ATC cooling spindle.
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 500mm, 400mm, etc |
| Spindle type | 9kw ATC air cooling spindle, HSK F63, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |

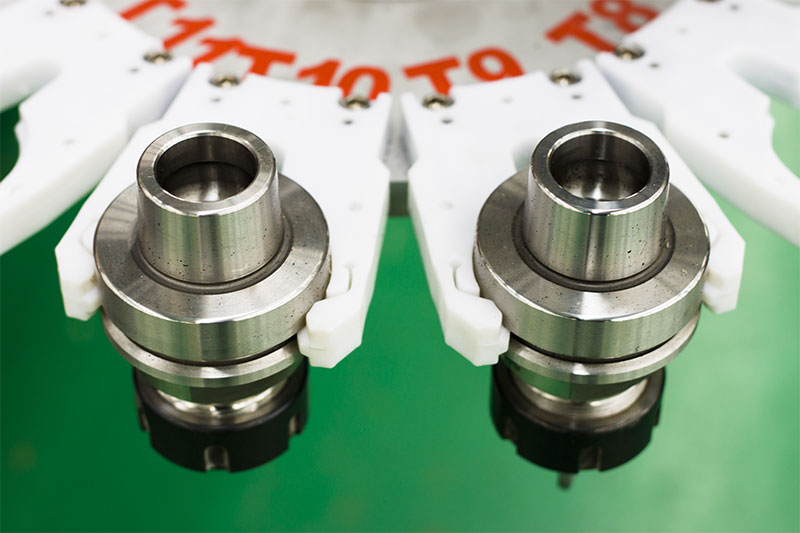

| Tool holder with collet | HSK F63, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

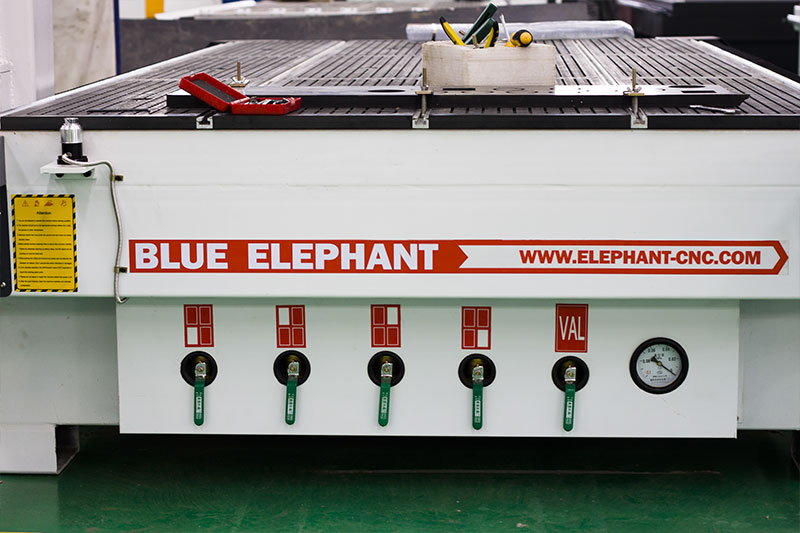

| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 300mm |
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
Yes, you can just keep T slots table. For T slots table, it will fix materials by clamps.
Yes, we can add the rotary device for you. It is used to process cylinder material to make table legs, chair legs, etc.
Molds, 3D model, 3D reliefs, signs, furniture, toys, decoration items, simple molds, musical instrument, etc.
