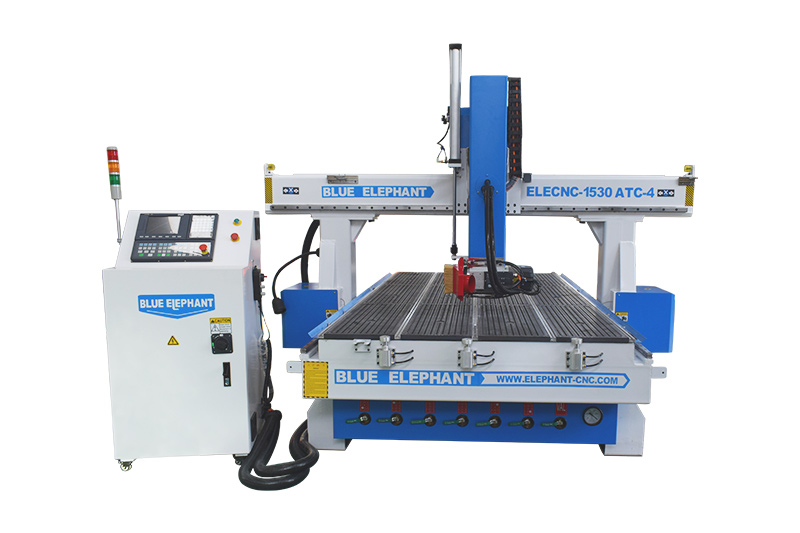

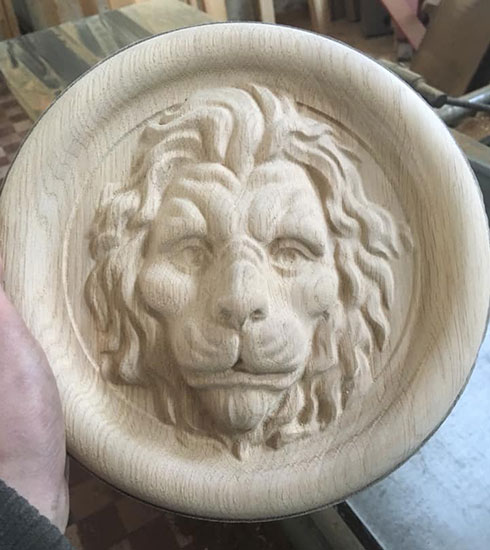

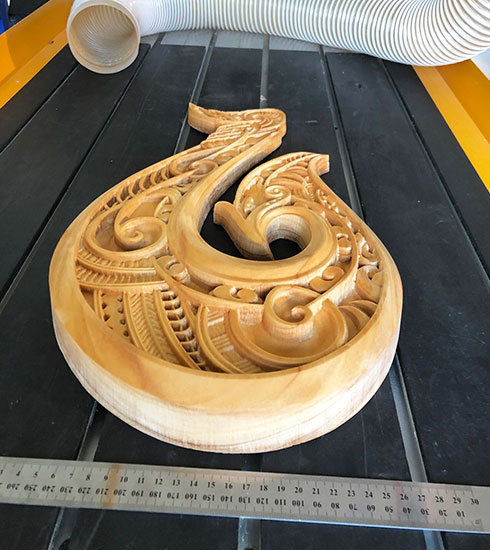

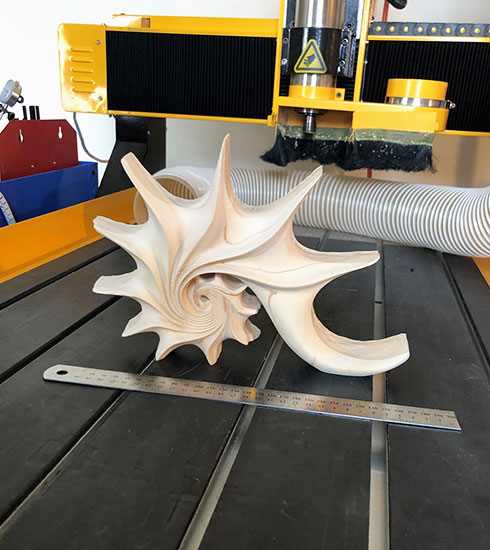

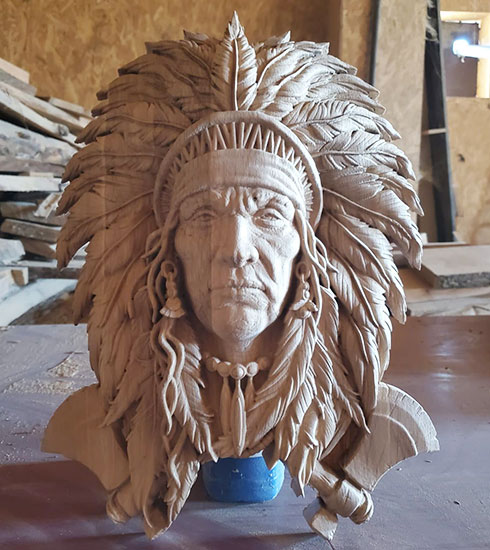

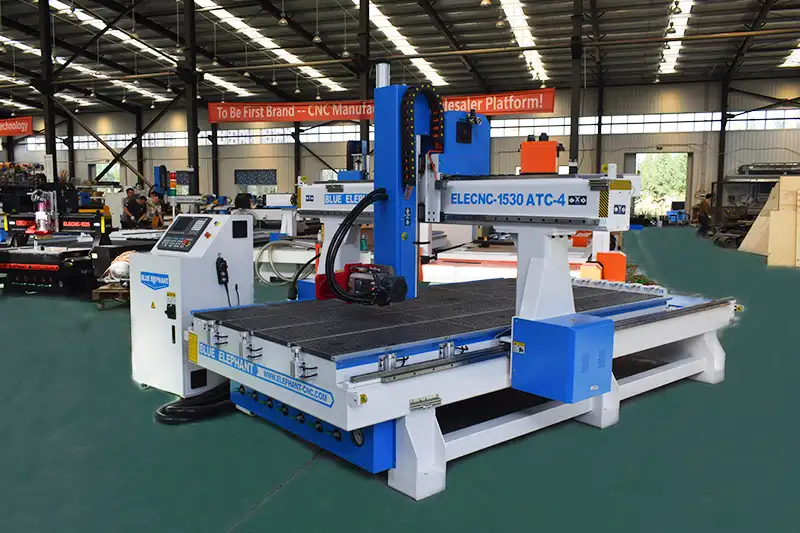

ELE1530 5×10 4 Axis ATC CNC Router for sale at cost price. 4 Axis CNC Router swings spindle 180 degrees, it works on aluminum mold, hardwood, soft metal, 3D musical instruments, and other 3D wood surface engraving and carving. Linear tool magazine with 8 tools makes this ATC CNC router using different tools without machine stop.

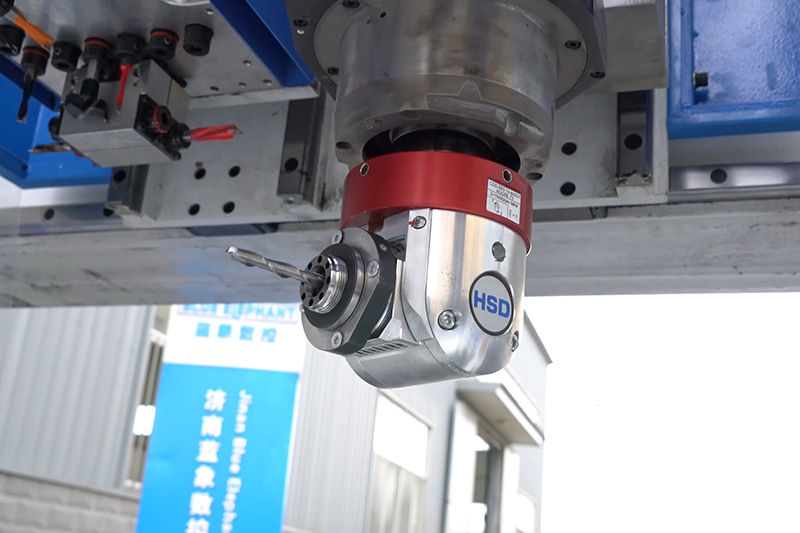

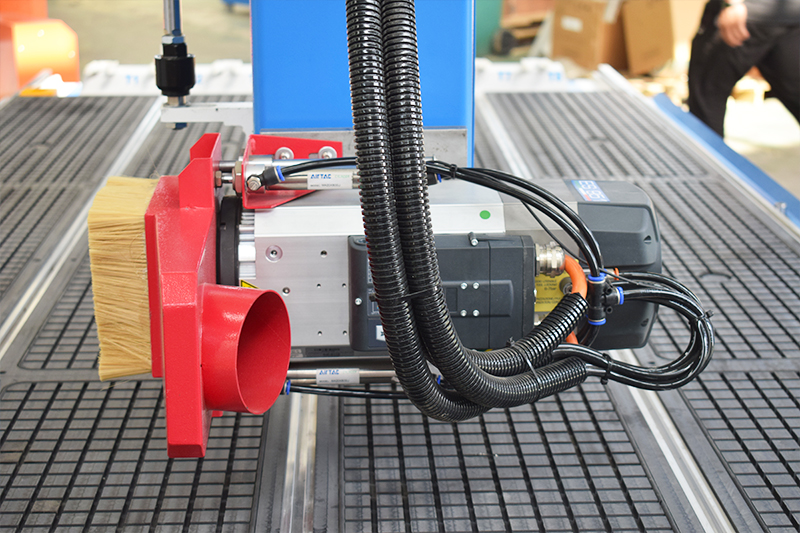

1. Italy HSD ATC air cooling spindle can swing 180 degrees,which makes the machine can process some complex objects and molds;
2. Lager working size and processing area, the working efficiency can be greatly promoted;
3. The heavy-duty frame and gantry make the machine work more stable;
4. A high-performance drive motor ensures the machine working with high speed and accuracy;
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |

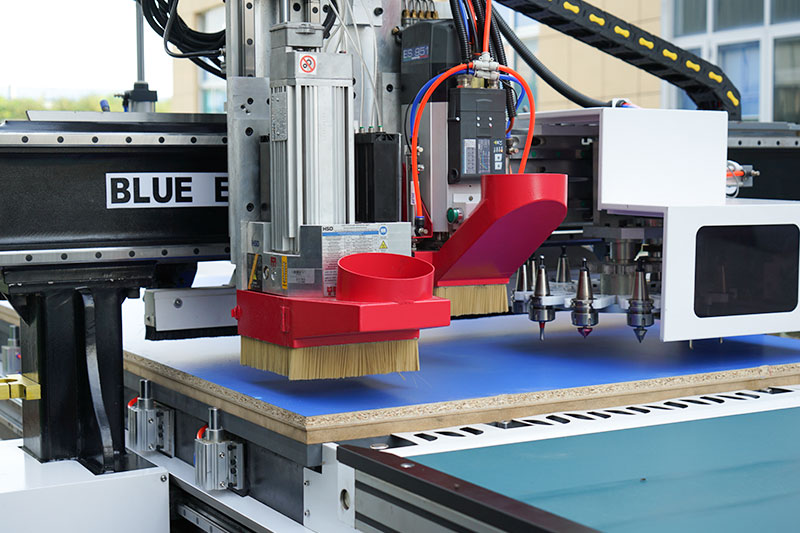

| Tool magazine | linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |

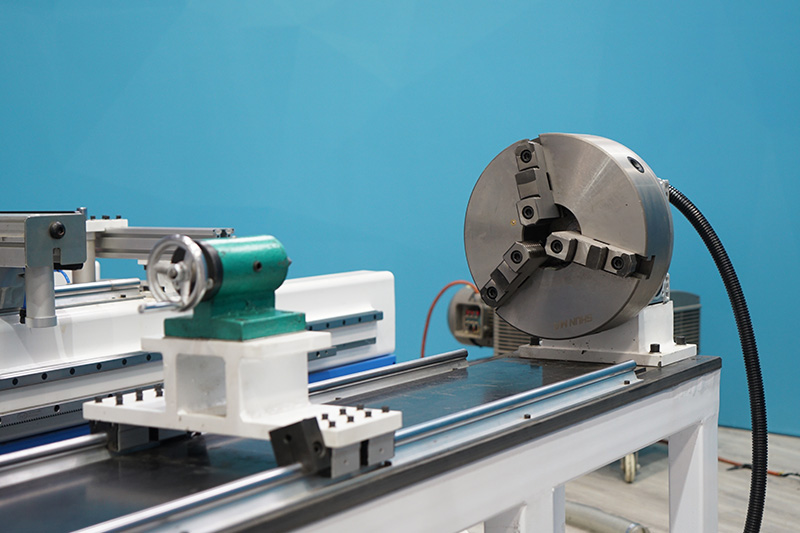

| Rotary device | Industrial-grade support of rotary device,diameter 200mm, 320mm. |
DSP hand-held control can control your CNC router without connecting to a computer.
NC Studio controller is based on Windows 8 or Windows 10 operating system. It can control your CNC router through the computer.
Syntec/Siemens controller is an independent control system and can control complex processing paths. It is quite suitable for large-size CNC routers with servo motor.
It’s important to select a suitable worktable size. You can choose the worktable size based on the dimension of your materials and the number of parts that cut at a time.
If you are engaged in furniture production, like doors and cabinets, you shall choose the worktable with the size of 4*8, 5*10, or 6*10.
However, when you want to use a CNC router to make small-size crafts or gifts with wood, PVC, plastic, or glass, you can choose a mini CNC router to do the job.
The vacuum worktable aims to secure workpieces during the processing. There is a perforated tabletop above the vacuum chamber. And the vacuum pumps are used to keep the pressure of the vacuum chamber below the ambient pressure. The pressure difference between the atmosphere and the vacuum chamber keeps the workpieces at the proper position on the top of the vacuum chamber. The major purpose of the vacuum worktable to allow access to all sides of the processed part, except for the side that is in contact with the vacuum worktable.
