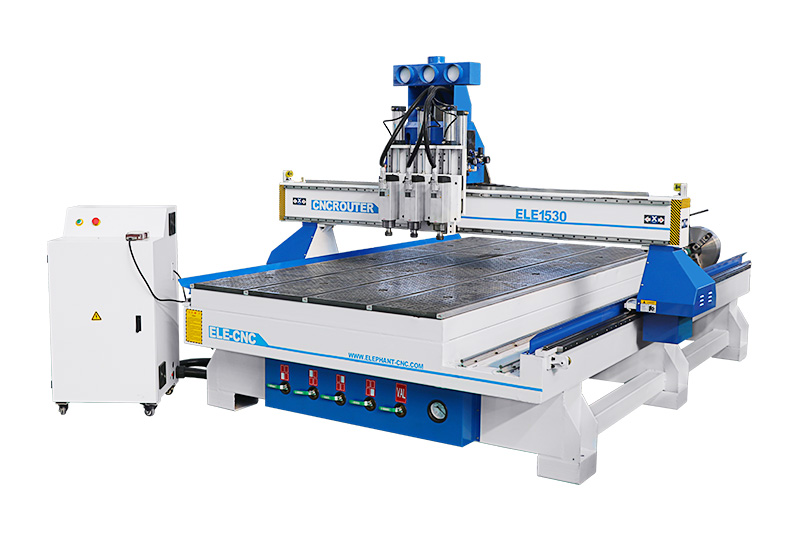

This multi spindle CNC router has three spindles, and it can realize the function of the ATC CNC router without high purchase cost. So this multi spindle CNC router machine is the best choice for users with large production volume and limited budget.
1. With three spindles, they can realize the function of the ATC CNC router without high purchase cost.
2. Designed with rotary device, and it can be used in processing stair handrails, sculptures, 3D relief and so on.
3. With the DSP control system with USB port, it is easy and convenient to use.
4. Adopting HQD air cooling spindle, and it’s speed can reach to 18000RPM per minute.
| Model | ELECNC1530-3S |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |

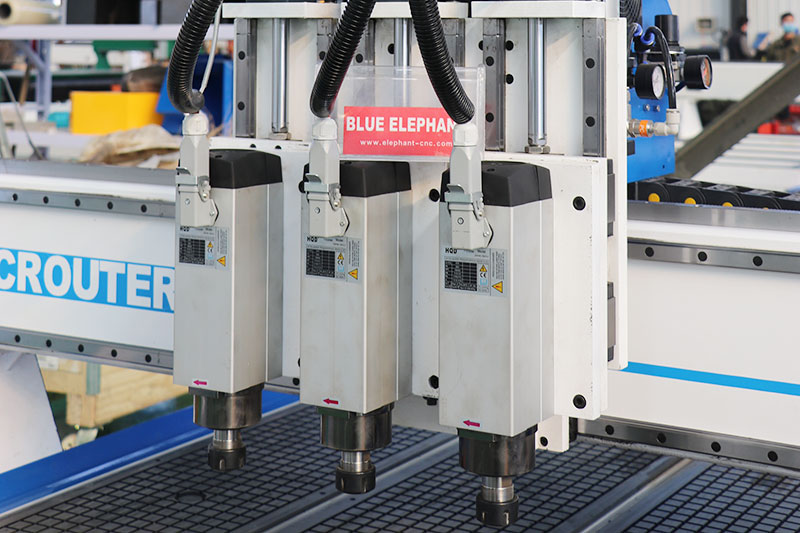

| Spindle type | 3x3kw air cooling spindle, ER20 |
| Inverter type | 3.7kw |

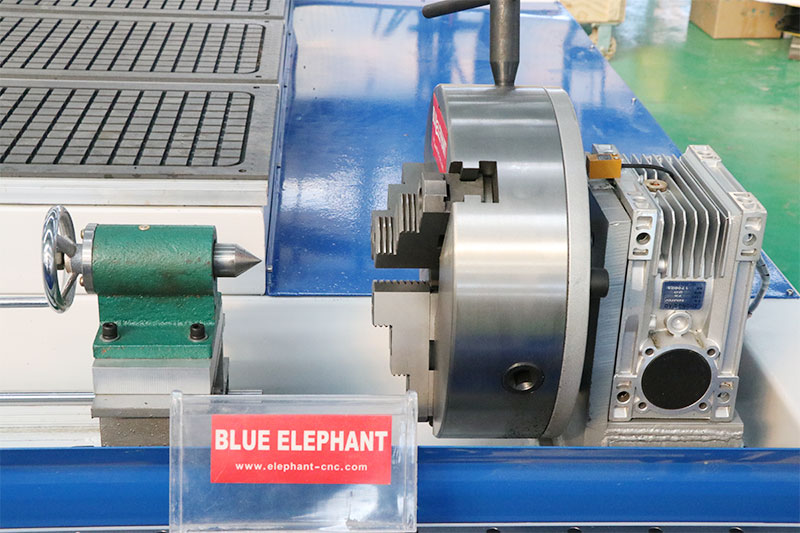

| Rotary device | 300mm diameter rotary device |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A123, option: Taiwan Syntec |
| Driving system | Stepper FL118 motor and drivers, option: 850w Japan Yaskawa servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

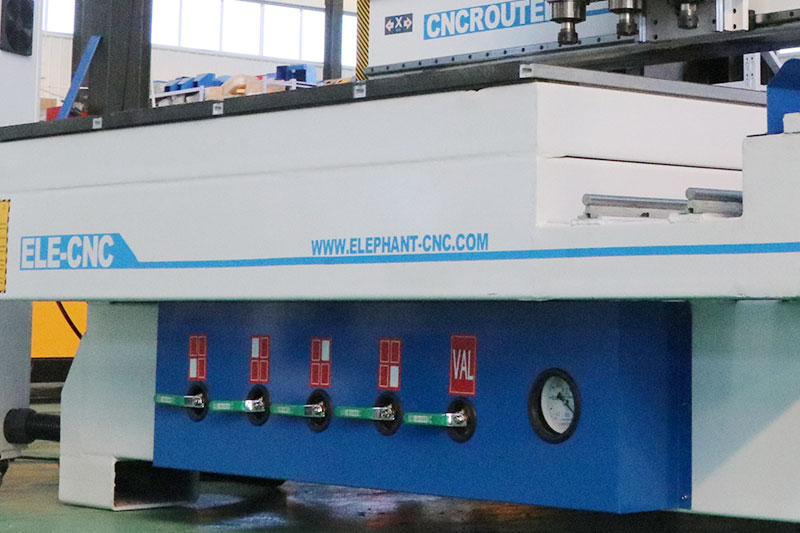

| Work table | Vacuum & T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |

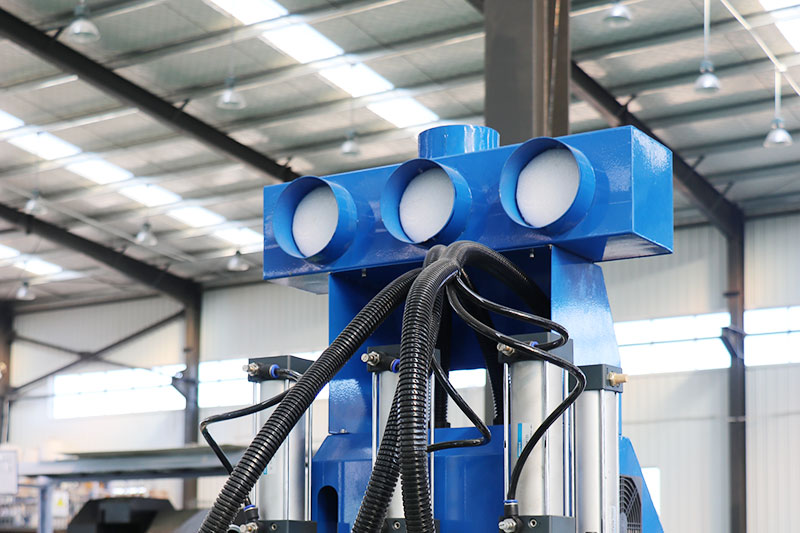

| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
It can make table legs, sofa legs, stair handrails, and other square or cylindrical items.
No, they work one by one, and can be used to complete different processes. For example, you can use the first spindle to cut boards, the second spindle to engrave, and the third one to drill holes.
Artcam software for free, and you also can use your own software.
