(4.9 based on 145 ratings and reviews)
$17,000 – $23,000

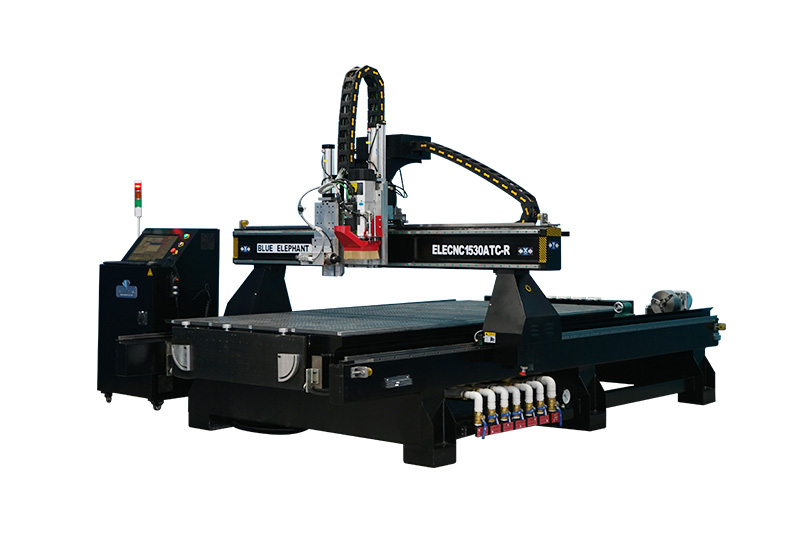

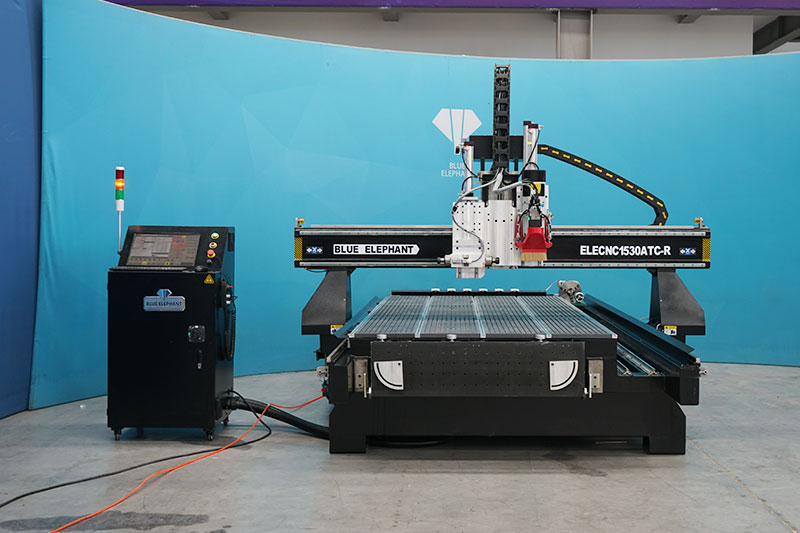

1530 ATC Rotary Axis CNC Router with a 1500x3000mm worktable. Equipped with a horizontal spindle and a rotary device, it can realize side punching and cylindrical carving in one operation. In addition, the automatic tool changing function reduces non-production time and improves work efficiency.
1. The tooling can be used to process the furniture with a tenon and mortise structure.

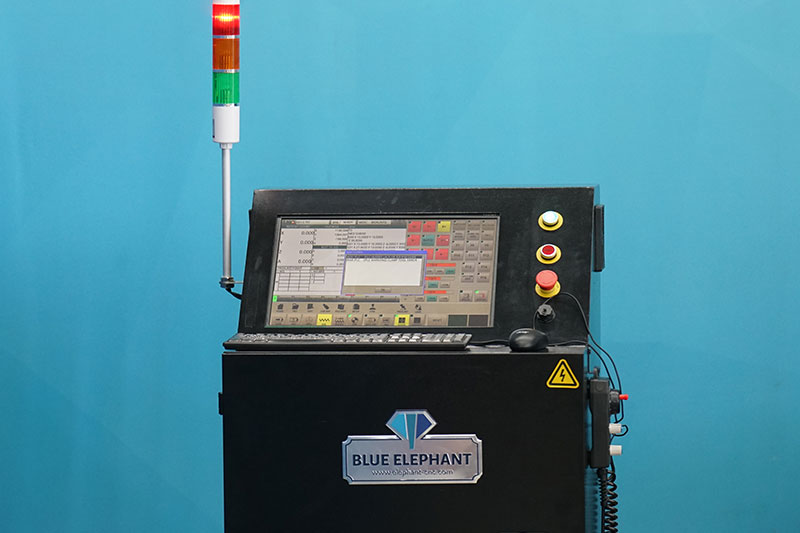

2. It adopts LNC 2200 integrated control system and handwheel operation method, which is easy and convenient to learn and operate.

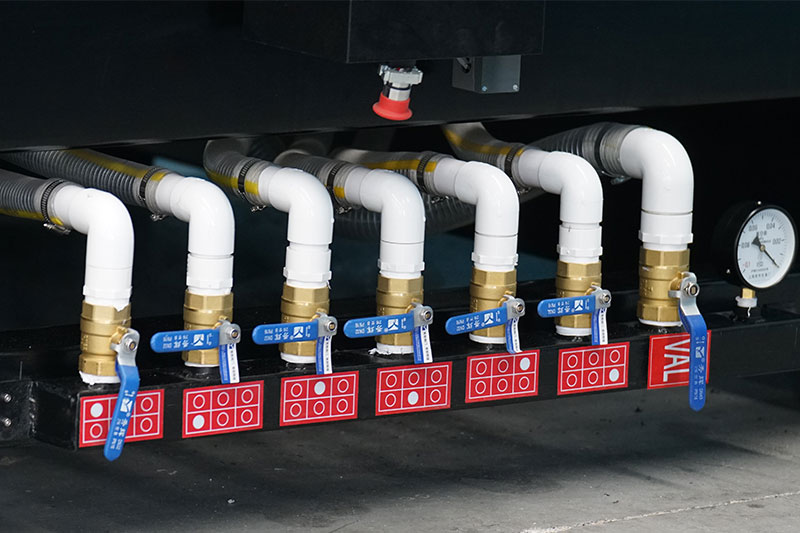

3. The 6-zone vacuum worktable has a strong adsorption capacity to fix the panel firmly on the tabletop during the process. 6 zones of the vacuum table can be controlled independently by the vacuum valves.

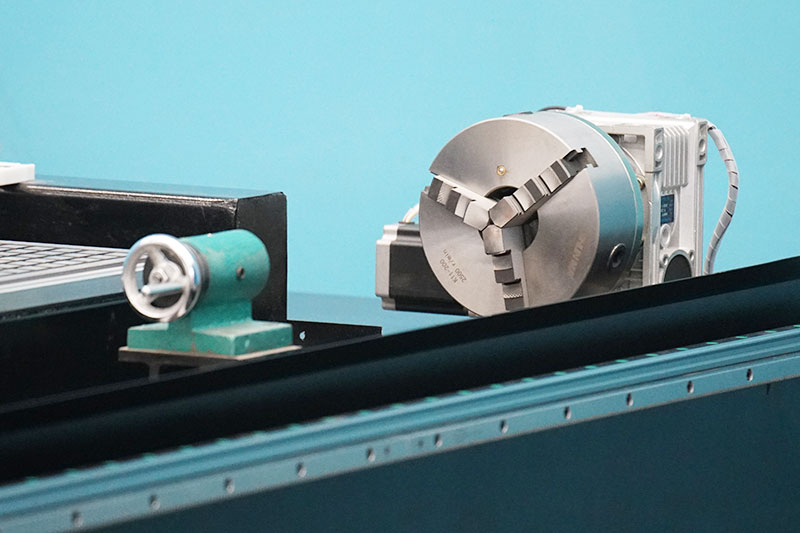

4. Its rotary device is good at carving and engraving a variety of cylinders, such as table legs, chair legs, handrails, frames, pillars, statues, etc.

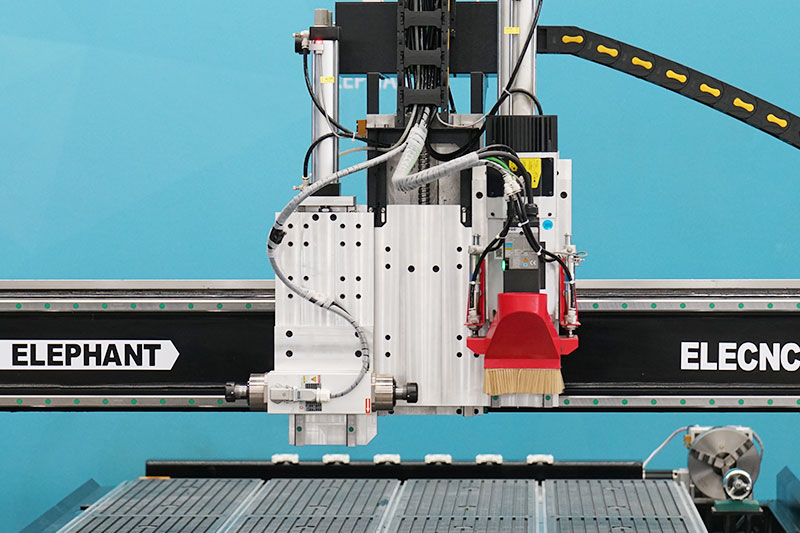

5. The horizontal spindle can realize the side slotting and punching of the plate, saving labor and improving work efficiency.
| Model | ELECNC1530ATC-R |
| X,Y axis travel | 1500*3000mm, option: 1300x2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |

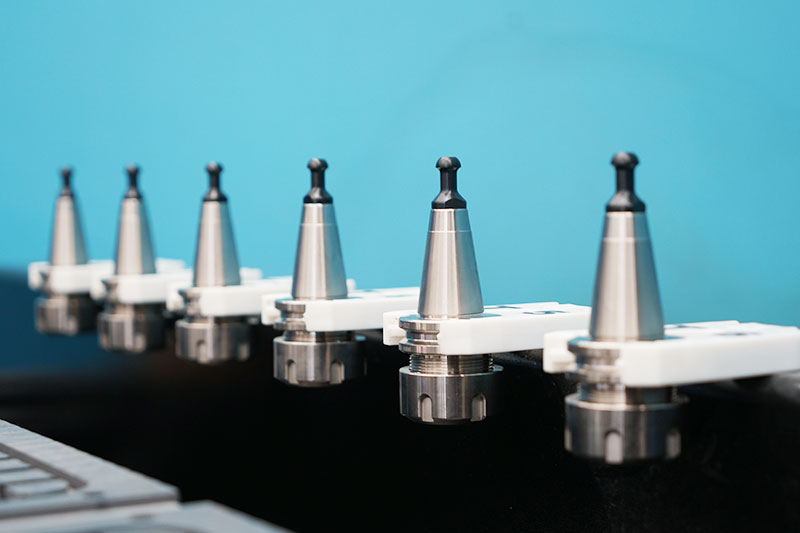

| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan LNC controller, option: Ncstudio, Syntec |
| Driving system | 750W Leadshine servo motor and drivers,4 sets. option: 850W Leadshine, 850W Yaskawa |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide rail #25 |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |

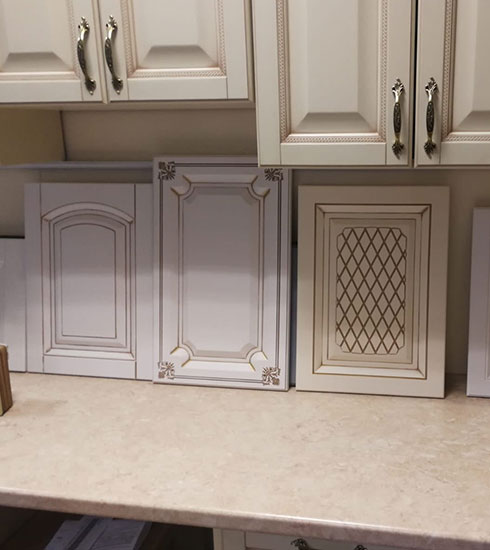

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
Artcam/Aspire/Fusion 360/Alphacam/Ucancam,etc. As long as your software can generate G code, it can use on our CNC machine.

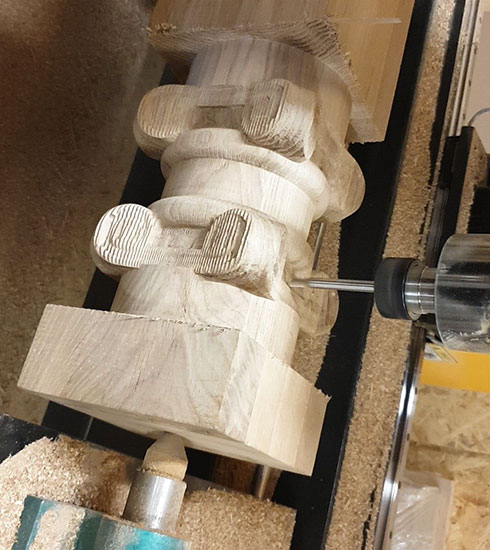

Yes. The rotary device is used for carving cylindrical pieces, like table legs, chairs, etc. We have diameters of 100mm, 200mm, 300mm, and 400mm to choose from.
We will provide a tool box according to the machine, which contains all the wearing parts.
