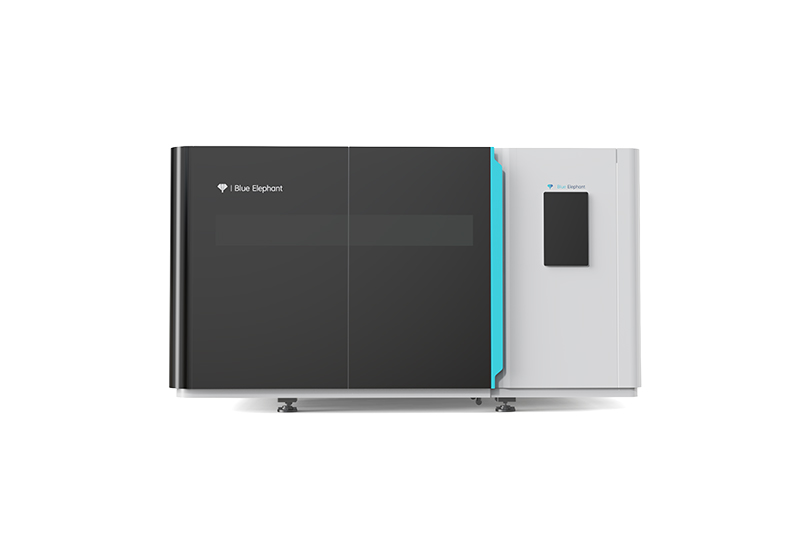

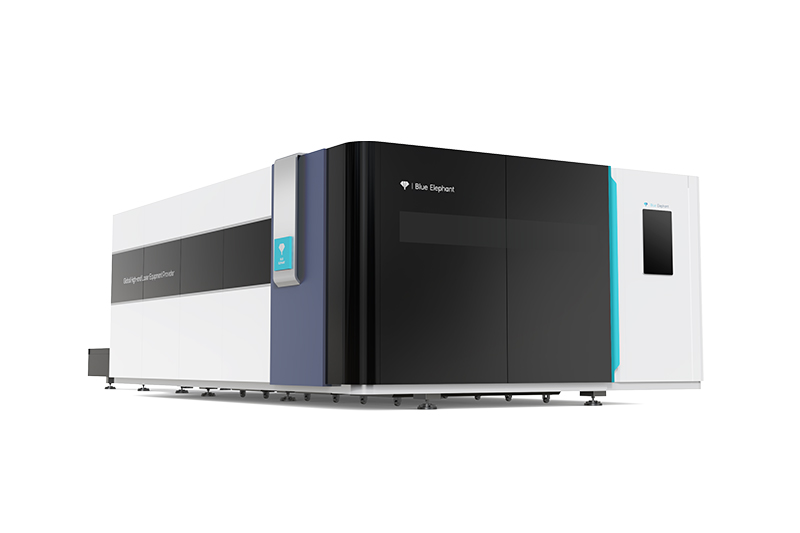

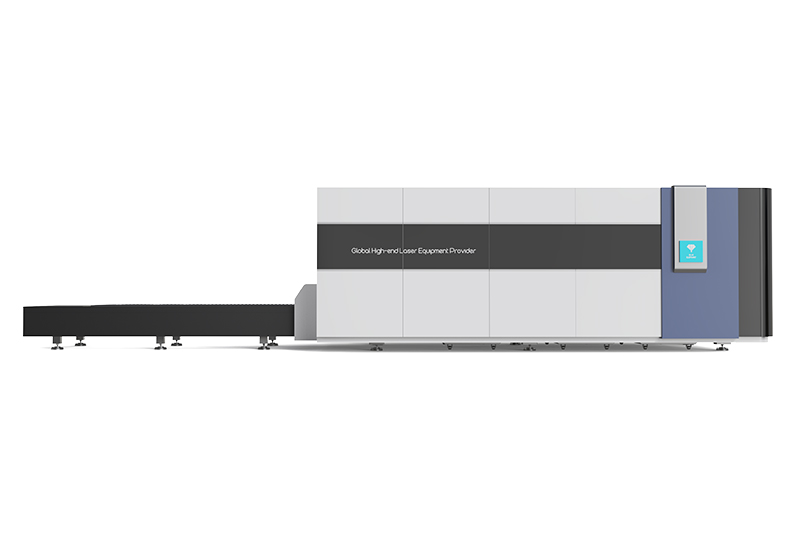

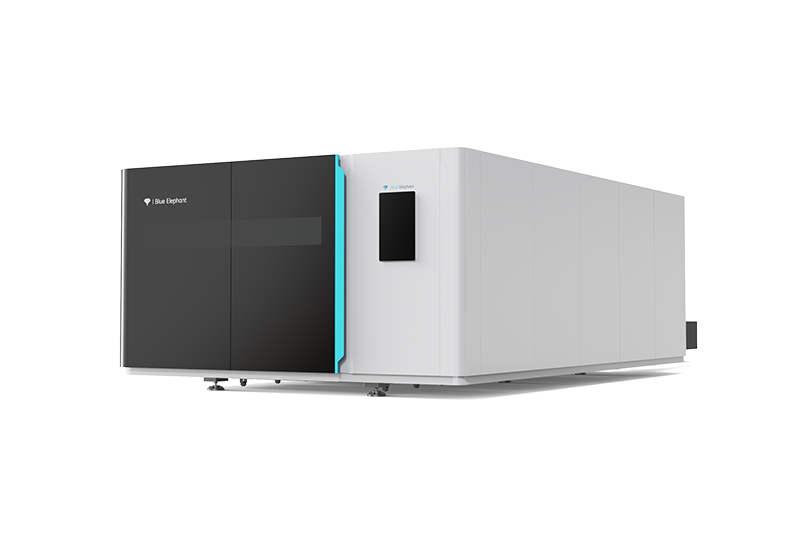

1530SL fiber laser cutting machine is designed for sheet metal cutting, featuring a fully enclosed structure that meets European standards. The exchange platform is welded from high-quality Q235 national standard pipes and reinforced with an outer steel plate for added stability. With a cutting area of 1530mm (X-axis) by 3050mm (Y-axis), the machine offers high precision, high efficiency, smooth operation, and low noise.
1. This fiber laser cutter is equipped with a rail and rack lubrication system with timed oiling to extend service life.
2. Innovative zoned dust extraction improves smoke removal by over 30%, with good sealing, smart monitoring, and easy maintenance.
3. Aerospace-grade high-pressure aluminum crossbeam with a unique inner cavity design ensures high rigidity, strength, stability, and vibration resistance.
4. Material receiving cart uses German corrugated design, offering higher load capacity, less deformation, and longer lifespan.
5. Built-in display screen saves space during arm rotation and enhances appearance.
6. Maintenance doors on both sides allow easy servicing and refueling when the oil alarm is triggered.
| Model | 1530SL (1KW-3KW) | 1530SL (6KW) |
| Machine dimensions | 8500 × 2300 × 2350 mm | 8500 × 2300 × 2350 mm |
| Machine weight | 4T | 4.3T |
| Working area | 1530 × 3050 mm | 1530 × 3050 mm |
| Z-axis travel | 350 mm | 350 mm |
| Max table load | 800 kg | 800 kg |
| Max rapid speed | 120 m/min | 120 m/min |
| Max acceleration | 1.2G | 1.4G |
| Positioning accuracy | 0.03 mm | 0.03 mm |
| Repeat accuracy | 0.02 mm | 0.02 mm |
| Bed structure | Tube-welded frame (5mm main) | Tube-welded frame (5mm main) |
| Beam material | Aluminum profile beam | Aluminum profile beam |
| Rack | Taiwan YYC | Taiwan YYC |
| Linear guide | Taiwan Hiwin | Taiwan Hiwin |
| Servo motor | Inovance(X:850W Y:850W Z:400W) | Inovance(X:850W Y:1300W Z:400W) |
| Reducer | Motovario | Motovario |
| Breaker | ABB/Schneider | ABB/Schneider |
| Relay | ABB/Schneider | ABB/Schneider |
| Proportional valve | CKD | AVENTICS |
| Oxygen control valve | CKD | AVENTICS |
| Helium control valve | CKD | AVENTICS |
| Electric cabinet | Integrated cabinet | Integrated cabinet |
| Laser source | MAX | MAX |
| Laser head | Raytools BM110 | Raytools BS06K-CAT |
| Focusing | Auto focus | Auto focus |
| Control system | CypCut 2000E | CypCut 4000E |
| File formats | G code, DXF, DWG, PLT, ENG | G code, DXF, DWG, PLT, ENG |
| Display size | 21.5” Multimedia screen | 21.5” Multimedia screen |
| Chiller | Hanli | Hanli |
| Dust collector | Centrifugal fan 7.5kW | Centrifugal fan 7.5kW |
| Dust collection method | Double zone | Double zone |
For the machine, we have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you. After we have got your payment. We will send the machine to you.
