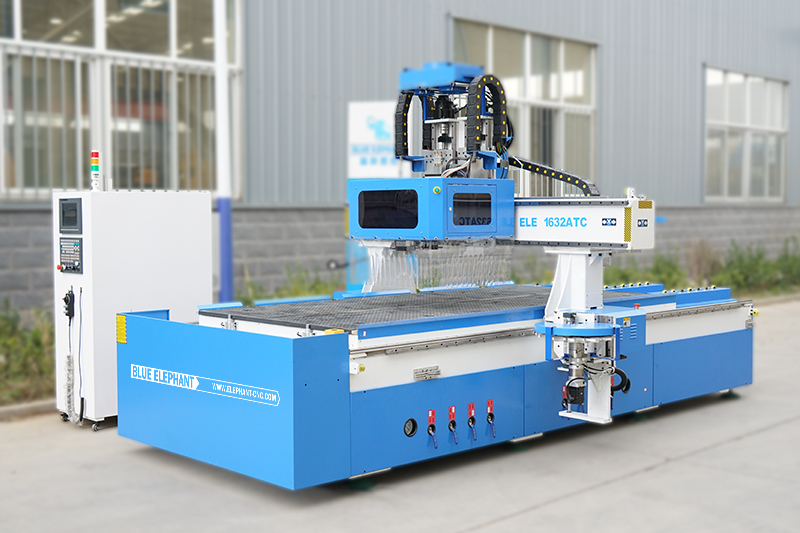

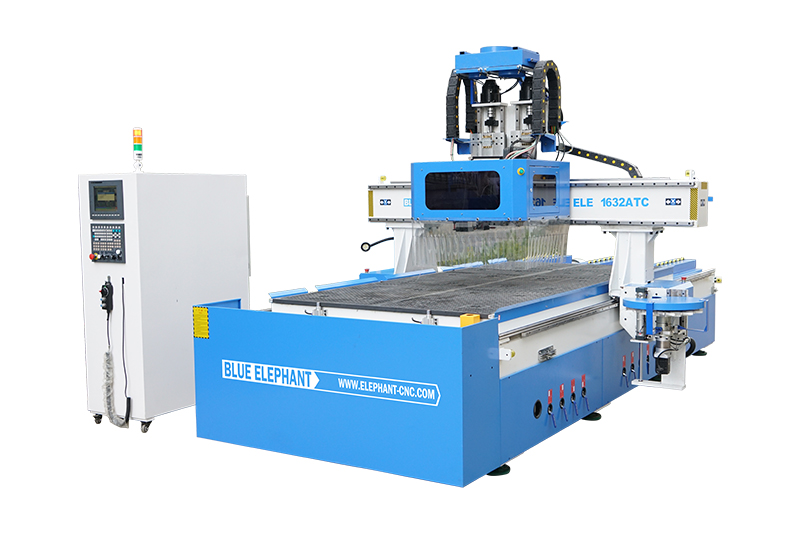

The ELECNC1632 automatic tool changer machine is a large ATC CNC machine for sale. With an aggregate head, it is good at drilling on wood work peices. Please take aggregate head CNC routers into your consideration.
1. Aggregate head CNC routers have a side disc tool changer of 12 holders, best design for quick and efficient woodworking.

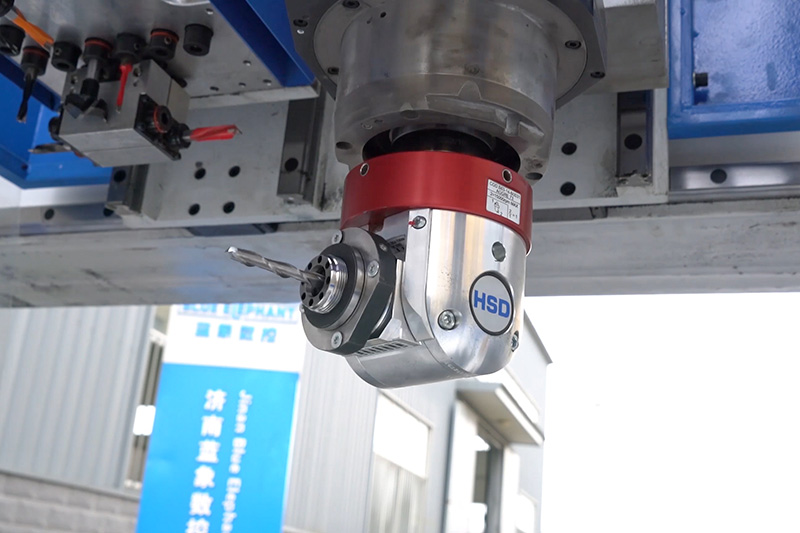

2. Italy BHZ24 CNC Aggregate Head with 7 tools that drill horizontal holes, vertical holes, make saw blade cutting all in one.

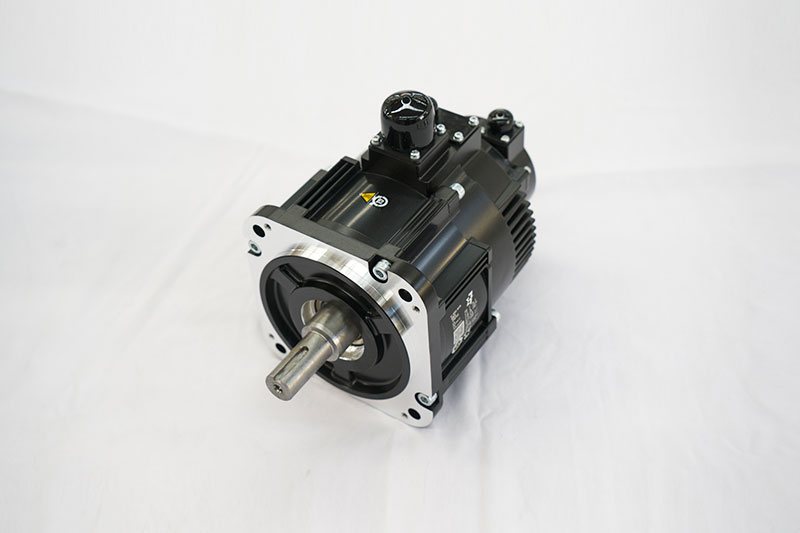

3. High-power Yaskawa servo motor lits ensure high-speed and stable operation of the machine.
4. External air conditioner ensure the safe operation of electrical components inside the chassis.
5. Dust cover design makes the workshop more cleaner.
CNC aggregate head has higher efficiency on drilling and saw cutting, especially it is able to make horizontal holes that only CNC machines with swing spindle can do. This CNC machine with aggregate head is the best choice for furniture/cabinet/doors making.
| Model | ELECNC1632ATC |
| X,Y axis travel | 1600x3200mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, 500mm, 600mm, etc |

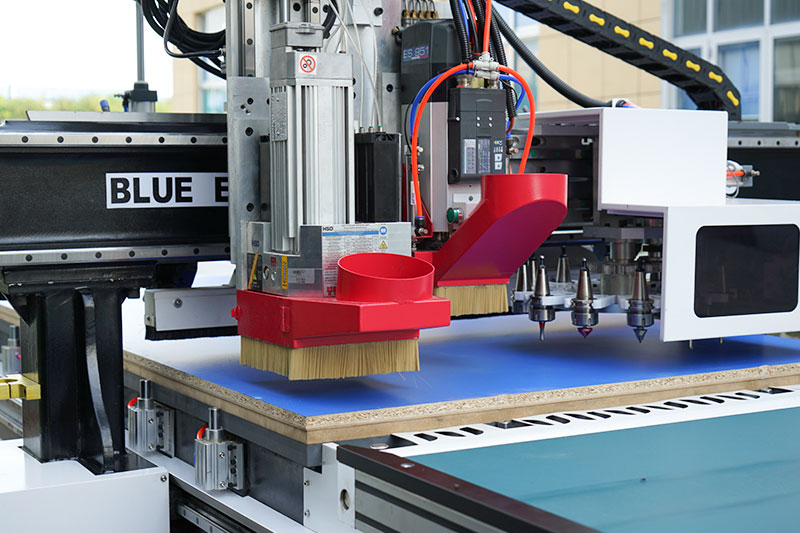

| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Italy HSD BHZ24 drills |
| Tool magazine | Linear+Carousel auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6,1/8, 1/2 |
| Control system | Taiwan SYNTEC controller, option：Ncstudio |
| Driving system | 1.3kw Japan YASKAWA AC servo driver and AC servo motor, 4 sets. |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |

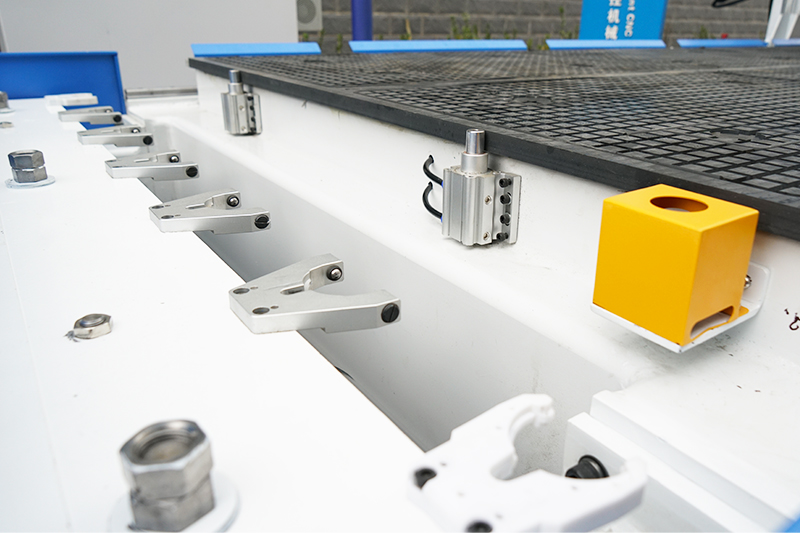

| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |

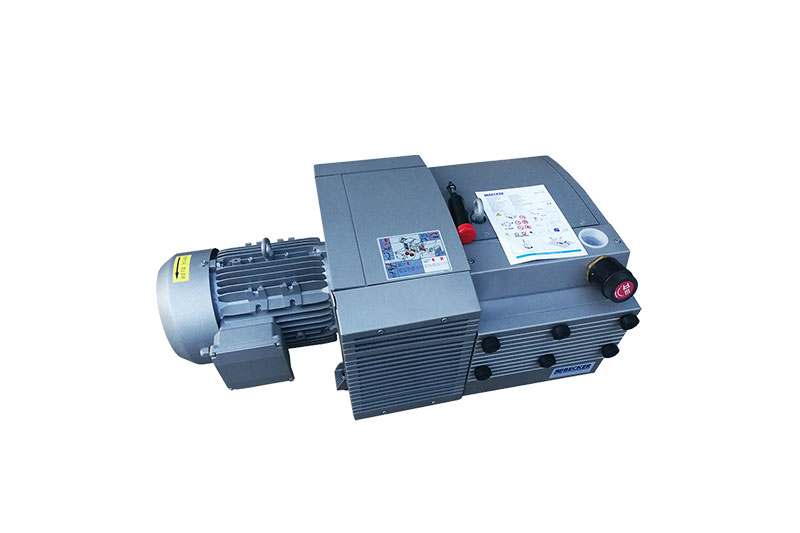

| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
Our machine comes with a vacuum&T slot combined table connecting with vacuum pumps, which can fix the board automatically. Besides,some small pieces can be fixed with T slot clamps.
Yes,you can. But before cutting and engraving some soft metals, you need to install a water mister to cool the bits.
Yes. Our controller has the LAN port, which benefit you to connect the internet cable conveniently to transfer files.
