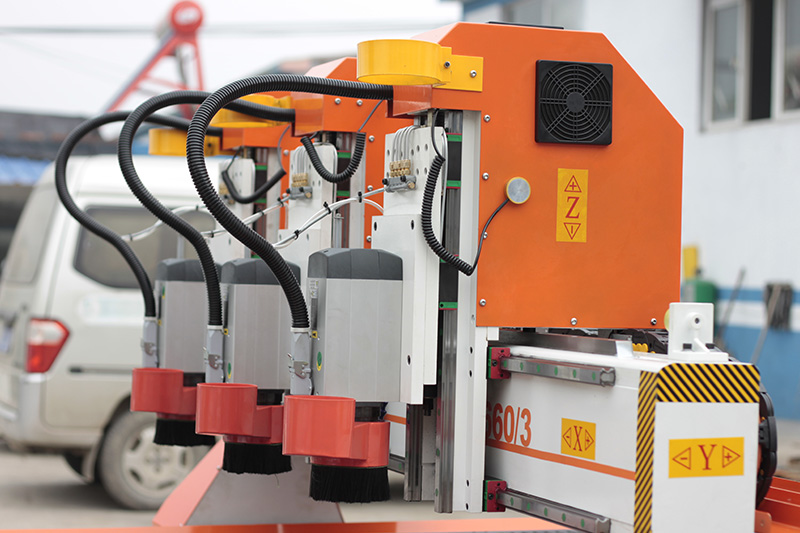

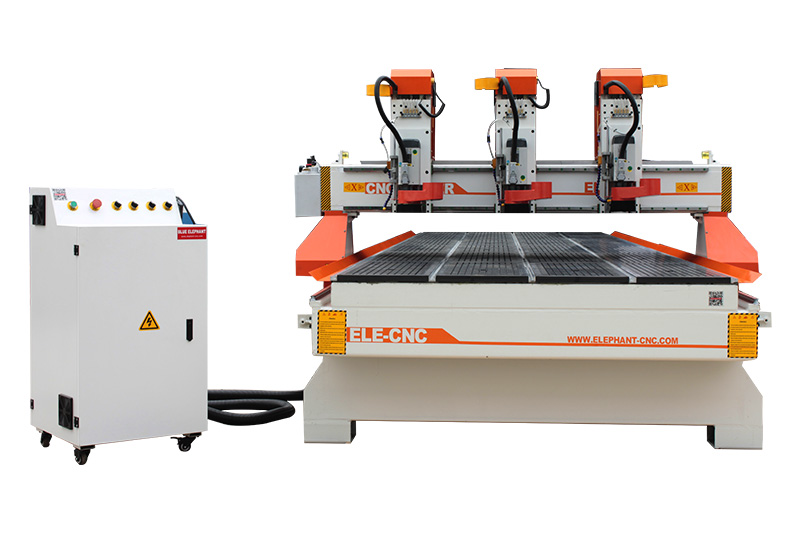

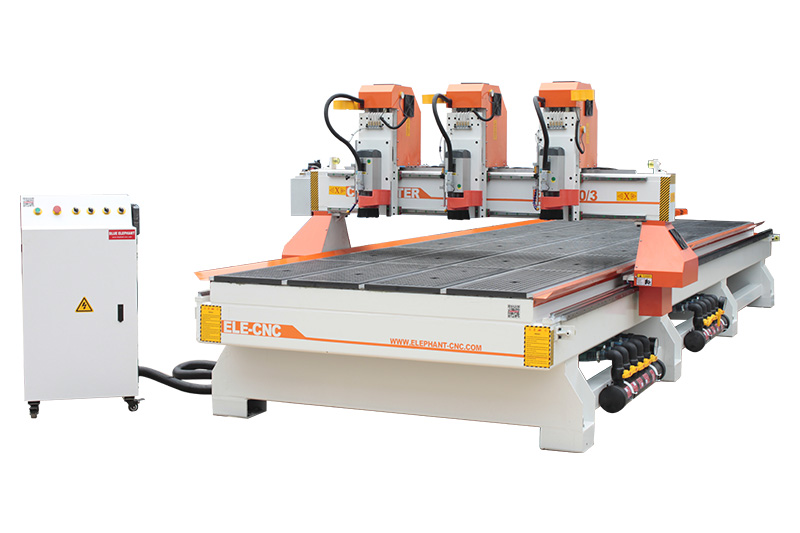

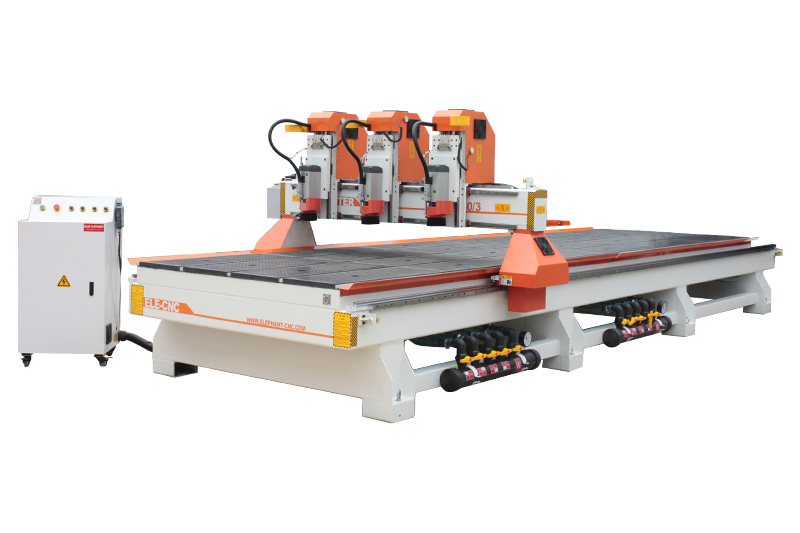

Three heads of this multi spindle CNC router can work alternately. And the working efficiency can be greatly improved. The distance between the spindle is fixed and cannot be adjusted. It can process the same or symmetrical samples, very suitable for batch processing.
1.With oil mist cooling sprayer system to cool tools while processing soft metal like aluminum.
2.Adopting important linear square orbit with stable working, high precision, and long lifetime.
3.With DSP control system, which is easy to operate.
All the specifications and working size can be customized according to your requirements.
| Model | ELECNC1660-3S |
| X,Y axis travel | 1600x6000mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3*4.5kw HSDair cooling spindle, ER32 |
| Inverter type | 5.5kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6,1/8, 1/2 |
| Control system | DSP A11 controller, option：Nc studio, SYNTEC/LNC |
| Driving system | 750w Panasonic servo motors and drivers, 8 sets. Option: 1kw Taiwan Syntec servo,1kw Japan YASKAWA servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

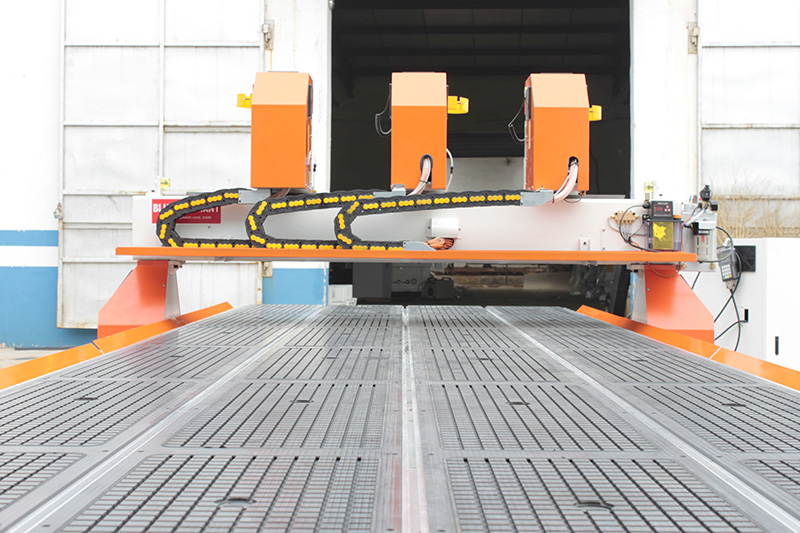

| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manuel tool sensor calibration |

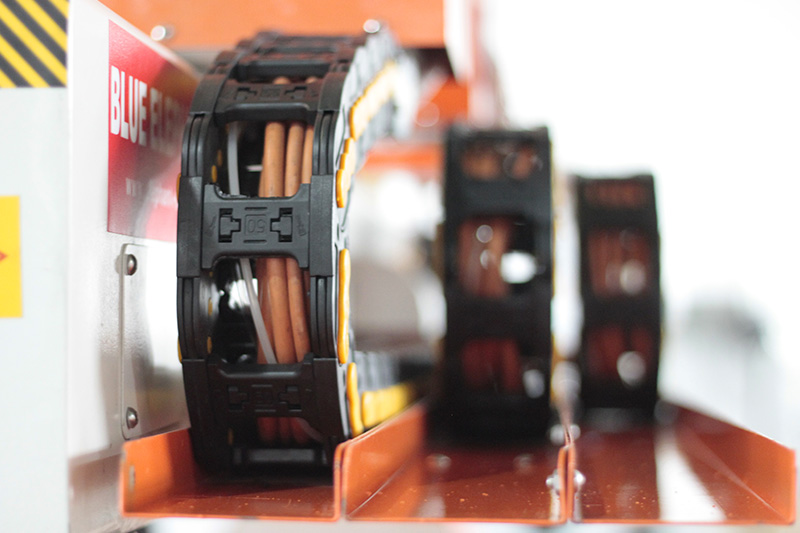

| Cables | Germany Igus cables with CE, UL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |

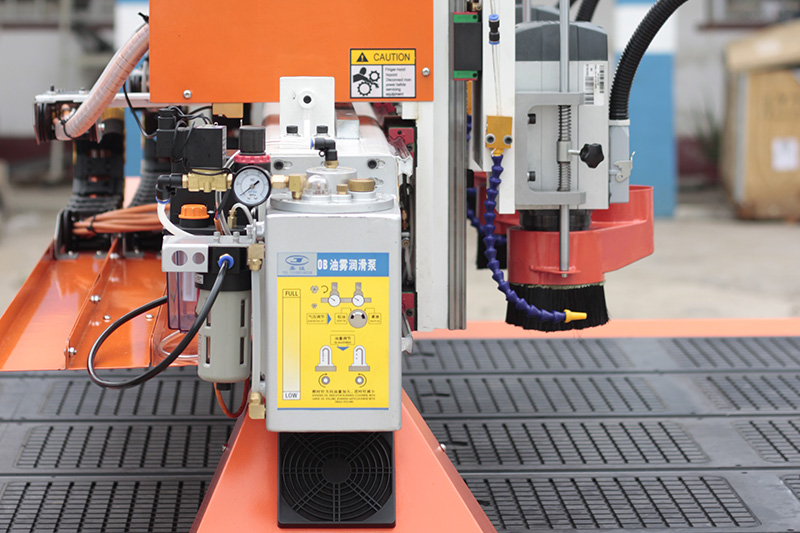

The oil mist sprayer is about 4.5L. It has spray function and a pulse function, which can be controlled by the control system. It only can be used to cool tools while processing aluminum or other soft metal.
It is a handle controller with only fewer buttons, which is easy to operate. It also equipped with the USB port to transfer design drawings, which is very stable and faster
Two motors.
