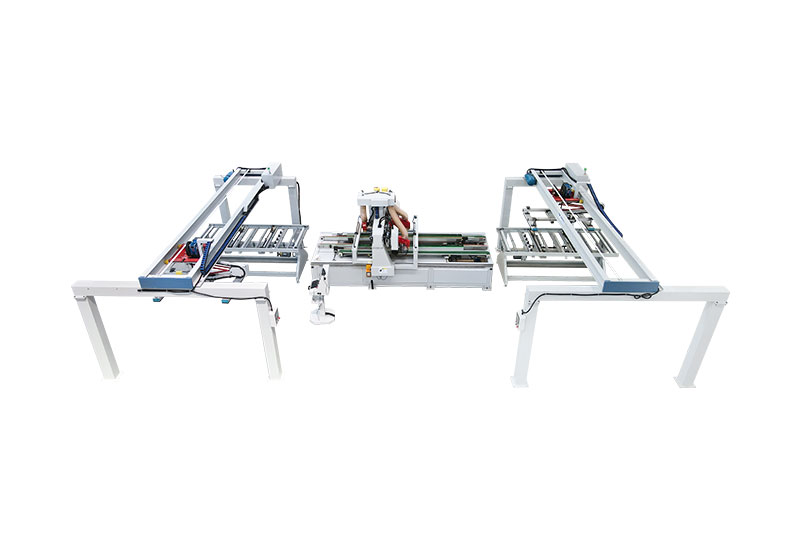

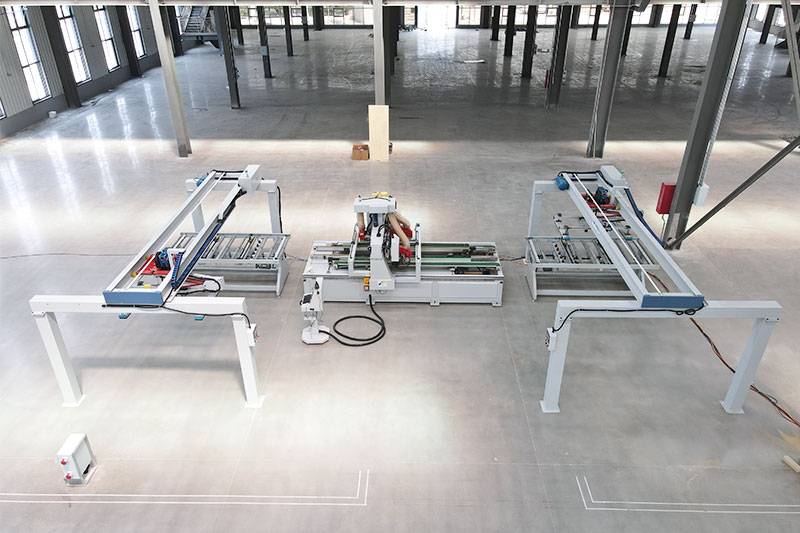

The latest 4 sides cutting saw machine combined with the loading and unloading gantry and the roller conveyor form a wooden door edge cutting production line. The automatic loading and unloading 4 sides cutting saw machine is mainly used for cutting the four sides of wooden doors. At the same time, it can also realize automatic code scanning and unmanned assembly. Therefore, the four sides wood cutting saw machine is an indispensable automatic CNC equipment for wooden door enterprises.

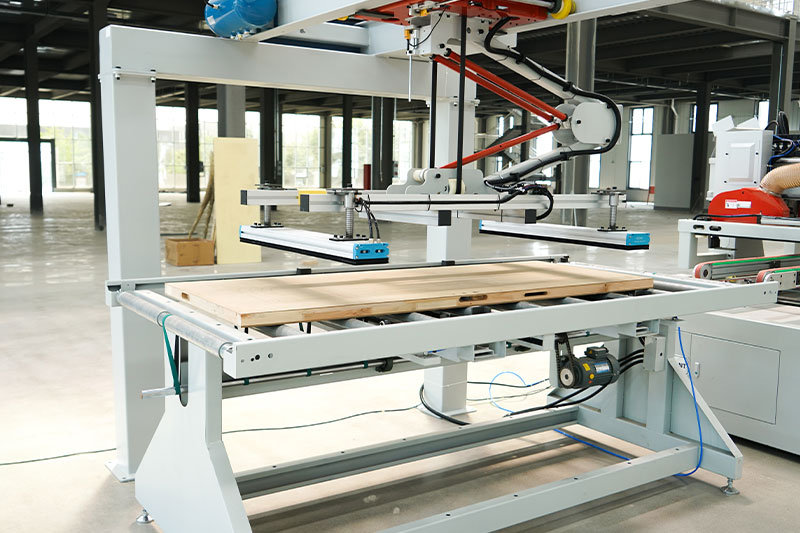

1. The latest 4 sides cutting saw machine has multiple functions including automatic wooden door loading, automatic wood panel unloading, and automatic code scanning.

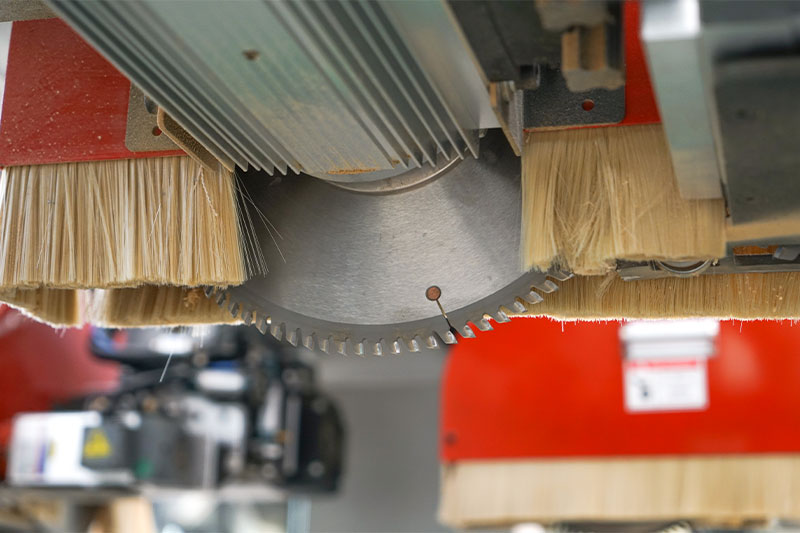

2. Equipped with main and auxiliary saw blades, the loading and unloading four sided wood cutting machine can realize fully automatic cutting and accurate trimming to prevent edge collapse.
3. Added with main and auxiliary saw blades, the solid wood door can be cut from the center in both length and wideness. And the 4 sided door sawing machine can also realize continuous door cutting of different specifications.

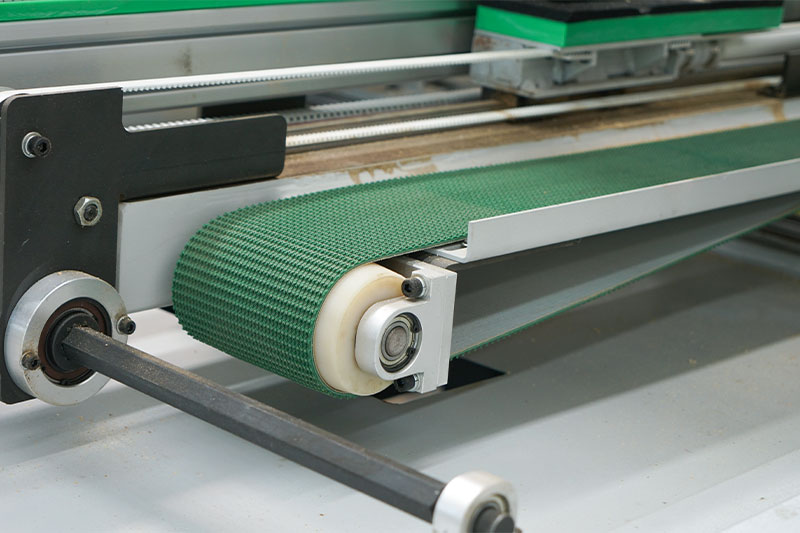

4. The large space waste material collection function enables the 4 sides cutting saw machine send away waste from the working area through the conveyor belt.
| Automatic Loading and Unloading 4 Sides Cutting Saw Machine | ||
| Model | M2-1128 | |
| Processing length | length | 1700-2800mm |
| wideness | 390-1100mm | |
| thickness | ≤70mm | |
| Saw blade motor | main saw blade power | 5.5KW |
| scoping saw blade power | 1.5KW | |
| Saw blade | main saw blade diameter | OD 300mm * ID 30mm |
| scoping saw blade diameter | OD 120mm * ID 22mm | |
| Power | 25KW | |
| Weight | ≈3000Kg | |

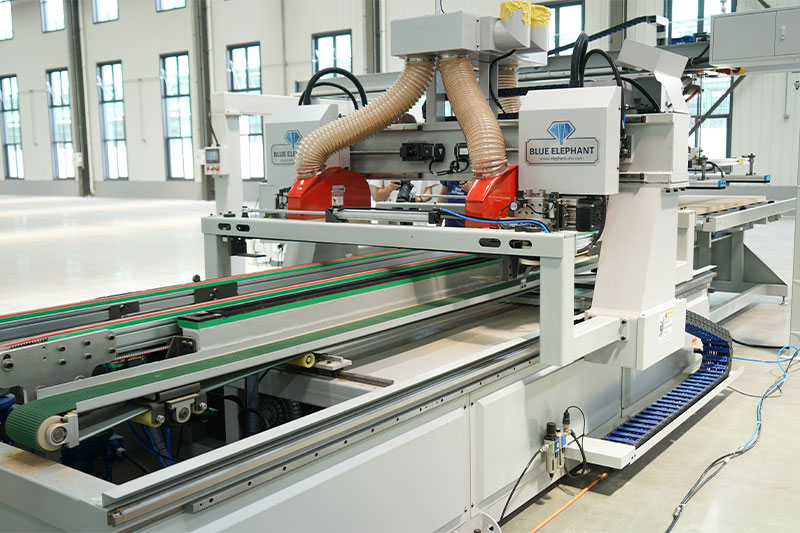

The four sided saw uses multiple sets of saw blades to cut the four sides of the wood at the same time. It can quickly and efficiently complete the four side flat processing of the wood door.
It is mainly used for processing various woods, such as solid wood, composite boards, plywood, density boards, etc.
The four-sided saw machine has the advantages of high efficiency, high precision and high stability. It can process the four sides of the wood door at the same time, which improves production efficiency.
Cabinets: used for processing cabinet bodies, cabinet doors, drawer boards, etc.
Floors: used for cutting floor strips to make them accurate in size and with smooth edges.
Wall panels: processing wall decorative panels to ensure consistent size.
Wooden doors: cutting door panels, door frames and other parts.
Wooden windows: used for processing window frames, window sashes, etc.
Wooden boxes: cutting wooden box panels to make them accurate in size for easy assembly.
