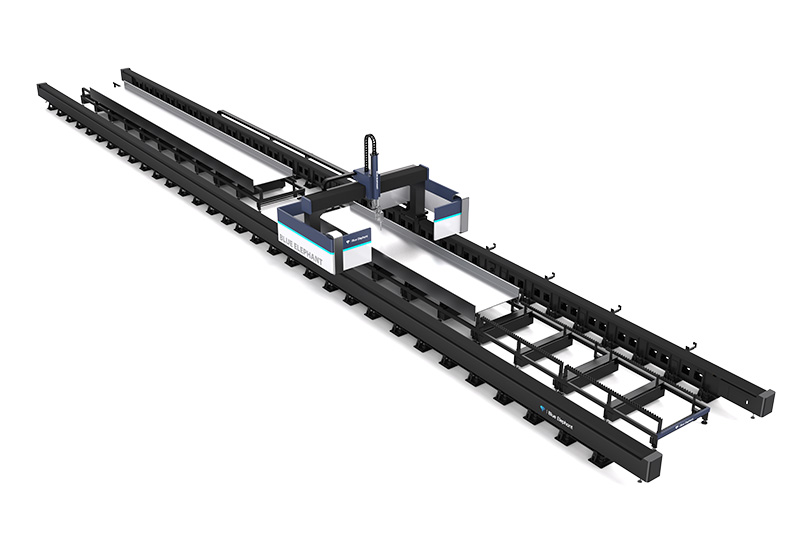

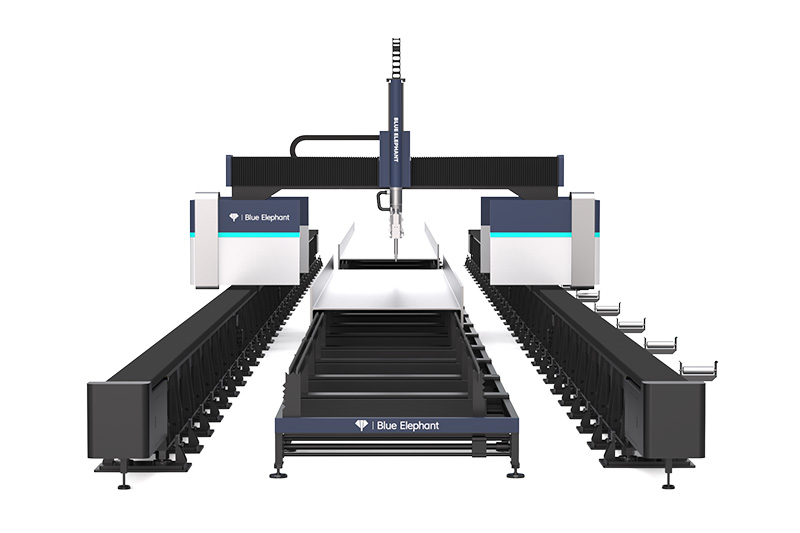

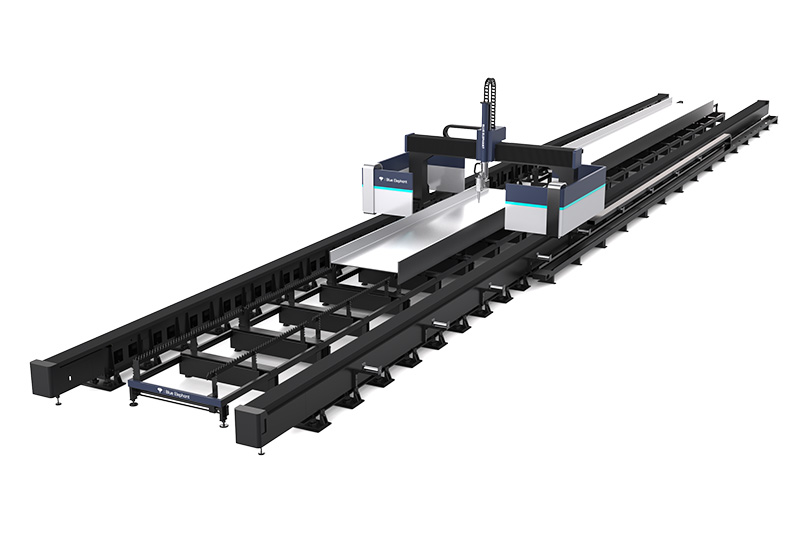

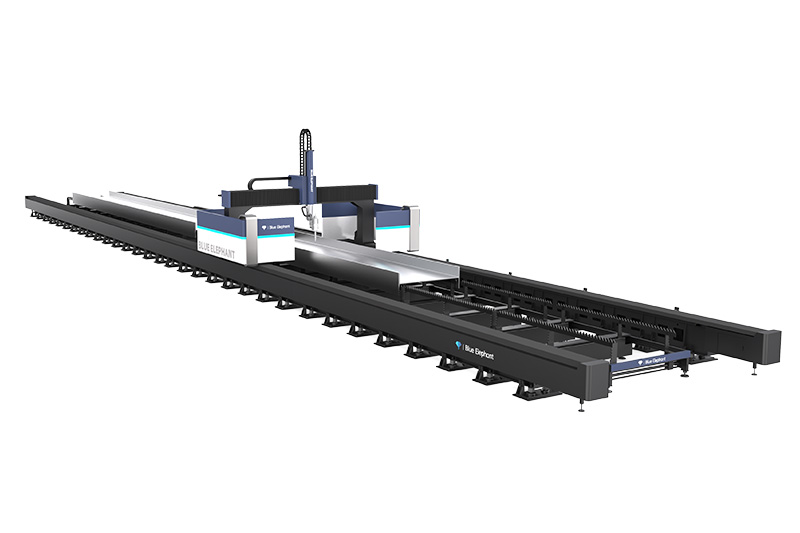

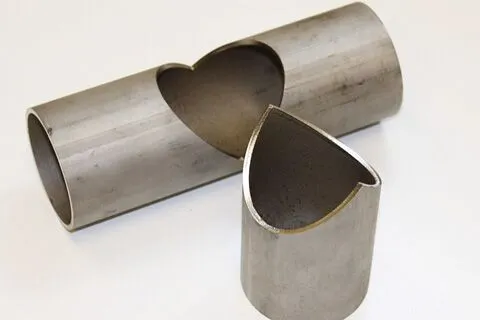

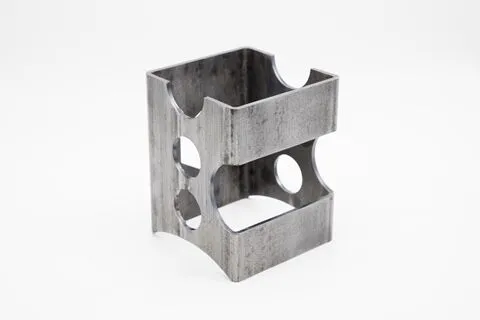

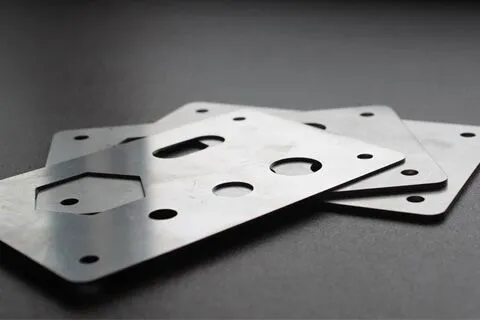

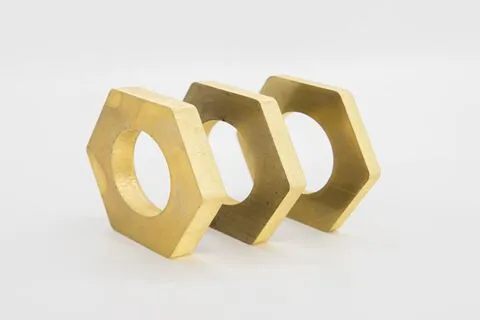

This X800 12KW fiber laser cutting machine adopts a gantry structure and can complete the cutting and processing of web flange grooves, wedge locks and bolt holes of H-shaped steel, channel steel and “工”-shaped steel. It is particularly suitable for the blanking production of variable-section steel workpieces. It can replace traditional sawing machine truncation, lock processing, welding groove cutting and laser pipe cutting machines to save costs.
1. Support profiles 90° left and right, 45° front and back bevel cutting, and specified angle cutting.
2. The cutting platform is separated from the machine tool, so that the weight of the workpiece is loaded on the ground, which is more impact-resistant and load-bearing, and the structure is simple and easy to replace.
3. Open double-station design, one station is processing while the other station is loading and unloading, reducing downtime waiting time and greatly improving processing efficiency.
4. The cutting area and laser radiation protection area are fully protected and highly safe.
5. The electrical components and servo drivers are from the first-line brand Lanny, ensuring that the whole machine is stable, reliable and responsive during operation.
| X800 12KW Fiber Laser Cutting Machine for H-shaped Steel | ||
| Model | X800 | |
| Processing pipe specifications | H-shaped steel Min. height (wing plate) 200mm H-shaped steel Max. height (wing plate) 800mm H-shaped steel processing length 12000mm Flat cutting 2500*12000mm | |
| X axis travel | 3500mm | |
| Y axis travel | 16000mm | |
| Z axis travel | 900mm | |
| X,Y positioning accuracy | ±0.25mm | |
| X,Y repeat positioning accuracy | ±0.05mm | |
| X/Y axis Max. speed | 40m/min | |
| Max. acceleration | 0.4g | |
| Total weight | About 26 t | |
| Machine size | 20000mm×5500mm×3200mm | |
| Power supply rated voltage | 380V | |
| Frequency | 50Hz | |
| Total power supply protection level | IP54 | |
| Total power consumption | 79KVA | |
| Fiber laser tube cutting machine | X800 | Blue Elephant |
| Reducer | High precision planetary gear | MOTOVARIO |
| Servo motor and driver | Y:4.4KW*2 X:1.8KW Z:2.9KW | Innovance |
| Linear Guides | Precision Grade | Taiwan Brand |
The power supply rated voltage is 380V.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
We have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
