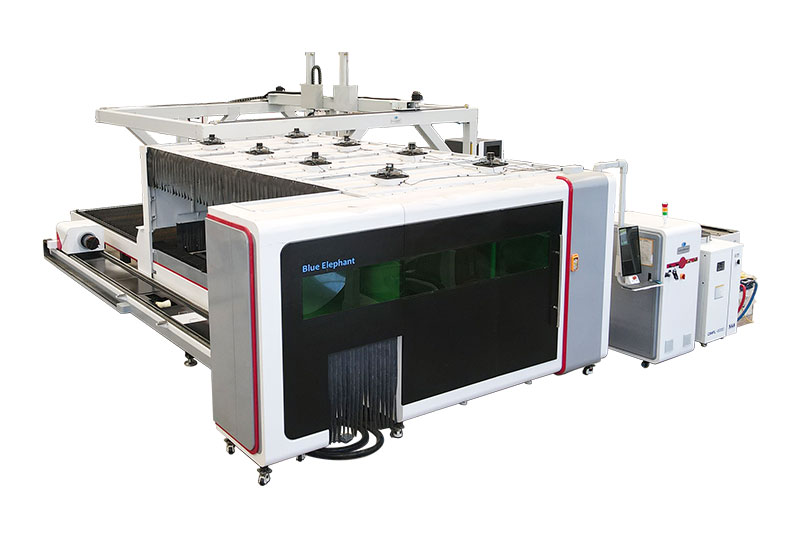

2024 latest automatic loading and unloading integrated half enclosure sheet and tube fiber laser cutting machine adopts a half enclosed protective cover.It is stable, efficient and high-precision.The loading and unloading equipment greatly improved work efficiency.
1.The high-strength carbon steel plate welded machine bed is more stable and solid, the overall mechanical structure of the machine has small deformation, small vibration, strong structural rigidity, and ensures cutting accuracy.

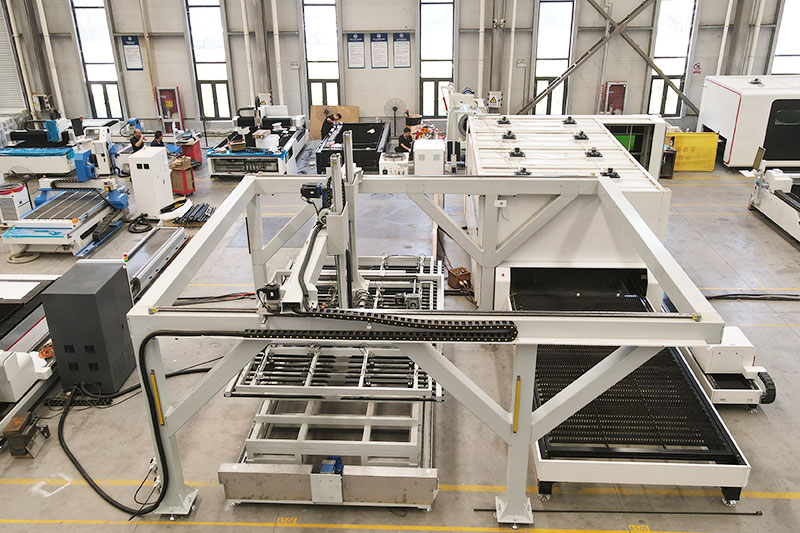

2.The production process realizes fully automatic loading and unloading, saving time and effort. It is equipped with raw material and finished product trays, meeting all large, medium and small plate cutting requirements, and has complete functions, which is popular among customers.

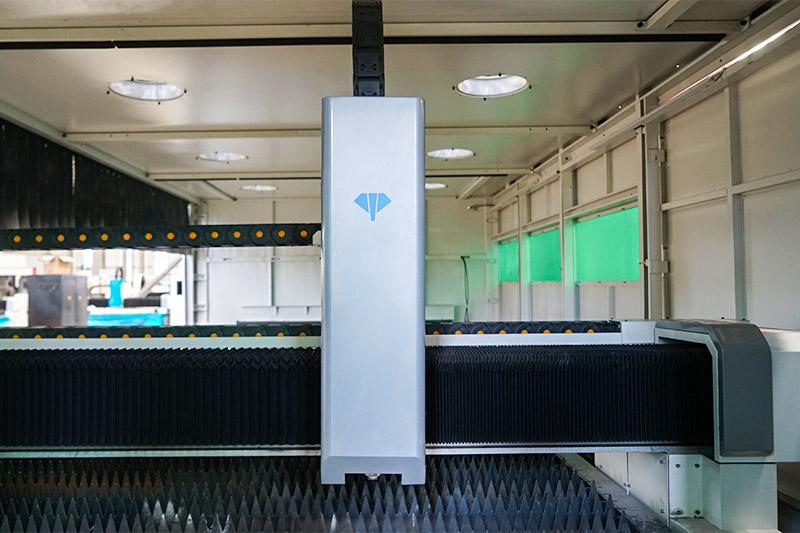

3. Aviation-grade aluminum is corrosion-resistant, highly rigid, and lightweight, which ensures the high-speed operation of the laser machine. At the same time, the material is resistant to distortion, tilting, and deformation, ensuring the stability and accuracy of cutting.
| Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine | |||
| Rated load | kg | 1000 | |
| X axis travel | mm | 5000 | |
| Z axis travel | mm | 1500 | |
| Max.size of the load material | mm*mm | 2000*4000 | |
| Min.size of the load material | mm*mm | 500*500 | |
| Max. thickness of single board | mm | 16 | |
| Min. thickness of single board | mm | 0.5 | |
| Air supply pressure | MPa | 0.55 | |
| Max. running speed | M/min | 20 | |
| Total machine size | Length | mm | 9000 |
| Width | mm | 6000 | |
| Height | mm | 4200 | |
| Total machine weight | Kg | 4000 | |
The Max. running speed of this machine is 20M/min.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
We have online teaching videos of machine operations and controller. And our engineer is good at English, so he can teach you online.
