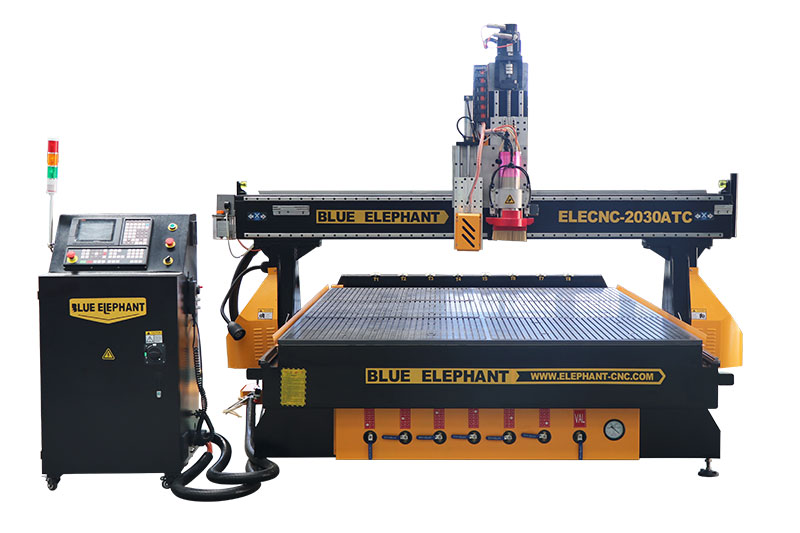

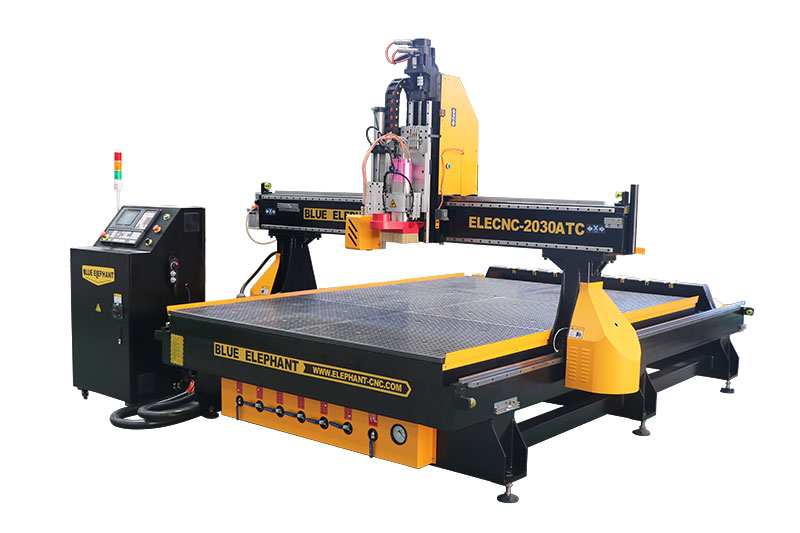

The linear ATC CNC router with EOT-3 oscillating knife combines the functions of a CNC router and an oscillating cutter. Automatic tool changer makes woodworking automatically, helping the man out of the manual operation of choosing and fixing tool and bits. And it also greatly saves much time. While the EOT-3 oscillating knife meets the cutting needs of soft materials like leather, carpet, carton, cardboard, rubber, etc.

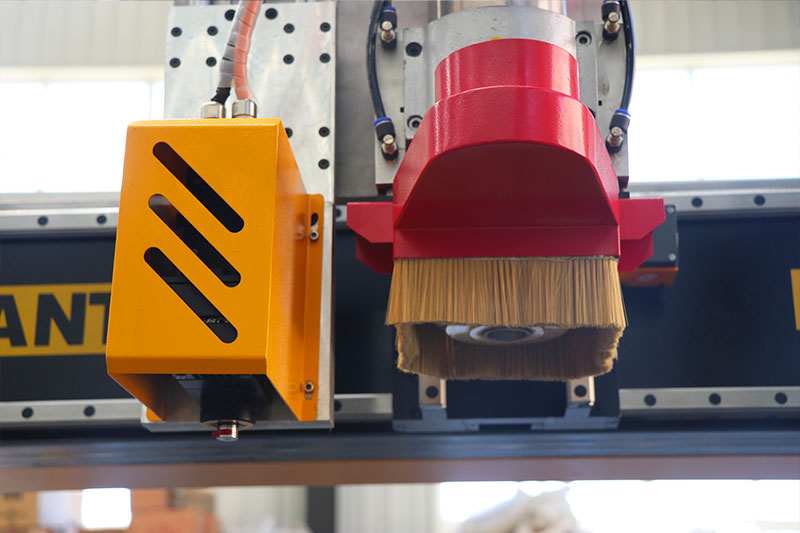

1. German EOT-3 oscillating knives cut soft materials such as leather, carton, and cloth as well as ordinary materials like wood, MDF, acrylic, etc.

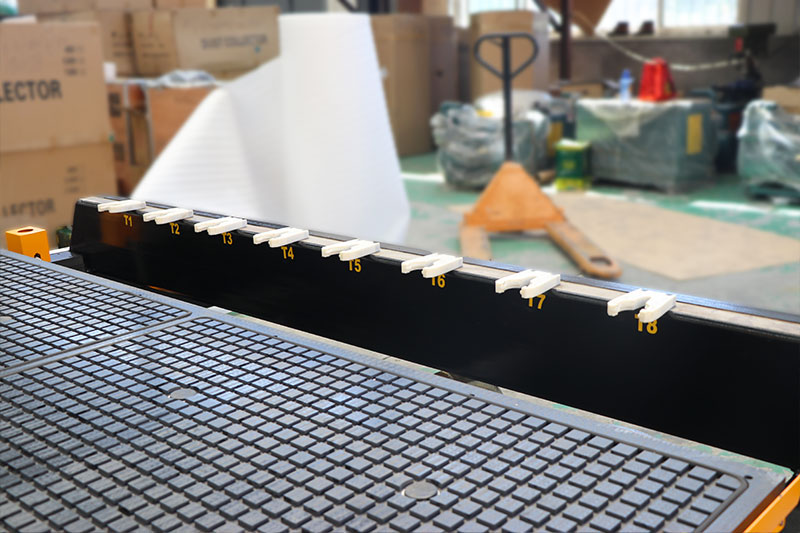

2. Linear auto tool changer with 8 tool magazines is cost-effective for automatic woodworking.
3. It adopts a vacuum table with stronger adsorption force for a better fix of materials.
4. A high-performance drive motor ensures high speed and accuracy.
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 500mm, option: 200mm, 300mm, 400mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Syntec |
| Driving system | 850w Leadshine AC servo driver and 850w AC servo motor, 4 sets. option: 850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X3, Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30,HSK F63), etc. |
Yes, of course. Our CNC router machine can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.
After using the CNC router, please clean the machine timely, especially the helical rack gear and square linear guide. Meanwhile, please pay attention to lubrication linear guide.
Yes, 415V is OK for this CNC router, since the working voltage is 380V±10%. For vacuum pump and dust collector, you need to work with 415V for steady working.
