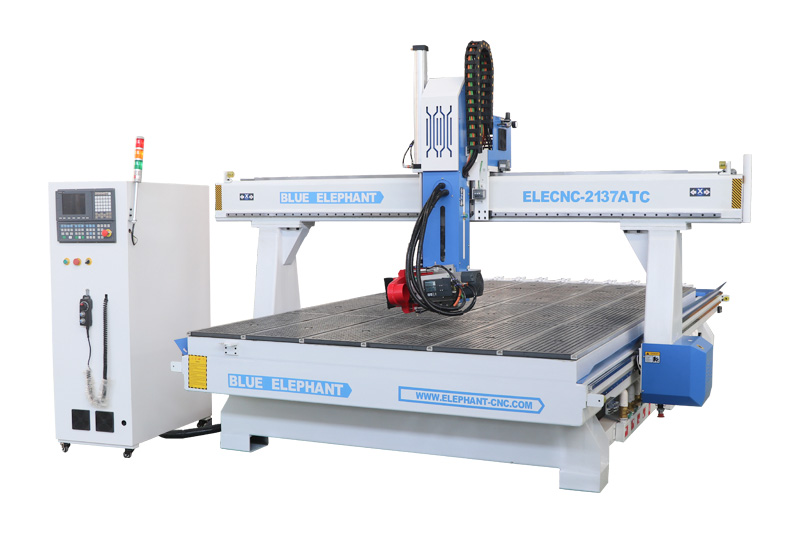

The ELECNC2137 4 Axis CNC router machine for 3D wood carving adopts a linear tool magazine of 20 bits holders, which automatically chooses right bits to meet different working requirements. The 4 axis CNC machine is mainly used for 2D and 3D carving of wood, MDF, polywood. It is good at making cabinets, doors, molds, wood arts, wood crafts, etc.

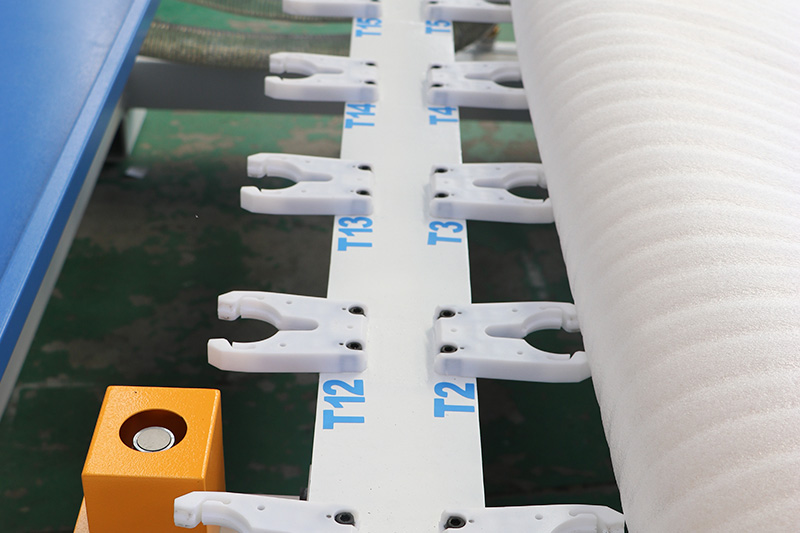

1. Linear auto tool changer, it holds 20 tools/bits for 4 axis CNC meeting the requirements of wood Carving and Cutting;

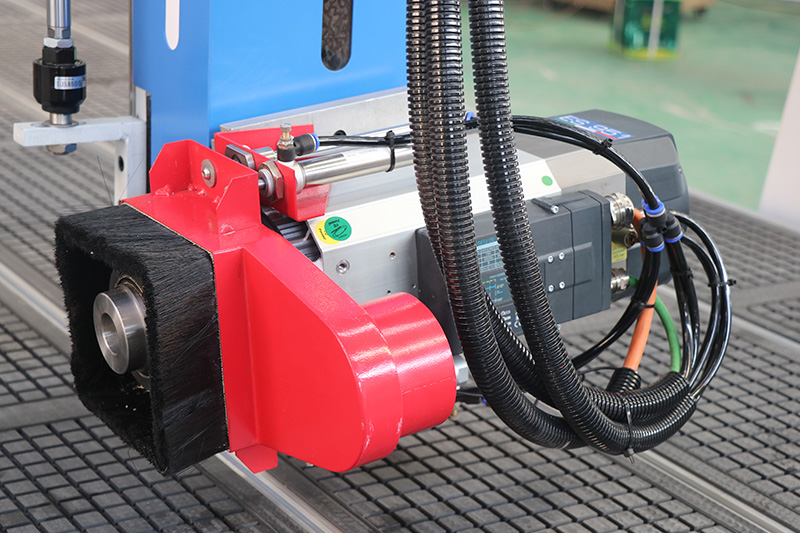

2. HSD air cooling ATC Spindle which can swing ±90 degrees is suitable for doing 3d processing, realizing multi-use woodworking;
3. Global brand CNC Kits: such as Japan YASKAWA servo motors, drivers and Japan Shimpo reducer, make the machine runs stable and is accurate;
| Model | ELECNC2137ATC-4A |
| X,Y axis travel | 2100x3700mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 400mm, option: 500mm, 600mm, etc |
| Spindle type | 9kwATC air cooling spindle, ER32 |
| Inverter type | 11kw |
| Rotary device | Option: rotary device |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ER32collet: φ4, φ6, 1/8, 1/2 |

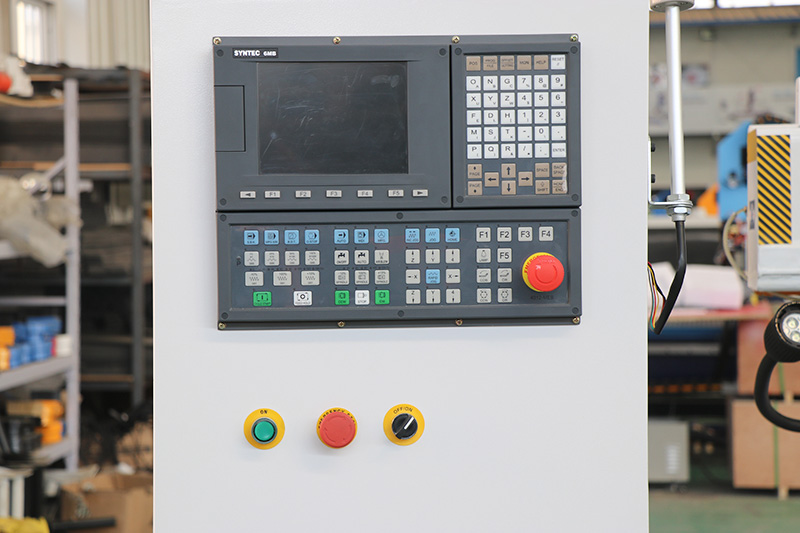

| Control system | Taiwan Syntec controller, option：Taiwan LNC |
| Driving system | Japan Yaskawa servo 850W Motor and 1000w driver Option: 1300W Leadshine servo motor and servo drivers |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table |
| Positioning cylinder | Optional: 7pieces(X3,Y4) |
| Linear guide | #25 Taiwa Linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

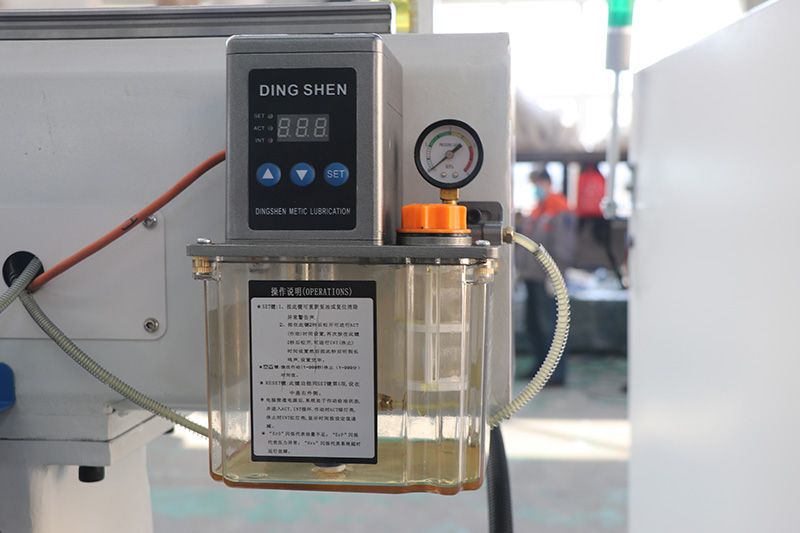

| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
We free supply Powermill/UG software with post processor. Post process has RTCP function, which means it has a cutting tool compensation setting.
3 axis: its spindle is vertical, which is used for make flat working and flat 3D engraving.
4 axis: its spindle can rotate 0-180 degree, which can be used for make 3D working for mould.
ISO VG32 or 5w30.
