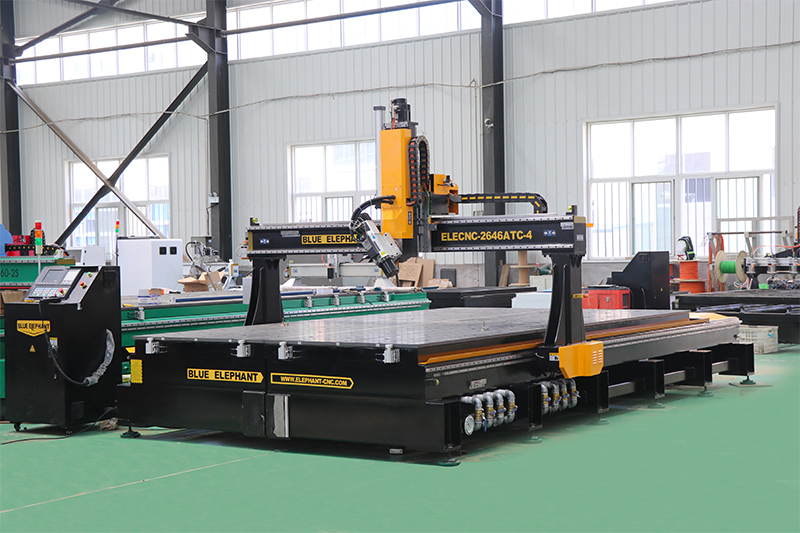

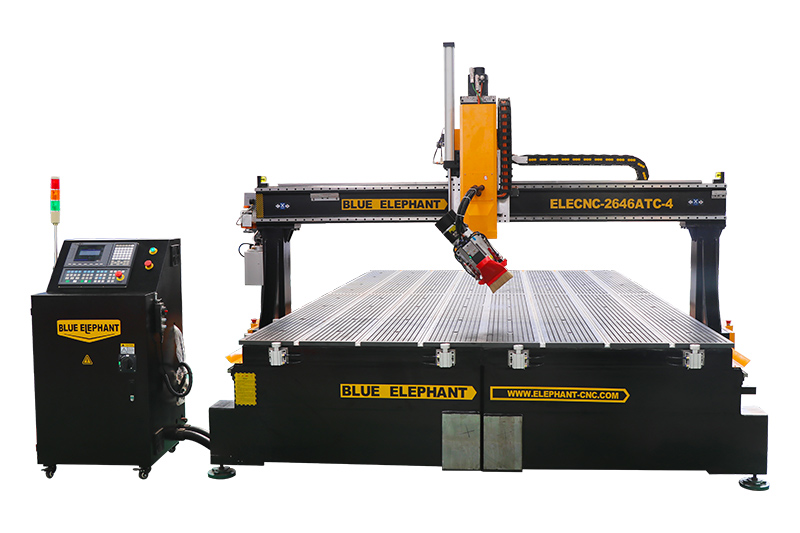

2646 4 axis atc cnc router

Parameters

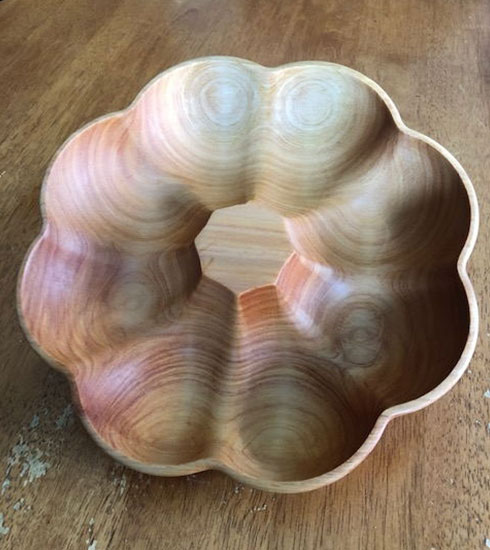

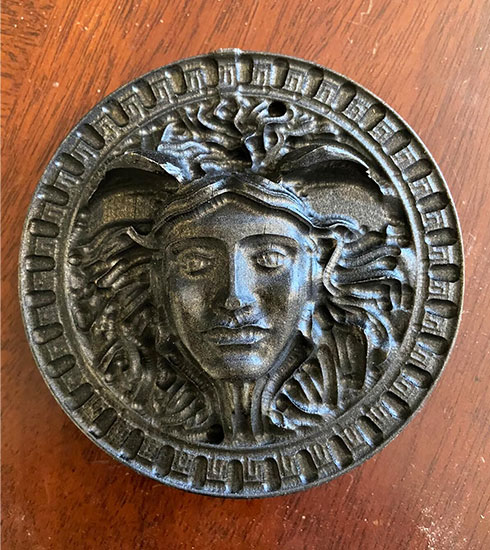

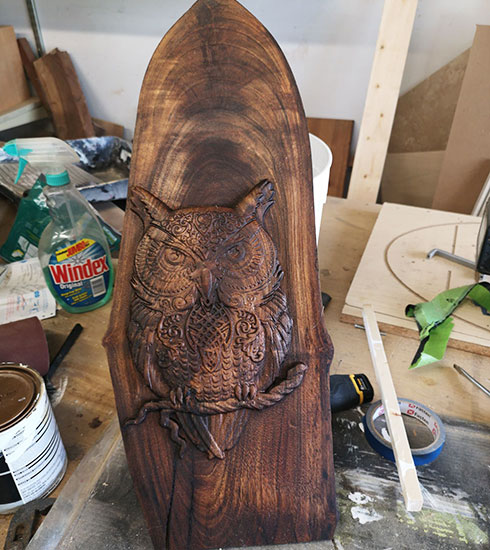

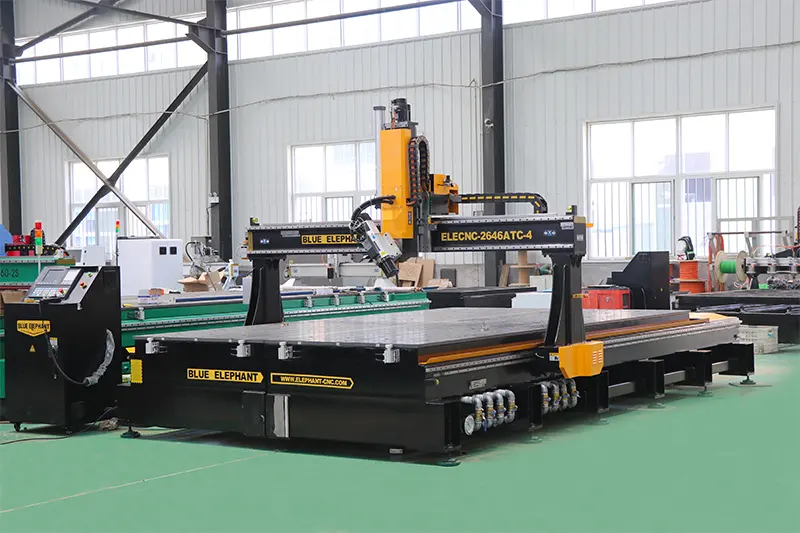

The 4-axis CNC router is a kind of engraving equipment specially designed for the processing of three-dimensional work pieces, such as portrait Buddha statues, Roman columns and so on. In addition, this engraving machine also has an automatic tool change function. It adopts linear automatic tool change, which has the advantages like fast tool change speed and high production efficiency. The vacuum suction table is used to save time and fix the work piece more firmly, which is suitable for the processing of wooden door processing and large plates. It is worth mentioning that the bed of this machine adopts the split design method, which is more convenient to transport on the basis of ensuring sufficient stability.

Parameters:

Serial Number B20190730M
Model ELECNC-2646ATC
Working area 2600x4600x500mm
Spindle ATC HQD air cooling spindle
Inverter Fuling inverter

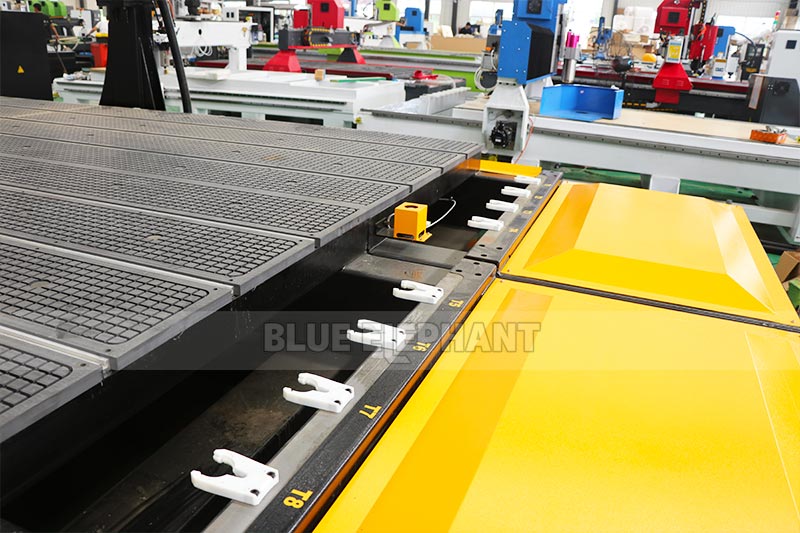

Tool magazine Linear Automatic tool change with 8 tools
Control system Taiwan SYNTEC 6MB control system
Motor and driver Leadshine servo motor and servo driver
Working Table T-slot and vacuum table
Lubrication system New type Automatic lubrication system
Voltage 380V, 3phase, 50HZ(customized)
Vacuum pump Water circulation vacuum pump
Cooling system Auto oil sprayer mist system
X,Y,Z Transmission X,Y-helical rack pinion,Z ball screw
Dust collector Double bags dust collector

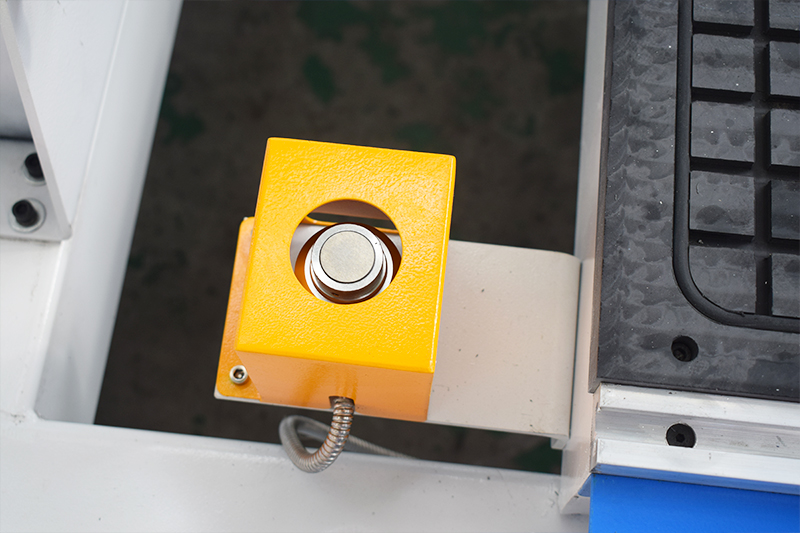

Tool sensor Automatic tool sensor

PS:All the working area and specifications can be customized according to your requests.

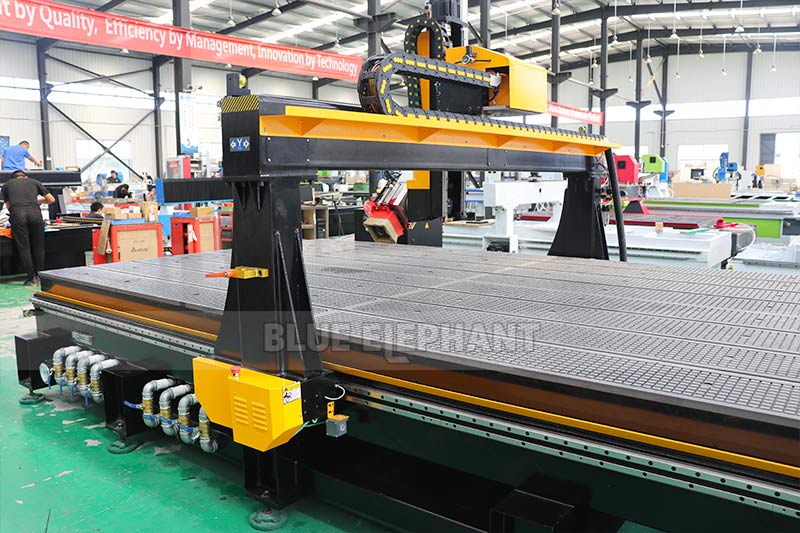

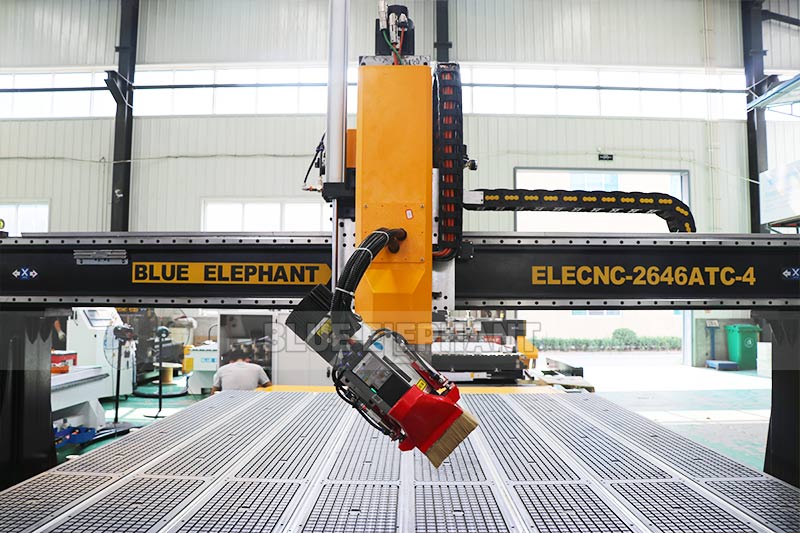

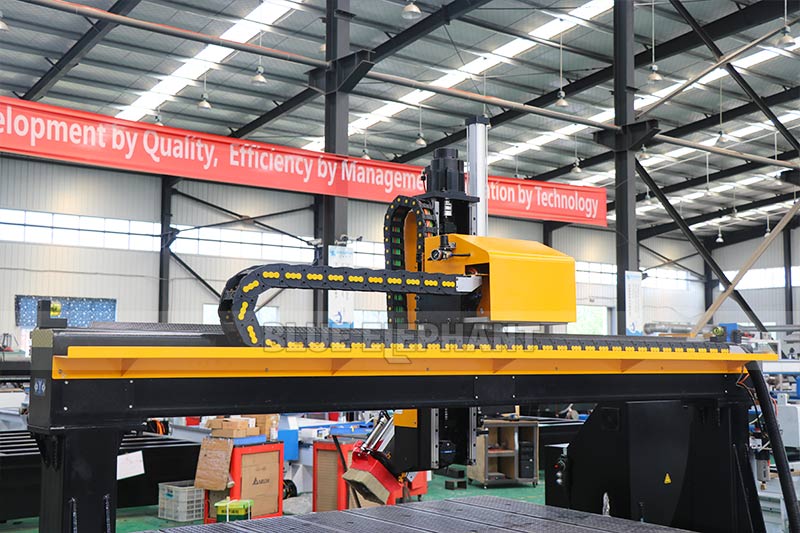

Close-up Pictures:

4 axis atc cnc router5

4 axis atc cnc router5
