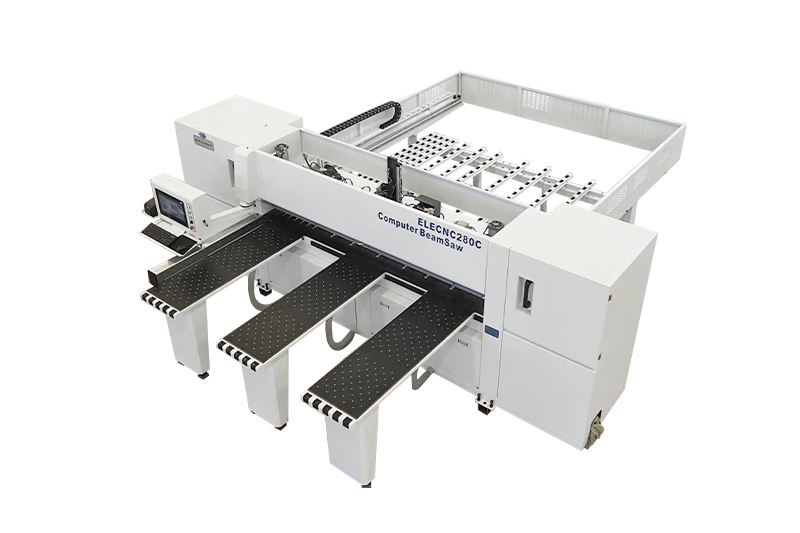

280 Computer Beam Saw with Groove Pulling Function

280 Computer Beam Saw with Groove Pulling Function

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC-280

Category : Panel Saw Machine

Price Range : $29000 to $31000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

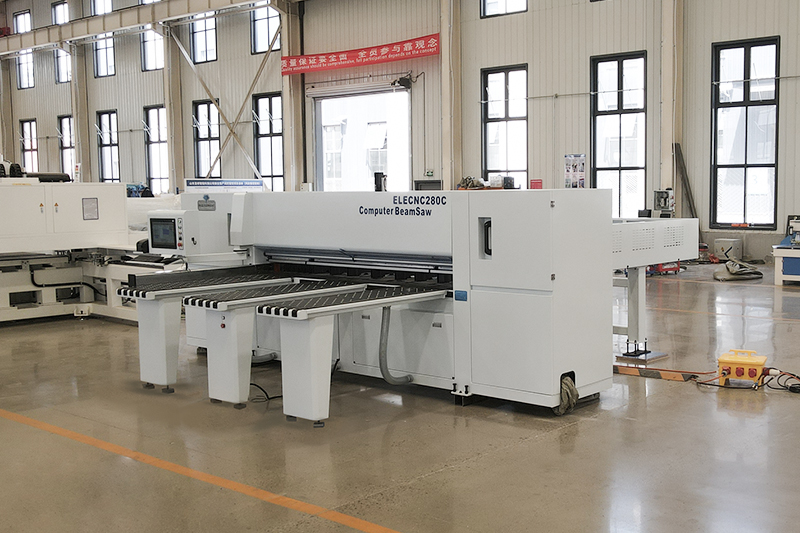

280 Computer CNC beam saw is a computer-controlled and intelligent wooden panel cutting machinery. It can cut multiple layers of wooden panels with the thickness up to 100mm at the same time with high efficiency and excellent accuracy. Besides, it adds the upgraded groove pulling function, which can make different depths of grooves.

Features

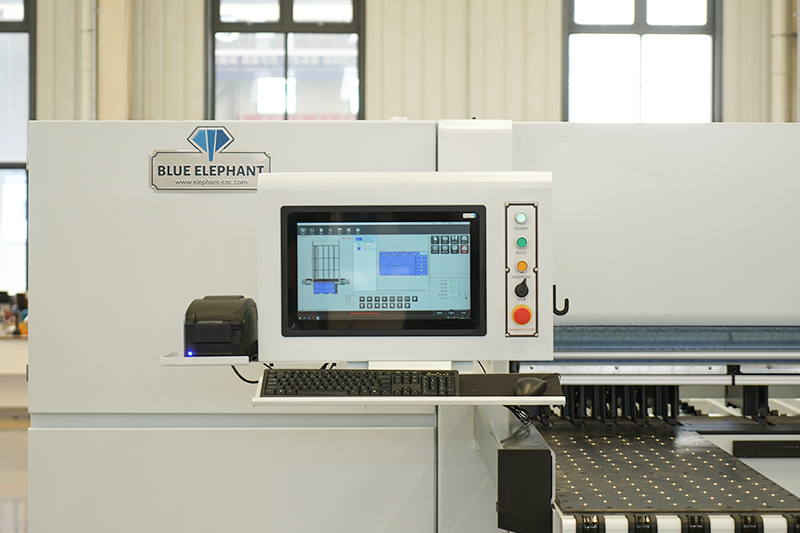

1. The control panel can be compatible and integrated with a variety of optimization software, barcode management software and automation software. .
2. With upgraded groove pulling function, it can make different depths of grooves.
3. Cutting speed is very fast. It can cut 3-5 boards at one time.

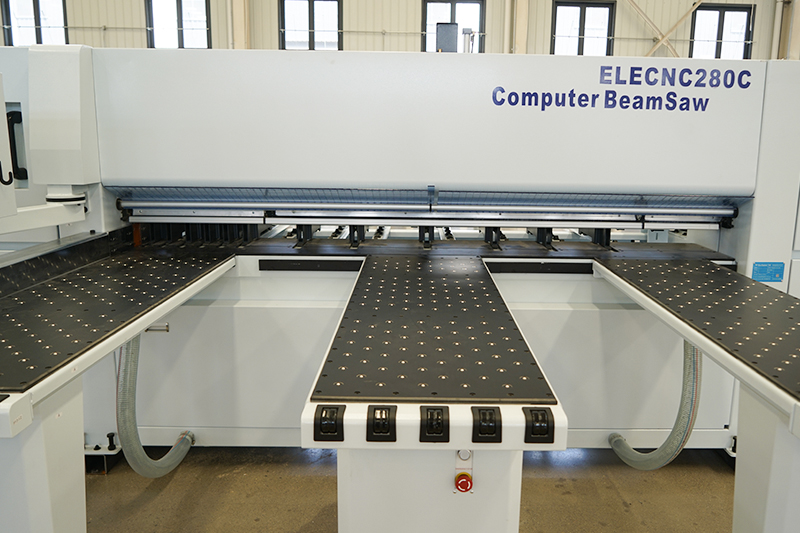

4. The panel saw adopts ball-type air-floating worktable to solve the problem of easy feeding.
5. High-performance pneumatic feeding clamp, more reliable clamping.

Parameters

Model	ELECNC-280
Main saw power	16.5KW
Vice saw power	2.2KW
Max. cutting length	2800mm
Max. cutting thickness	100mm
Max. Cutting width	2800mm
Min. cross-cutting board size	5mm
Min. vertical-cutting board size	40mm
Positioning method	automatic
Servo positioning accuracy	0.02mm
Sawing accuracy	±0.1mm
Main saw blade outer diameter	360-400mm
Main saw blade inner diameter	80mm
Main saw speed	4800r/min
Traction motor power(Rack drive)	1.8KW
Side motor	0.55KW
Cutting speed	0-100 m/min
Return speed	120 m/min
High pressure blower	4KW
Air pressure	0.6-0.8Mpa
Air flotation table specifications	1750*540mm
Overall size	5180x5950x1900mm
Total power	26.5KW
Display panel	19 inches

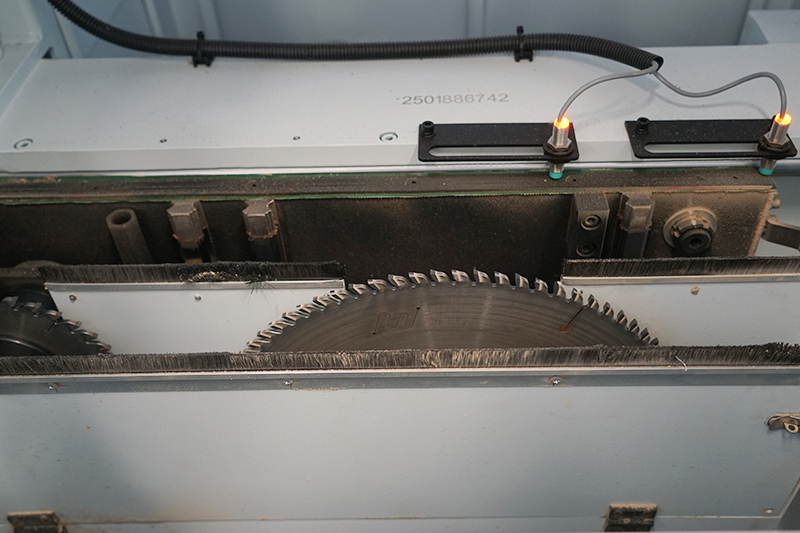

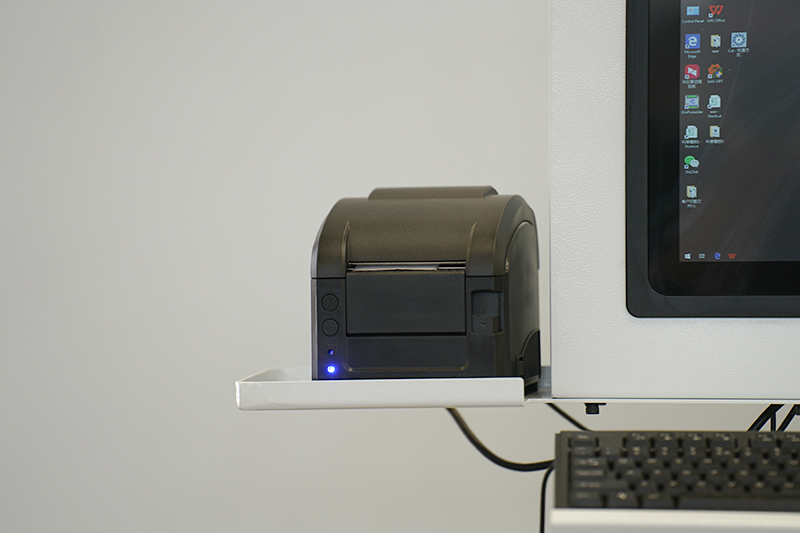

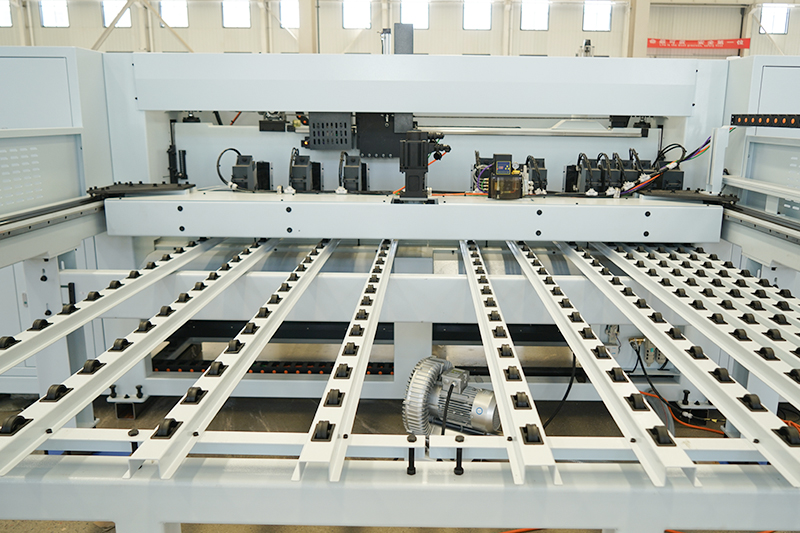

Computer Beam Saw Optional Parts

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.

Review

All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.

I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.

We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.

So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.
