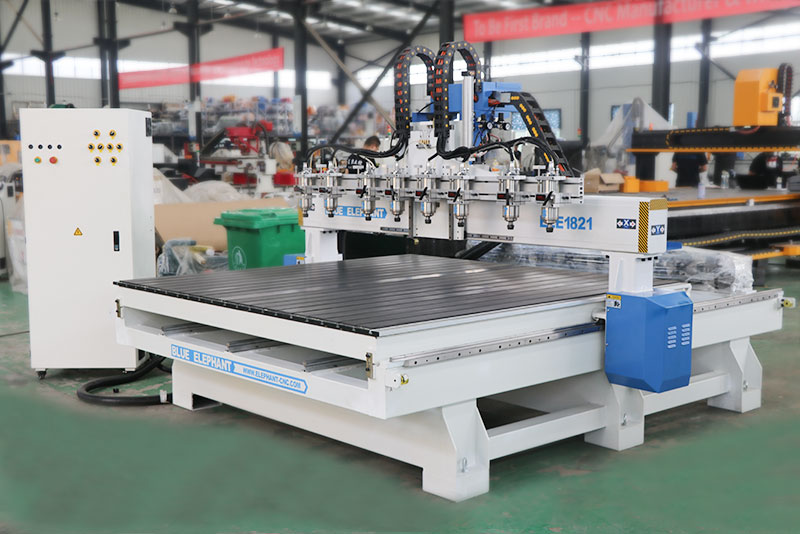

Distinct from other multi spindle woodworking machines, this multi spindle CNC machine is equipped with 8 spindles. The amount of spindles can be added to 8 sets or more. Multi-spindle can work simultaneously, which can greatly improve the efficiency of working.
1. Manufactured with removable T-slot table and rotary device, it can realize multi functions to process 3D or 4D figures.
2. Customer can choose to process different kinds of materials with them or not.
3. Taking 2036 Multi Spindles CNC Router Machine and 0809 Multi-head 4 axis CNC Router for instance, the working area can be designed to larger or smaller.
4. All the specifications of this rotary CNC router machine can be made following your actual requirements.
| Model | ELECNC1821 |
| X,Y axis travel | 1820*2100mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 8 pieces 2.2kw water cooling spindle |
| Inverter type | 8 pieces 2.2kw fuling inverter |
| Tool holder with collet | ER20 collet |
| Control system | Ncstudio DSP B18, option: Taiwan SYNTEC /LNC |

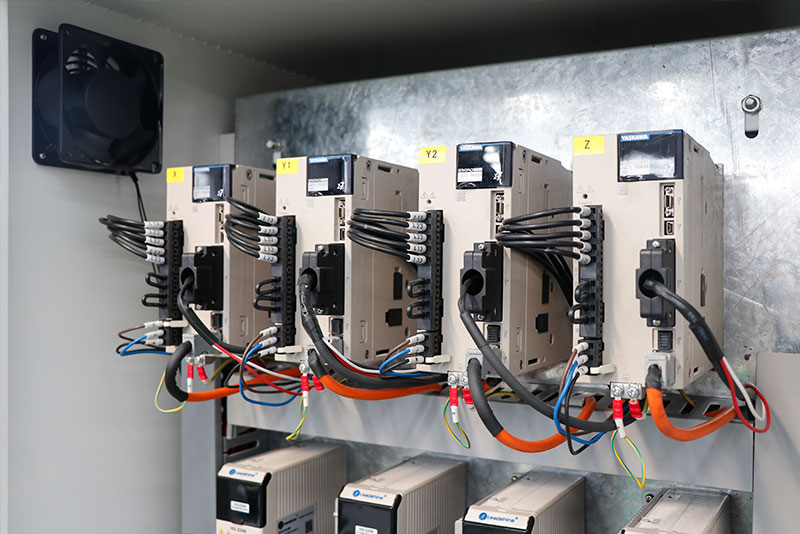

| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor. option: Taiwan SYNTEC, Leadshine servo |
| Reducer | Japan SHIMPO reducer |

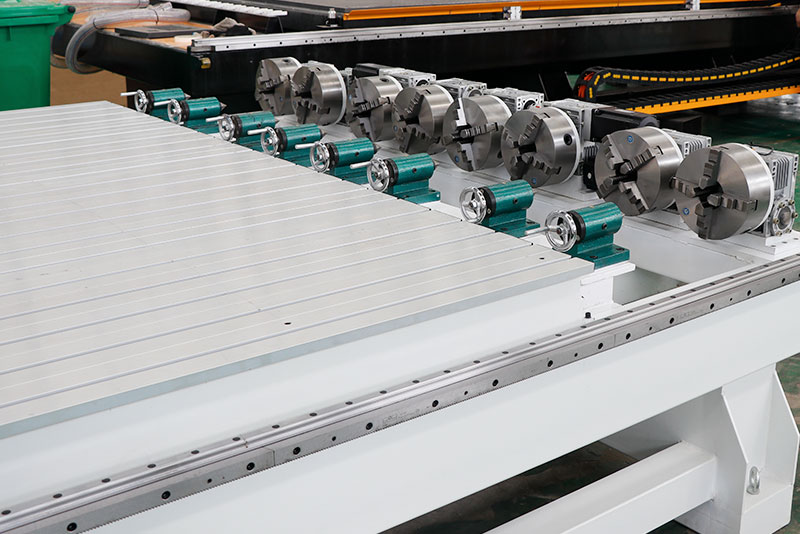

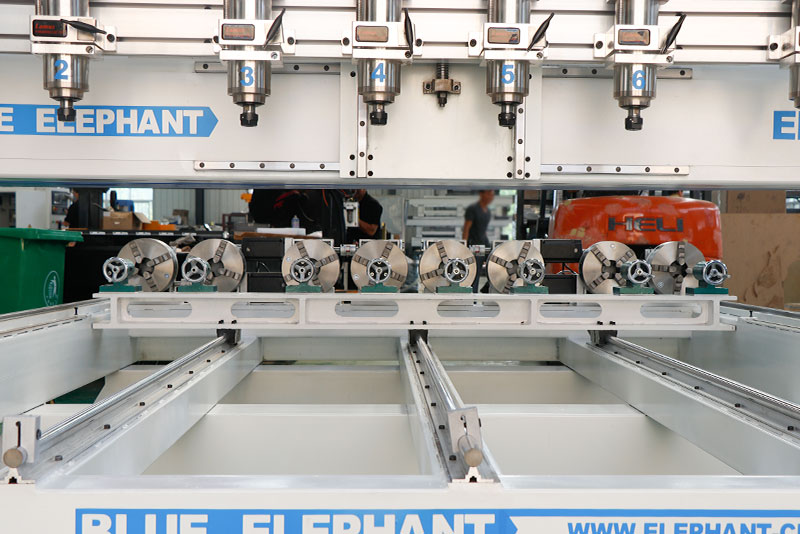

| Rotary device | 8 pieces 200mm diameter rotary devices |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable aluminum T-slot work table |
| Positioning cylinder | Without |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | No need |
| Protection device | Light curtain |
| Spindle type | Air cooling spindle |
Yes, of course. For CNC router machine, you can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.
After use machine, please clean machine, especially for helical rack gear and square linear guide. Please pay attention to lubrication linear guide.
ISO VG32 or 5w30
