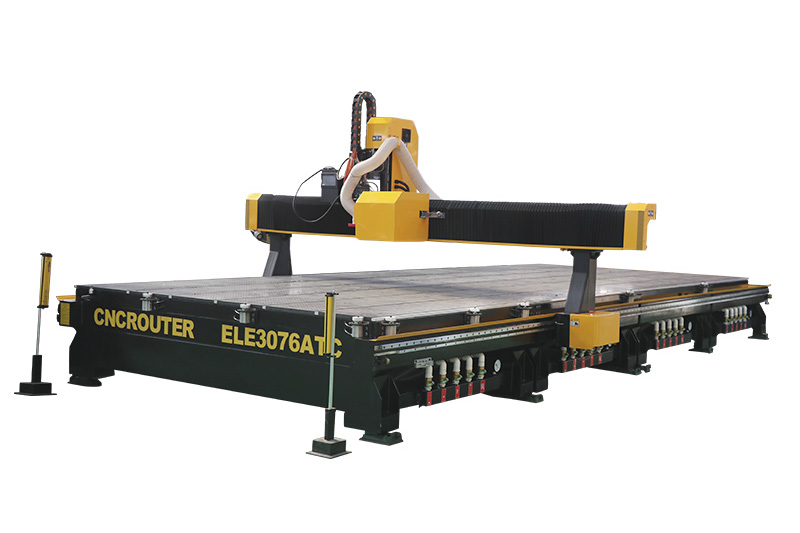

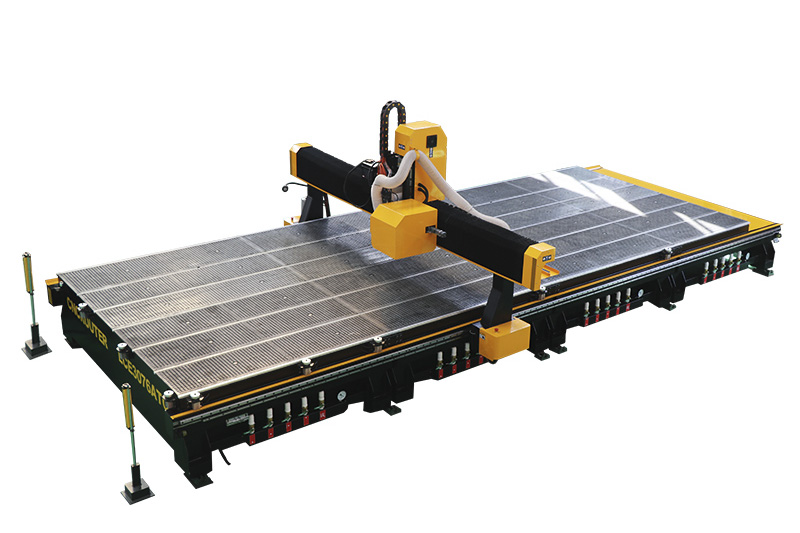

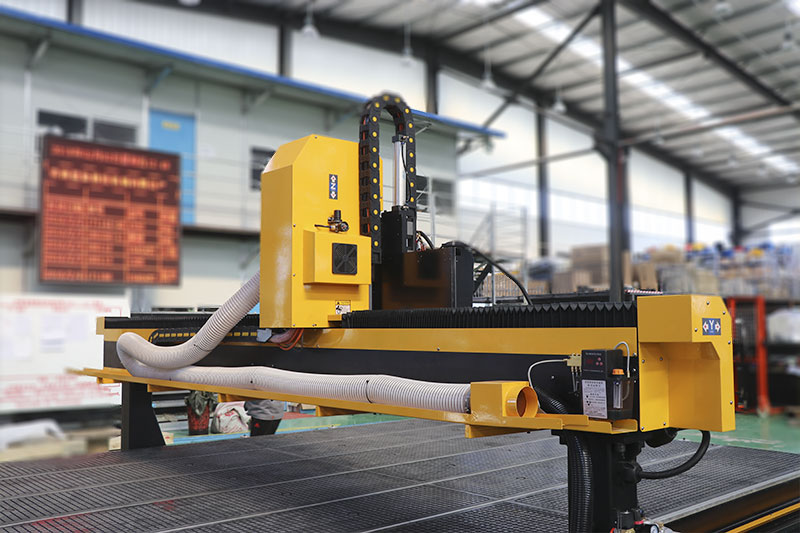

Large format 3076 ATC CNC router has a worktable of 3000*7600mm, which can fix large workpiece or more than one pieces on the table. And it is also good at heavy-duty plate processing and long term woodworking. Because it is equipped with an auto tool changer without man power for tool changing.

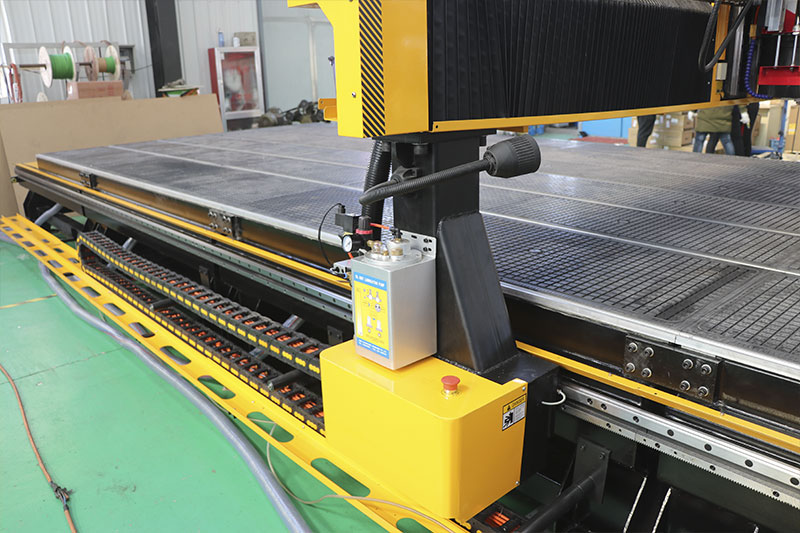

1. German WMH brand Rack and Pinion, the transmission system of the machine is more stable.

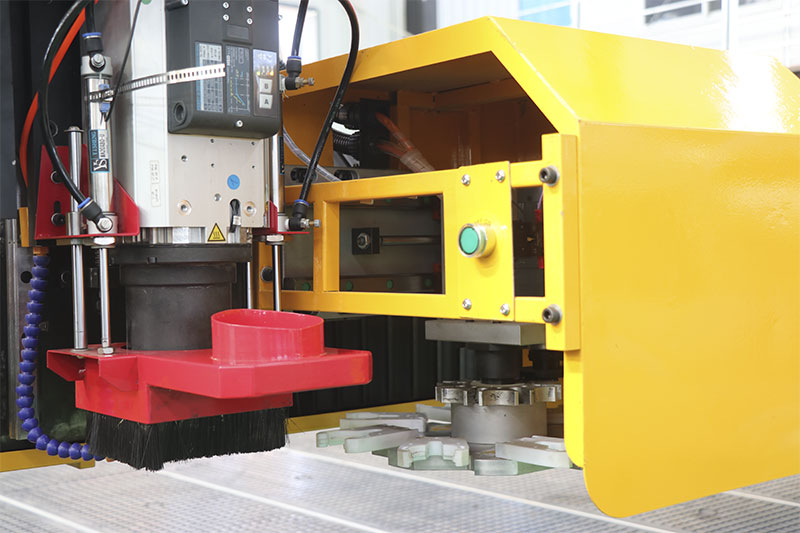

2. HSD air cooling spindle and YASKAWA servo motor, and the speed of spindle can reach 24000RPM.
3. Designed with spindle dust cover, the dust collector is optional for keeping the working place cleaner.
4. Strong Structure of 10-15mm industrial class square tube, important for the accuracy of engraving or carving work.
| Model | ELECNC3076ATC |
| X,Y axis travel | 3000*7600mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 10 pieces (X4,Y6) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

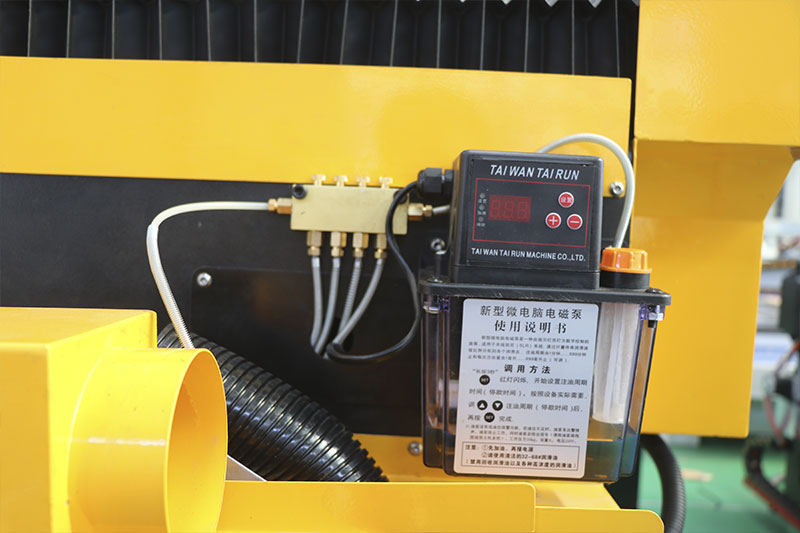

| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Z-axis will use Taiwan TBI ball screw. Dimension of the ballscrew is 2505.
The machine uses a 1KW Syntec servo motor and 1.5M rack, and Japan shimpo reducer.
Japan shimpo reducer has a reduction ratio of 1:8, so
2000*(1/8)*30*1.5*COS19.5*3.14=33M/MIN(Rated speed)
4000*(1/8)*30*1.5*COS19.5*3.14=66M/MIN(Maximum speed)
Yes, after add the drilling head on this machine, you can make holes fast. We have several drilling head types for you to choose from.
