This is an entry-level fully automatic Woodworking edge banding machine for sale. Its basic fucntions include gluing, edge banding, end cutting, fine trimming, scraping and polishing. It is very suitable for the production and use of large and medium-sized furniture, cabinets and other panel furniture.
1. With fully automatic operations, it is easy to operate and has high accuracy.
2. Multiple functions of gluing, banding, end cutting, fine trimming, scraping, and polishing.

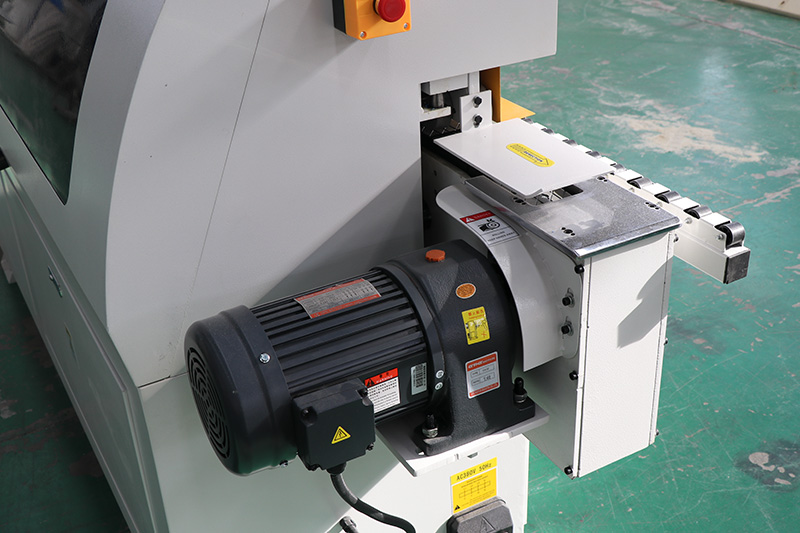

3. The fine trimming unit is driven by a high-speed motor, ensuring high-quality trimming.
4. Its fully enclosed safety shield cover is safer for the operator, and it adopts a transparent acrylic cover, for inspection of working on time.
| Model | E-50 |
| Feed Speed | 13-18m/min |
| Edge Banding Thickness | 0.4-3mm |
| Edge Banding Width | 12-45mm |
| Plate Thickness | 10-40mm |
| Working Pressure | 0.6MPa |
| Total Power | 7kW |
| Machine Size | 3000*750*1360mm |
| Workpiece shape | Straight |
| Working Voltage | 220V, 3ph, 60hz |
We often use PVC material as the edge band.
Any edge band with the thickness between 0.4mm to 3mm can be used to band edges.
No. This machine is not. But we provide other edge banding machines with profile tracking function, which can round the corners. Or you can also choose a wood panel rounding machine to save costs.
