5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ES3-3015
Category : Stone CNC Machining Center
Price Range : $24,000 to $40,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

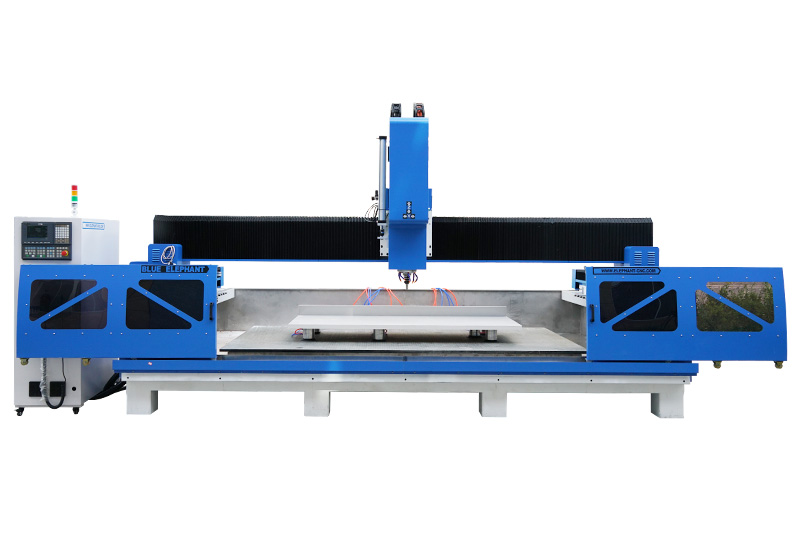

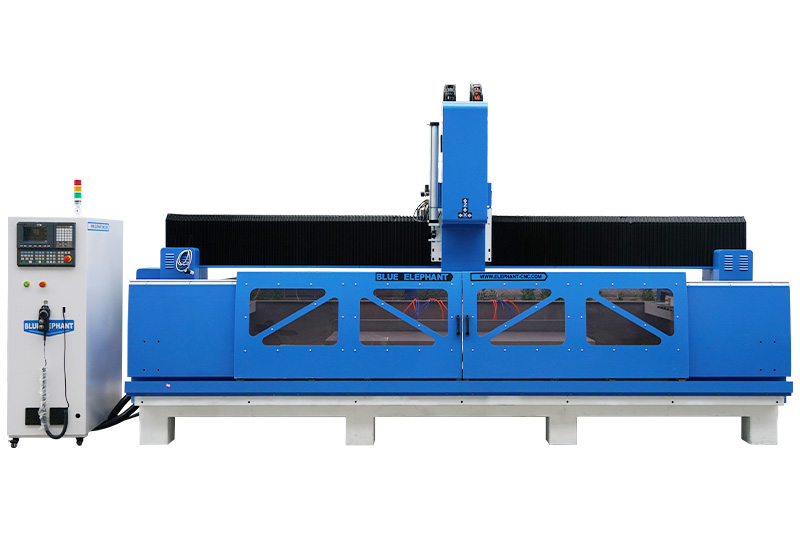

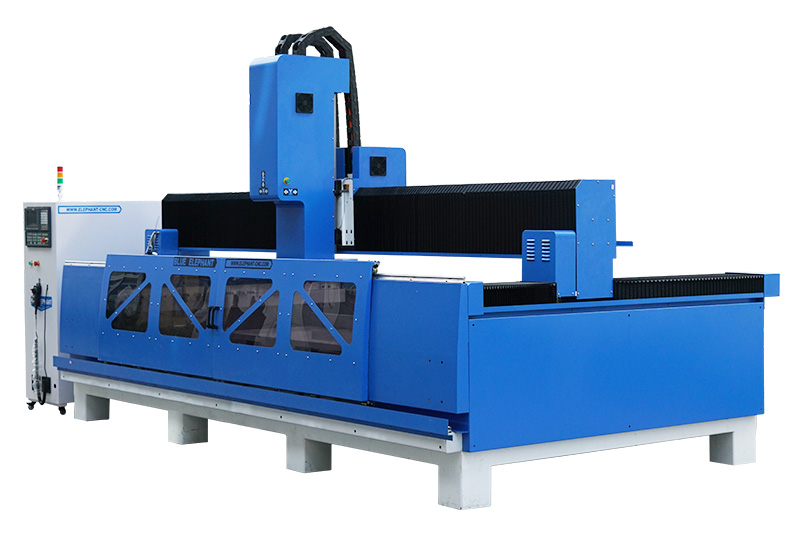

3015 automatic stone CNC machining center can process stone kitchen sinks, stone countertops, basins, etc. It integrates edging, polishing, drilling, milling, and special-shaped cutting. One-key intelligent completion of conventional blanking, 45° bevel cutting, multi-angle arbitrary cutting, etc.
1. High degree of automation. The entire process of grinding, polishing, drilling, milling and other actions in accordance with preset instructions. So it achieve seamless intelligent processing.
2. Widely used. It can be widely used in the processing of kitchen countertops, bathroom countertops, bar island countertops, coffee table tops, stone tabletops, etc.
3. Intelligent environmental protection. Automatic environmental protection processing in the whole process; build a dust-free workshop and refuse pneumoconiosis.
4. Simple and easy operation. Ordinary workers can get started in one working day, which is more worry-free.
| Model | ES3-3015 |
| X,Y axis travel | 3000*1500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 500mm, option: 400mm, etc |

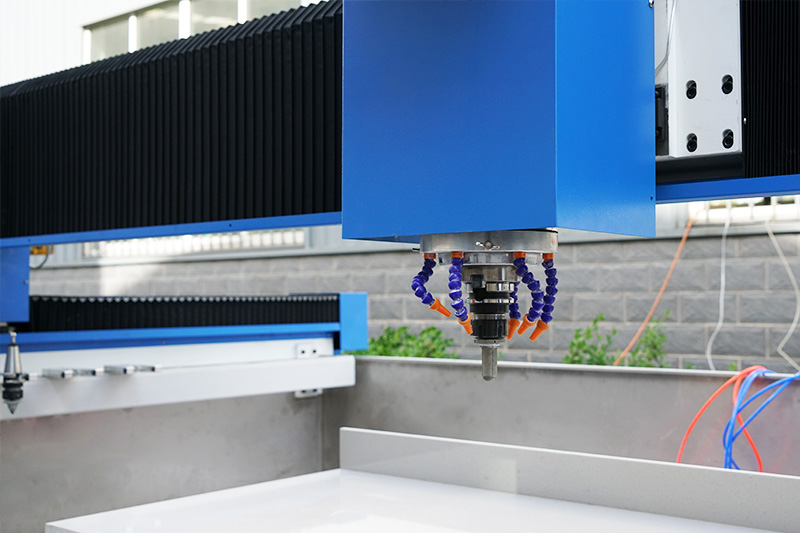

| Spindle type | Kenturn 7.5kw water cooling ATC spindle |
| Inverter type | 7.5kw inverter |
| Tool magazine | 12pcs tool magazines |
| Tool holder with collet | 12pcs BT40 |
| Control system | Syntec 60WE |
| Driving system | 1KW YASKAWA servo driver and motor |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |

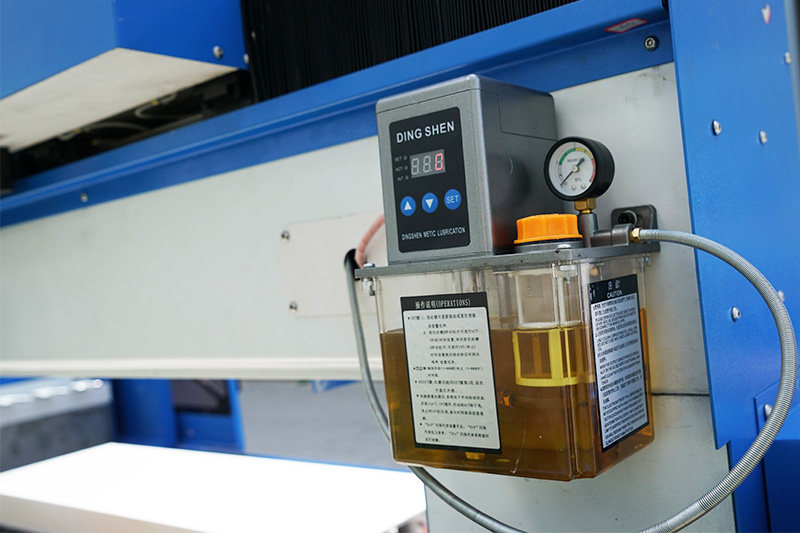

| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-30m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | More than 0.6mpa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
| Working area | 3000*1500*300mm |
| Spindle | KENTURN spindle |
| Inverter | Taiwan Fuling inverter |
| Tool magazine | 12 linear tool changer with 12 BT 30 tool holder |
| Motor and driver | Leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Tool sensor | Automatic tool sensor |
| Limit switch | OMRON limit switch |
A stone machining center is designed for the deep processing of quartz, marble, granite, slate, and other artificial stones. It can cut and drill holes, engrave letters and patterns, and mill and grind the stone surfaces. It is widely used to make kitchen countertops, bathroom washbasins, bar counters, coffee tables, stone statues and sculptures, tombstones and gravestones, and other artificial stone crafts and artworks.
Quartz stone, marble, etc. It is popular in Kitchen countertops, bathroom countertops, bar counters, etc.
There have several suckers on the table, connecting them with the vacuum pump. Then, the material is fixed.
It’s according to your requirements. For this machine, it has 12pcs tool magazine, if you need more, we can customize for you.
